ETC-1314-64

STACKING PRISONER TRAY SERVER
13" X 14" Insulated Compartment Trays, Double Deep
Double Deep - Non-Heated / Non-Insulated Correctional "ETC-1314" Series

ETC-1314-64 Spec Sheet

ETC-1314-64 SPEC SHEET

Correctional heated transport and holding carts are designed to meet demanding environments with security features to protect staff members and inmates

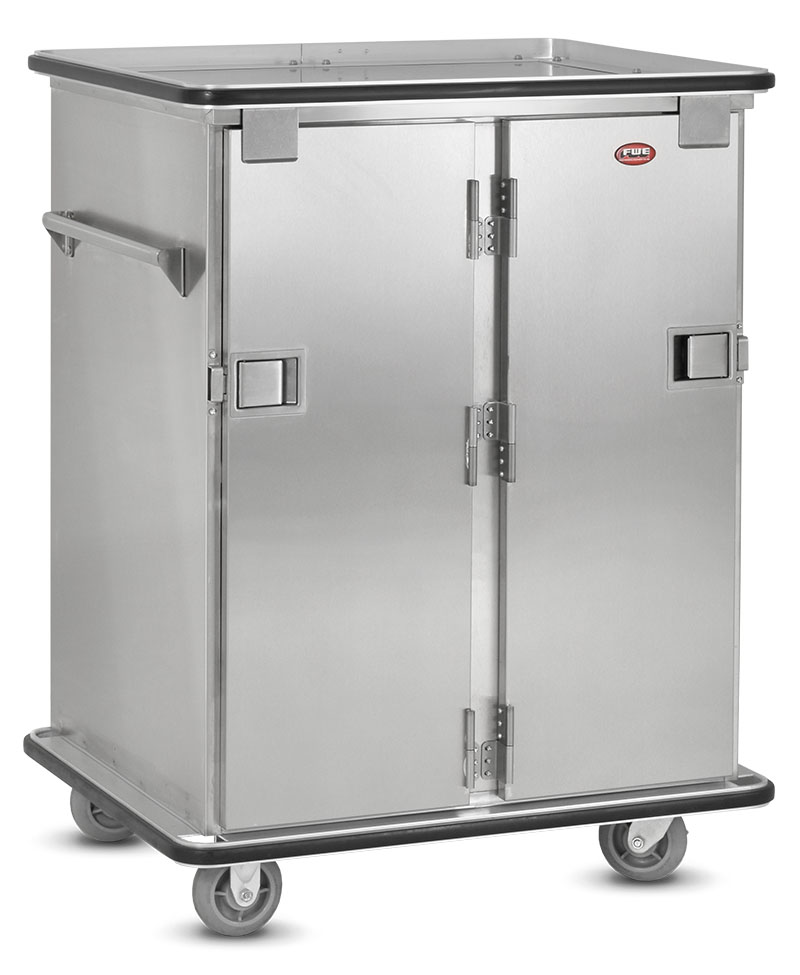

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

MODEL SPECIFICATIONS

Model Height:
Model Width:
Model Depth:
Shipping Weight:
Volts:
Watts:
Amps:
3 Phase:
Adjustable Slides:
Standard # of Slides:
Standard # of Shelves:
Standard Spacing:

DESCRIPTION

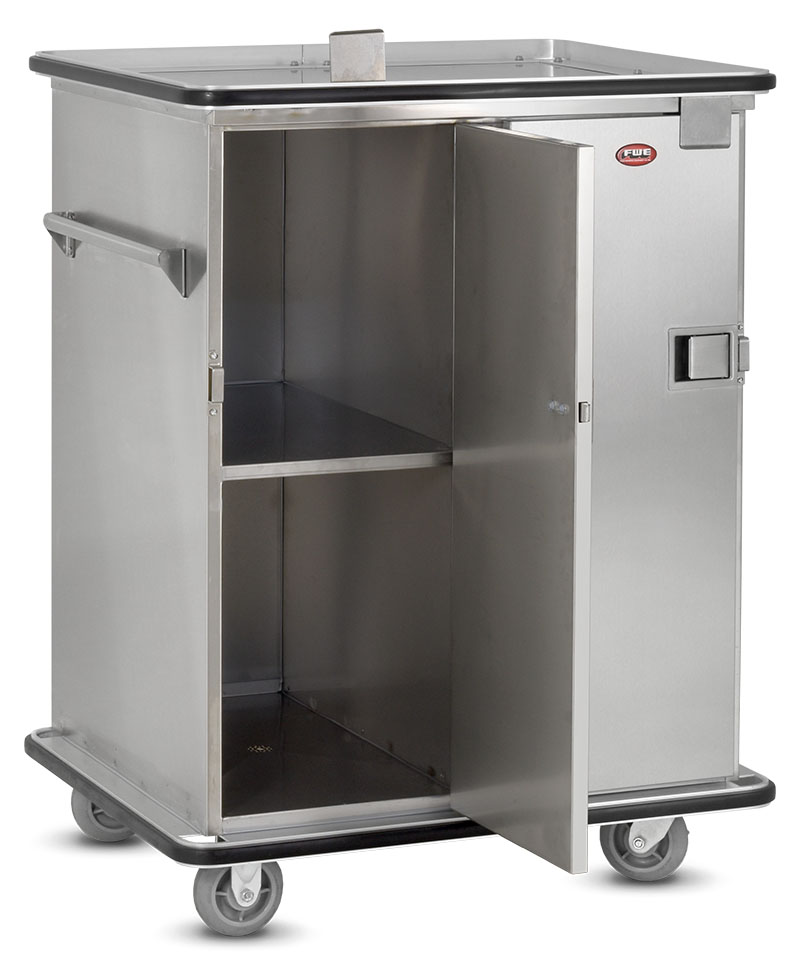

ETC-1314-64, non heated prisoner tray delivery cabinet. Provided with one center shelf. Designed to accommodate 13" x 14" insulated compartment trays.

FEATURES

Agency Approvals
NSF - NSF International (formerly known as the National Sanitation Foundation) is an independent, non-profit organization that certifies food service equipment and ensures it is designed and constructed in a way that promotes food safety. FWE products that meet these standards bear the NSF mark.
You may also see a designation that a product meets NSF/ANSI, which adds rules from the American National Standards Institute to the testing. ANSI works closely with NSF to develop its food safety standards and complete testing to those.
Bumpers
Full Bumper - Heavy duty full perimeter bumper extends beyond doors and handles for added protection. The bumper is mounted to the base frame for added durability - the bumper is not used as the base frame. In this way, the bumper absorbs all the shock in transport, protecting the integrity of the construction.
Top Bumper - Top mounted heavy duty full perimeter bumper extends beyond doors and handles for added protection during transport.
Caster
5" Casters - 5" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
Mobile
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.

Available in 5", 6" and 8" diameters.
Construction
Stainless Steel / Non Insulated - Constructed of stainless steel, with welded base frame for added strength and durability
Door Count
2 Doors
Door Hinge
Stainless Steel Hinges - Stainless Steel Hinges
Door Latch
Paddle Door Latch - Recessed paddle style door latch
Padlocking Transport Latch - Cabinet mounted latch keeps door secure during transport, increased security with padlocking capabilities
Doors
Side by Side Doors - Flush mounted, stainless steel insulated french style doors help maintain cabinet temperature during peak serving times
Gasketless
Extra
Correctional Warranty - One year parts, six months labor limited warranty
Pitched Center Drain - Pitched center drain
Tamper Resistant Fasteners - Tamper resistant fasteners throughout
Security Packages - HDM security packages can be added to select cabinets to help increase the security and durability of your unit
Handles
Tubular Push Handles - Heavy duty stainless steel push pull handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands
Heat System
Non Heated - Non Heated
Hinging
Hinges in the Center - Center hinging allows door to lie flush when open
Slides and Shelves
Stacking Applications - Open cavity stacking applications

OPTIONS & ACCESSORIES

Caster
Larger & Upgraded Casters - Larger Casters
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Door Latch
Key Locking Door Latch - Heavy duty door latch with key locking capabilities
Magnetic Door Latch - Heavy duty full grip magnetic door latch
SaniGuard Door Handle - Standard recessed Antimicrobial Sani guard door handle - detains illness causing pathogens
Extra
Cold Plate Cartridge - Keep cold foods cold during transport with FWE's heavy duty cold plate cartridge
Grounding Strap - Grounding strap
Beverage Urn Angles - Beverage Urn Angles (available on select models)
Drain Plug - Drain Plug
Menu Card Holder - Door mounted frame to display menu card
Dry Erase Board - Door mounted dry erase board for menu changes or cabinet identification
Graphic Wrap - Use your cabinet as a bill board! Catch the eye of your customer with your custom logo, message, or menu item images with a graphic wrap.
Hinging
Alternate Door Swing Configurations - Alternate door swing configurations are available for multi door cabinets

SHORT FORM SPEC

Specified unit shall be FWE Model No. ETC-1314-64, Stacking Prisoner Tray Server.

CONSTRUCTION. Heliarc welded, single unit construction of 18 gauge stainless steel. Welded tubular base frame shall be 1 square, heavy gauge stainless steel tubing, with 10 gauge stainless steel reinforcing plates at corners and fittings.

HANDLES. Heavy-duty, 1" diameter tubular stainless steel push handles, mounted on each end of the unit.

SUPER-DUTY BUMPER. Solid, 1.5" high, wraparound aluminum channel, bolted to frame, with snap-in, non-marking replaceable vinyl cushion. Full perimeter bumper extends beyond doors, handles, etc., for added protection. Shall be continuous, with corner cutouts to facilitate cleaning. Super-Duty Bumper shall be made of thicker 0.25" aluminum and be wider at 4.875"

DOORS AND LATCHES. Each stainless steel, insulated door shall have three (3) heavy-duty, 12 gauge stainless steel hinges. Each door
shall be equipped with a positive closing, flush-in-door, stainless steel paddle latch. The hinge and latch mountings are reinforced with stainless steel backing plates. Each door shall be provided with padlock compatible transport/security latch (padlock not included).

CASTERS. Maintenance free, Multi-Terrain casters with sealed precision ball bearing, in a configuration of two (2) rigid and four (4) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded-in-place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

PITCHED DRAIN. Pitched center drain with plug to facilitate thorough cleaning of interior. Models shall have one (1) drain per door.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provide with the following accessories:

LITERATURE

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
