HHS-IR-2-1220-4

INFRARED HEATED HOLDING SHELVES
For 12" x 20", Fractional Pans, and GN
INFRARED "HHS-IR" SERIES

HHS-IR-2-1220-4 Spec Sheet

Maximize Hold Times of Fried, Crispy, and Wrapped Products for Batch Cooking and Staging

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

MODEL SPECIFICATIONS

Model Height:
Model Width:
Model Depth:
Shipping Weight:
Volts:
Watts:
Amps:
3 Phase:
Adjustable Slides:
Standard # of Slides:
Standard # of Shelves:
Standard Spacing:

DESCRIPTION

FWE HHS-IR Series Infrared Heated Holding Shelves

The FWE HHS-IR Series Infrared Heated Holding Shelves are designed to hold fried and crispy food products while helping operators maintain texture, temperature, and quality for extended periods. Engineered for high-volume foodservice, quick-service restaurants, and convenience operations, this solution combines infrared heat technology with durable stainless steel construction to improve food quality, operational efficiency, and overall performance.

Product Overview

Built for demanding foodservice environments, the HHS-IR Series helps operators hold fried and crispy products at ideal serving conditions without sacrificing texture. By using infrared heat instead of traditional convection methods, this solution extends hold times and supports batch cooking prior to peak service periods. It is ideal for staging fried items while maintaining quality and consistency. [1](https://hatcocorp-my.sharepoint.com/personal/vcoddington_fweco_net/Documents/Microsoft%20Copilot%20Chat%20Files/s04-03000-hhs-ir.pdf)

Key Features & Benefits

Infrared Heating Technology - Extends holding time of fried and crispy foods up to one hour while preserving texture and quality.
No Moving Parts Design - Eliminates fans and filters, reducing maintenance, downtime, and grease buildup issues.
Adjustable Heat Intensity Control - Dial control allows operators to fine-tune infrared heat levels from low to high.
Batch Cooking Capability - Enables preparation ahead of rush periods while maintaining ideal serving conditions.
Standard Hotel Pan Compatibility - Uses 12" x 20" full-size and fractional pans as catch basins for versatility and convenience.
Even Heat Distribution - Longwave infrared elements provide consistent heating without hot or cold spots.
Easy Cleaning Design - Open, pan-based system simplifies cleaning and maintenance.

Construction & Durability

Constructed with heliarc welded stainless steel, the HHS-IR Series is built for durability and sanitation in high-demand kitchen environments. Features such as high-density insulation, long-lasting infrared elements, and a simplified mechanical design ensure reliable performance with minimal upkeep.

Performance Specifications

Infrared heat range: adjustable from low to high intensity
Compatible with 12" x 20" full-size and fractional hotel pans
Longwave infrared heating elements above each shelf
Available in multiple shelf configurations and capacities
120V, 208V, and 220-240V electrical options
Durable, no-fan design for low maintenance
Two-year limited warranty

Ideal Applications

Quick-service restaurants (fried foods, chicken, fries)
Convenience stores and grab-and-go operations
School and institutional cafeterias
High-volume batch cooking and staging environments

Why FWE?

For decades, FWE has been trusted by foodservice operators for equipment that delivers exceptional durability, performance, and reliability. The HHS-IR Series continues that tradition by providing a solution designed to preserve food texture, reduce waste, and streamline high-volume service while maintaining consistent results.

HHS-IR-2-1220-4 - Infrared Heated Holding Shelf (2-Shelf, Double Pan)
Increase capacity without expanding your footprint with the HHS-IR-2-1220-4. This 2-shelf model holds two full-size pans (12" x 20") per shelf, ideal for high-volume operations. Longwave infrared elements preserve the crispness and moisture of fried and coated foods, while the all-stainless construction and fanless, low-maintenance design provide long-term durability. A great fit for batch cooking lines and grab-and-go staging areas.

FEATURES

Agency Approvals
CUL - C-UL mark indicates a product meets the CSA testing standards for Canada.
C-UL-US mark indicates a product meets the UL and CSA testing standards for both the United States and Canada.
UL - The UL mark, which now serves customers in more than 100 countries, has become the authority on product safety. Its engineers test for things like soundness of design, safety of electrical components, and structural integrity of products for which UL listing is sought.
If you think of NSF International classification as protection for your customers, then the mark of Underwriters Laboratories (UL) indicates safety for those who work in your commercial kitchen. The Illinois-based testing agency assures that the equipment that gets its stamp operates safely. There is also a sanitation classification that offers similar assurances about food safety as the NSF mark. Products are indicated as "Classified UL-EPH."
UL EPH - UL EPH recognizes products certified to meet environmental and public health standards. The UL EPH logo shows the word "Classified" above the UL mark, which indicates that the product complies with ANSI/NSF standards, in addition to other applicable codes.
Bumpers
No Bumper - No bumper
Caster
Stationary
Adjustable Legs - FWE offers a wide variety of adjustable legs for when casters are not an option. 4" and 6" adjustable legs are available on almost all of FWE's equipment.
All adjustable legs are provided with sealed precision bearing with a black anti-rust coating.
No Casters
Construction
Stainless Steel / Non Insulated - Constructed of stainless steel, with welded base frame for added strength and durability
Control Panel
HHS Controls - Controls shall include a master ON/OFF switch with power indicator light. Adjustable temperature range from 150°F to 200°F (66°C to 93°C). Factory pre-set to 170°F (77°C).
Door Count
No Doors
Door Hinge
No Doors
Door Latch
No Door Latch
Doors
No Doors - No doors - open storage
Extra
Warranty - Two year limited warranty
Handles
No Handles
Heat System

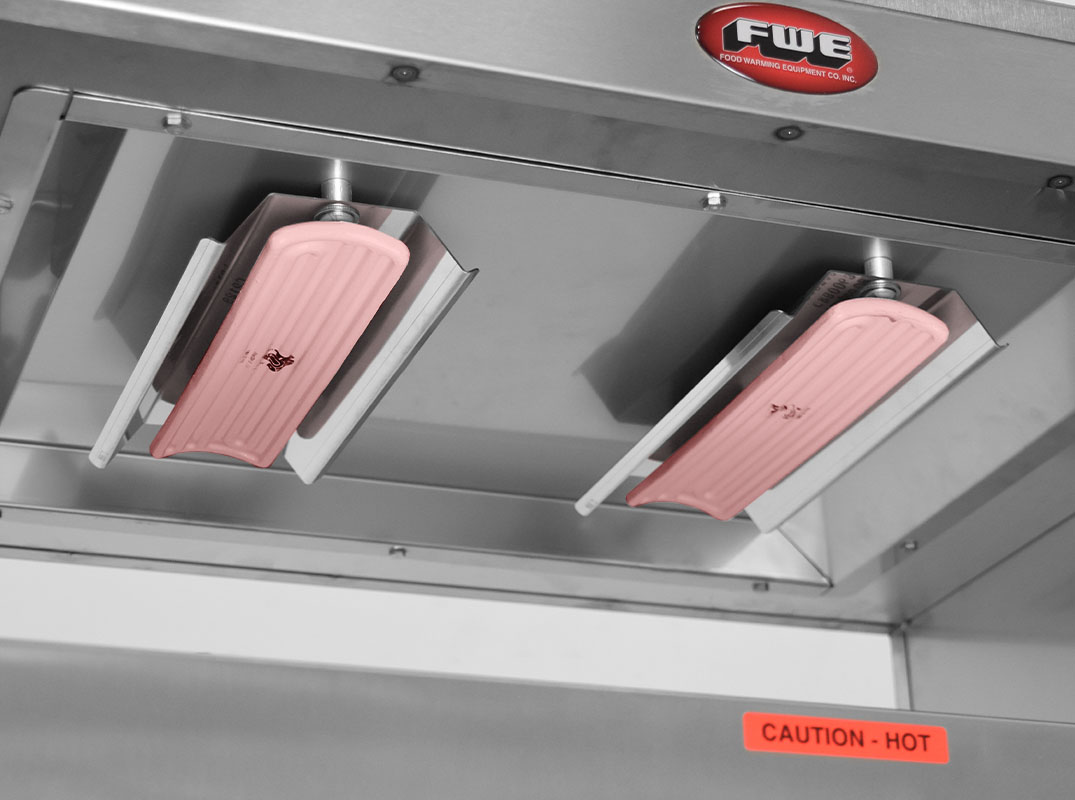

HHS Infrared Heat System - This heat system uses longwave infrared elements to maximize the hold times of crispy, fried, and wrapped foods such as fried chicken, french fries, onion rings, etc. The long-wave infrared elements are positioned to keep the product within the ideal range to keep the outside coating crisp while maintaining the internal temperature and moisture of the items.
Hinging
No Doors

OPTIONS & ACCESSORIES

LONG FORM SPEC

Specified unit shall be FWE Model No. HHS-IR-2-1220-4, Infrared Heated Holding Shelves.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 22 gauge shelves, 20 gauge stainless steel polished exterior wall.

INSULATION. Insulated throughout: top, bottom, sides using high density ceramic and fiberglass insulation.

LEGS. Each leg shall be attached to a formed base with rivnuts.

ELECTRICAL CHARACTERISTICS. 3 wire grounded power cord and plug, rear mounted for safety. See electrical data chart above for amperage, receptacle configuration and dedicated circuit information.

HEATING SYSTEM/CONTROLS. Heat system shall include longwave infrared elements above each shelf. Controls shall include a dial knob for heat adjustment and a master ON/OFF switch with power indicator light.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provide with the following accessories:
