TRAY LINE SERVING WELLS
Dry Serving Wells with Open Base for 12" x 20" Pans, & GN 1/1 Containers
Radiant "HLC-W-HWR" Series

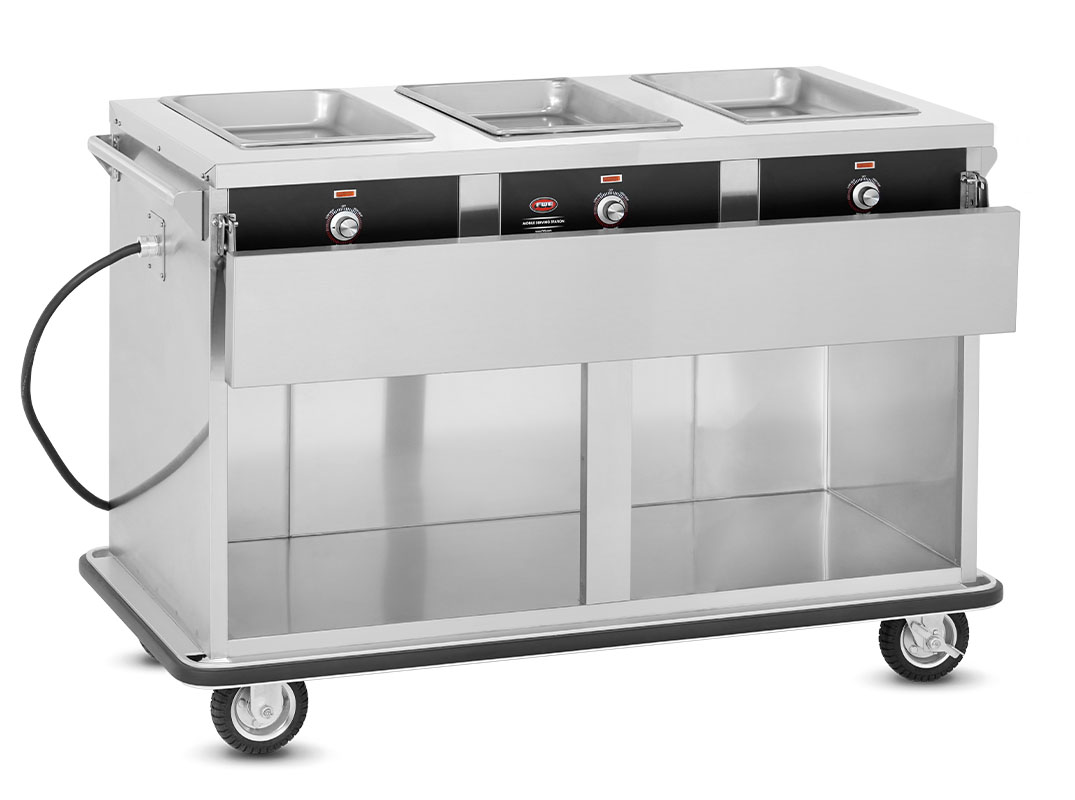

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.
C-UL-US mark indicates a product meets the UL and CSA testing standards for both the United States and Canada.
EZ roll casters are shock absorbing and roll easier under heavy loads.
Available in 5", 6" and 8" diameters.
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Specified unit shall be FWE Model No. HLC-3W6-1-HWR, Tray Line serving Wells.
CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 18 gauge polished exterior, 22 gauge stainless steel interior. Welded tubular base frame shall be 1" square, heavy gauge stainless steel tubing, with 10 gauge stainless steel reinforcing stress plates at corners.
CASTERS. Maintenance free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake. HLC-5W6-1-HWR and HLC-6W6-1-HWR shall have a six caster configuration with two (2) rigid and four (4) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.
TOP MOUNT SERVING WELLS. Each well shall be one piece stainless steel, deep drawn with coved corners. Each well shall have ridge around top perimeter. Each insulated, individually thermo wrapped well shall have a separate adjustable thermostat and indicating light. Top well depth of 6.5" (165mm) is designed to be used wet. Accommodates up to a 12" x 20" x 6" or a GN 1/1.
ELECTRICAL CHARACTERISTICS. 3 wire grounded power cord and plug. See electrical data chart above for amperage and receptacle configuration. See electrical chart for models that require a dedicated circuit.
INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.
Provide with the following accessories:
FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
All rights reserved. All specifications subject to change without notice.
Errors subject to correction. © 2022 Food Warming Equipment Company, Inc.
