HLC-5W6-1-HWR

TRAY LINE SERVING WELLS
Dry Serving Wells with Open Base for 12"x 20" Pans, 18"x 13" Trays, & GN 1/1 Containers
Radiant "HLC-W-HWR" Series

HLC-5W6-1-HWR Spec Sheet

HLC-5W6-1-HWR SPEC SHEET

Heavy-duty, mobile servers with dry wells open storage base take food whenever and wherever you need it to go

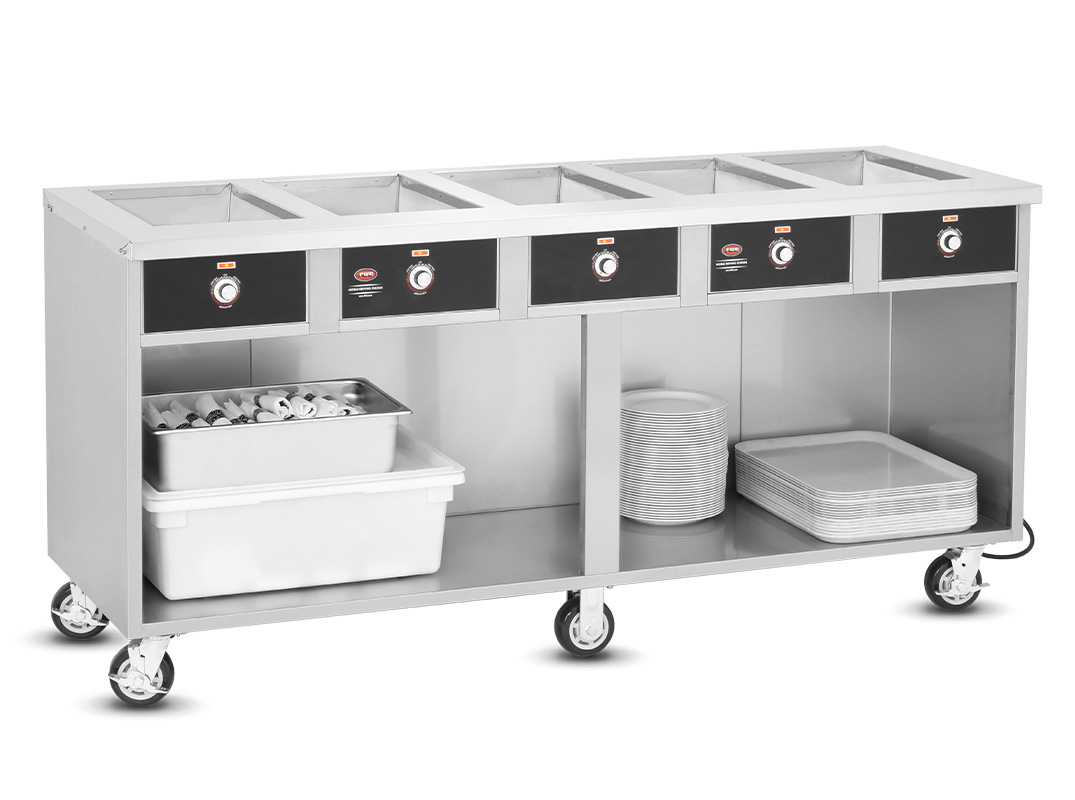

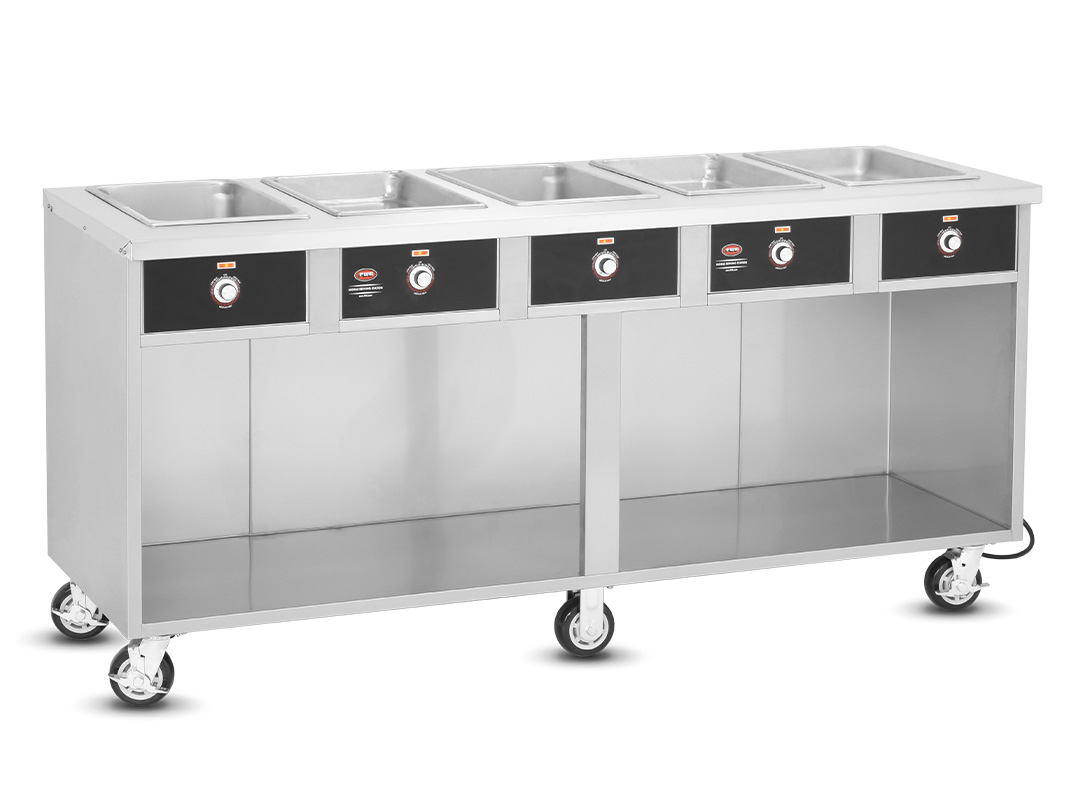

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

GET A QUOTE

MODEL SPECIFICATIONS

Model Height:
Model Width:
Model Depth:
Shipping Weight:
Volts:
Watts:
Amps:
3 Phase:
Adjustable Slides:
Standard # of Slides:
Standard # of Shelves:
Standard Spacing:

DESCRIPTION

FWE HLC-W-HWR Series Tray Line Dry Serving Wells with Open Base

The FWE HLC-W-HWR Series Tray Line Serving Wells are designed to hold and serve hot food while helping operators eliminate the need for water and drainage in mobile foodservice environments. Engineered for cafeterias, institutional dining, and flexible serving lines, this solution combines dry well heating with an open base design to improve efficiency, mobility, and overall performance.

Product Overview

Built for demanding foodservice environments, the HLC-W-HWR Series allows operators to serve food directly from dry heated wells while utilizing an open storage base for staging or transport. This waterless design simplifies setup and reduces labor while maintaining consistent food temperatures in high-volume service operations.

Key Features & Benefits

Dry Well Heating System - Direct element heating eliminates the need for water or drains, reducing labor and operating costs.
Open Base Storage Design - Provides ample space for storage, transport, and staging beneath the wells.
Independent Well Controls - Each well features individual thermostatic control for precise temperature management.
Mobile Heavy-Duty Construction - Tubular welded base frame absorbs shock and supports transport in busy service environments.
Universal Pan Compatibility - Accommodates 12" x 20" pans, 18" x 13" trays, and GN 1/1 containers.
Expandable Configurations - Available in 2-6 well units to match various serving line requirements.
Customizable Serving Line Options - Supports accessories such as sneeze guards, tray slides, and cutting boards.
No Plumbing Required - Simplifies installation and operation by eliminating the need for water connections and floor drains.

Construction & Durability

Constructed with heliarc welded stainless steel and a heavy-duty tubular welded base frame, the HLC-W-HWR Series is built for long-term reliability in high-demand environments. Reinforced stress plates, durable casters, and deep-drawn stainless wells ensure strength, sanitation, and easy cleaning.

Performance Specifications

Dry well temperature control: low to high
Well depth: 6.5" for full-size pans
Compatible with 12" x 20", GN 1/1 pans, and 18" x 13" trays
Individual thermostat controls per well
Available in 2-6 well configurations
Open base storage capacity for flexible use
120V and 220-240V electrical options
Two-year limited warranty

Ideal Applications

School and university cafeterias
Healthcare and hospital foodservice
Correctional and institutional dining
Mobile tray line and buffet service operations

Why FWE?

For decades, FWE has been trusted by foodservice operators for equipment that delivers exceptional durability, performance, and reliability. The HLC-W-HWR Series continues that tradition by providing a flexible, waterless serving solution that simplifies operations, reduces labor, and maintains consistent food quality in fast-paced service environments.

FEATURES

Agency Approvals
CUL - C-UL mark indicates a product meets the CSA testing standards for Canada.
C-UL-US mark indicates a product meets the UL and CSA testing standards for both the United States and Canada.
UL EPH - UL EPH recognizes products certified to meet environmental and public health standards. The UL EPH logo shows the word "Classified" above the UL mark, which indicates that the product complies with ANSI/NSF standards, in addition to other applicable codes.
Bumpers
No Bumper - No bumper
Caster
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.

Available in 5", 6" and 8" diameters.
Mobile
5" Casters - 5" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
6 Caster Configuration - 6 caster configuration increases the cabinets maneuverability, ideal for larger cabinets
Construction
Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times
Control Panel
Mechanical Controls - Mechanical controls
Door Count
No Doors
Door Hinge
No Doors
Door Latch
No Doors
Doors
No Doors - No doors - open storage
Extra
Warranty - Two year limited warranty
Handles
No Handles
Heat System
Heated Serving Well(s) - Serving wells are individually controlled with a temperature range of 90° to 190°F (32° to 88°C)
Hinging
No Doors
Slides and Shelves
Open Cavity - Open base units offer maximum flexibility for serving applications, allowing ample room for storage and transport to make your food service complete

OPTIONS & ACCESSORIES

Bumpers
Top Corner Bumpers - Top corner bumpers are a good option for those customers not needing the protection of a full bumper, but still require protection for walls and surrounding equipment.
Full Bumper - Heavy duty full perimeter bumper extends beyond doors and handles for added protection. The bumper is mounted to the base frame for added durability - the bumper is not used as the base frame. In this way, the bumper absorbs all the shock in transport, protecting the integrity of the construction.
Caster
Master Caster - The Master caster is the best all-around caster for FWE products. Having the highest load bearing weight the Master Caster can handle any piece of FWE product. With easy maneuverability and silent rolling, the Master Caster will not stop when there is a small obstruction or uneven terrain. The Master Caster is also resistant to corrosion from chemicals, water, and steam.
Larger & Upgraded Casters - Larger Casters
Electrical
208 Volt
220-240 Volt - 220-240 Volt
Extra
Cord Winder Brackets - Cabinet mounted brackets allow for cord to be wrapped and out of the way when not in use
8" Drop Down S/S Cutting Board (Operator Side)
Security Packages - HDM security packages can be added to select cabinets to help increase the security and durability of your unit
Drop Down Side Shelf
8" Drop Down Maple Cutting Board (Operator Side)
Poly Mounted to Stainless Steel Cutting Board
Graphic Wrap - Use your cabinet as a bill board! Catch the eye of your customer with your custom logo, message, or menu item images with a graphic wrap.
Custom Cord Location
12" Drop Down Tray Slide Shelf (Customer Side)
Sneeze Guard
Handles
Push Pull Handles - Push/pull handles allow for easy maneuvering. Handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands
Tubular Push Handles - Heavy duty stainless steel push pull handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands

LONG FORM SPEC

Specified unit shall be FWE Model No. HLC-5W6-1-HWR, Tray Line Serving Wells.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 22 gauge stainless steel interior. Welded tubular base frame shall be 1" square, heavy gauge stainless steel tubing, with 10 gauge stainless steel reinforcing stress plates at corners.

CASTERS. Maintenance free polyurethane tire casters in a configuration of six (6) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

TOP MOUNT SERVING WELLS. Each well shall be one piece stainless steel, deep drawn with coved corners. Each well shall have ridge around top perimeter. Each insulated, individually thermo wrapped well shall have a separate adjustable thermostat and indicating light. Top well depth of 6.5" (165mm) is designed to be used wet. Accommodates up to a 12" x 20" x 6" or a GN 1/1.

ELECTRICAL CHARACTERISTICS. 3 wire grounded tri-directional power cord and plug, rear mounted for safety. See electrical data chart above for amperage and receptacle configuration. See electrical chart for models that require a dedicated circuit.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provide with the following accessories:
