LCH-5-LV-G2

LOW VOLTAGE COOK & HOLD OVENS
For Various Size Trays, Pans, and Gastro-Norm
COOK AND HOLD "LCH-LV-G2" SERIES

LCH-5-LV-G2 Spec Sheet

FWE's new generation low temperature cook and hold ovens help cut operating costs and increase food quality

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

MODEL SPECIFICATIONS

Model Height:
Model Width:
Model Depth:
Shipping Weight:
Volts:
Watts:
Amps:
3 Phase:
Adjustable Slides:
Standard # of Slides:
Standard # of Shelves:
Standard Spacing:

DESCRIPTION

FWE LCH-LV-G2 Series Low Voltage Cook & Hold Ovens

The FWE LCH-LV-G2 Series Low Voltage Cook & Hold Ovens are designed to deliver high-yield cooking, reheating, and holding from a standard 120V outlet while helping operators reduce energy costs and maintain product quality. Engineered for commercial kitchens, catering, and institutional foodservice, this solution combines advanced low-temperature cooking technology with high efficiency to improve consistency and operational performance.

Product Overview

Built for demanding foodservice environments, the LCH-LV-G2 Series provides powerful cook-and-hold capability using a single 120V, 20A circuit. Its advanced heat system reduces shrinkage while promoting natural browning, allowing operators to maximize yield, improve food quality, and operate efficiently without the need for costly ventilation systems.

Key Features & Benefits

Low Voltage Operation - Runs on a standard 120V, 20A outlet, making installation simple and cost-effective.
R85/F15 Heat System - Combines approximately 85% radiant heat with 15% forced air convection to reduce shrinkage and enhance natural browning.
Cook & Hold Automation - Automatically switches from cook mode to hold mode, ensuring consistent results without constant monitoring.
Programmable Controls - Stores up to 8 preset recipes for repeatable, high-quality output. [
Internal Product Probe - Allows cooking by time or internal temperature for precise control and food safety.
Hoodless Design - Meets requirements that often eliminate the need for a ventilation hood, reducing installation and operating costs.
Energy Efficiency - Uses less energy than traditional ovens and can take advantage of off-peak overnight cooking.
Multi-Use Functionality - Can be used for cooking, reheating, or holding while minimizing drying and flavor loss.
Adjustable Rack System - Removable shelves and adjustable tray slides accommodate a variety of pan and tray sizes.

Construction & Durability

Constructed with heliarc welded stainless steel and high-density ceramic and fiberglass insulation, the LCH-LV-G2 Series is built for long-term durability and efficiency. Features such as reinforced doors, magnetic latches, removable racks, and heavy-duty casters ensure reliable performance and easy cleaning in high-volume environments.

Performance Specifications

Cook temperature range: 90°F to 350°F (32°C to 177°C)
Hold temperature range: 90°F to 250°F (32°C to 121°C)
Electrical requirement: 120V, 20A dedicated circuit
R85/F15 radiant/convection heat system
Programmable controls with 8 recipe presets
Internal temperature probe included
Automatic cook-to-hold transition
Adjustable tray slides and removable shelves
Two-year limited warranty

Ideal Applications

Catering and banquet operations
Healthcare and institutional kitchens
Restaurants and commissaries
Overnight cooking and low-labor operations
Facilities with limited electrical or ventilation infrastructure

Why FWE?

For decades, FWE has been trusted by foodservice operators for equipment that delivers durability, performance, and reliability. The LCH-LV-G2 Series continues that tradition by providing a highly efficient, low-voltage cook-and-hold solution that reduces energy costs, improves yields, and ensures consistent, high-quality food production in demanding environments.

The LCH-5-LV-G2 is provided with 3 pair of tray slides and 3 stainless shelves. Slides and shelves are removable and adjustable. Slides are designed to accommodate a wide variety of trays and pans including: 18"x26", 12"x20", GN 2/1 and GN 1/1. Additional slides and shelves are available purchase.

FEATURES

Agency Approvals
UL - The UL mark, which now serves customers in more than 100 countries, has become the authority on product safety. Its engineers test for things like soundness of design, safety of electrical components, and structural integrity of products for which UL listing is sought.
If you think of NSF International classification as protection for your customers, then the mark of Underwriters Laboratories (UL) indicates safety for those who work in your commercial kitchen. The Illinois-based testing agency assures that the equipment that gets its stamp operates safely. There is also a sanitation classification that offers similar assurances about food safety as the NSF mark. Products are indicated as "Classified UL-EPH."
UL EPH - UL EPH recognizes products certified to meet environmental and public health standards. The UL EPH logo shows the word "Classified" above the UL mark, which indicates that the product complies with ANSI/NSF standards, in addition to other applicable codes.
CUL - C-UL mark indicates a product meets the CSA testing standards for Canada.
C-UL-US mark indicates a product meets the UL and CSA testing standards for both the United States and Canada.
Bumpers
No Bumper - No bumper
Caster
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.

Available in 5", 6" and 8" diameters.
5" Casters - 5" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
Mobile
Construction
Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times
Control Panel

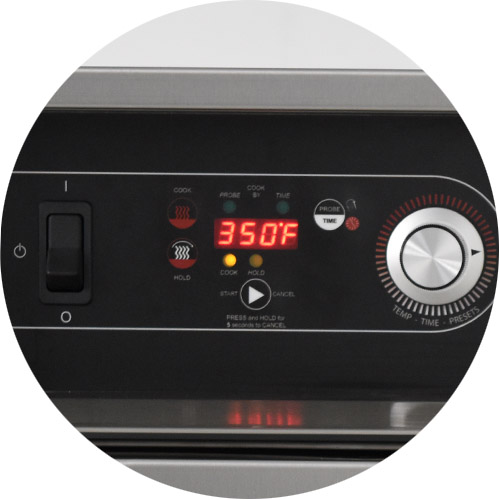

Cook and Hold Controls - Intuitive, easy to use and kitchen friendly controls allow for 8 programmable recipes for consistent results. Provided with an internal product probe, allows for options to cook and hold by probe or by time without constant monitoring.
Electronic Controls - Electronic controls featuring easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light.
Door Count
1 Door
Door Hinge
Edgemount Hinges - Heavy-duty edge mount die cast hinges
Door Latch
Magnetic Door Latch - Heavy duty full grip magnetic door latch
Doors
Vented Doors - Adjustable door vents; allows desired holding conditions from moist to crisp foods, achieving optimal results
Full Stainless Steel Door - Flush mounted, stainless steel insulated doors
Gasket Sealed - Gasket sealed door; tight double seal makes for a perfect secure closure and easy to clean
Electrical
Low Voltage
Extra
Cord Winder Brackets - Cabinet mounted brackets allow for cord to be wrapped and out of the way when not in use
Warranty - Two year limited warranty
Handles
No Handles
Heat System
G2 Heat System - 85% radiant and 15% forced air convection. Combining radiant and convection heat allows meats to brown naturally and greatly reduces product shrinkage by as little as 4%. Precision accurate temperature cooking by product probe or time mode. Save on valuable hood space. No outside venting or hoods required. Local codes prevail.
Hinging
Field Reversible Hinging - Field reversible door- flexible installation options for kitchen layout
Hinges on Right Side - Right hand door hinging
Slides and Shelves

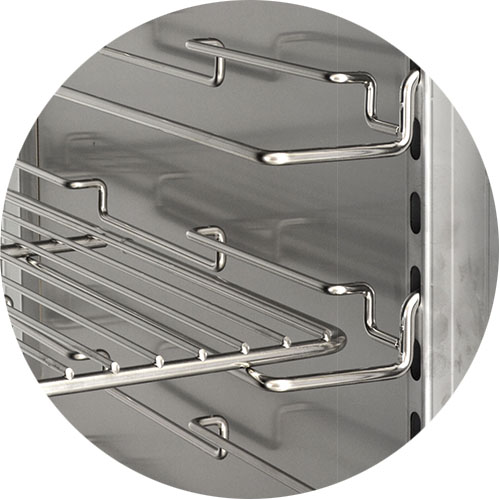

Adjustable Universal SS Slides with SS Shelves - Unique universal design holds 12" x 20" pans, 18" x 26" sheet trays or GN containers on fully adjustable stainless steel tray slides. Slides are removable for thorough interior cleaning. Provided with removable and adjustable stainless steel shelves

OPTIONS & ACCESSORIES

Bumpers
Top Corner Bumpers - Top corner bumpers are a good option for those customers not needing the protection of a full bumper, but still require protection for walls and surrounding equipment.
Caster
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Larger & Upgraded Casters - Larger Casters
Extra
X-Factor Frame (consult factory) - X-Factor Frame
Handles
Push Pull Handles - Push/pull handles allow for easy maneuvering. Handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands
Slides and Shelves
Extra Tray Slides - Extra tray slides

LONG FORM SPEC

Specified unit shall be FWE Model No. LCH-5-LV-G2, Low Voltage Cook & Hold Ovens.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20-gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners.

INSULATION. Insulated throughout; top, back, bottom, sides, doors using high density ceramic and fiberglass insulation.

DOOR AND LATCH. Flush mounted, double pan, stainless steel, vented, insulated door(s). Heavy-duty, die-cast, edgemount, full grip, magnetic door latch with heavy-duty hinges. Door shall be field reversible.

CASTERS. Maintenance free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake.

ADJUSTABLE SPACINGS. Welded rod-style tray slides are stainless steel for greater durability and sanitation. Fully adjustable/ removable and designed to give secure bottom tray support. Removable stainless steel uprights shall be punched on 1.5" (38mm) spacings for easy tray adjustment, and shall easily lift off heavy-duty stainless steel brackets without the use of tools for cleaning. Three (3) stainless steel, rod type shelves provided.

HEATING SYSTEM. R85/F15 low volume air circulation produces approximately 85% radiant heat with 15% forced air convection for minimal product shrinkage. Built-in heat system includes multiple Incoloy sheathed heating elements that provide fast heat up and accurate temperature set points to hold mode, maintaining food quality and safe holding temperatures in either cook or holding periods.

CONTROL PANEL. Easy to operate, automatic controls include intuitive easy to use / easy to read kitchen friendly controls allows "set-and-forget" consistent results. Cooking by time or by internal product temperature with probe (included) when cook cycle is complete, controller automatically switches from cook cycle to hold cycle . Unit has preset function to store and quickly retrieve up to 8 recipes. Adjustable COOK control up to 350°F (177°C) and adjustable HOLDING control up to 200°F (93°C). Shall include ON/OFF switch. Actual cabinet temperature reading is LED displayed during each cycle and probe temp display.

DRIP TRAY. Stainless steel drip tray rests on cabinet floor and is removable.

VENTING. Model complies with section 59 of UL710B for emissions of grease laden air, and according to UL, is not required to be placed under a ventilation hood. Check local requirements before installation as local codes prevail. Venting may be required. Local codes may restrict a maximum oven temperature lower than 350°F (180°C). Factory or field adjustment ready. Consult factory if lower temperature is required for local codes.

ELECTRICAL CHARACTERISTICS. See chart above for amperage. Dedicated circuit. Standard with rear mounted cord winder bracket.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provided with the following accessories:

VIDEOS

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
