LCHR-1220-4

LOW VOLTAGE COOK & HOLD SMOKER OVENS
For 12"x 20" Pans, 18"x 13" Trays, and GN 1/1 Containers
COOK AND HOLD "LCHR" SERIES

LCHR-1220-4 Spec Sheet

LCHR-1220-4 SPEC SHEET

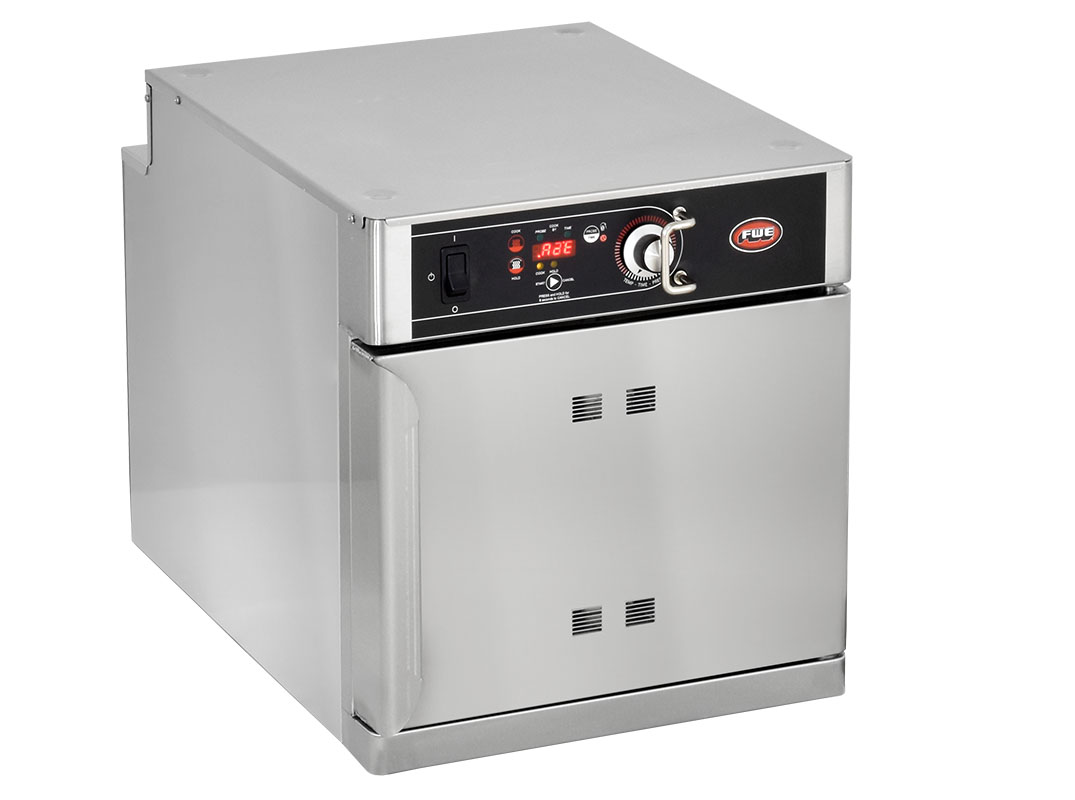

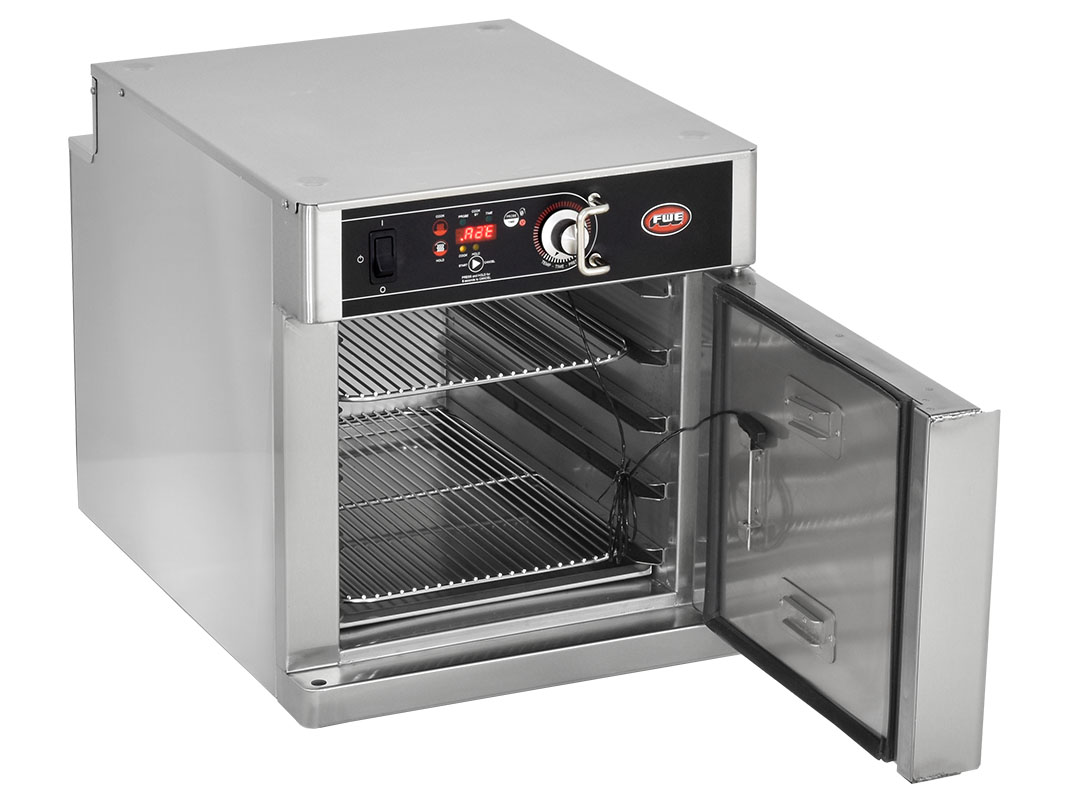

Big performance in a small space - Perfect Cook and Hold oven for countertop or built-in applications

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

GET A QUOTE

MODEL SPECIFICATIONS

Model Height:
Model Width:
Model Depth:
Shipping Weight:
Volts:
Watts:
Amps:
3 Phase:
Adjustable Slides:
Standard # of Slides:
Standard # of Shelves:
Standard Spacing:

DESCRIPTION

FWE LCHR Series Compact Cook & Hold Ovens

The FWE LCHR Series Compact Cook & Hold Ovens are designed to cook, reheat, and hold food in space-constrained environments while helping operators maintain food quality, reduce shrinkage, and lower energy consumption. Engineered for restaurants, food courts, convenience operations, and institutional kitchens, this solution combines advanced low-temperature cooking technology with a compact footprint to maximize performance in limited spaces.

Product Overview

Built for countertop, undercounter, and built-in applications, the LCHR Series delivers the benefits of cook-and-hold technology in a compact cabinet. With programmable controls, automatic cook-to-hold functionality, and probe cooking capabilities, these ovens help operators achieve consistent results while reducing labor and preserving product quality.

Key Features & Benefits

Compact Space-Saving Design - Ideal for countertop, undercounter, and built-in installations where floor space is limited.
Stackable Configuration - LCHR-1220-4 countertop models feature a modular stackable design for expanded capacity without increasing footprint.
Cook, Reheat & Hold Functionality - One cabinet performs multiple food preparation tasks, increasing operational flexibility.
Automatic Cook-to-Hold Operation - Automatically switches to hold mode after cooking is complete to maintain food quality.
Programmable Controls - Stores up to 8 recipe presets for consistent cooking performance across operators.
Internal Product Probe - Allows cooking by time or product temperature without continuous supervision.
Low Shrinkage Heating System - Gentle radiant heat minimizes moisture loss and improves product yields.
Hoodless Design - Designed for installations that may not require a ventilation hood, reducing installation costs where permitted by local codes.
Energy Efficient Performance - Uses up to 50% less energy than many conventional ovens while maintaining food quality.

Construction & Durability

Constructed with heliarc welded stainless steel, high-density ceramic and fiberglass insulation, gasket-sealed insulated doors, and removable drip trays, the LCHR Series is built for long-lasting durability and efficient operation. Heavy-duty hinges, field-reversible doors, and stainless steel pan slides provide dependable daily performance in demanding foodservice environments.

Performance Specifications

Cook temperature range: 90°F to 250°F (32°C to 121°C)
Hold temperature range: 90°F to 200°F (32°C to 93°C)
8 programmable recipe presets
Internal temperature probe included
Automatic cook-to-hold transition
2.625" fixed stainless steel pan slide spacing
Compatible with 12" x 20" pans, GN 1/1 containers, and 18" x 13" trays
120V electrical operation
Countertop and undercounter configurations available
Two-year limited warranty

Ideal Applications

Restaurants and caf©s
Food courts and concession operations
Convenience stores
Healthcare and institutional kitchens
Small-footprint foodservice operations
Supplemental cook-and-hold production areas

Why FWE?

For decades, FWE has been trusted by foodservice professionals for equipment that delivers exceptional durability, performance, and reliability. The LCHR Series continues that tradition by providing compact cook-and-hold capability with professional-grade results, helping operators improve food quality, conserve energy, and maximize productivity in limited spaces.

FEATURES

Agency Approvals
UL EPH - UL EPH recognizes products certified to meet environmental and public health standards. The UL EPH logo shows the word "Classified" above the UL mark, which indicates that the product complies with ANSI/NSF standards, in addition to other applicable codes.
CE - The CE mark is mandatory for products sold in the European Economic Area. It indicates the product conforms with certain manufacturing and design safety requirements. CE is similar to UL except it's more of a declaration by the manufacturer that the product meets the relevant rules, rather than being the mark of independent testing.
UL - The UL mark, which now serves customers in more than 100 countries, has become the authority on product safety. Its engineers test for things like soundness of design, safety of electrical components, and structural integrity of products for which UL listing is sought.
If you think of NSF International classification as protection for your customers, then the mark of Underwriters Laboratories (UL) indicates safety for those who work in your commercial kitchen. The Illinois-based testing agency assures that the equipment that gets its stamp operates safely. There is also a sanitation classification that offers similar assurances about food safety as the NSF mark. Products are indicated as "Classified UL-EPH."
Bumpers
No Bumper - No bumper
Caster
1" Rubber Feet - 1" non-skid rubber feet help keep the cabinet in place
Stationary
Construction
Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times
Control Panel

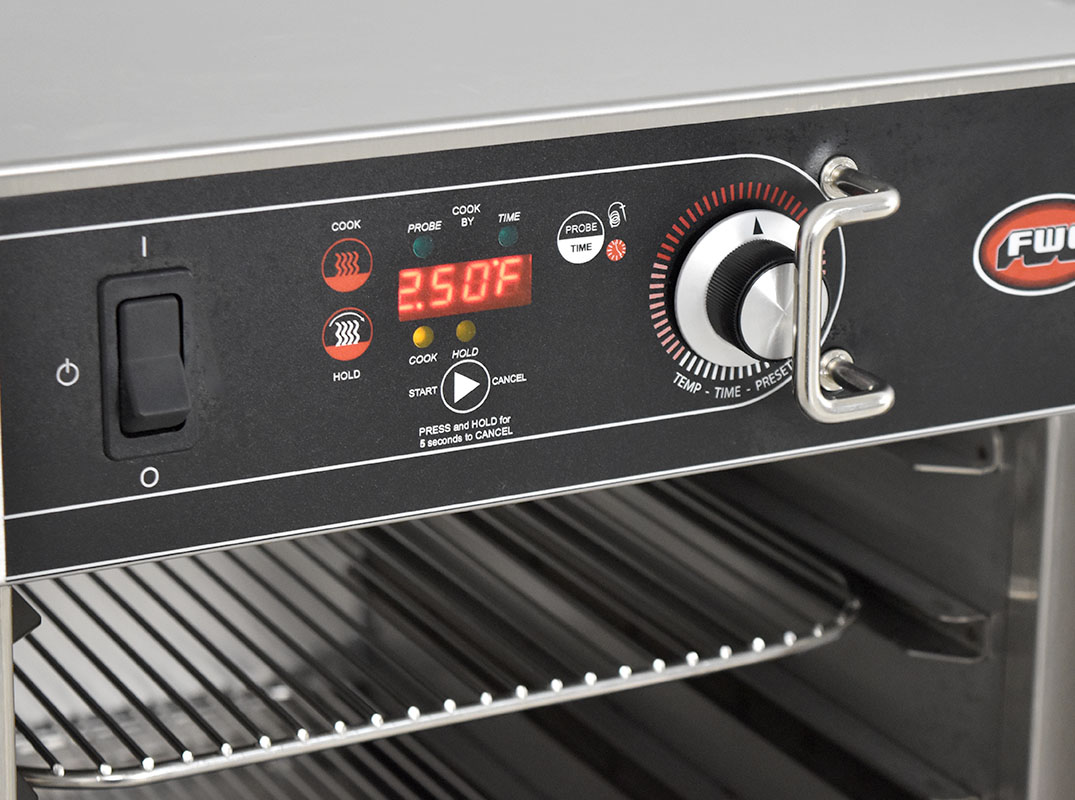

Electronic Controls - Electronic controls featuring easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light.
Cook and Hold Controls - Intuitive, easy to use and kitchen friendly controls allow for 8 programmable recipes for consistent results. Provided with an internal product probe, allows for options to cook and hold by probe or by time without constant monitoring.
Door Count
1 Door
Door Hinge
Pin Style Hinges - Heavy duty pin style hinges
Door Latch
Magnetic Work Flow Door Handle - Magnetic work flow door handles ergonomically accommodates kitchen staff and servers of varying heights
Doors
Full Stainless Steel Door - Flush mounted, stainless steel insulated doors

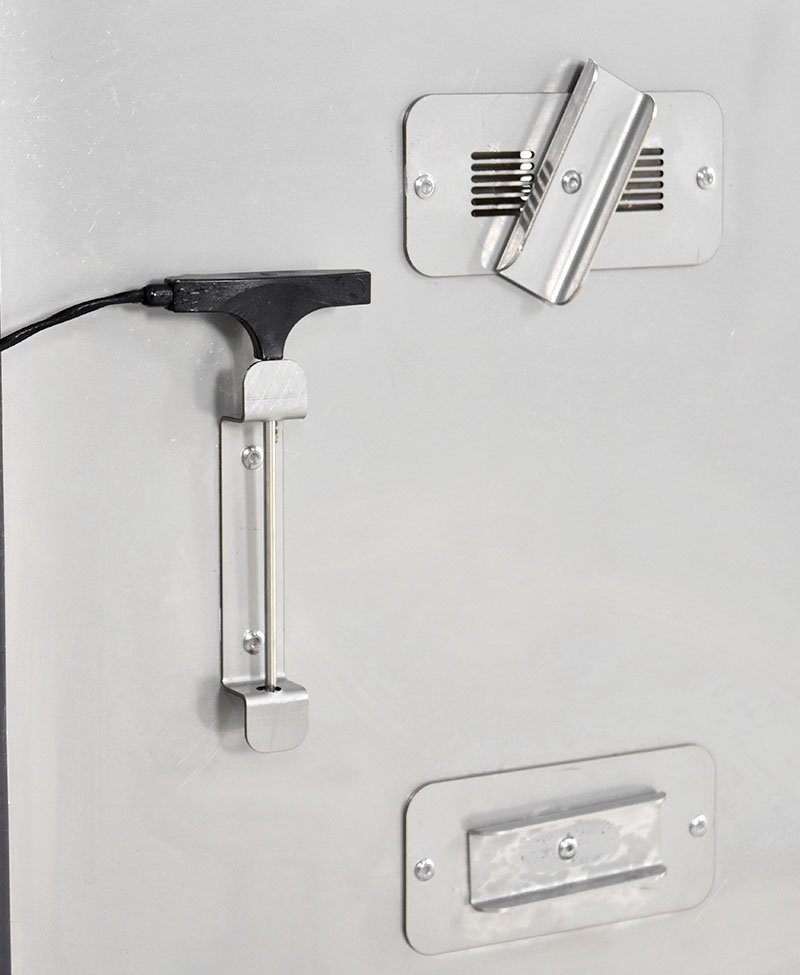

Vented Doors - Adjustable door vents; allows desired holding conditions from moist to crisp foods, achieving optimal results
Extra
Warranty - Two year limited warranty
Handles
No Handles
Heat System
LCHR Heat System - Built-in heat system with uniform low watt density radiant heat source that creates highly accurate temperature tolerances throughout the cooking and holding functions. Minimal air
movement offers uniform and consistent cooking, low shrinkage, and higher food yields of bulk or portion items, higher food moisture content, and significantly longer food holding life. Heat system provides fast heat up, recovery and accurate temperature set points.
Hinging
Field Reversible Hinging - Field reversible door- flexible installation options for kitchen layout
Hinges on Right Side - Right hand door hinging
Slides and Shelves
Stacking Applications - Open cavity stacking applications

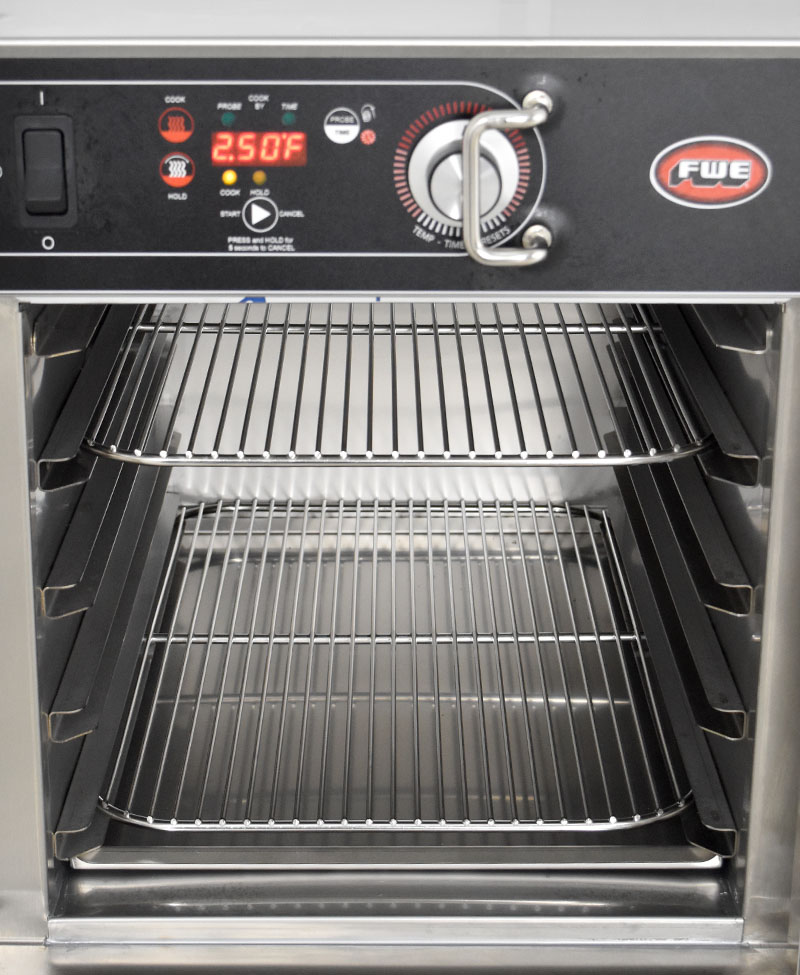

Fixed Slides for 12x20 Pans with Stainless Shelves - Accommodates shallow and and deep 12" x 20" pans , 18" x 13" trays and GN 1/1 containers. Unique pan slides racks' front edges are relieved for easy loading, one piece die stamped stainless steel for extra strength, and removable for easy cleaning. Provided with removable and adjustable stainless steel shelves

OPTIONS & ACCESSORIES

Bumpers
Top Corner Bumpers - Top corner bumpers are a good option for those customers not needing the protection of a full bumper, but still require protection for walls and surrounding equipment.
Caster
Adjustable Legs - FWE offers a wide variety of adjustable legs for when casters are not an option. 4" and 6" adjustable legs are available on almost all of FWE's equipment.
All adjustable legs are provided with sealed precision bearing with a black anti-rust coating.
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Handles
Recessed Antimicrobial Hand Grips - Recessed antimicrobial hand grips detain illness causing pathogens
Stainless Steel Lift Handles - Drop down handles allow full grip for lifting and transport - easy to transport for catering applications

LONG FORM SPEC

Specified unit shall be FWE Model No. LCHR-1220-4, Low Voltage Cook & Hold Smoker Ovens.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 18 gauge stainless steel interior with easy-to-clean coved corners.

INSULATION. Insulated throughout; top, back, bottom, sides, doors using high density ceramic and fiberglass insulation.

DOOR AND LATCHES. Flush mounted, field reversible, stainless steel insulated doors. High temperature gasket sealed; gasket shall be door mounted. Door shall be vented and have heavy duty pin style hinges.

LEGS. Oven includes one (1) set of 1" non-skid rubber feet.

PAN SLIDES. Stainless steel racks shall be one piece die stamped channel-type pan slides at 2.625" (66.7mm) spacings to accommodate either deep or shallow 12" x 20" or GN 1/1 pans (at varying capacities - see chart). Two (2) stainless steel shelves provided.

DRIP PAN. Stainless steel drip pan rests on cabinet floor and is removable. Exterior drip tray is also removable.

HEATING SYSTEM. Built-in heat system with uniform low watt density radiant heat source that creates highly accurate temperature tolerances throughout the cooking and holding functions. Minimal air movement offers uniform and consistent cooking, low shrinkage, and higher food yields of bulk or portion items, higher food moisture content, and significantly longer food holding life. Heat system provides fast heat up, recovery and accurate temperature set points.

CONTROL PANEL. Easy to operate, automatic controls include intuitive easy to use / easy to read kitchen friendly controls allows "set-and-forget" consistent results. Cooking by time or by internal product temperature with probe (included) when cook cycle is complete, controller automatically switches from cook cycle to hold cycle . Unit has preset function to store and quickly retrieve up to 8 recipes. Thermostat retention strap protects the knob. Adjustable COOK control up to 250°F (121°C) and adjustable HOLDING control up to 200°F (93°C). Shall include ON/OFF switch. Actual cabinet temperature reading is LED displayed during each cycle and probe temp display.

VENTING. Venting may be required. Local codes may restrict a maximum oven temperature lower than 250°F (121°C). Factory or field adjustment ready. Consult factory if lower temperature is required for local codes.

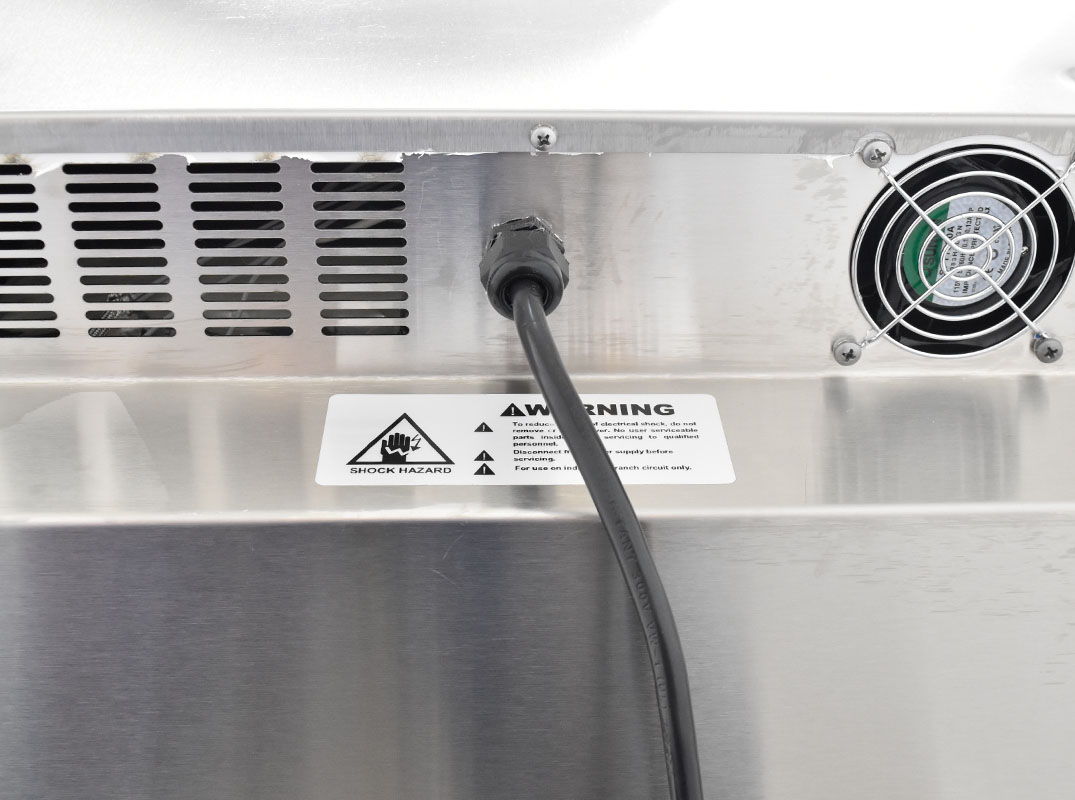

ELECTRICAL CHARACTERISTICS. 3 wire grounded 6 foot extension power cord and plug, rear mounted for safety. See electrical data chart above for amperage and receptacle configuration.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provide with the following accessories:

VIDEOS

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
