MT-1220-15

HEATED HOLDING & HUMIDIFIED CABINETS
For 12" x 20" Pans, 18" x 13" Trays and GN 1/1 Containers
HUMIDIFIED "MT-1220" SERIES

MT-1220-15 Spec Sheet

Hold hot food fresh and ready to serve, longer than ever before!

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

DESCRIPTION

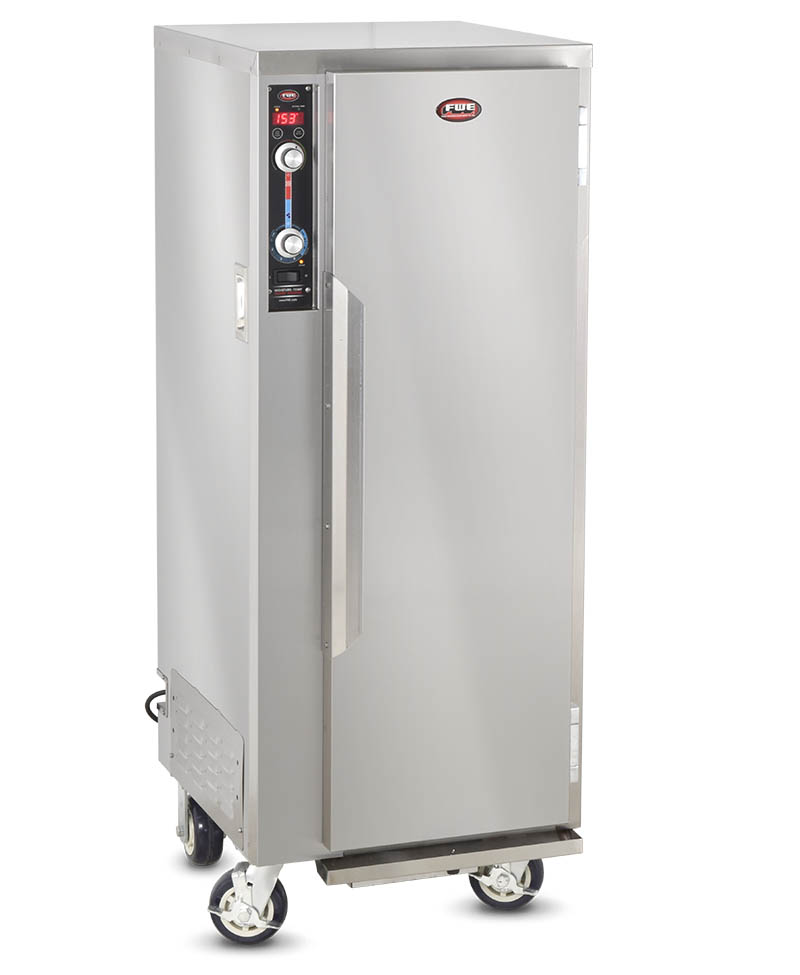

MT-1220-15, designed with "easy" in mind. High performance-low technology! Provide the best food quality from amplified heated moisture for short-term holding applications. Upfront and recessed control panel has separate air moisture and air temperature settings.

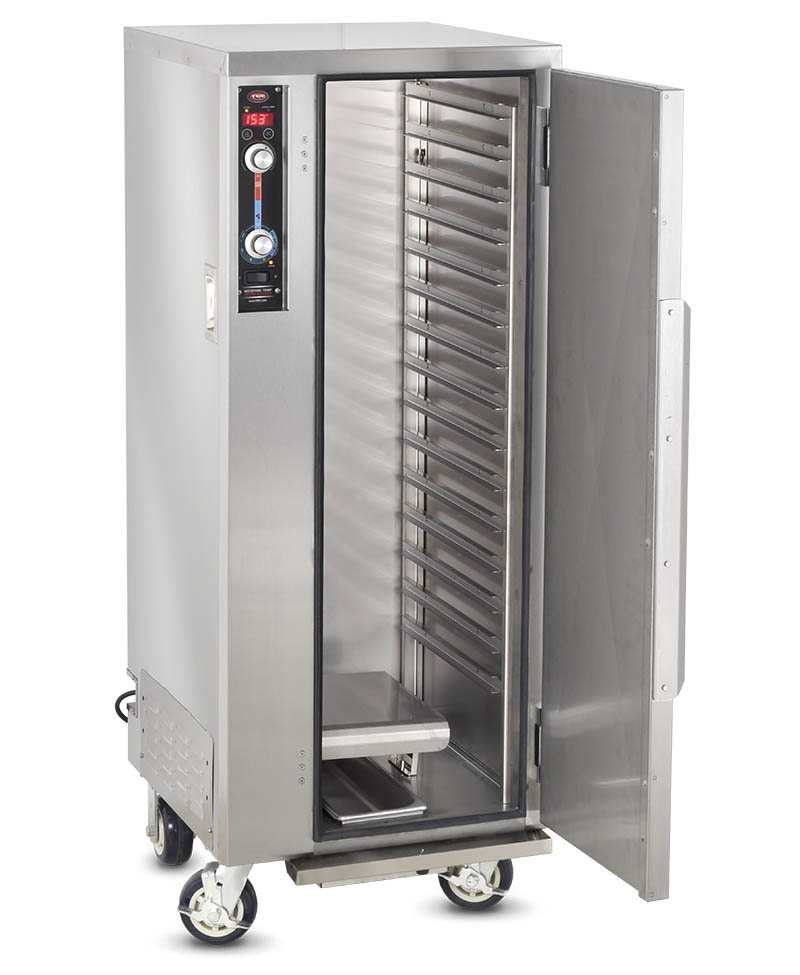

The MT-1220-15 accommodates shallow and deep 12" x 20" and GN 1/1 pans. FWE's unique pan slide racks are one piece die stamped stainless steel, providing greater hygiene and strength. The front edges are relieved for easy loading and the pair of racks are removable for easy cleaning.

Simply load the MT-1220-15 with your pans of cooked, hot food and this warmer will keep your food hot and ready until serving time.

The MT-1220-15 is designed to hold (15) 12x20 2.5" deep pans. You can also accommodate 4" or 6" deep pans.

FEATURES

Agency Approvals
UL - The UL mark, which now serves customers in more than 100 countries, has become the authority on product safety. Its engineers test for things like soundness of design, safety of electrical components, and structural integrity of products for which UL listing is sought.
If you think of NSF International classification as protection for your customers, then the mark of Underwriters Laboratories (UL) indicates safety for those who work in your commercial kitchen. The Illinois-based testing agency assures that the equipment that gets its stamp operates safely. There is also a sanitation classification that offers similar assurances about food safety as the NSF mark. Products are indicated as "Classified UL-EPH."
CE - The CE mark is mandatory for products sold in the European Economic Area. It indicates the product conforms with certain manufacturing and design safety requirements. CE is similar to UL except it's more of a declaration by the manufacturer that the product meets the relevant rules, rather than being the mark of independent testing.
CUL - C-UL mark indicates a product meets the CSA testing standards for Canada.
C-UL-US mark indicates a product meets the UL and CSA testing standards for both the United States and Canada.
NSF - NSF International (formerly known as the National Sanitation Foundation) is an independent, non-profit organization that certifies food service equipment and ensures it is designed and constructed in a way that promotes food safety. FWE products that meet these standards bear the NSF mark.
You may also see a designation that a product meets NSF/ANSI, which adds rules from the American National Standards Institute to the testing. ANSI works closely with NSF to develop its food safety standards and complete testing to those.
Bumpers
No Bumper - No bumper
Caster
5" Casters - 5" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
Mobile
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.
Available in 5", 6" and 8" diameters.
Construction
Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times
Control Panel
Electronic Controls - Electronic controls featuring easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light. Adjustable temperature range from 90°F to 190°F (32°C to 88°C).

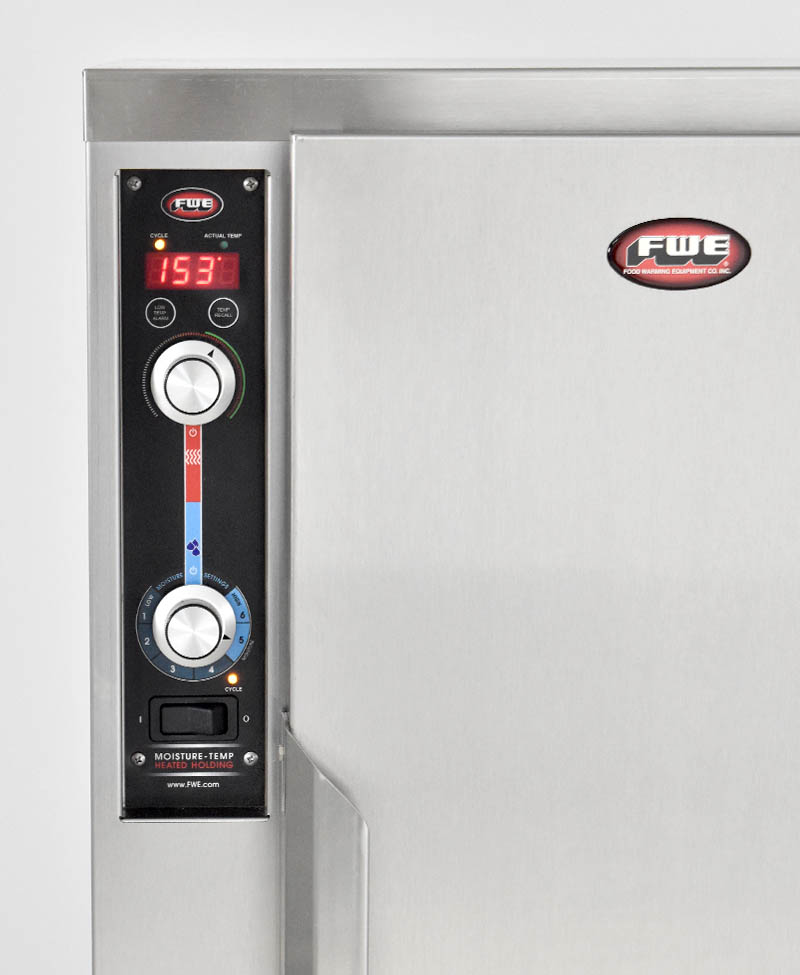

Moisture-Temps Controls - Easy to use - upfront and recessed electronic control panel has separate, easy to read and set, air moisture and air temperature controls
Door Count
1 Door
Door Hinge
Edgemount Hinges - Heavy-duty edge mount die cast hinges
Door Latch
Magnetic Work Flow Door Handle - Magnetic work flow door handles ergonomically accommodates kitchen staff and servers of varying heights
Doors
Full Stainless Steel Door - Flush mounted, stainless steel insulated doors
Gasket Sealed - Gasket sealed door; tight double seal makes for a perfect secure closure and easy to clean
Extra

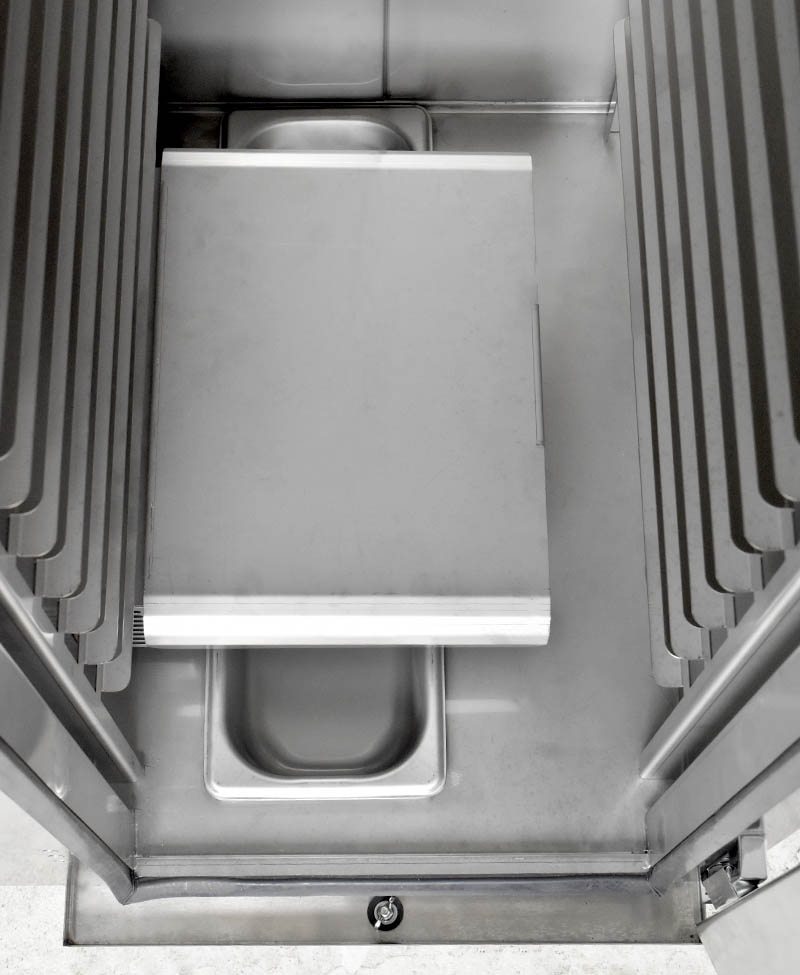

Humidity Pan - Removable humidity pan: 12" x 20" pan provides large water reservoir - removable, easy to clean and replace
Warranty - Two year limited warranty
Handles
Recessed Hand Grips - Flush in wall hand grips recessed and mounted on the left and right side of the unit
Heat System
Moisture-Temp Heat System - High performance - low technology. Provide the best food quality from amplified heated moisture for short-term holding applications.
Heated holding some menu items, such as chicken, will become steamed or soggy by using a covered pan. When exposed to dry heat, uncovered, these items become dry and rubbery. Achieve best results with controlled moisture. The length of holding time is also extended.
Hinging
Field Reversible Hinging - Field reversible door- flexible installation options for kitchen layout
Hinges on Right Side - Right hand door hinging
Slides and Shelves
Fixed Slides for 12x20 Pans - Accommodates shallow and and deep 12" x 20" pans , 18" x 13" trays and GN 1/1 containers. Unique pan slides racks' front edges are relieved for easy loading, one piece die stamped stainless steel for extra strength, and removable for easy cleaning.

OPTIONS & ACCESSORIES

Bumpers
Top Corner Bumpers - Top corner bumpers are a good option for those customers not needing the protection of a full bumper, but still require protection for walls and surrounding equipment.
Full Bumper - Heavy duty full perimeter bumper extends beyond doors and handles for added protection. The bumper is mounted to the base frame for added durability - the bumper is not used as the base frame. In this way, the bumper absorbs all the shock in transport, protecting the integrity of the construction.
Caster
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Larger & Upgraded Casters - Larger Casters
Control Panel
Mechanical Controls - Mechanical controls
Door Latch
Key Locking Door Latch - Heavy duty door latch with key locking capabilities
Magnetic Door Latch - Heavy duty full grip magnetic door latch
Paddle Door Latch - Recessed paddle style door latch
Padlocking Transport Latch - Cabinet mounted latch keeps door secure during transport, increased security with padlocking capabilities
Doors
Dutch Doors - Dutch doors help maintain cabinet temperature during peak serving times
Glass Doors - Full view glass doors allow complete visibility of product without opening the door, available in full and Dutch
Pass Through Doors - Pass-thru doors create a convenient connection from preparation side to serving areas. With access from both sides of the cabinet staff is free to focus on customers, taking more orders and serving carry-outs during peak meal times
See-Thru Lexan Doors - See-thru lexan door provides high visability for hot and fresh items
Electrical
Upgraded Element - Upgraded Element
Manual Timer (available with manual controls only)
220-240 Volt - 220-240 Volt
Extra
Cord Winder Brackets - Cabinet mounted brackets allow for cord to be wrapped and out of the way when not in use
Dry Erase Board - Door mounted dry erase board for menu changes or cabinet identification
Menu Card Holder - Door mounted frame to display menu card
Security Packages - HDM security packages can be added to select cabinets to help increase the security and durability of your unit
Handles
Push Pull Handles - Push/pull handles allow for easy maneuvering. Handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands

SHORT FORM SPEC

Specified unit shall be FWE Model No. MT-1220-6-6, Commercial Humidified Holding Cabinet:

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20-gauge polished exterior, 22-gauge stainless steel interior with easy-to-clean coved corners. Welded tubular base frame shall be 1 square, heavy gauge stainless steel tubing, with 10-gauge stainless steel reinforcing stress plates at corners.
INSULATION. "Ultra-Guard" UG-26 high density fiberglass insulation throughout; top, back, bottom, sides and door(s).
HANDLES. Form grip flush-in-wall hand grips recess mounted on each side of unit.
DOORS AND LATCHES. Flush mounted, field reversible, stainless steel insulated doors. High temperature gasket sealed; gasket shall be cabinet mounted. Each door shall have two (2) heavy-duty edgemount die cast hinges and a magnetic work flow door handle. The hinge and latch mountings are reinforced with stainless steel backing plates.
CASTERS. Maintenance free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake. Casters shall have a reinforced yoke mounted to 10-gauge caster plate. The caster mounting plate shall be secured to a 10-gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.
TRAY SLIDES. Stainless steel racks shall be one piece die stamped channel-type pan slides at 2.625 (66.7 mm) spcings to accommodate either deep or shallow 12 x 20 or GN 1/1 pans (at varying capacities - see chart). Racks are removable without tools for cleaning. Racks shall lift off heavy-duty stainless steel supports.
MOISTURE-TEMP SYSTEM/CONTROLS. Built in humidified holding system shall include two (2) separate long life Incoloy nickel-chromium alloy heating elements per cavity; separate, adjustable controls shall be provided for each function. One to control the interior air temperature, and one to control the interior air moisture. 12 x 20 stainless steel water reservoir shall be removable for ease of cleaning/sanitation. Built-in drip trough has removable drain plug. System shall have a Hi-Temp, self-lubricated, impedance protected fan-cooled blower motor for moist air
distribution. Controls shall be electronic, up-front, recessed and eye-level for convenience and safety and shall include a full range thermostat adjustable to actual temperature. Thermostat shall include temperature scale marked in ten degree increments (F/C) from 90° to 190°F (32° to
88°C). An operational range thermometer, adjustable moisture control (moist to crisp), 20 amp ON/OFF power switch, humidity cycle light,
and thermostat cycling light shall also be included.
ELECTRICAL CHARACTERISTICS. 3 wire grounded tri-directional power cord and plug, rear mounted for safety. . Dedicated circuit.
INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

PROVIDED WITH THE FOLLOWING OPTIONS:

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991. All rights reserved. All specifications subject to change without notice. Errors subject to correction. © 2018 Food Warming Equipment Company, Inc.
