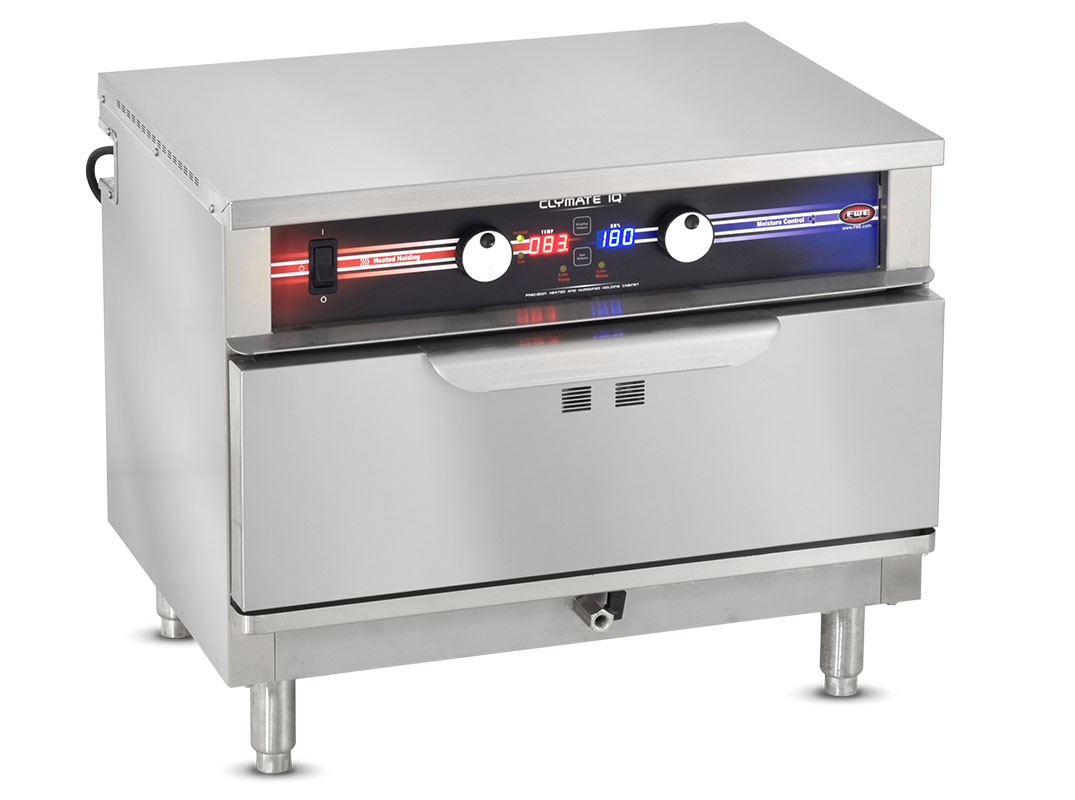

PHTT-1DR-6SL

PRECISE HUMIDITY TEMPERATURE TECHNOLOGY
Fod 12" x 20" Pans Up to 6" Deep
Clymate IQ® "PHTT-DR" Series

PHTT-1DR-6SL Spec Sheet

Clymate IQ® cabinets with drawers take the guesswork out of holding foods and provide professional results every time

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

MODEL SPECIFICATIONS

Model Height:
Model Width:
Model Depth:
Shipping Weight:
Volts:
Watts:
Amps:
3 Phase:
Adjustable Slides:
Standard # of Slides:
Standard # of Shelves:
Standard Spacing:

DESCRIPTION

PHTT-DR Series | Precise Humidity Temperature Technology Drawer Warmers
FWE's PHTT-DR Series delivers precision heated moisture holding in a compact, drawer-style format. Designed for 12" x 20" pans up to 6" deep, these units eliminate guesswork by providing independent temperature and humidity control for consistent, professional results. Powered by patented Clymate IQ® technology, PHTT drawers maintain food quality, texture, and freshness even during demanding service periods.

These drawer units are ideal for center-of-the-plate proteins, fried foods, and delicate menu items that require precise environmental control in a space-efficient footprint.

Key Features:

1. Precise Climate Control: Independent controls allow operators to set temperature from 90°F-200°F (32°C-93°C) and humidity from 0%-90% RH (Crisp to Moist) to match specific menu requirements.

2. Fast Heat-Up & Recovery: Clymate IQ® technology quickly reaches user-set temperature and humidity levels and rapidly recovers during repeated drawer openings in peak service.

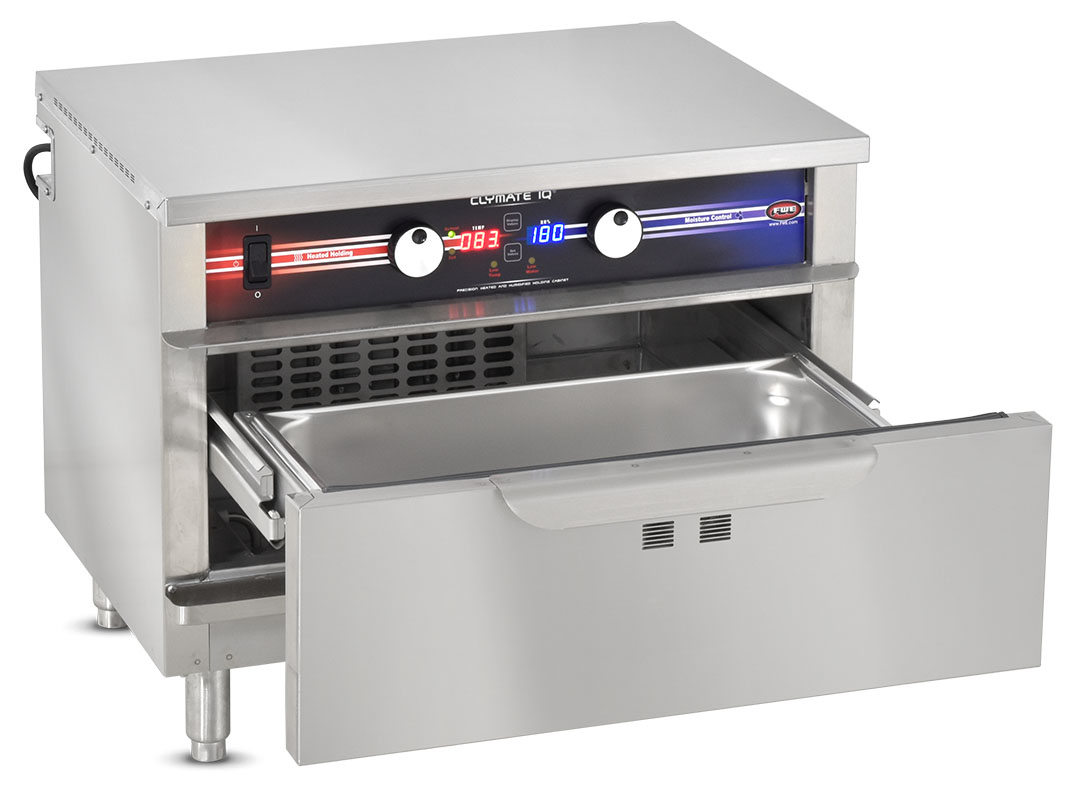

3. 12" x 20" Pan Compatibility: Accommodates full and fractional 12" x 20" pans up to 6" deep. Drawers and slides are removable without tools for easy cleaning and flexible configuration.

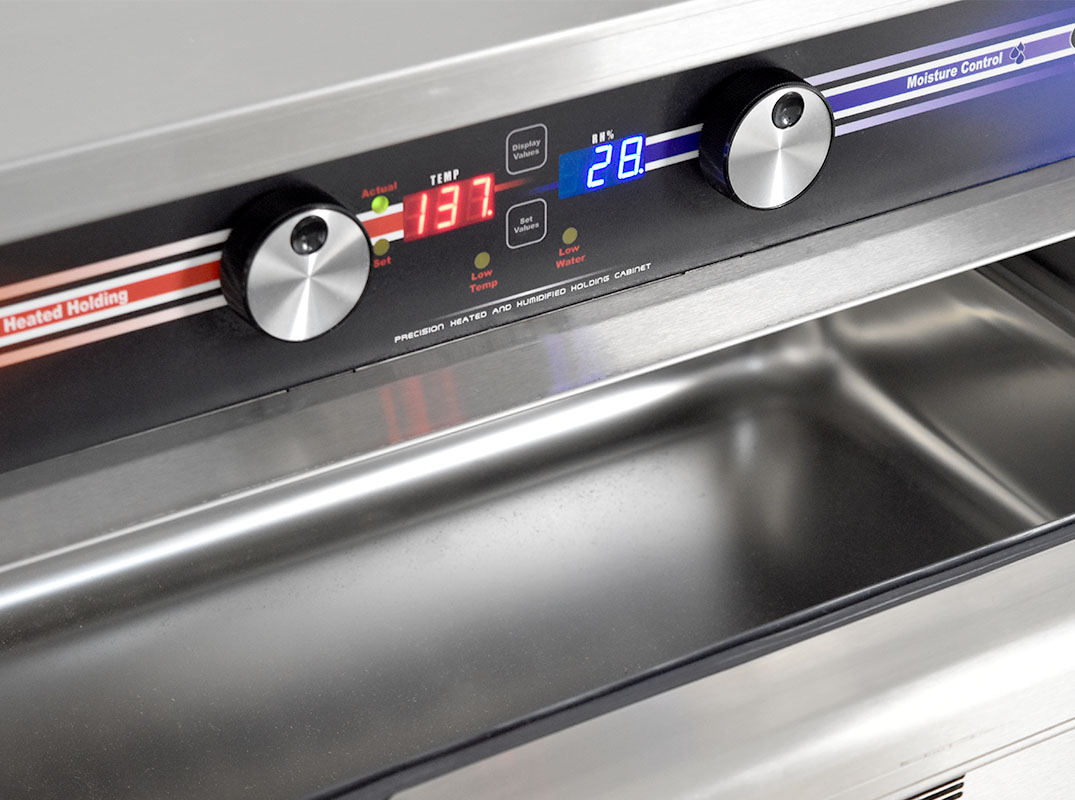

4. User-Friendly Controls: Easy-to-read, color-coded controls are recessed for protection and include power switch, humidity cycle light, thermostat cycling light, and built-in low temperature indicator with optional audible alarm.

5. Durable Construction: Fully welded stainless steel interior and exterior with full insulation throughout ensures long-lasting performance in demanding commercial environments.

6. Flexible Installation: Rear-mounted tri-directional power cord pocket provides convenient plug placement and installation versatility.

These features make the PHTT-DR Series an ideal solution for operators who need precise, reliable holding performance in a compact and efficient design.

FEATURES

Agency Approvals
UL - The UL mark, which now serves customers in more than 100 countries, has become the authority on product safety. Its engineers test for things like soundness of design, safety of electrical components, and structural integrity of products for which UL listing is sought.
If you think of NSF International classification as protection for your customers, then the mark of Underwriters Laboratories (UL) indicates safety for those who work in your commercial kitchen. The Illinois-based testing agency assures that the equipment that gets its stamp operates safely. There is also a sanitation classification that offers similar assurances about food safety as the NSF mark. Products are indicated as "Classified UL-EPH."
CUL - C-UL mark indicates a product meets the CSA testing standards for Canada.
C-UL-US mark indicates a product meets the UL and CSA testing standards for both the United States and Canada.
NSF - NSF International (formerly known as the National Sanitation Foundation) is an independent, non-profit organization that certifies food service equipment and ensures it is designed and constructed in a way that promotes food safety. FWE products that meet these standards bear the NSF mark.
You may also see a designation that a product meets NSF/ANSI, which adds rules from the American National Standards Institute to the testing. ANSI works closely with NSF to develop its food safety standards and complete testing to those.
Bumpers
No Bumper - No bumper
Caster
Adjustable Legs - FWE offers a wide variety of adjustable legs for when casters are not an option. 4" and 6" adjustable legs are available on almost all of FWE's equipment.
All adjustable legs are provided with sealed precision bearing with a black anti-rust coating.
No Casters
Stationary
Construction
Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times
Control Panel
Electronic Controls - Electronic controls featuring easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light.
PHTT Controls - Simple to use - user-friendly, easy to read, easy to set, color-coded controls allow you to set the unit from 0% - 90% relative humidity and 90F - 200F. Equipped with low water and temperature alarms
Door Count
No Doors
Door Hinge
No Doors
Door Latch
Magnetic Work Flow Door Handle - Magnetic work flow door handles ergonomically accommodates kitchen staff and servers of varying heights
Doors
Gasket Sealed - Gasket sealed door; tight double seal makes for a perfect secure closure and easy to clean
Electrical
Tri-Directional Cord - Recessed tri-direction cord pocket - allows for compact fit
Extra
Humidity Pan - Removable humidity pan: 12" x 20" pan provides large water reservoir - removable, easy to clean and replace
Low Profile - Low profile design, conveniently fits under 36" counter and can easily be stored when not in use
Handles
No Handles
Heat System
Clymate IQ Heat System - Achieve extended holding times with controlled moisture. Provide the best food quality from precision heated moisture for either long-term or short-term holding applications. Precision heat and humidity achieved by a unique push/pull air distribution system to provide uniform temperature and humidity on every level, throughout the unit
Hinging
No Doors

OPTIONS & ACCESSORIES

LONG FORM SPEC

Specified unit shall be FWE Model No. PHTT-1DR-6SL, Precise Humidity Temperature Technology.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 22 gauge stainless steel interior.

INSULATION. "Ultra-Guard" UG-26 high density fiberglass insulation throughout; top, back, bottom, sides and drawer(s).

DRAWERS AND LATCHES. Flush mounted, stainless steel, insulated drawers shall be vented. Each drawer shall be equipped with a horizontal workflow handle. High temperature gasket sealed; gasket shall be drawer mounted. Drawers and slides removable without tools for easy cleaning.

LEGS. Each leg shall have a reinforced mounting plate bolted to base of unit.

PHTT SYSTEM/CONTROLS. Built in humidified holding system shall include two (2) separate long life Incoloy nickel-chromium alloy heating elements per cavity to provide separate, adjustable, precise temperature from 90°F to 200°F (32°C to 93°C) and maintain food texture with settings from 0 to 90% RH (Crisp to Moist). Patented Precise Humidity Temperature Technology controls shall be provided for each function: one to control the interior air temperature, and one to control the interior air moisture. Stainless steel water reservoir with handle. Built-in drip trough. System shall have circulating fan to assist heat recovery/moist air distribution. Controls shall be up-front, recessed for safety. ON/OFF power switch, humidity cycle light and thermostat cycling light shall also be included.

ELECTRICAL CHARACTERISTICS. 3 wire grounded tri-directional power cord and plug, rear mounted for safety. See electrical data chart above for amperage and receptacle configuration. Dedicated circuit.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provide with the following accessories:

LITERATURE

VIDEOS

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
