PHTT-2333-18

PRECISE HUMIDITY TEMPERATURE TECHNOLOGY
Insulated - Holds Various Sized Donut Screens up to 23" x 33"
Clymate IQ® "PHTT-2333" Series

PHTT-2333-18 Spec Sheet

PHTT-2333-18 SPEC SHEET

Clymate IQ® cabinets take the guesswork out of proofing dough and provide professional results every time - controlled venting available

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

GET A QUOTE

MODEL SPECIFICATIONS

Model Height:
Model Width:
Model Depth:
Shipping Weight:
Volts:
Watts:
Amps:
3 Phase:
Adjustable Slides:
Standard # of Slides:
Standard # of Shelves:
Standard Spacing:

DESCRIPTION

FWE PHTT-2333 Series Clymate IQ® Proofing & Holding Cabinets

The FWE PHTT-2333 Series Clymate IQ® Cabinets are designed to proof dough and hold bakery products under precise temperature and humidity conditions while preserving product consistency and quality. Engineered for bakeries, donut shops, commissaries, supermarkets, and foodservice operations, this solution combines advanced humidity control with specialized donut screen storage to deliver professional proofing and holding performance.

Product Overview

Built around FWE's patented Clymate IQ® Precise Humidity Temperature Technology, the PHTT-2333 Series allows operators to independently control temperature and humidity levels for sensitive dough products. The cabinet is specifically designed to accommodate large donut screens and can be configured with optional Controlled Venting technology for superior proofing consistency.

Key Features & Benefits

Clymate IQ® Technology - Provides independent control of temperature and humidity to create ideal proofing and holding conditions.
Fast Heat-Up Performance - Reaches programmed temperature and humidity settings up to 25% faster than many competing systems.
Precise Humidity Control - Adjustable humidity settings from 0% to 90% RH help maintain sensitive dough products at optimal conditions.
Wide Temperature Range - Adjustable temperature settings from 90°F to 200°F (32°C to 93°C).
Ideal Dough Proofing Environment - Creates high humidity and low heat conditions required for consistent dough development and proofing results.
Specialized Donut Screen Capacity - Accommodates both 23" x 33" and 23" x 23" donut screens with adjustable slide positions.
Fast Recovery System - Restores temperature and humidity quickly after door openings during high-volume production periods.
Push-Pull Air Distribution - Provides uniform temperature and humidity on every rack level throughout the cabinet.
Controlled Venting Option - Available CV models automatically release excess humidity when moisture levels exceed operator set points, protecting sensitive dough products.
Easy-Clean Design - Large removable stainless steel water reservoir simplifies maintenance and sanitation.
Pass-Through Configuration Available - Optional pass-through doors improve workflow between preparation and baking areas.

Construction & Durability

Constructed with heliarc welded stainless steel, Ultra-Guard high-density insulation, self-closing insulated Dutch doors, magnetic workflow handles, and heavy-duty caster systems, the PHTT-2333 Series is designed for demanding bakery environments. Fully removable tray slide assemblies simplify cleaning while providing flexible screen spacing configurations.

Performance Specifications

Temperature range: 90°F to 200°F (32°C to 93°C)
Humidity range: 0% to 90% RH
Clymate IQ® Precise Humidity Temperature Technology
Optional Controlled Venting (CV) technology available
Hydro-immersion water bath humidity system
Push-pull air distribution system
Accommodates 23" x 33" and 23" x 23" donut screens
Adjustable tray slide spacing with standard 3" increments
Dutch door configuration standard
Available with pass-through door option
Two-year limited warranty

Ideal Applications

Donut production facilities
Retail bakeries
Commercial baking operations
Supermarket bakery departments
Commissaries and central production kitchens
Foodservice operations requiring precision dough proofing

Why FWE?

For decades, FWE has provided innovative solutions for foodservice and bakery professionals. The PHTT-2333 Series delivers advanced humidity management, precision proofing capabilities, and specialized donut screen storage, helping operators achieve consistent product quality, increase production efficiency, and maintain exceptional baking results.

FEATURES

Bumpers
No Bumper - No bumper
Caster
5" Casters - 5" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.

Available in 5", 6" and 8" diameters.
Mobile
Construction
Stainless Steel / Non Insulated - Constructed of stainless steel, with welded base frame for added strength and durability
Control Panel

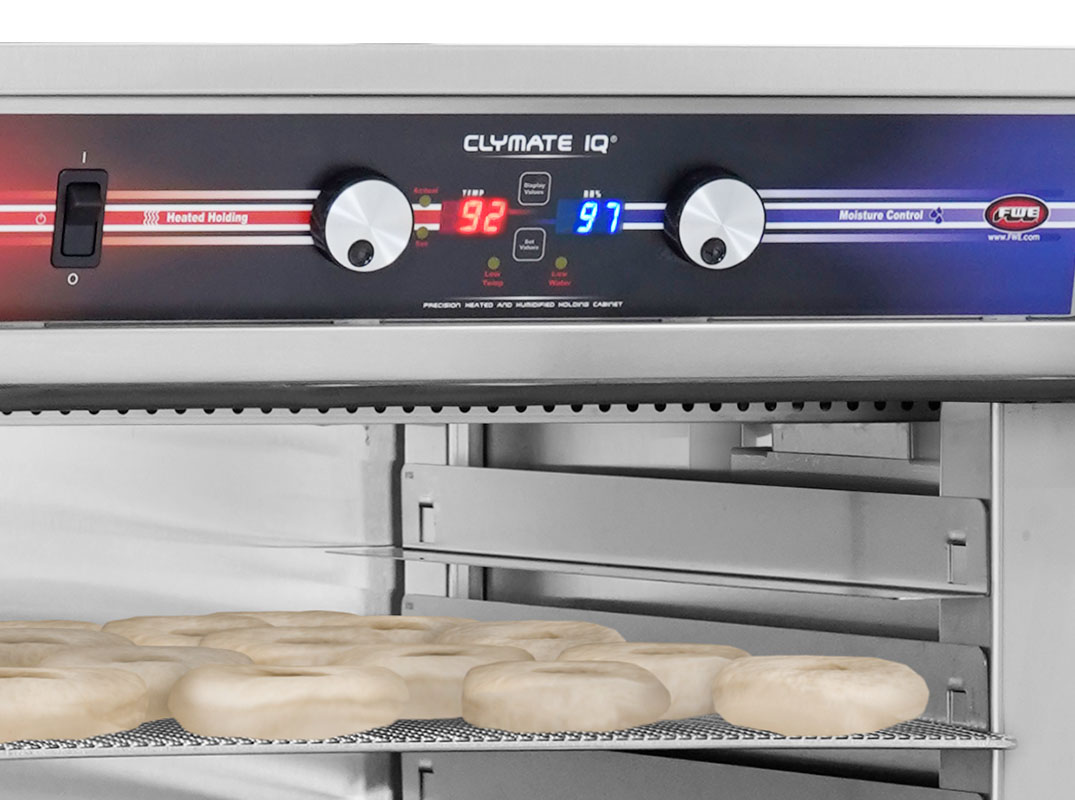

Electronic Controls - Electronic controls featuring easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light.
Door Count
2 Doors
Door Hinge
Edgemount Hinges - Heavy-duty edge mount die cast hinges
Door Latch
Magnetic Work Flow Door Handle - Magnetic work flow door handles ergonomically accommodates kitchen staff and servers of varying heights
Doors
Dutch Doors - Dutch doors help maintain cabinet temperature during peak serving times
Electrical
Tri-Directional Cord - Recessed tri-direction cord pocket - allows for compact fit
Extra
Warranty - Two year limited warranty
Heat System
Clymate IQ Heat System - Achieve extended holding times with controlled moisture. Provide the best food quality from precision heated moisture for either long-term or short-term holding applications. Precision heat and humidity achieved by a unique push/pull air distribution system to provide uniform temperature and humidity on every level, throughout the unit
Hinging
Field Reversible Hinging - Field reversible door- flexible installation options for kitchen layout
Hinges on Right Side - Right hand door hinging
Slides and Shelves
Stainless Steel Removable Tray Slides

OPTIONS & ACCESSORIES

Bumpers
Full Bumper - Heavy duty full perimeter bumper extends beyond doors and handles for added protection. The bumper is mounted to the base frame for added durability - the bumper is not used as the base frame. In this way, the bumper absorbs all the shock in transport, protecting the integrity of the construction.
Top Corner Bumpers - Top corner bumpers are a good option for those customers not needing the protection of a full bumper, but still require protection for walls and surrounding equipment.
Bottom Corner Bumpers
Caster
Adjustable Legs - FWE offers a wide variety of adjustable legs for when casters are not an option. 4" and 6" adjustable legs are available on almost all of FWE's equipment.
All adjustable legs are provided with sealed precision bearing with a black anti-rust coating.
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Larger & Upgraded Casters - Larger Casters
Door Latch
Key Locking Door Latch - Heavy duty door latch with key locking capabilities
Magnetic Door Latch - Heavy duty full grip magnetic door latch
Paddle Door Latch - Recessed paddle style door latch
Doors
Pass Through Doors - Pass-thru doors create a convenient connection from preparation side to serving areas. With access from both sides of the cabinet staff is free to focus on customers, taking more orders and serving carry-outs during peak meal times
See-Thru Lexan Doors - See-thru lexan door provides high visability for hot and fresh items
Glass Doors - Full view glass doors allow complete visibility of product without opening the door, available in full and Dutch
Electrical
220-240 Volt - 220-240 Volt
208 Volt
Extra
Auto Water Fill
Handles
Push Pull Handles - Push/pull handles allow for easy maneuvering. Handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands
Slides and Shelves
Custom Rack Spacing - Rack spacing can be customized to accommodate your operational needs
Shelves - Versatile with removable shelves to accommodate a wide variety of items

LONG FORM SPEC

Specified unit shall be FWE Model No. PHTT-2333-18, Precise Humidity Temperature Technology.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners.

INSULATION. "Ultra-Guard" UG-26 high density fiberglass insulation throughout; top, back, bottom, sides and door(s).

HANDLES. Form grip flush-in-wall hand grips recess mounted on each side of unit.

BUMPERS. Bumper stand offs shall be mounted to rear base to allow for proper air circulation.

DOORS AND LATCHES. Flush mounted, stainless steel insulated doors shall be self closing and field reversible. High temperature gasket sealed; gasket shall be cabinet mounted. Magnetic work flow door handle shall be full length, vertical, and positive closing. Each door shall have two (2) heavy-duty edgemount die cast hinges. Shall be standard with dutch doors. Dutch door: two (2) half size doors.

CASTERS. Maintenance free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate.

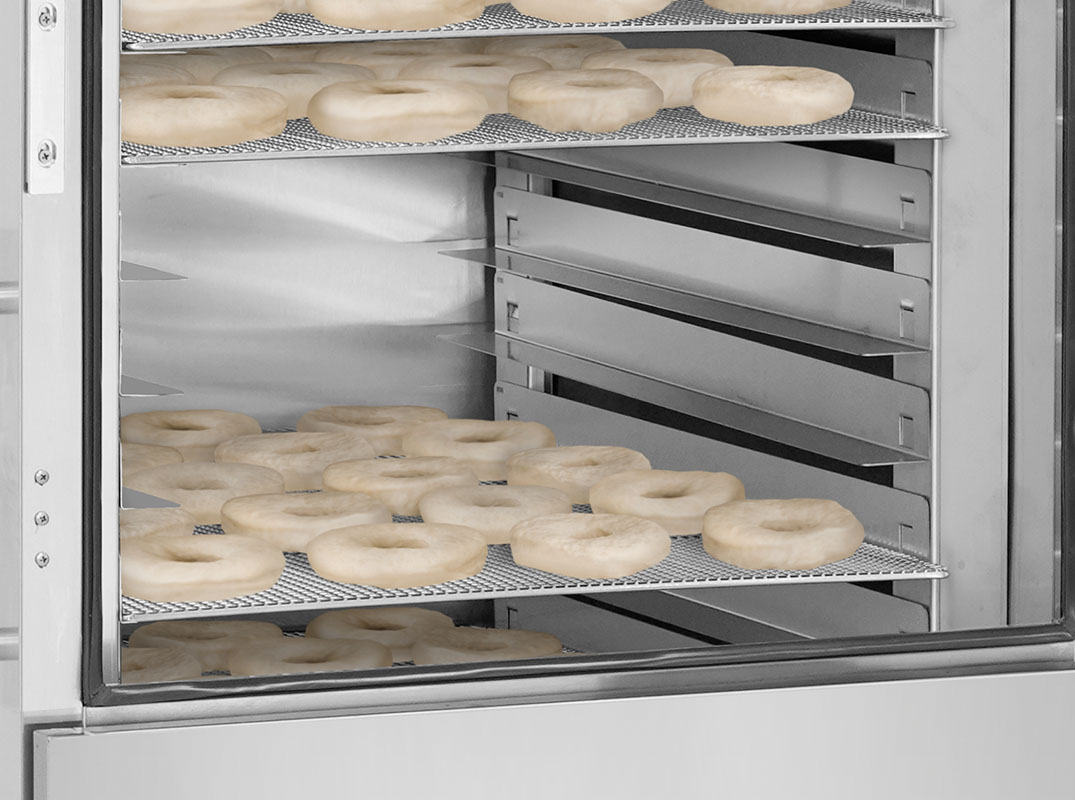

TRAY SLIDES. Fully adjustable / removable and designed to give secure bottom tray support. Each pair of tray slides accommodates one (1) 23" x 33" donut screen or one (1) 23" x 23" donut screen. Removable stainless steel uprights shall be punched on 3" spacings, on center, for easy tray adjustment, and shall easily lift off of heavy-duty stainless steel brackets without the use of tools for cleaning.

PHTT SYSTEM/CONTROLS. Built in humidified holding system shall include two (2) separate long life Incoloy nickel-chromium alloy heating elements per cavity to provide separate, adjustable, precise temperature from 90°F to 200°F (32°C to 93°C) and maintain food texture with settings from 0 to 90% RH (Crisp to Moist). Patented Precise Humidity Temperature Technology controls shall be provided for each function. One to control the interior air temperature, and one to control the interior air moisture with hydro immersion water bath. Stainless steel water reservoir shall be removable for ease of cleaning/sanitation. Built-in drip trough has removable drain plug. System shall have circulating fan to assist heat recovery/moist air distribution. Controls shall be up-front, recessed and eye-level for convenience and safety. ON/OFF power switch, humidity cycle light and thermostat cycling light shall also be included.

ELECTRICAL CHARACTERISTICS. 3 wire grounded tri-directional power cord and plug, rear mounted for safety. See electrical data chart above for amperage and receptacle configuration. See electrical data chart for models that may require a dedicated circuit.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.
