RH-8

RETHERMALIZATION CABINETS
For Various Size Trays, Pans, Baskets, and Gastro-Norm
RETHERM "RH" SERIES

RH-8 Spec Sheet

Unlock High Volume, Precision Cooking with FWE's RH Series: Reheat and Cook, Without Compromising Quality

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

MODEL SPECIFICATIONS

Model Height:
Model Width:
Model Depth:
Shipping Weight:
Volts:
Watts:
Amps:
3 Phase:
Adjustable Slides:
Standard # of Slides:
Standard # of Shelves:
Standard Spacing:

DESCRIPTION

FWE RH Series Rethermalization Cabinets

The FWE RH Series Rethermalization Cabinets are designed to safely reheat, cook, finish, and hold pre-prepared foods while preserving flavor, texture, color, and nutritional value. Ideal for healthcare facilities, schools, commissaries, correctional institutions, and high-volume foodservice operations, these cabinets provide efficient rethermalization without requiring costly hood systems or fire suppression equipment.

Product Overview

Built for high-volume food production, the RH Series combines rapid reheating performance with automatic holding functionality. Operators can cook by time or optional product probe temperature, then automatically transition to hold mode once the reheat cycle is complete. Preset recipe storage and intuitive controls simplify operation and help ensure consistent food quality.

Key Features & Benefits

Rethermalization & Holding in One Cabinet - Reheats pre-cooked foods and automatically switches to holding mode when the cycle is complete.
Flexible Cooking Applications - Capable of reheating, baking, finishing, and cooking a wide variety of food products.
User-Friendly Electronic Controls - Simple "set-and-forget" operation allows operators to preset cooking and holding temperatures.
Recipe Memory Function - Stores up to eight programmable menu settings for consistent results and faster operation.
Optional Product Probe - Allows cooking based on internal food temperature for greater accuracy and food safety.
High Output Models Available - HO models provide increased wattage for faster reheating of dense and heavyweight food products.
Automatic Hold Mode - Maintains safe serving temperatures after reheating without overcooking food.
Adjustable Tray Slides - Removable tray slide system accommodates multiple tray and pan sizes while simplifying cleaning.
Door Venting System - Releases excess moisture to support natural browning and improved food texture.
Venting Baffle Heat Distribution - Provides consistent heating throughout the entire cabinet during cook and hold cycles.
No Hood Required - Eliminates the expense of dedicated hood systems, exhaust systems, and fire suppression equipment where permitted by local codes.

Construction & Durability

Constructed with heliarc welded stainless steel, reinforced tubular framing, ceramic and fiberglass insulation, vented insulated doors, heavy-duty hinges, and commercial-grade caster systems, the RH Series is engineered for long-term reliability. Removable tray slides and easy-to-clean interior surfaces simplify sanitation and maintenance.

Performance Specifications

Retherm temperature range: 90°F to 350°F (32°C to 177°C)
Holding temperature range: 90°F to 200°F (32°C to 93°C)
Cook-by-time or optional cook-by-probe operation
Automatic transition from cook cycle to holding cycle
Storage for up to 8 programmable recipes
Multiple Incoloy heating elements for rapid heat-up
Precision venting heat distribution system
Removable adjustable tray slides on 1.5" centers
Accommodates 18" x 26" trays, baskets, and 12" x 20" pans
Available in standard and High Output (HO) configurations
Pass-through options available on High Output models
Two-year limited warranty

Ideal Applications

Hospitals and healthcare facilities
Schools and universities
Correctional foodservice operations
Commissaries and central production kitchens
Restaurants and catering operations
High-volume institutional foodservice programs
Meal rethermalization systems

Why FWE?

FWE has long been a trusted manufacturer of foodservice equipment designed for durability, performance, and efficiency. The RH Series continues that tradition by providing reliable rethermalization capabilities, automatic holding functionality, and intuitive controls that help operators improve productivity, maintain food quality, and streamline meal service operations.

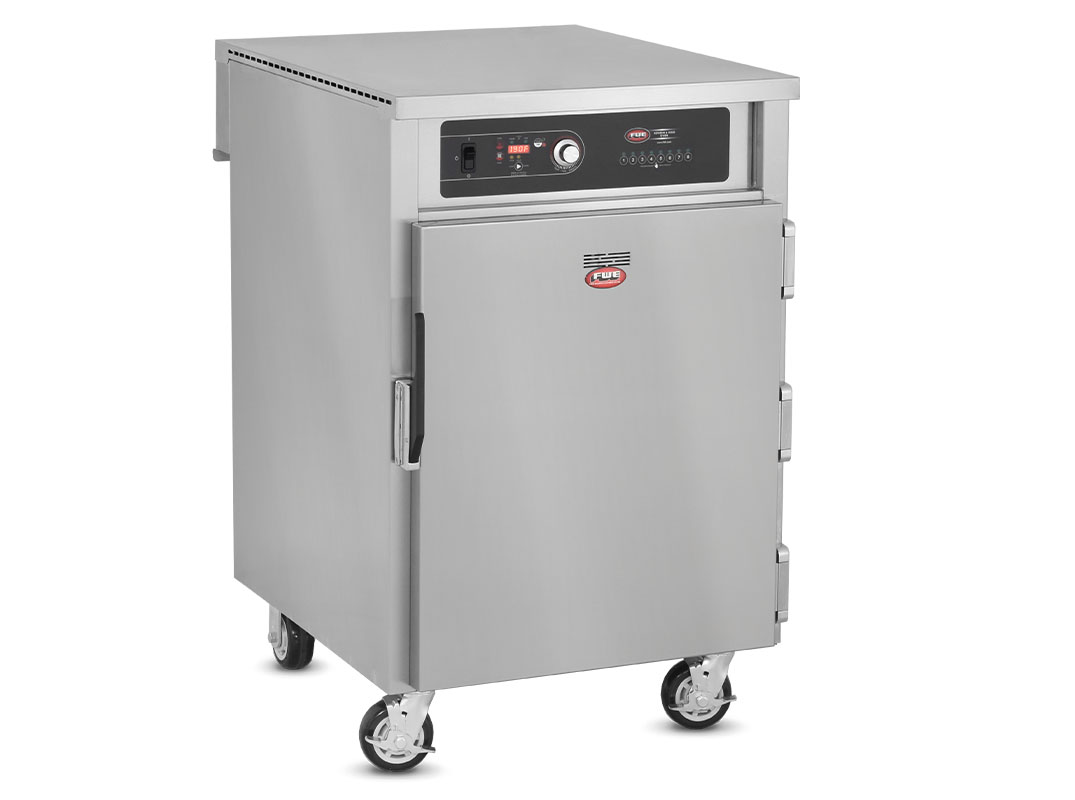

RH-8 Rethermalization Cabinet (8 Slides):
The RH-8 Rethermalization Cabinet is a culinary workhorse with eight tray slides at your disposal. Perfect for busy kitchens, it enables you to reheat, cook, or finish a wide range of pre-cooked dishes with precision and ease.

FEATURES

Agency Approvals
UL EPH - UL EPH recognizes products certified to meet environmental and public health standards. The UL EPH logo shows the word "Classified" above the UL mark, which indicates that the product complies with ANSI/NSF standards, in addition to other applicable codes.
CUL - C-UL mark indicates a product meets the CSA testing standards for Canada.
C-UL-US mark indicates a product meets the UL and CSA testing standards for both the United States and Canada.
UL - The UL mark, which now serves customers in more than 100 countries, has become the authority on product safety. Its engineers test for things like soundness of design, safety of electrical components, and structural integrity of products for which UL listing is sought.
If you think of NSF International classification as protection for your customers, then the mark of Underwriters Laboratories (UL) indicates safety for those who work in your commercial kitchen. The Illinois-based testing agency assures that the equipment that gets its stamp operates safely. There is also a sanitation classification that offers similar assurances about food safety as the NSF mark. Products are indicated as "Classified UL-EPH."
Bumpers
No Bumper - No bumper
Caster
Mobile
5" Casters - 5" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.

Available in 5", 6" and 8" diameters.
Construction
Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times

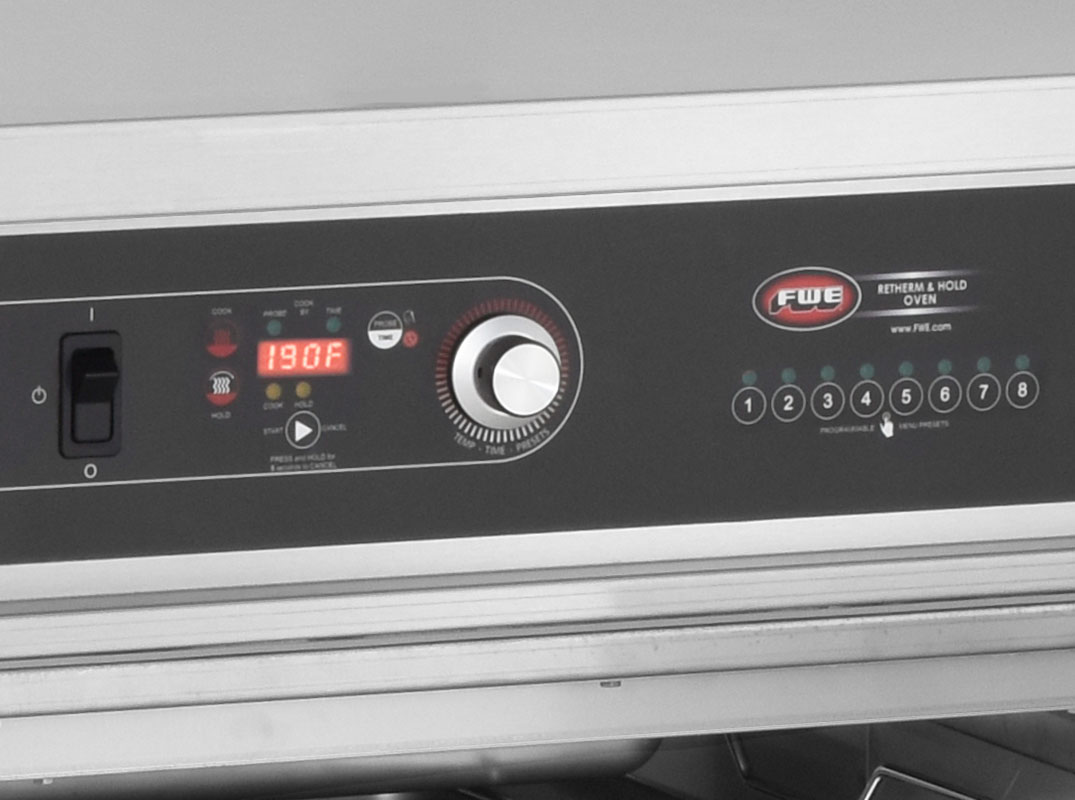

Control Panel
Electronic Controls - Electronic controls featuring easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light.
Retherm Controls - Easy to use controls allow the operator to preset the time and temperature of the cooking cycle, as well as the holding temperature, eliminating the need for constant monitoring
Door Count
1 Door
Door Hinge
Edgemount Hinges - Heavy-duty edge mount die cast hinges
Door Latch
Magnetic Door Latch - Heavy duty full grip magnetic door latch
Doors
Gasketless
Vented Doors - Adjustable door vents; allows desired holding conditions from moist to crisp foods, achieving optimal results
Full Stainless Steel Door - Flush mounted, stainless steel insulated doors
Extra
Warranty - Two year limited warranty
Handles
No Handles
Heat System
Retherm Heat System - Full cabinet air circulation for high volume heating and finishing prepared foods. No venting hood space required for most local codes
Hinging
Hinges on Right Side - Right hand door hinging
Slides and Shelves
Adjustable Slides for Various Baskets,Trays & Pans - Unique universal design holds 13"x26" and/or 18"x26" baskets plus 12" x 20" pans, 18" x 26" sheet trays or GN containers on fully adjustable tray slides. Slides are removable for thorough interior cleaning

OPTIONS & ACCESSORIES

Caster
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Larger & Upgraded Casters - Larger Casters
Electrical
High Output Models - High Output Models use a 240 thermostat and a higher wattage element to ensure the desired temperature is maintained during max serving times.
Extra
Dry Erase Board - Door mounted dry erase board for menu changes or cabinet identification
Menu Card Holder - Door mounted frame to display menu card
Security Packages - HDM security packages can be added to select cabinets to help increase the security and durability of your unit
X-Factor Frame (consult factory) - X-Factor Frame
Hinging
Field Reversible Hinging - Field reversible door- flexible installation options for kitchen layout
Hinges on Left Side - Left hand door hinging, available on single door models only
Slides and Shelves
Extra Tray Slides - Extra tray slides

LONG FORM SPEC

Specified unit shall be FWE Model No. RH-8, Rethermalization Cabinets.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 18 gauge polished exterior, 18 gauge stainless steel interior with easy-to-clean coved corners. Welded tubular base frame shall be 1" square, heavy gauge stainless steel tubing, with 10 gauge stainless steel reinforcing plates at corners.

INSULATION. Insulated throughout; top, back, bottom, sides, doors using high density ceramic and fiberglass insulation.

DOORS AND LATCHES. Flush mounted, double pan, stainless steel, vented, insulated door(s). Heavy-duty edge mount full grip magnetic door latch with heavy-duty hinges. Three (3) die-cast edgemount hinges per door.

CASTERS. Maintenance free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

TRAY SLIDES. Welded rod-style tray slides are nickel plated for greater durability and sanitation. Fully adjustable / removable and designed to give secure bottom tray support. Removable stainless steel uprights shall be punched on 1.5" spacings, on center, for easy tray adjustment, and shall easily lift off of heavy-duty stainless steel brackets without the use of tools for cleaning.

HEATING SYSTEM. Built-in heat system includes multiple Incoloy sheathed heating elements that provide fast heat up and accurate temperature set points. In heat cycle, elements provide full power to assure safe reheat times. When heat time expires, unit to automatically switch to hold mode maintaining food quality and safe holding temperatures. Unit contains internal cooling fans and thermally protected blower motors, safety switches and control panel is temperature rise protected. Unique precision venting baffle duct system for even, efficient heat throughout the entire cabinet, in either heat or holding periods. Venting may be required. Local codes prevail.

CONTROL PANEL. Easy to operate, automatic controls include intuitive, easy to use / easy to read, kitchen friendly controls that allow for "set-and-forget" consistent results. Cook by time or by internal product temperature with probe (optional). When cook cycle is complete, controller automatically switches from cook cycle to hold cycle. Unit has preset function to store and quickly retrieve up to 8 recipes. Adjustable COOK control up to 350°F (177°C) and adjustable HOLDING control up to 200°F (93°C). Shall include ON/OFF switch. Actual cabinet temperature reading is LED displayed during each cycle and probe temp display. Consult factory if lower temperature is required for local codes.

ELECTRICAL CHARACTERISTICS. See chart above for amperage. See electrical chart for models that require a dedicated circuit.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present. Refer to operations manual for further details.

Provide with the following accessories:

VIDEOS

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
