TS-1418-30

HUMIDIFIED HEATED HOLDING TRANSPORT CABINETS
Insulated - for 14"x18", 15"x20", or 10"x14" Size Patient Trays
HUMI-TEMP "TS-1418" SERIES

TS-1418-30 Spec Sheet

TS-1418-30 SPEC SHEET

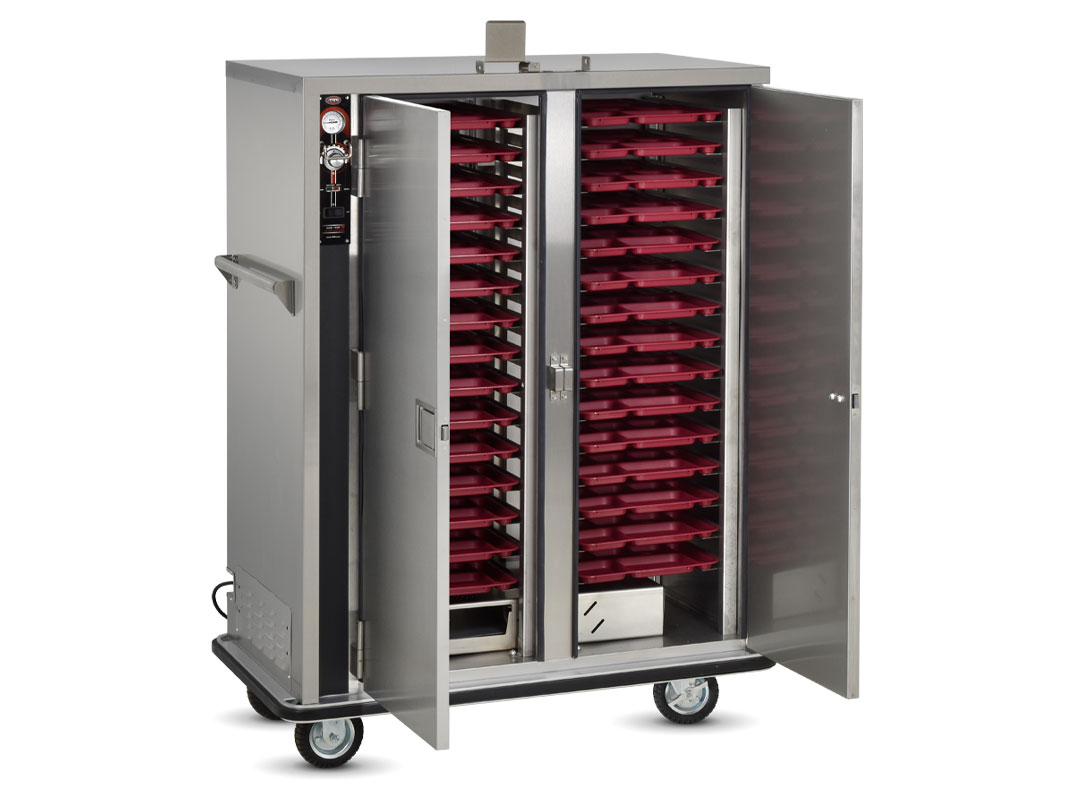

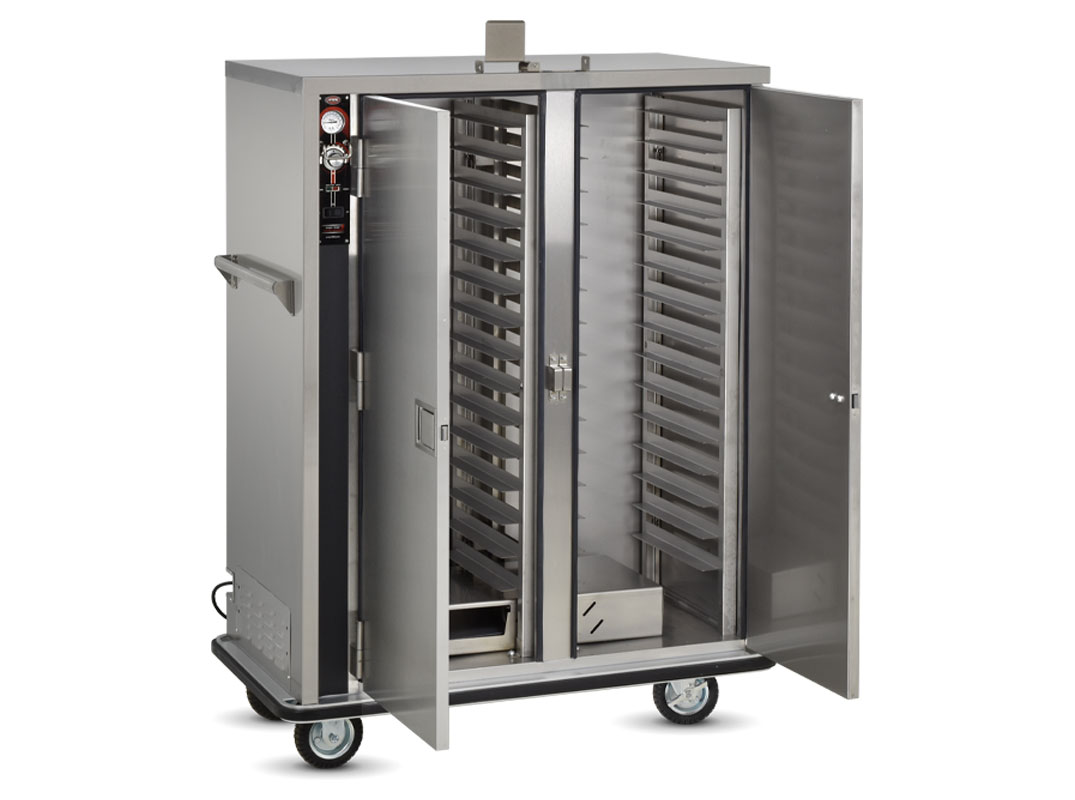

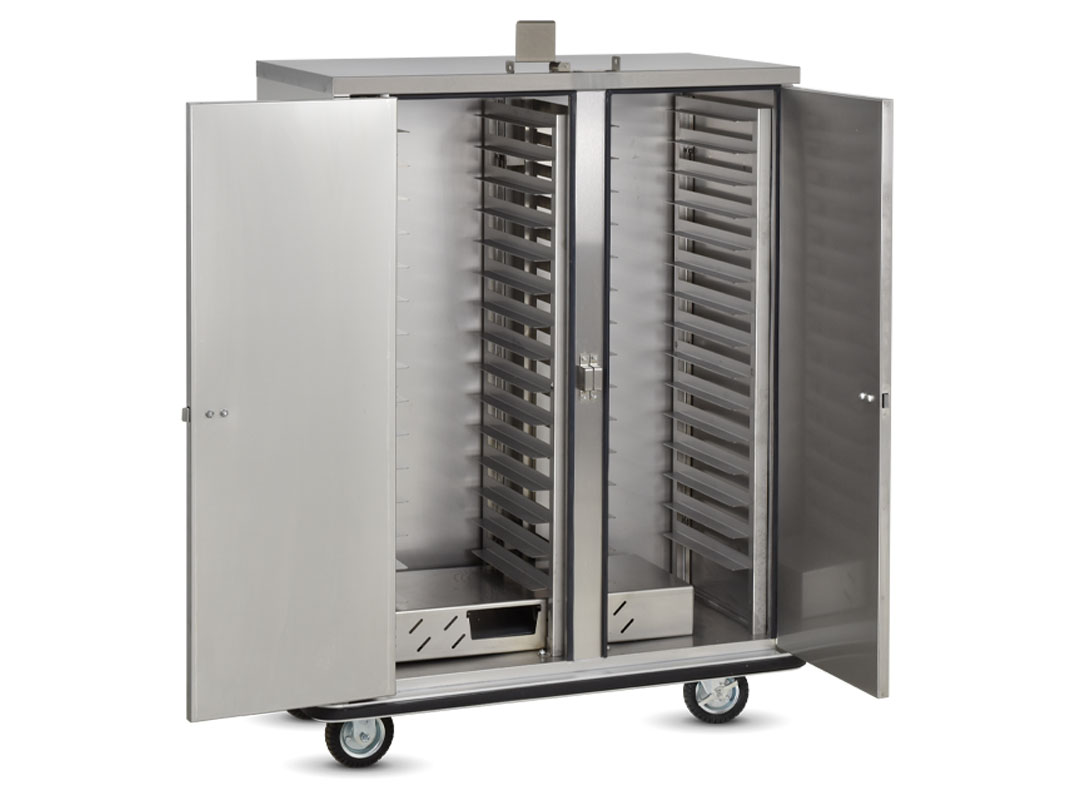

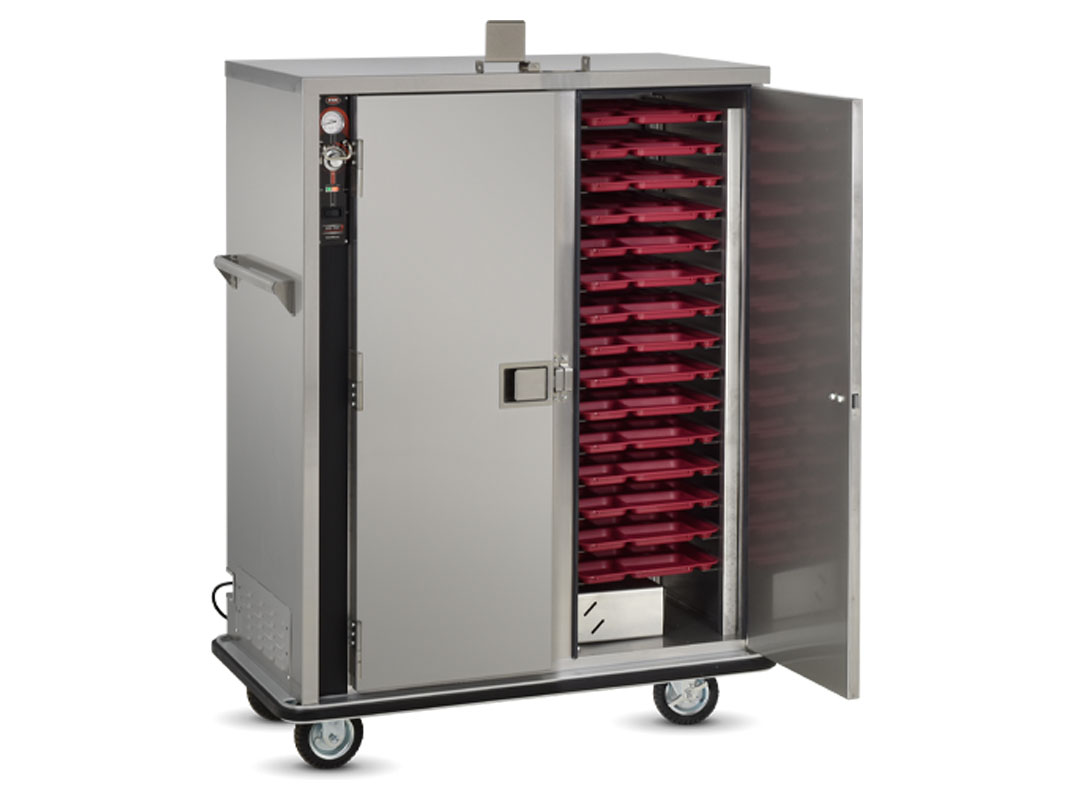

All stainless steel, heated, quiet ride patient tray delivery cabinet

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

GET A QUOTE

MODEL SPECIFICATIONS

Model Height:
Model Width:
Model Depth:
Shipping Weight:
Volts:
Watts:
Amps:
3 Phase:
Adjustable Slides:
Standard # of Slides:
Standard # of Shelves:
Standard Spacing:

DESCRIPTION

FWE TS-1418 Series Humi-Temp Patient Tray Delivery Cabinets

The FWE TS-1418 Series Humi-Temp Patient Tray Delivery Cabinets are designed to transport, hold, and serve patient meals while maintaining proper serving temperatures and food quality. Ideal for hospitals, healthcare facilities, senior living communities, and institutional foodservice operations, these cabinets combine quiet mobility, humidified heated holding, and durable stainless steel construction for dependable meal delivery performance.

Product Overview

Built with FWE's patented Humi-Temp heat and humidity system, the TS-1418 Series gently circulates heated, moist air throughout the cabinet to eliminate hot and cold spots while preserving food freshness. Designed for patient room service and tray delivery applications, these cabinets offer quiet operation, antimicrobial touchpoints, and flexible tray accommodations for a variety of healthcare meal service programs.

Key Features & Benefits

Patented Humi-Temp Technology - Gently circulates heated, humidified air to maintain food temperature and freshness while minimizing hot and cold spots.
Patient Tray Delivery Design - Specifically engineered for healthcare foodservice transport and room service meal distribution.
Quiet Ride Operation - Quiet multi-terrain casters and latchless door system help reduce noise during patient meal delivery.
Antimicrobial Door Handle - SaniGuard antimicrobial magnetic door handle helps support sanitation efforts.
Flexible Tray Accommodation - Supports 14" x 18", 15" x 20", and dual 10" x 14" patient trays.
Easy-to-Use Controls - Up-front recessed controls include a full-range thermostat and continuously readable thermometer.
Thermal Barrier Wall Option - Optional heated/ambient configurations allow simultaneous transport of hot and cold meal components.
Removable Tray Racks - Stainless steel rack assemblies remove easily without tools for cleaning and sanitation.
Move-with-Ease Design - Reinforced chassis and quiet-roll casters simplify transport, even when fully loaded.
Custom Tray Spacing Available - Multiple spacing options accommodate varying tray capacities and service requirements.

Construction & Durability

Constructed with heliarc welded stainless steel, reinforced tubular framing, Ultra-Guard fiberglass insulation, antimicrobial door hardware, and a wraparound protective bumper system, the TS-1418 Series is built for demanding healthcare environments. Heavy-duty hinges, reinforced mounting points, and commercial-grade casters provide long-term reliability and durability.

Performance Specifications

Temperature range: 90°F to 190°F (32°C to 88°C)
Patented Humi-Temp humidified heating system
Removable stainless steel humidifier pan and chamber
Fan-assisted heated air circulation system
Fixed tray rack spacing at 3" standard intervals
Capacities ranging from 15 to 45 trays depending on model configuration
Available in single-door, double-door, and three-door models
Optional pass-through, Dutch door, and Lexan door configurations available
Heated/ambient configurations available with thermal barrier wall option
120V and 220-240V electrical options available
Two-year limited warranty

Ideal Applications

Hospitals and healthcare facilities
Long-term care communities
Rehabilitation centers
Senior living facilities
Institutional meal delivery programs
Patient room service operations

Why FWE?

For decades, FWE has delivered trusted food holding and transport solutions for healthcare and institutional foodservice operations. The TS-1418 Series continues that tradition by combining patented humidified heat technology, quiet mobility, antimicrobial features, and durable construction to help operators deliver high-quality meals efficiently and consistently.

TS-1418-30 Heated Patient Tray Delivery Cabinet

Supreme Capacity and Customization for Comprehensive Healthcare Meal Service

Presenting the FWE TS-1418-30, a top-tier heated patient tray delivery cabinet, designed to meet the extensive demands of larger healthcare food service operations. This model embodies the perfect fusion of substantial capacity and adaptability.

1. Exceptional Tray Capacity for Extensive Needs: The TS-1418-30 is equipped with 30 pairs of tray slides, each spaced at 3 inches, making it ideal for high-volume healthcare environments. It can accommodate a range of patient tray sizes including 14" x 18", 15" x 20", and 10" x 14", facilitating the delivery of meals to a large number of patients efficiently and effectively.

2. Tailored to Fit Specific Service Requirements: Recognizing the diverse tray size needs in different healthcare settings, the TS-1418-30 offers customizable slide spacings at the time of order. This feature allows the cabinet to be perfectly tailored to the specific trays used in your facility, enhancing its utility and effectiveness.

3. Quiet Operation for a Restful Environment: With a focus on patient comfort, the TS-1418-30 operates quietly, an essential attribute in healthcare settings where maintaining a peaceful atmosphere is vital. Its silent performance ensures meal delivery is conducted with minimal disruption, adhering to the high standards of patient care.

The TS-1418-30 - Excellence in Large-Scale Healthcare Meal Delivery:
The TS-1418-30 stands as a symbol of FWE's commitment to supporting extensive healthcare food service needs. Its significant capacity, customizable tray accommodation, and quiet operation make it an indispensable asset in ensuring efficient, respectful, and high-quality meal delivery in large healthcare facilities.

FEATURES

Agency Approvals
CUL - C-UL mark indicates a product meets the CSA testing standards for Canada.
C-UL-US mark indicates a product meets the UL and CSA testing standards for both the United States and Canada.
NSF - NSF International (formerly known as the National Sanitation Foundation) is an independent, non-profit organization that certifies food service equipment and ensures it is designed and constructed in a way that promotes food safety. FWE products that meet these standards bear the NSF mark.
You may also see a designation that a product meets NSF/ANSI, which adds rules from the American National Standards Institute to the testing. ANSI works closely with NSF to develop its food safety standards and complete testing to those.
UL - The UL mark, which now serves customers in more than 100 countries, has become the authority on product safety. Its engineers test for things like soundness of design, safety of electrical components, and structural integrity of products for which UL listing is sought.
If you think of NSF International classification as protection for your customers, then the mark of Underwriters Laboratories (UL) indicates safety for those who work in your commercial kitchen. The Illinois-based testing agency assures that the equipment that gets its stamp operates safely. There is also a sanitation classification that offers similar assurances about food safety as the NSF mark. Products are indicated as "Classified UL-EPH."
Bumpers
Full Bumper - Heavy duty full perimeter bumper extends beyond doors and handles for added protection. The bumper is mounted to the base frame for added durability - the bumper is not used as the base frame. In this way, the bumper absorbs all the shock in transport, protecting the integrity of the construction.
Caster
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.

Available in 5", 6" and 8" diameters.
5" Casters - 5" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
Mobile
Construction
Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times
Control Panel
Mechanical Controls - Mechanical controls
Humi-Temp Controls - Controls are up-front, easy to read and set, and include a full range F/C thermostat for easy operation. Thermometer continuously reads cabinet temperature - even without power source!
Door Count
2 Doors
Door Hinge
Edgemount Hinges - Heavy-duty edge mount die cast hinges
Door Latch
SaniGuard Door Handle - Standard recessed Antimicrobial Sani guard door handle - detains illness causing pathogens
Doors
Gasket Sealed - Gasket sealed door; tight double seal makes for a perfect secure closure and easy to clean
Side by Side Doors - Flush mounted, stainless steel insulated french style doors help maintain cabinet temperature during peak serving times
Electrical
Tri-Directional Cord - Recessed tri-direction cord pocket - allows for compact fit
Extra
Passive Humidity Pan - Passive humidity pan; provided to add optional humidity to cabinet environment and to prevent drying out food, improving food quality
Warranty - Two year limited warranty
Handles
Push Pull Handles - Push/pull handles allow for easy maneuvering. Handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands
Heat System
Humi-Temp Heat System - Heat source with passive humidity circulates heat evenly throughout cabinet.
Hinging
Hinges on Right and Left Side - Hinges on the right and left side
Slides and Shelves
Adjustable Slides for 14x18, 15x20 and 10x14 - Unique tray slide design holds 14x18, 15x20 and 10x14 trays by the bottom for greater support for heavy food items - tray slides are adjustable and removable for thorough interior cleaning

OPTIONS & ACCESSORIES

Caster
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Larger & Upgraded Casters - Larger Casters
Control Panel
Electronic Controls - Electronic controls featuring easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light.
Door Latch
Edgemount Latch - Edgemont door latch, full grip and positive closing
Key Locking Door Latch - Heavy duty door latch with key locking capabilities
Magnetic Door Latch - Heavy duty full grip magnetic door latch
Paddle Door Latch - Recessed paddle style door latch
Padlocking Transport Latch - Cabinet mounted latch keeps door secure during transport, increased security with padlocking capabilities
Doors
Dutch Doors - Dutch doors help maintain cabinet temperature during peak serving times
Pass Through Doors - Pass-thru doors create a convenient connection from preparation side to serving areas. With access from both sides of the cabinet staff is free to focus on customers, taking more orders and serving carry-outs during peak meal times
See-Thru Lexan Doors - See-thru lexan door provides high visability for hot and fresh items
Electrical
220-240 Volt - 220-240 Volt
Upgraded Element - Upgraded Element
Extra
Cord Winder Brackets - Cabinet mounted brackets allow for cord to be wrapped and out of the way when not in use
Dry Erase Board - Door mounted dry erase board for menu changes or cabinet identification
Menu Card Holder - Door mounted frame to display menu card
Security Packages - HDM security packages can be added to select cabinets to help increase the security and durability of your unit
X-Factor Frame (consult factory) - X-Factor Frame
Handles
Tubular Push Handles - Heavy duty stainless steel push pull handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands
Heat System
Heat Retention Battery
Hinging
Alternate Door Swing Configurations - Alternate door swing configurations are available for multi door cabinets
Slides and Shelves
Extra Tray Slides - Extra tray slides

LONG FORM SPEC

Specified unit shall be FWE Model No. TS-1418-30, Humidified Heated Holding Transport Cabinets.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners. Welded tubular base frame shall be 1" square, heavy gauge stainless steel tubing, with 10 gauge stainless steel reinforcing plates at corners.

INSULATION. "Ultra-Guard" UG-26 high density fiberglass insulation throughout; top, back, bottom, sides, and door(s).

HANDLES. Heavy-duty push bar handles, solid formed 1" x .375" thick; mounted at each end of unit. Mountings reinforced with stainless steel channel.

BUMPER. Solid 1.5" wide continuous wraparound aluminum channel, bolted to frame, with snap-in, non-marking replaceable vinyl cushion. Full perimeter bumper extends beyond doors, handles, etc., for added protection. Shall be continuous, with corner cutouts to facilitate cleaning.

DOORS AND LATCHES. Flush mounted, stainless steel insulated doors. High temperature gasket sealed; gasket shall be cabinet mounted. Each door shall have two (2) heavy-duty edgemount die cast hinges reinforced with stainless steel backing plates. Each door shall be equipped with a positive closing, flush-in-door, antimicrobial SaniGuard magnetic door handle.

CASTERS. Quiet ride multi-terrain casters in a configuration of two (2) rigid and two (2) swivel with brake. TS-1418-45 and TS-1418-33 are standard with a 6-Caster configuration of two (2) rigid and four (4) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

TRAY SLIDES. Unitized tray slide assemblies shall be heavy gauge stainless steel, channels fixed in place at 3" spacings. Assemblies are designed to accommodate one (1) 14" x 18", one (1) 15" x 20" or two (2) 10" x 14" trays. Removable stainless steel uprights shall easily lift off heavy duty stainless steel supports without the use of tools. Racks with custom tray spacings are available at time of order (consult factory).

HEATING SYSTEM / CONTROLS. Patented built-in "Humi-Temp" system shall include an Incoloy nickel-chromium alloy heating element and Hi-Temp, self-lubricated, impedance protected fan-cooled blower motor. Cabinet shall have humidifying chamber and drawer style baffled humidifier pan. Both shall be stainless steel and removable. Controls shall be up-front, recessed and shall include a full range thermostat adjustable to actual temperature. Thermostat shall include temperature scale marked in ten degree increments (F/C) from 90° to 190°F (32° to 88°C). An operational range thermometer, power supply light, thermostat cycling light, and 20 amp ON/OFF switch are also included.

ELECTRICAL CHARACTERISTICS. 3 wire grounded tri-directional power cord and plug, rear mounted for safety. See electrical data chart above for amperage and receptacle configuration. See electrical chart for models that require a dedicated circuit.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provide with the following accessories:

LITERATURE

VIDEOS

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
