ETC-1826-34PH

PROOFER & HEATED HOLDING CABINETS
Non-Insulated - Various Size Trays, Pans, and Gastro-Norm
Economy "ETC-1826-PH" Series

ETC-1826-34PH Spec Sheet

ETC-1826-34PH SPEC SHEET

Two cabinets in one! Dual-purpose cabinets proof and heat - eliminating costly duplication of equipment

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

GET A QUOTE

MODEL SPECIFICATIONS

Model Height:
Model Width:
Model Depth:
Shipping Weight:
Volts:
Watts:
Amps:
3 Phase:
Adjustable Slides:
Standard # of Slides:
Standard # of Shelves:
Standard Spacing:

DESCRIPTION

FWE ETC-1826-HD Series Humidified Heated Holding Cabinets

The FWE ETC-1826-HD Series Heated Holding Cabinets are designed to hold bulk food pans at safe serving temperatures while helping operators maintain moisture and food quality over extended periods. Engineered for catering, banquet operations, and institutional kitchens, this solution combines patented Humi-Temp heat and humidity technology with durable stainless steel construction to improve food quality, operational efficiency, and overall performance.

Product Overview

Built for demanding foodservice environments, the ETC-1826-HD Series helps operators keep bulk foods hot, moist, and ready to serve without drying out. Whether used for banquet service, kitchen prep holding, or catering operations, this solution delivers reliable performance while maintaining the quality, consistency, and efficiency today's operations require.

Key Features & Benefits

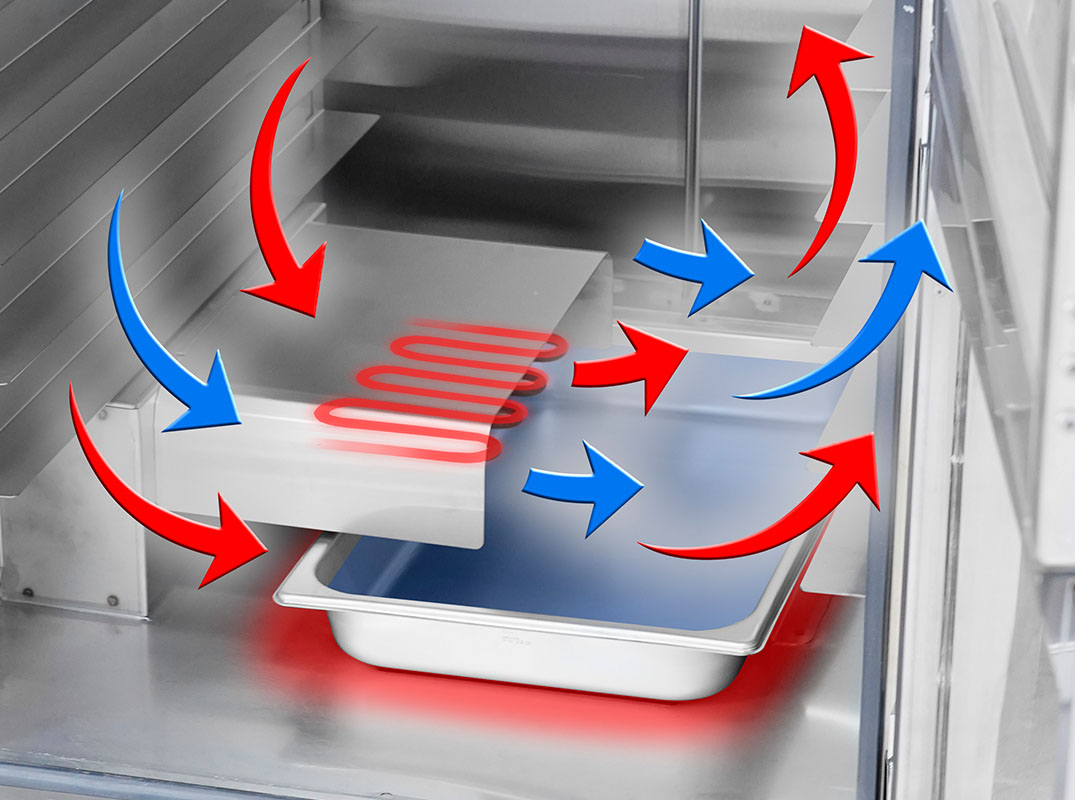

Patented Humi-Temp System - Circulates heated, moist air to eliminate hot and cold spots and maintain food quality.
Humidity Control Capability - Adds moisture to prevent food from drying out during extended holding times.
Versatile Tray Compatibility - Accommodates 18" x 26" and 14" x 18" trays for flexible kitchen operations.
Easy-to-Use Control System - Features front-mounted thermostat and continuous temperature monitoring for precise operation.
Removable Lip-Loader Rack - Simplifies cleaning and improves sanitation with an easy-to-remove rack system.
Heavy-Duty Mobility - Durable casters allow smooth transport and secure positioning in busy kitchens.
Ergonomic Magnetic Door Handle - Provides smooth workflow and easy access for operators of varying heights.

Construction & Durability

Constructed with heliarc welded stainless steel, the ETC-1826-HD Series is built to withstand the rigors of daily commercial use. Features such as a heavy-duty tubular welded base frame, reinforced stress plates, and removable humidifier components provide long-lasting durability, easy cleaning, and dependable performance.

Performance Specifications

Temperature range: 90°F to 190°F (32°C to 88°C)
Patented Humi-Temp heat and humidity system
Compatible with 18" x 26" and 14" x 18" trays
Standard fixed rack spacing at 1.5" with adjustable options
120V and 220-240V electrical configurations available
Integrated humidifier pan and chamber
Two-year limited warranty

Ideal Applications

Banquet and catering operations
Hotels and resorts
Institutional and commercial kitchens
Bulk food holding and service preparation

Why FWE?

For decades, FWE has been trusted by foodservice operators for equipment that delivers exceptional durability, performance, and reliability. The ETC-1826-HD Series continues that tradition by providing a solution designed to help operators improve food quality, streamline operations, and achieve consistent results day after day.

FEATURES

Agency Approvals
CUL - C-UL mark indicates a product meets the CSA testing standards for Canada.
C-UL-US mark indicates a product meets the UL and CSA testing standards for both the United States and Canada.
CE - The CE mark is mandatory for products sold in the European Economic Area. It indicates the product conforms with certain manufacturing and design safety requirements. CE is similar to UL except it's more of a declaration by the manufacturer that the product meets the relevant rules, rather than being the mark of independent testing.
NSF - NSF International (formerly known as the National Sanitation Foundation) is an independent, non-profit organization that certifies food service equipment and ensures it is designed and constructed in a way that promotes food safety. FWE products that meet these standards bear the NSF mark.
You may also see a designation that a product meets NSF/ANSI, which adds rules from the American National Standards Institute to the testing. ANSI works closely with NSF to develop its food safety standards and complete testing to those.
UL - The UL mark, which now serves customers in more than 100 countries, has become the authority on product safety. Its engineers test for things like soundness of design, safety of electrical components, and structural integrity of products for which UL listing is sought.
If you think of NSF International classification as protection for your customers, then the mark of Underwriters Laboratories (UL) indicates safety for those who work in your commercial kitchen. The Illinois-based testing agency assures that the equipment that gets its stamp operates safely. There is also a sanitation classification that offers similar assurances about food safety as the NSF mark. Products are indicated as "Classified UL-EPH."
Bumpers
No Bumper - No bumper
Caster
Mobile
5" Casters - 5" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.

Available in 5", 6" and 8" diameters.
Construction
Stainless Steel / Non Insulated - Constructed of stainless steel, with welded base frame for added strength and durability
Control Panel
Mechanical Controls - Mechanical controls
Proofer Controls - Easy to use - upfront and recessed electronic control panel has separate, easy to read and set, air moisture and air temperature controls
Door Count
1 Door
Door Hinge
Edgemount Hinges - Heavy-duty edge mount die cast hinges
Door Latch
Magnetic Work Flow Door Handle - Magnetic work flow door handles ergonomically accommodates kitchen staff and servers of varying heights
Doors
Full Stainless Steel Door - Flush mounted, stainless steel insulated doors
Gasket Sealed - Gasket sealed door; tight double seal makes for a perfect secure closure and easy to clean
Electrical
Tri-Directional Cord - Recessed tri-direction cord pocket - allows for compact fit
Extra
Warranty - Two year limited warranty
Heat System
Proofer Heat System - Proofer and amplified moisture heated holding. Built-in humidity system balances moisture and
air with controlled heat and humidity capabilities - allows for greater control of holding food
environment for longer holding periods
Hinging
Field Reversible Hinging - Field reversible door- flexible installation options for kitchen layout
Hinges on Right Side - Right hand door hinging
Slides and Shelves

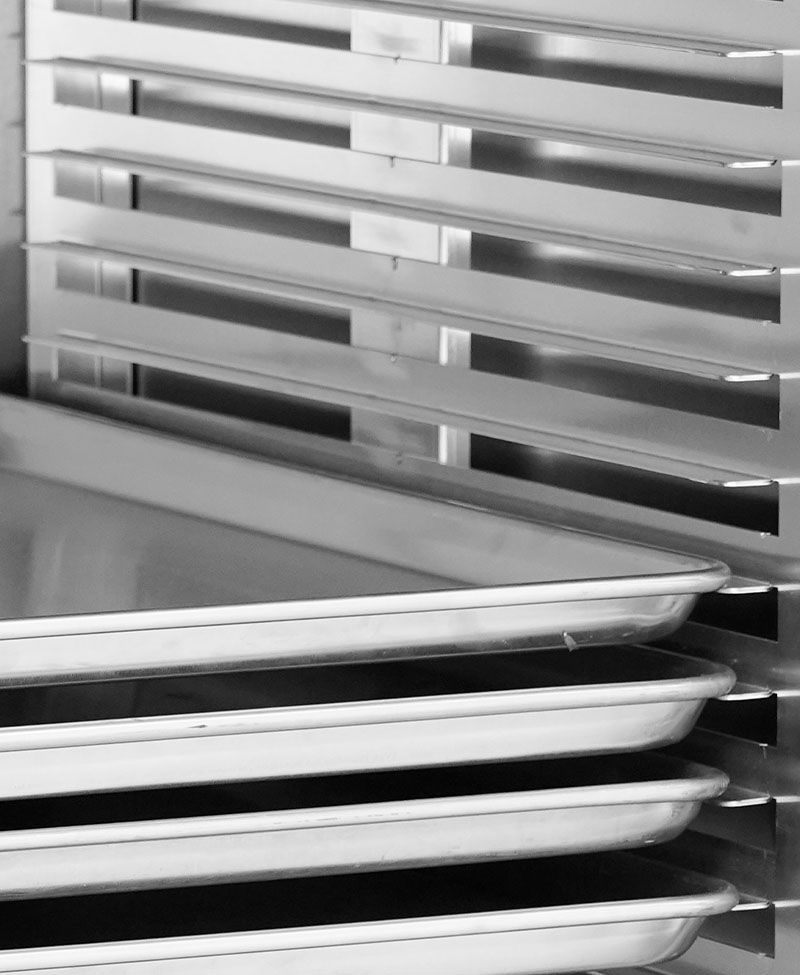

Fixed Slides for 18x26 Trays - Fixed slides accommodate 18" x 26" or 14" x 18" trays. Unique pan slide racks' front edges are relieved for easy loading, one piece die stamped stainless steel for extra strength, and removable for easy cleaning

OPTIONS & ACCESSORIES

Caster
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Control Panel
Electronic Controls - Electronic controls featuring easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light.
Door Latch
Key Locking Door Latch - Heavy duty door latch with key locking capabilities
Doors
Dutch Doors - Dutch doors help maintain cabinet temperature during peak serving times
Glass Doors - Full view glass doors allow complete visibility of product without opening the door, available in full and Dutch
See-Thru Lexan Doors - See-thru lexan door provides high visability for hot and fresh items
Electrical
Upgraded Element - Upgraded Element
220-240 Volt - 220-240 Volt
Hinging
Hinges on Left Side - Left hand door hinging, available on single door models only
Slides and Shelves
Custom Rack Spacing - Rack spacing can be customized to accommodate your operational needs
Adjustable Slides for 18x26 Trays, Stainless Steel - Unique tray slide design holds trays or pans by the bottom for greater support for heavy food items - tray slides are stainless steel, adjustable and removable for thorough interior cleaning
Shelves - Versatile with removable shelves to accommodate a wide variety of items

LONG FORM SPEC

Specified unit shall be FWE Model No. ETC-1826-34PH, Proofer & Heated Holding Cabinets.

CONSTRUCTION. Heliarc welded, single unit construction; 20 gauge polished stainless steel exterior, 22 gauge stainless steel inside bottom. Inside top shall be sloped to direct condensation to the rear of the unit.

HANDLES. Full-size, form-fitting recessed hand grips shall be mounted on each side of cabinet.

DOORS AND LATCHES. Flush mounted, field reversible, stainless steel insulated doors. High temperature gasket sealed; gasket shall be cabinet mounted. Magnetic work flow door handle shall be full length, vertical, and positive closing. Each door shall have two (2) heavy-duty edgemount die cast hinges. The hinge and latch mountings are reinforced with stainless steel backing plates.

CASTERS. Maintenance free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

STANDARD FIXED RACK. Removable pair of one piece aluminum lip-loader racks with fixed spacing of 1.5" between pan slides. Each pan slide accommodates one (1) 18" x 26" or two (2) 14" x 18". One piece rack is easy to remove without the use of tools for cleaning.

OPTIONAL ADJUSTABLE SPACINGS. Welded rod-style tray slides are stainless steel for greater durability and sanitation. Fully adjustable / removable and designed to give secure bottom tray support. Removable stainless steel uprights shall be punched on 1.5"(38mm) spacings for easy tray adjustment, and shall easily lift off heavy-duty stainless steel brackets without the use of tools for cleaning.

PROOFING SYSTEM/CONTROLS. Built in humidified holding system shall include two (2) separate long life Incoloy nickel-chromium alloy heating elements per cavity; separate, adjustable controls shall be provided for each function. One to control the interior air temperature, and one to control the interior air moisture. An oversized stainless steel water reservoir shall be removable for ease of cleaning/sanitation. System shall have a Hi-Temp, self-lubricated, impedance protected fan-cooled blower motor for moist air distribution. Controls shall be up-front, recessed and shall include a full range thermostat adjustable to actual temperature. Thermostat shall include temperature scale marked in ten degree increments (F/C) from 90° to 190°F (32° to 88°C). An operational range thermometer, adjustable moisture control (Low to High) with "P" to indicate "Proof" position, 20 amp ON/OFF power switch, humidity cycle light, and thermostat cycling light shall also be included.

ELECTRICAL CHARACTERISTICS. 3 wire grounded tri-directional power cord and plug, rear mounted for safety. See electrical data chart above for amperage and receptacle configuration. See electrical chart for models that require a dedicated circuit.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

LITERATURE

List Preview

ETC-1826-34PH Operation Manual

ETC-1826-34PH Operation Manual

FWE's Warranty / Terms & Conditions of Sale Policy

Guide to Prepping and Proofing Baked Goods

Optional Accessories: Graphic Wraps

Optional Accessories: X-Factor Frame

FWE's Warranty / Terms & Conditions of Sale Policy

Guide to Prepping and Proofing Baked Goods

Optional Accessories: Graphic Wraps

Optional Accessories: X-Factor Frame

VIDEOS

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
