URS-10

MOBILE REFRIGERATED CABINETS
For Various Size Trays, Pans, and Gastro-Norm
REFRIGERATED "URS" SERIES

URS-10 Spec Sheet

Refrigerators designed for transport, satellite operations, and on-site catered events, as well as backup for buffets and cafeterias

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

MODEL SPECIFICATIONS

Model Height:
Model Width:
Model Depth:
Shipping Weight:
Volts:
Watts:
Amps:
3 Phase:
Adjustable Slides:
Standard # of Slides:
Standard # of Shelves:
Standard Spacing:

DESCRIPTION

FWE URS Series Mobile Refrigerated Cabinets

The FWE URS Series Mobile Refrigerated Cabinets are designed to provide reliable refrigerated storage and transport for foodservice operations that require durability, mobility, and consistent temperature control. Ideal for catering operations, healthcare facilities, schools, commissaries, buffets, satellite foodservice locations, and institutional kitchens, these cabinets combine transport-ready construction with dependable commercial refrigeration performance.

Product Overview

Built specifically for transport applications, the URS Series features a fully welded stainless steel construction with a reinforced tubular base frame engineered to absorb vibration and shock during transport. Designed to accommodate a wide variety of trays, pans, and gastronorm containers, these refrigerators provide flexible storage while maintaining safe food temperatures throughout transport and service.

Key Features & Benefits

Built for Transport - Reinforced welded stainless steel construction is designed to withstand vibration and shock during daily transport.
Food Sentry Digital Controls - Recessed electronic controls with digital display allow easy temperature monitoring and adjustment.
Precise Refrigeration Performance - Maintains product temperatures between 33°F and 38°F (0.5°C to 3.3°C).
Rapid Pull-Down & Recovery - High-efficiency condensing system quickly reaches and maintains desired temperatures.
Bottom-Mounted Compressor - Provides a lower center of gravity for greater stability and safer transport.
Adjustable Tray Slide System - Removable tray slides accommodate a variety of tray, pan, and GN container configurations.
Maximum Airflow Design - Special tray slide construction promotes efficient cold air circulation throughout the cabinet.
Self-Defrosting Refrigeration System - Includes on-demand defrost functionality for enhanced convenience and reliability.
Energy-Efficient Construction - Fully insulated cabinet and door design improve refrigeration efficiency and temperature retention.
ENERGY STAR® Qualified Models - URS-10 and URS-20 models are ENERGY STAR® approved.
Flexible Door Configurations - Optional Dutch door, pass-through, and space-saver door configurations available on select models.

Construction & Durability

Constructed with heliarc welded stainless steel, reinforced tubular framing, high-efficiency insulation, heavy-duty hinges, positive-closing latches, antimicrobial hand grips, and a full-perimeter protective bumper system, the URS Series is built for long-term durability in demanding foodservice environments.

Performance Specifications

Temperature range: 33°F to 38°F (0.5°C to 3.3°C)
Factory preset temperature: 38°F (3.3°C)
Food Sentry digital temperature controls
On-demand defrost system
Single-door models utilize 1/4 HP refrigeration systems
Double-door models utilize 1/2 HP refrigeration systems
Environmentally friendly R-450A refrigerant
Adjustable tray slides on 1.5" centers
Accommodates 18" x 26", 12" x 20", 14" x 18", 18" x 13", GN 1/1, and GN 2/1 trays and pans
Available in capacities ranging from 7 to 20 tray positions
Single-door and double-door configurations available
Two-year limited warranty

Ideal Applications

Healthcare and hospital foodservice
Schools and universities
Catering operations
Satellite foodservice programs
Commissaries and central kitchens
Buffets and cafeterias
Institutional and correctional foodservice operations

Why FWE?

For decades, FWE has been a trusted manufacturer of transport, holding, and refrigeration equipment for professional foodservice operations. The URS Series continues that tradition by combining transport-ready durability, energy-efficient refrigeration technology, flexible storage capacity, and dependable temperature performance to help operators maintain food safety, improve efficiency, and protect valuable refrigerated inventory.

URS-10 Product Description

-Transportable design: Built to withstand the vibration and shock of transport, with a tubular welded base frame and 6" integrated casters.

-Accurate temperature control: FWE's exclusive Food Sentry electronic controls with digital display, capable of refrigerating food from 33°F to 38°F using its forced air Cold-Temp system.

-Versatile capacity: Holds up to 20 trays, including Gastro-Norm, with a unique tray slide design that holds trays and pans by the bottom for greater support of heavy food items.

-Efficient refrigeration: High-efficiency condensing unit and coil ensures rapid "pull down" and recovery, while the fully insulated cabinet and door provide enhanced energy-efficient refrigeration.

-Convenient operation: FWE's intuitive continuous self-defrosting cold system with on-demand override makes operation convenient and user-friendly.

-Durable construction: Constructed entirely of stainless steel for durability and easy cleaning.

-Perfect for on-the-go professionals: Provides reliable, transportable refrigeration solutions for transport, satellite operations, and on-site catered events, as well as backup for buffets and cafeterias.

FEATURES

Agency Approvals
Energy Star - Most consumers have come to recognize the mark of ENERGY STAR, an agency supported by the U.S. Environmental Protection Agency and Department of Energy, on residential products.
The organization also offers its certification to commercial pieces, still indicating the potential for energy savings below the baseline for that type of equipment. Participation in ENERGY STAR is voluntary for manufacturers and products submitted for certification must go through testing before the seal is given.

Products carrying the Energy Star service mark generally use 20-30% less energy than required by federal standards.
UL Energy Verified
NSF - NSF International (formerly known as the National Sanitation Foundation) is an independent, non-profit organization that certifies food service equipment and ensures it is designed and constructed in a way that promotes food safety. FWE products that meet these standards bear the NSF mark.
You may also see a designation that a product meets NSF/ANSI, which adds rules from the American National Standards Institute to the testing. ANSI works closely with NSF to develop its food safety standards and complete testing to those.
UL - The UL mark, which now serves customers in more than 100 countries, has become the authority on product safety. Its engineers test for things like soundness of design, safety of electrical components, and structural integrity of products for which UL listing is sought.
If you think of NSF International classification as protection for your customers, then the mark of Underwriters Laboratories (UL) indicates safety for those who work in your commercial kitchen. The Illinois-based testing agency assures that the equipment that gets its stamp operates safely. There is also a sanitation classification that offers similar assurances about food safety as the NSF mark. Products are indicated as "Classified UL-EPH."
CUL - C-UL mark indicates a product meets the CSA testing standards for Canada.
C-UL-US mark indicates a product meets the UL and CSA testing standards for both the United States and Canada.
Bumpers

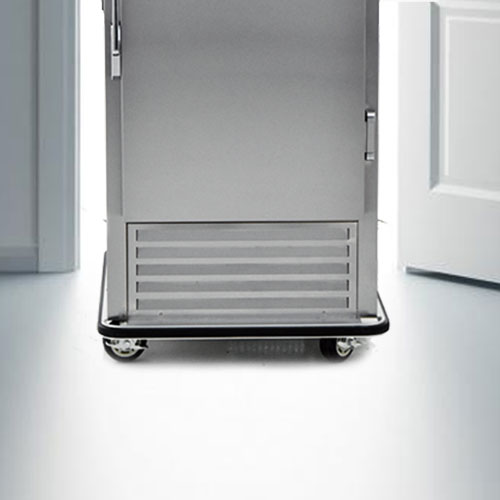

Full Narrow Bumper - Heavy duty full perimeter bumper with a narrow profile. Intended for customers with narrow door ways or tight footprints. Best when used with rear push pull handles or side recessed hand grips.
Caster
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.

Available in 5", 6" and 8" diameters.
6" Casters - 6" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
Mobile
Construction
Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times
Control Panel

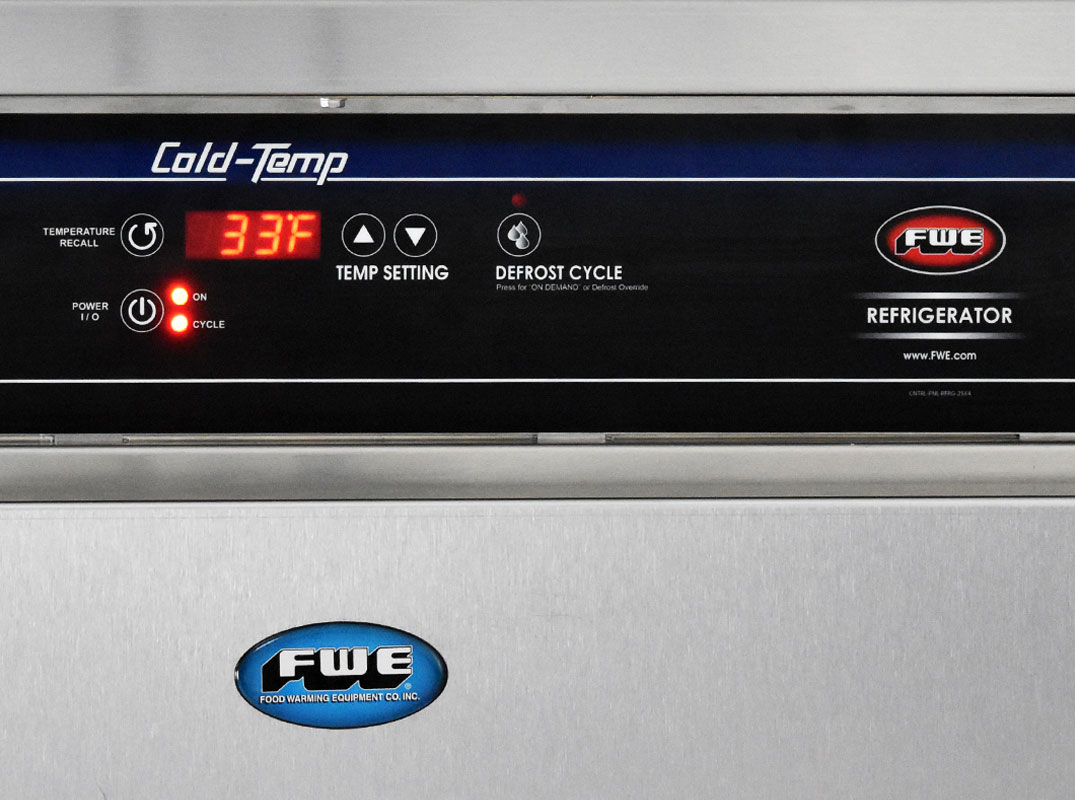

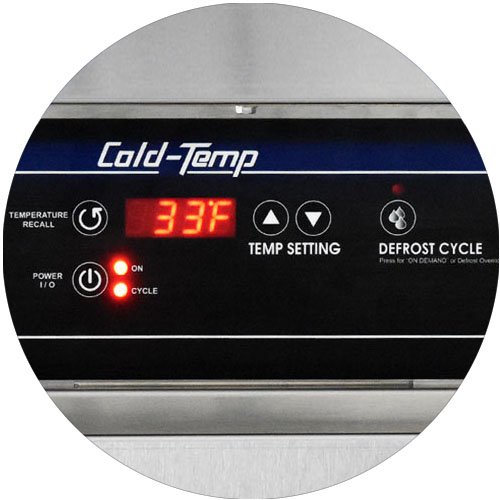

Cold Temp Controls - Intuitive controls are easy to use and highly accurate, and oversized, high demand components assure rapid pull down times and recoveries. Set range 33F - 40F (1C - 4.4C)
Electronic Controls - Electronic controls featuring easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light.
Door Count
1 Door
Door Hinge
Edgemount Hinges - Heavy-duty edge mount die cast hinges
Door Latch
Edgemount Latch - Edgemont door latch, full grip and positive closing
Doors
Gasket Sealed - Gasket sealed door; tight double seal makes for a perfect secure closure and easy to clean
Full Stainless Steel Door - Flush mounted, stainless steel insulated doors
Electrical
Compressor Assembly - Bottom mounted compressor assembly and heavy-duty design integrated casters provide low center of gravity - allows for easy and safe transporting
Condenser Assembly - High-efficiency, condensing unit and coil assures rapid "pull down" and recovery

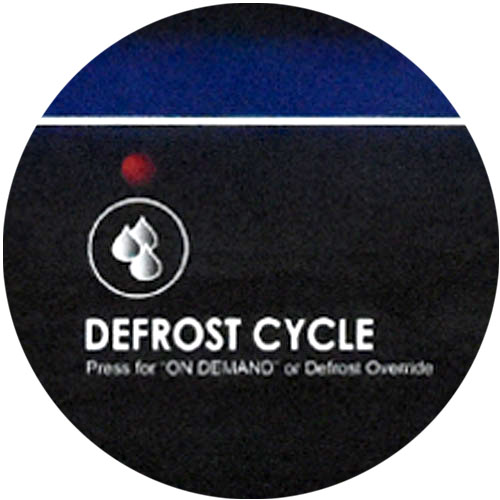

Self Defrosting - Continuously intuitive self-defrosting cold system with on demand override - makes operation convenient and user-friendly
Extra
Warranty - Two year limited warranty
Handles

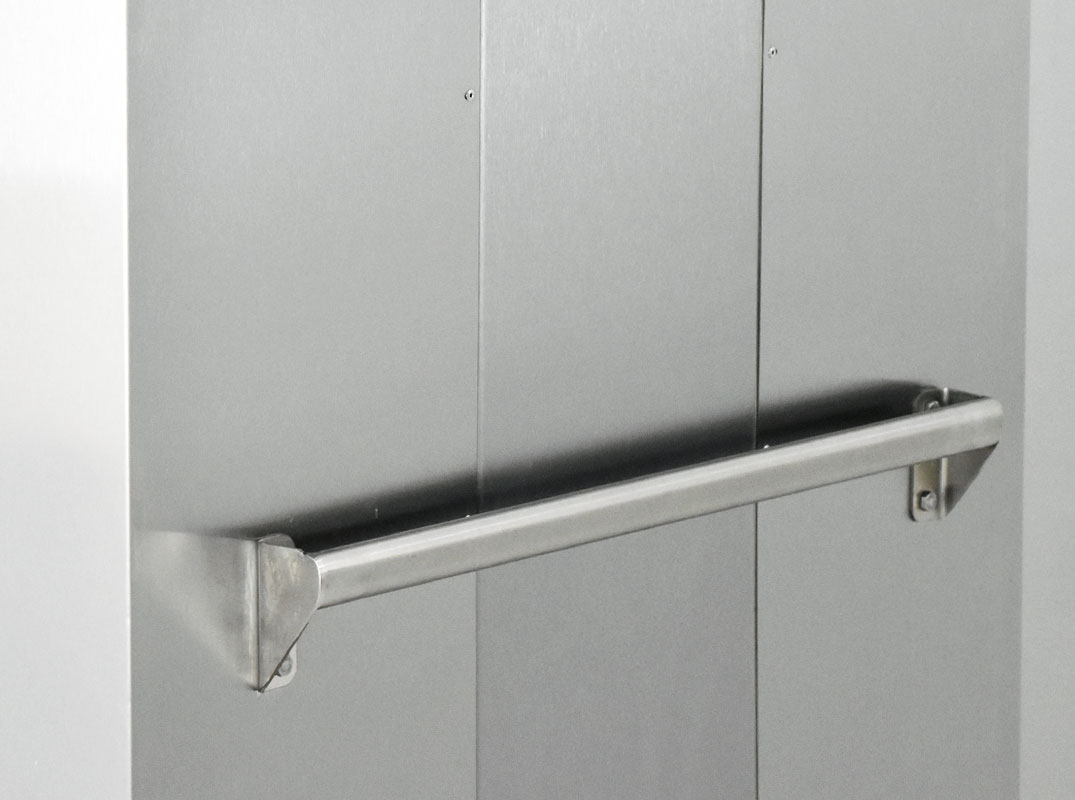

Rear Tubular Push Handle - Rear tubular push handle

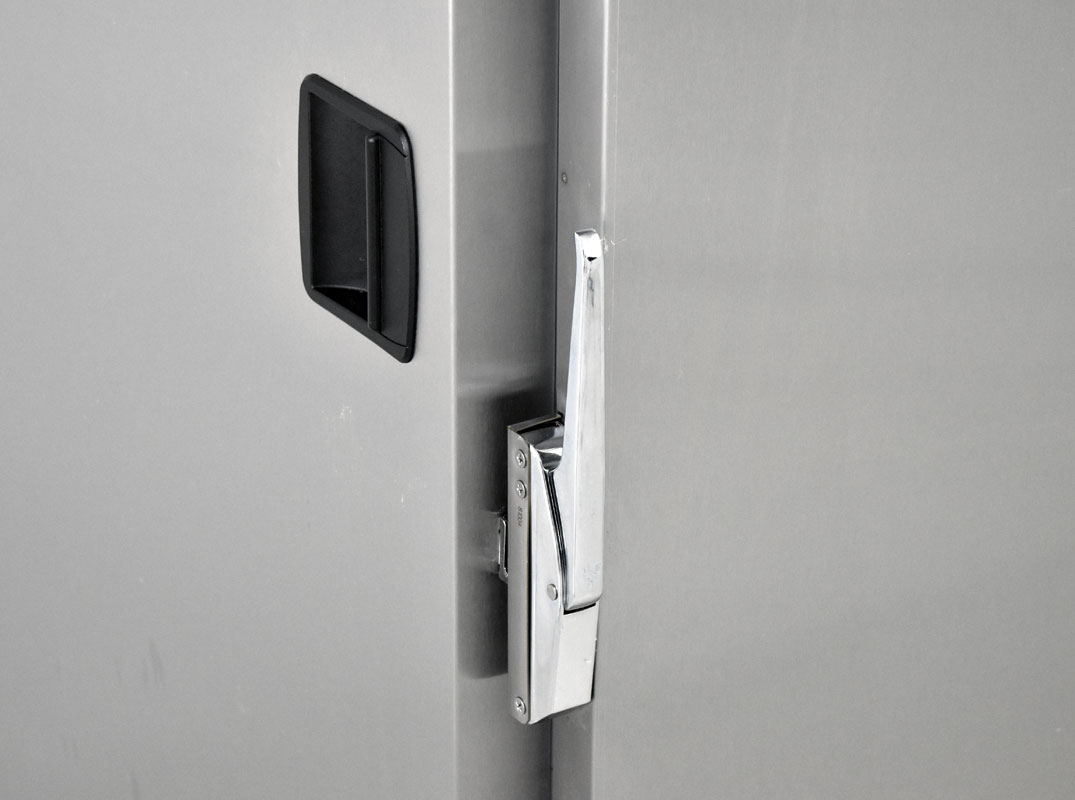

Recessed Antimicrobial Hand Grips - Recessed antimicrobial hand grips detain illness causing pathogens
Heat System

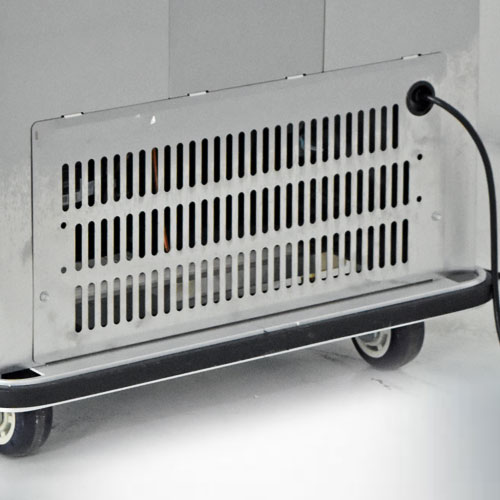

Cold Temp System - Continuously intuitive defrost system with on demand override shall have heavy-duty fan circulation evaporator coil, 1/4 HP air-cooled closed system, Hi-torque condensing unit with thermal expansion valve, filter-dryer, pressure control and condensation lines and pan.
Hinging
Hinges on Right Side - Right hand door hinging
Slides and Shelves

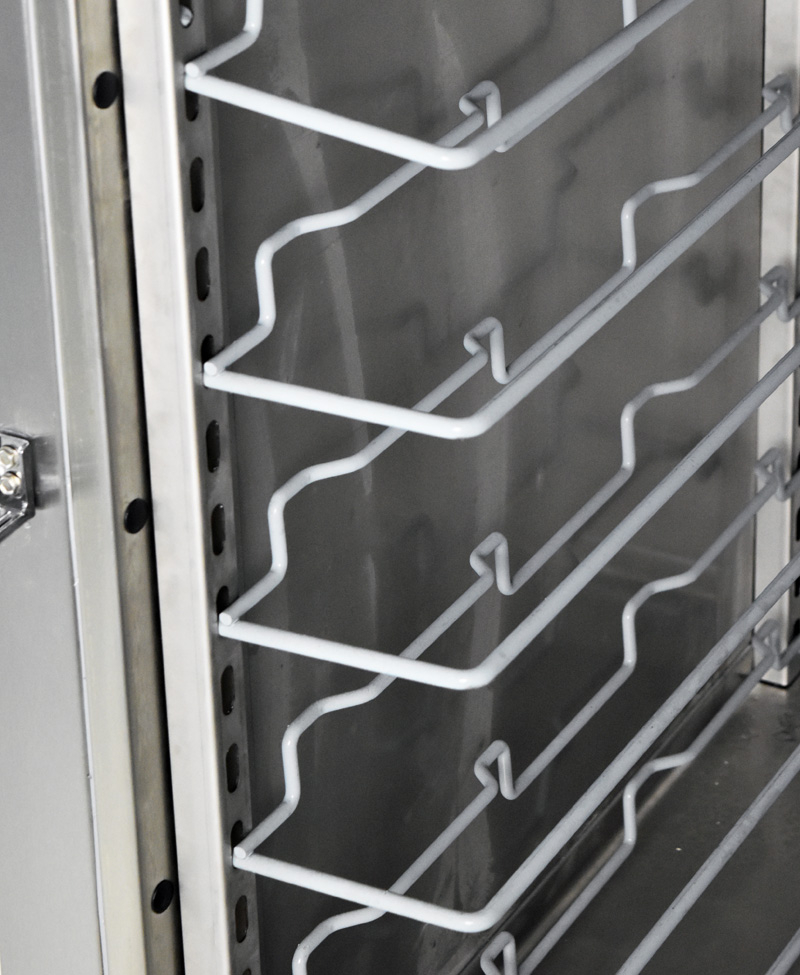

Adjustable Universal Slides - Unique universal design holds 12" x 20" pans, 18" x 26" sheet trays or GN containers on fully adjustable tray slides. Slides are removable for thorough interior cleaning

OPTIONS & ACCESSORIES

Caster
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Larger & Upgraded Casters - Larger Casters
Door Latch
Key Locking Door Latch - Heavy duty door latch with key locking capabilities
Magnetic Door Latch - Heavy duty full grip magnetic door latch
Paddle Door Latch - Recessed paddle style door latch
Padlocking Transport Latch - Cabinet mounted latch keeps door secure during transport, increased security with padlocking capabilities
Doors
Glass Doors - Full view glass doors allow complete visibility of product without opening the door, available in full and Dutch
Electrical
220-240 Volt - 220-240 Volt
Extra
Cold Plate Cartridge - Keep cold foods cold during transport with FWE's heavy duty cold plate cartridge
Cord Winder Brackets - Cabinet mounted brackets allow for cord to be wrapped and out of the way when not in use
Dry Erase Board - Door mounted dry erase board for menu changes or cabinet identification
Menu Card Holder - Door mounted frame to display menu card
Security Packages - HDM security packages can be added to select cabinets to help increase the security and durability of your unit
Handles
Tubular Push Handles - Heavy duty stainless steel push pull handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands
Hinging
Field Reversible Hinging - Field reversible door- flexible installation options for kitchen layout
Hinges on Left Side - Left hand door hinging, available on single door models only
Slides and Shelves
Extra Tray Slides - Extra tray slides

LONG FORM SPEC

Specified unit shall be FWE Model No. URS-10, Mobile Refrigerated Cabinets.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners. Welded tubular base frame shall be 1" square, heavy gauge stainless steel tubing, with 10 gauge stainless steel reinforcing stress plates at corners.

INSULATION. High efficiency insulation throughout cabinet and door.

HANDLES. On single door models, full size, form-fitting recessed antimicrobial hand grips shall be mounted on each side of cabinet. Rear mounted tubular push pull handle. On two door models there shall be heavy-duty push bar handles, solid formed 1" x .375" thick; mounted at each end of unit. Mountings reinforced with stainless steel channel.

BUMPER. Solid continuous wraparound aluminum channel, bolted to frame, with snapin, non-marking replaceable vinyl cushion. Full perimeter bumper extends beyond doors, handles, etc., for added protection. Shall be continuous with corner cut-outs to facilitate cleaning.

DOORS AND LATCHES. Flush mounted, stainless steel insulated doors shall be gasket sealed. Each door shall have two (2) heavy-duty edgemount die cast hinges. Door latch shall be edgemounted, full grip and positive closing. The hinge and latch mountings are reinforced with stainless steel backing plates.

CASTERS. On single door models there shall be maintenance free polyurethane casters in a configuration of two (2) rigid and two (2) swivel with brake. On two door models there shall be a configuration of two (2) rigid and four (4) swivel with break. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

TRAY SLIDES. Welded rod-style tray slide design provides maximum air flow. Slides shall be fully adjustable/removable, and designed to give secure bottom tray support. Tray slides are polymer coated, tested and approved to meet the NSF International Corrosion Resistance requirements under NSF Std 51/ASTM b117 Sections 6.2 and 6.2.1. Removable stainless steel uprights shall be punched on 1.5" (38 mm) spacings, on center, for easy tray adjustments, and shall easily lift off of heavy-duty stainless steel brackets, without the use of tools.

COLD-TEMP SYSTEM/CONTROLS. Single door units shall have a 1/4 HP Hi-torque condensing unit. Double door units shall have a 1/2 HP Hi-torque condensing unit. The air-cooled closed system has a three pound receiver charged with environmentally safe ANSI/ASHRAE Standard 34-1992 Safety Group Classification (A1) 450A refrigerant. A thermal expansion valve (for pressure control) also a filter dryer. Controls shall include an easy to read digital display for cabinet temperature (with recall capability of temperature set point and actual cabinet temperature). Easy to read master ON/OFF button with power indicator light, cooling cycle indicator light, on-demand defrost with a defrost cycle indicator light. Adjustable temperature range from 33°F to 38°F (.5°C to 3.3°C) factory preset temperature is 38°F (3.3°C).

ELECTRICAL CHARACTERISTICS. 3 wire grounded 8-10 foot extension power cord and plug, rear mounted for safety. See electrical data chart above for amperage and receptacle configuration.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provide with the following accessories:
