PROOFER & HEATED HOLDING CABINETS
Non-Insulated - Various Size Trays, Pans, and Gastro-Norm
Economy "ETC-UA-PH" Series

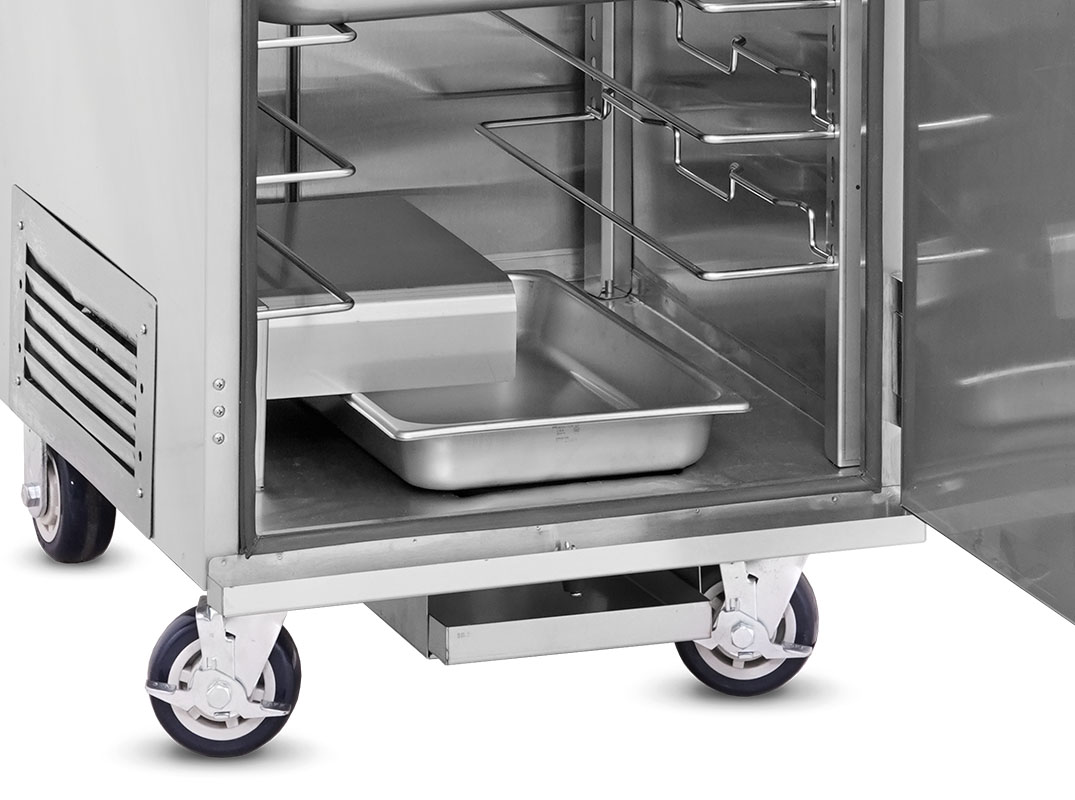

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.
Proofer / Heater Cabinets - Non-Insulated - Various Size Trays, Pans, and Gastro-Norm
Two cabinets in one! Dual-purpose cabinets proof and heat - eliminating costly duplication of equipment.
FWE's heavy-duty ETC-UA-PH Series hold 18" x 26", 12" x 20", 14" x 18", 12" x 18", 20" x 22", 10" x 20" as well as Gastro-Norm sizes: GN 2/1, GN 1/1 and GN Maxi-Pans. Cabinets are insulated on the left wall and door for greater heat retention than NON-insulated cabinets. The high performance proofer heat system combines heat and humidity to proof or hold your food. The power assembly is also built into the cabinet to reduce maintenance and cleaning costs.
Our internal frame construction is designed for rigorous operations and environments, including catering and transport applications.
FWE non-insulated cabinets last longer than any other - period!
C-UL-US mark indicates a product meets the UL and CSA testing standards for both the United States and Canada.
You may also see a designation that a product meets NSF/ANSI, which adds rules from the American National Standards Institute to the testing. ANSI works closely with NSF to develop its food safety standards and complete testing to those.
If you think of NSF International classification as protection for your customers, then the mark of Underwriters Laboratories (UL) indicates safety for those who work in your commercial kitchen. The Illinois-based testing agency assures that the equipment that gets its stamp operates safely. There is also a sanitation classification that offers similar assurances about food safety as the NSF mark. Products are indicated as "Classified UL-EPH."
EZ roll casters are shock absorbing and roll easier under heavy loads.
Available in 5", 6" and 8" diameters.
All adjustable legs are provided with sealed precision bearing with a black anti-rust coating.
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Specified unit shall be FWE Model No. ETC-UA-6PH, Proofer & Heated Holding Transport Cabinets.
CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners.
HANDLES. Form grip flush in wall hand grips recess mounted on each side of unit.
DOORS AND LATCHES. Flush mounted, field reversible, stainless steel insulated doors. High temperature gasket sealed; gasket shall be cabinet mounted. Each door shall have two (2) heavy-duty edgemount die cast hinges. Door latch shall be edgemounted, full grip, and positive closing. The hinge and latch mountings are reinforced with stainless steel backing plates. ETC-UA-12HDP is provided standard with magnetic edgemount door latches.
CASTERS. Maintenance free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake. ETC-UA-4PH model shall be standard with a caster configuration of four (4) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.
TRAY SLIDES. Welded rod-style tray slides are stainless steel for greater durability and sanitation. Fully adjustable /removable and designed to give secure bottom tray support. Removable stainless steel uprights shall be punched on 1.5" (38 mm) spacings for easy tray adjustment, and shall easily lift off heavy-duty stainless steel brackets without the use of tools for cleaning.
PROOFING SYSTEM / CONTROLS. Built in humidified holding system shall include two (2) separate long life Incoloy nickel-chromiumalloy heating elements per cavity; separate, adjustable controls shall be provided for each function. One to control the interior air temperature, and one to control the interior air moisture. An oversized and baffled, stainless steel water reservoir shall be removable for ease of cleaning/sanitation. System shall have a Hi-Temp, self-lubricated, impedance protected fan-cooled blower motor for moist air distribution. Controls shall be up-front, recessed and shall include a full range thermostat adjustable to actual temperature. Thermostat shall include temperature scale marked in ten degree increments (F/C) from 90° to 190°F (32° to 88°C). An operational range thermometer, adjustable moisture control (Low to High) with "P" to indicate "Proof" position, 20 amp ON/ OFF power switch, humidity cycle light, and thermostat cycling light shall also be included.
ELECTRICAL CHARACTERISTICS. 3 wire grounded tri-directional power cord and plug, rear mounted for safety. See electrical data chart above for amperage, receptacle configuration, and for models that require a dedicated circuit.
INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.
Provide with the following accessories:
FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
All rights reserved. All specifications subject to change without notice.
Errors subject to correction. © 2022 Food Warming Equipment Company, Inc.
