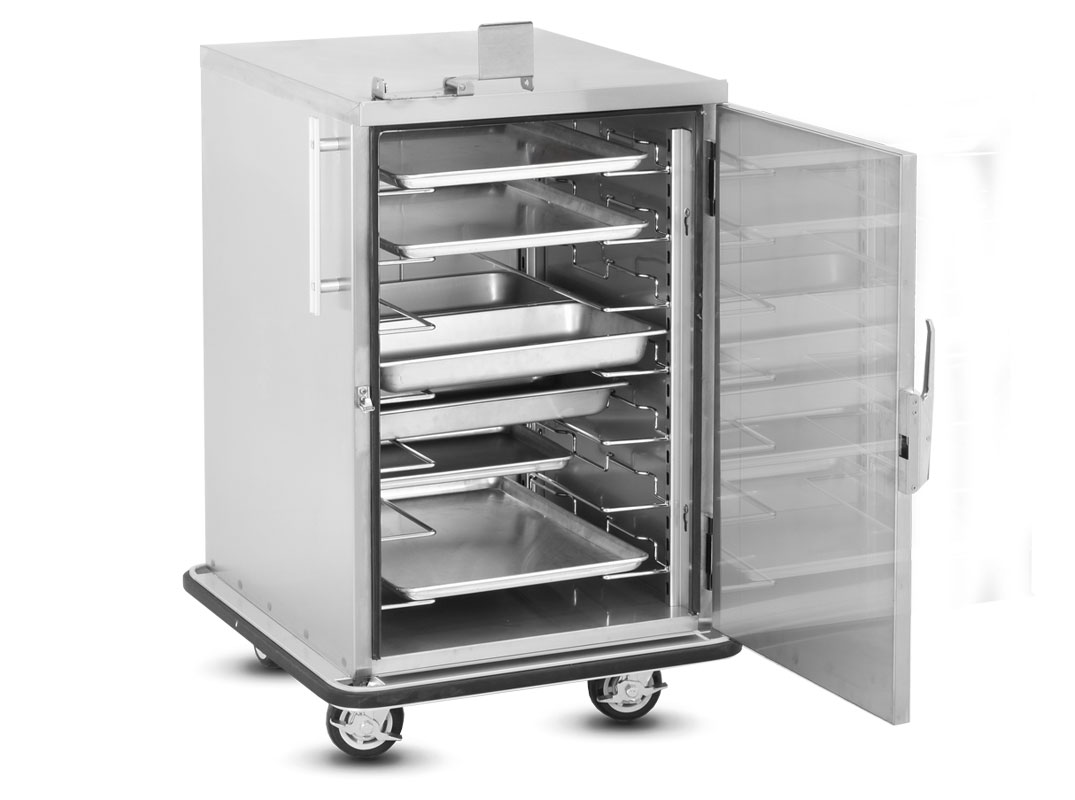

ETC-UA-7INS

INSULATED ENCLOSED TRANSPORT CABINETS
Insulated Utility Transport for Universal Trays, Pans, and Gastro-Norm
INSULATED AMBIENT "ETC-UA-INS" SERIES

ETC-UA-7INS Spec Sheet

ETC-UA-7INS SPEC SHEET

All purpose insulated cabinet for storage and transport

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

GET A QUOTE

MODEL SPECIFICATIONS

Model Height:
Model Width:
Model Depth:
Shipping Weight:
Volts:
Watts:
Amps:
3 Phase:
Adjustable Slides:
Standard # of Slides:
Standard # of Shelves:
Standard Spacing:

DESCRIPTION

FWE ETC-UA-INS Series Insulated Enclosed Transport Cabinets

The FWE ETC-UA-INS Series Enclosed Transport Cabinets are designed to store and transport a wide variety of trays and pans while helping operators maintain food temperature without external heat sources. Engineered for catering, institutional dining, and commercial kitchens, this solution combines universal tray compatibility with high-density insulation and durable stainless steel construction to improve food quality, operational efficiency, and overall performance.

Product Overview

Built for demanding foodservice environments, the ETC-UA-INS Series helps operators safely transport both hot and cold food products while maintaining temperature retention. Whether used for catering, kitchen support, or mobile foodservice operations, this solution delivers reliable performance while maintaining the quality, consistency, and efficiency today's operations require.

Key Features & Benefits

High-Density Insulated Cabinet - Retains food temperatures without the need for external heat or refrigeration systems.
Universal Tray Compatibility - Accommodates 18" x 26", 12" x 20", 14" x 18", GN containers, and more for maximum flexibility.
Adjustable Tray Slide System - Fully adjustable and removable tray slides allow customizable configurations and easy cleaning.
Durable Transport Design - Tubular welded base frame absorbs shock and vibration during transport for long-term reliability.
Insulated Door with Gasket Seal - Enhances temperature retention for both hot and cold food products.
Full Perimeter Bumper Protection - Prevents damage to walls, equipment, and the cabinet during movement.
Heavy-Duty Mobility System - Polyurethane casters provide smooth maneuverability even when fully loaded.
Optional Cold Plate Compatibility - Supports chilled food transport when additional temperature control is required.

Construction & Durability

Constructed with heliarc welded stainless steel, the ETC-UA-INS Series features a heavy-duty tubular welded base frame and high-density fiberglass insulation for long-lasting durability and superior performance. Reinforced stress plates, removable tray slide uprights, and coved interior corners provide easy cleaning, structural integrity, and dependable operation in demanding environments.

Performance Specifications

Compatible with multiple tray and pan sizes (sheet pans, GN containers, and more)
Standard 4.5" tray slide spacing with adjustable 1.5" increments
High-density insulated cabinet construction
20 gauge stainless steel exterior and 22 gauge interior
Heavy-duty casters (rigid and swivel with brakes)
Non-heated insulated transport design
Two-year limited warranty

Ideal Applications

Catering and banquet operations
Institutional and commercial kitchens
Food transport and storage applications
Healthcare and hospitality foodservice

Why FWE?

For decades, FWE has been trusted by foodservice operators for equipment that delivers exceptional durability, performance, and reliability. The ETC-UA-INS Series continues that tradition by providing a solution designed to help operators improve food quality, streamline operations, and achieve consistent results day after day.

ETC-UA-7-INS - Insulated Universal Tray Transport Cabinet (7 Tray Capacity)
The ETC-UA-7-INS offers efficient insulated tray transport, accommodating up to 7 trays while maintaining hot or cold food temperatures. Its welded stainless steel construction, high-density insulation, and ergonomic push handles ensure secure and reliable mobility. Featuring a full-perimeter bumper, heavy-duty casters, and a tight-sealing insulated door, this unit is perfect for meal delivery in hospitals, correctional facilities, and catering operations.

FEATURES

Agency Approvals
UL EPH - UL EPH recognizes products certified to meet environmental and public health standards. The UL EPH logo shows the word "Classified" above the UL mark, which indicates that the product complies with ANSI/NSF standards, in addition to other applicable codes.
Bumpers
Full Bumper - Heavy duty full perimeter bumper extends beyond doors and handles for added protection. The bumper is mounted to the base frame for added durability - the bumper is not used as the base frame. In this way, the bumper absorbs all the shock in transport, protecting the integrity of the construction.
Caster
Mobile
5" Casters - 5" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.

Available in 5", 6" and 8" diameters.
Construction
Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times
Door Count
1 Door
Door Hinge
Edgemount Hinges - Heavy-duty edge mount die cast hinges
Door Latch
Edgemount Latch - Edgemont door latch, full grip and positive closing
Doors
Gasket Sealed - Gasket sealed door; tight double seal makes for a perfect secure closure and easy to clean
Full Stainless Steel Door - Flush mounted, stainless steel insulated doors
Extra
Warranty - Two year limited warranty
Handles
Recessed Hand Grips - Flush in wall hand grips recessed and mounted on the left and right side of the unit
Heat System
Non Heated - Non Heated
Hinging
Hinges on Right Side - Right hand door hinging
Slides and Shelves
Adjustable Universal Slides - Unique universal design holds 12" x 20" pans, 18" x 26" sheet trays or GN containers on fully adjustable tray slides. Slides are removable for thorough interior cleaning

OPTIONS & ACCESSORIES

Bumpers
Top Corner Bumpers - Top corner bumpers are a good option for those customers not needing the protection of a full bumper, but still require protection for walls and surrounding equipment.
Caster
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Center Floor Lock - Undercarriage lock-down keeps mobile equipment securely in place by gently lifting the unit high enough so the casters do not touch the ground.
Must be used with 6" casters.
Larger & Upgraded Casters - Larger Casters
Door Latch
Key Locking Door Latch - Heavy duty door latch with key locking capabilities
Magnetic Door Latch - Heavy duty full grip magnetic door latch
Paddle Door Latch - Recessed paddle style door latch
Padlocking Transport Latch - Cabinet mounted latch keeps door secure during transport, increased security with padlocking capabilities
Doors
Pass Through Doors - Pass-thru doors create a convenient connection from preparation side to serving areas. With access from both sides of the cabinet staff is free to focus on customers, taking more orders and serving carry-outs during peak meal times
See-Thru Lexan Doors - See-thru lexan door provides high visability for hot and fresh items
Extra
Beverage Urn Angles - Beverage Urn Angles (available on select models)
Cold Plate Cartridge - Keep cold foods cold during transport with FWE's heavy duty cold plate cartridge
Dry Erase Board - Door mounted dry erase board for menu changes or cabinet identification
Grounding Strap - Grounding strap
Menu Card Holder - Door mounted frame to display menu card
Security Packages - HDM security packages can be added to select cabinets to help increase the security and durability of your unit
Top Guard Rail - 3 sided or 4 sided top guard rails allow for the top of the cabinet to be used for storage
Graphic Wrap - Use your cabinet as a bill board! Catch the eye of your customer with your custom logo, message, or menu item images with a graphic wrap.
Handles
Push Pull Handles - Push/pull handles allow for easy maneuvering. Handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands
Hinging
Hinges on Left Side - Left hand door hinging, available on single door models only
Slides and Shelves
Shelves - Versatile with removable shelves to accommodate a wide variety of items
Extra Tray Slides - Extra tray slides

LONG FORM SPEC

Specified unit shall be FWE Model No. ETC-UA-7INS, Insulated Enclosed Transport Cabinets.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners. Welded tubular base frame shall be 1 square, heavy gauge stainless steel tubing, with 10 gauge stainless steel reinforcing plates at corners.

INSULATION. "Ultra-Guard" UG-26 high density fiberglass insulation throughout; top, back, bottom, sides, and door(s).

HANDLES. Heavy-duty push bar handles, solid formed 1 x .375 thick; mounted at each end of unit. Mountings reinforced with stainless steel channel. ETC-UA-5INS model shall have recessed handles.

BUMPER. Solid 1.5 wide continuous wraparound aluminum channel, bolted to frame with snap-in, non-marking vinyl cushion. Full perimeter bumper extends beyond doors, handles, etc., for added protection. Shall be continuous, with corner cut-outs to facilitate cleaning. ETC-UA-5INS is standard without a bumper.

CASTERS. Maintenance free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake. ETC-UA-14INS and ETC-UA-22INS shall have a caster configuration of two (2) rigid, four (4) swivel with brake. ETC-UA-5INS model shall have a caster configuration of four (4) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

DOORS AND LATCHES. Flush mounted, stainless steel insulated doors. High temperature gasket sealed; gasket shall be cabinet mounted. Each door shall have two (2) heavy-duty edgemount die cast hinges. Door latch shall be edgemounted, full grip, and positive closing. The hinge and latch mountings are reinforced with stainless steel backing plates.

TRAY SLIDES. Welded rod-style tray slides are nickel plated for greater durability and sanitation. Fully adjustable / removable and designed to give secure bottom tray support. Removable stainless steel uprights shall be punched on 1.5 centers for easy tray adjustment, and shall easily lift off of heavy-duty stainless steel brackets without the use of tools for cleaning.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provide with the following accessories:

LITERATURE

VIDEOS

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
