PTS-4040

PRISONER TRAY TRANSPORT & SERVE CABINETS
Heated Holding & Serving for 15.5"x11.5" or 10"x14" Compartment Trays
GUARDED HEAT "PTS" SERIES

PTS-4040 Spec Sheet

PTS-4040 SPEC SHEET

Correctional heated transport and holding carts are designed to meet demanding environments with security features to protect staff members and inmates

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

GET A QUOTE

MODEL SPECIFICATIONS

Model Height:
Model Width:
Model Depth:
Shipping Weight:
Volts:
Watts:
Amps:
3 Phase:
Adjustable Slides:
Standard # of Slides:
Standard # of Shelves:
Standard Spacing:

DESCRIPTION

FWE PTS Series Guarded Heat Prisoner Tray Transport & Serve Cabinets

The FWE PTS Series Guarded Heat Prisoner Tray Transport & Serve Cabinets are specifically designed for secure meal transport and service within correctional facilities. Engineered for minimum, medium, and maximum security environments, these cabinets combine heated food holding performance with extensive tamper-resistant construction features to help protect staff, inmates, and equipment while maintaining food quality.

Product Overview

Built to withstand demanding correctional environments, the PTS Series transports and serves compartment meal trays while maintaining safe serving temperatures. The guarded heat system, tamper-resistant hardware, reinforced construction, and secure transport features make these cabinets ideal for meal delivery to cell blocks, satellite serving areas, and correctional cafeterias.

Key Features & Benefits

Correctional Facility Design - Specifically engineered for secure foodservice operations in correctional institutions.
Guarded Heat System - Heating components are protected within the cabinet to prevent tampering, damage, or unauthorized access.
Tamper-Resistant Hardware - Tamper-proof fasteners are utilized throughout critical cabinet areas to improve security.
Padlock-Compatible Security Latches - Transport/security latches are designed to accommodate padlocks for additional security.
Heavy-Duty Paddle Latches - Flush-mounted stainless steel paddle latches provide secure door closure.

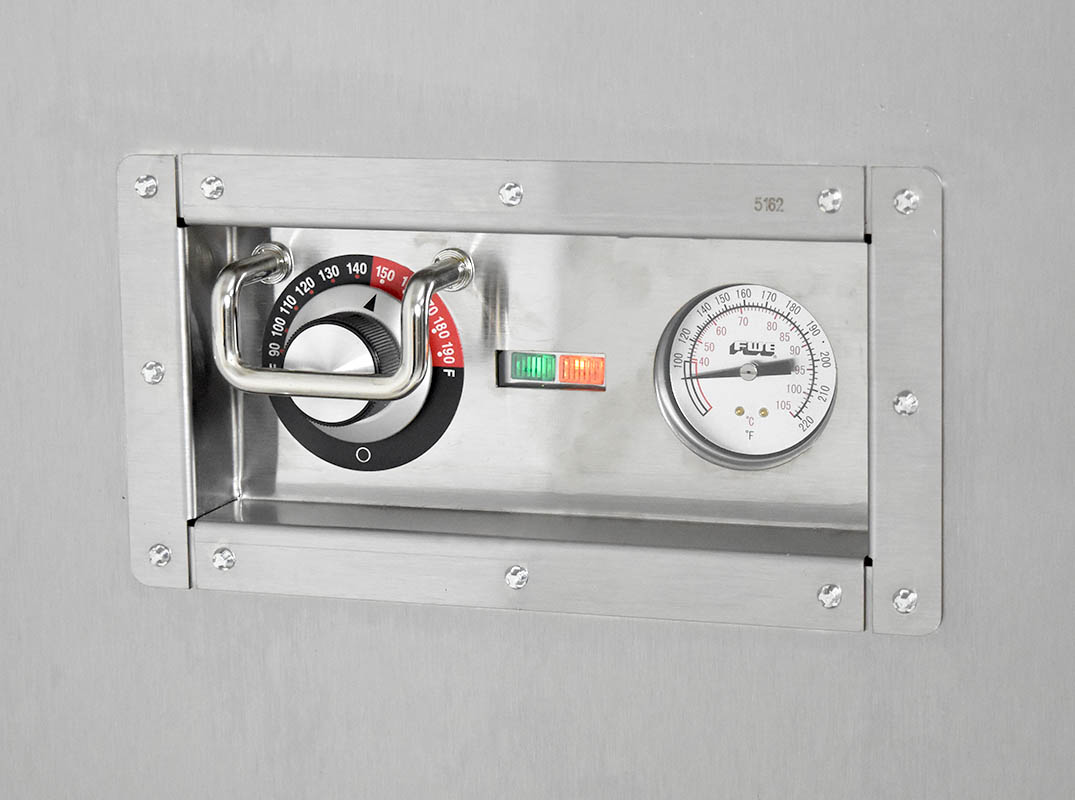

Protected Control System - Recessed controls, thermostat retention strap, and thermometer cover help prevent unauthorized adjustment or damage.
Heavy-Duty Hinges - 12-gauge stainless steel hinges are secured with tamper-resistant fasteners for long-term durability.
Built for Transport - Reinforced welded tubular base frame is designed to withstand vibration, shock, and rough handling.
Customizable Tray Capacity - Rack assemblies can be customized to accommodate various tray sizes and configurations.
Super-Duty Perimeter Bumper - Heavy-duty wraparound bumper provides impact protection during transport and service.
Compartment Tray Compatibility - Accommodates standard 15.5" x 11.5" compartment trays or optional 14" x 10" trays.

Construction & Durability

Constructed with heliarc welded stainless steel, reinforced tubular framing, 18-gauge stainless steel exterior panels, Ultra-Guard insulation, and additional weld reinforcement at critical stress points, the PTS Series is designed for exceptional durability. Heavy-duty welded push handles, tamper-resistant hardware, reinforced doors, and commercial-grade casters ensure dependable performance in high-abuse environments.

Performance Specifications

Temperature range: 90°F to 190°F (30°C to 90°C)
Guarded heat system with protected heating components
Recessed thermostat and protected controls
Tamper-resistant fasteners throughout cabinet
Padlock-compatible transport/security latches
Heavy-duty 12-gauge stainless steel hinges
Removable stainless steel tray rack assembly
Accommodates 15.5" x 11.5" or 14" x 10" compartment trays
Capacities ranging from 30 to 102 compartment trays depending on model
Available in heated or ambient configurations
120V, 208V, and 220-240V electrical configurations available
One-year limited warranty

Ideal Applications

Correctional facilities
County jails
State prisons
Detention centers
Cell block meal service
Satellite food distribution locations
Institutional foodservice programs requiring enhanced security

Why FWE?

FWE has long been recognized for building durable transport and holding equipment designed for demanding institutional environments. The PTS Series continues that tradition by combining dependable heated holding performance with specialized correctional security features, helping foodservice operators deliver meals safely, efficiently, and reliably in high-security settings.

PTS Series heated holding cabinets keep pre-trayed foods hot and oven-fresh, even when prepared hours in advance. The heat system is built into the cabinet to prevent tampering and reduce maintenance and cleaning costs. Clean up is effortless in these correctional foodservice cabinets. The controls are tamper resistant and feature a full range thermostat adjustable to actual temperature (90°F to 190°F) so they are easy to see and operate.

We don't just add a "security package" to a catalog item - the PTS Series is specifically designed to withstand the correctional environment. Our cabinets are built tough with an 18-gauge stainless steel exterior, welded construction and our exclusive tubular stainless steel base frame. The PTS-4040 includes abuse resistant features such as tamper resistant screws, locking security latches and protected controls. From minimum to maximum security, a wide range of other prison accessory packages are available to tailor each unit to your institutions' special needs. Five standard PTS models accommodate from 20 to 102 stainless steel or polycarbonate compartment trays.

Of course, as with all FWE cabinets, standard models can be modified to accommodate other correctional foodservice tray sizes and spacings.

FEATURES

Agency Approvals
CUL - C-UL mark indicates a product meets the CSA testing standards for Canada.
C-UL-US mark indicates a product meets the UL and CSA testing standards for both the United States and Canada.
UL - The UL mark, which now serves customers in more than 100 countries, has become the authority on product safety. Its engineers test for things like soundness of design, safety of electrical components, and structural integrity of products for which UL listing is sought.
If you think of NSF International classification as protection for your customers, then the mark of Underwriters Laboratories (UL) indicates safety for those who work in your commercial kitchen. The Illinois-based testing agency assures that the equipment that gets its stamp operates safely. There is also a sanitation classification that offers similar assurances about food safety as the NSF mark. Products are indicated as "Classified UL-EPH."
UL EPH - UL EPH recognizes products certified to meet environmental and public health standards. The UL EPH logo shows the word "Classified" above the UL mark, which indicates that the product complies with ANSI/NSF standards, in addition to other applicable codes.
Bumpers

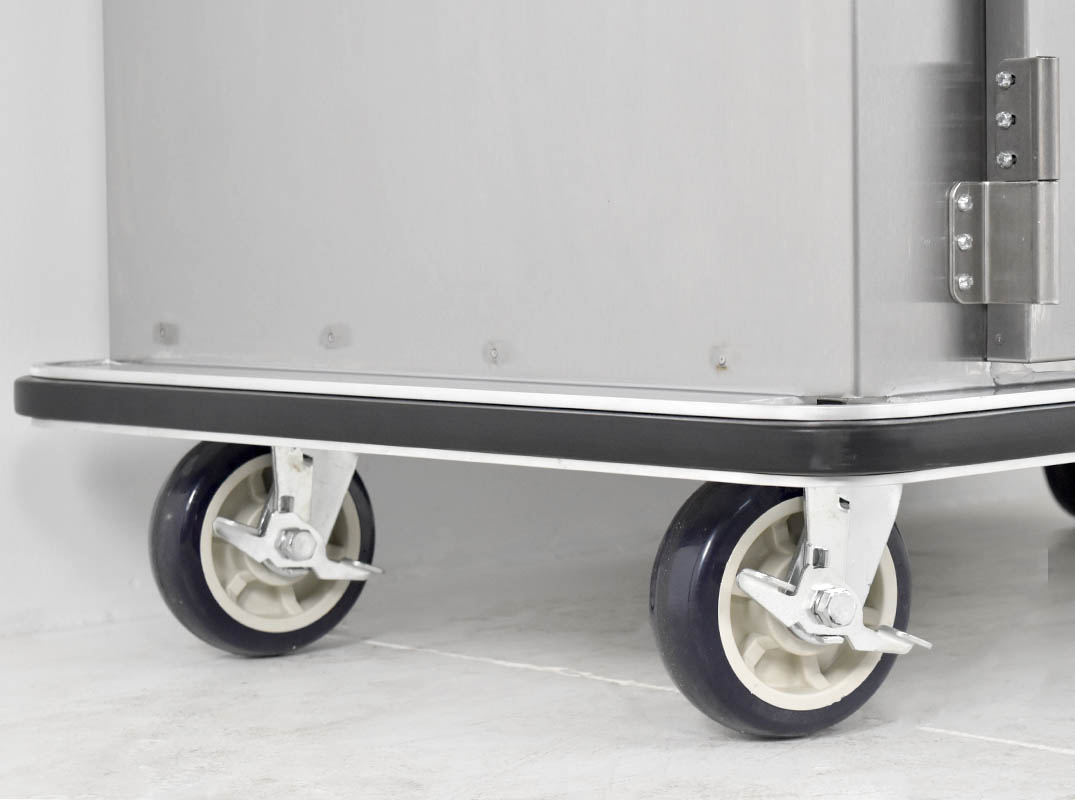

Full Bumper - Heavy duty full perimeter bumper extends beyond doors and handles for added protection. The bumper is mounted to the base frame for added durability - the bumper is not used as the base frame. In this way, the bumper absorbs all the shock in transport, protecting the integrity of the construction.
Caster
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.

Available in 5", 6" and 8" diameters.
6" Casters - 6" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
Mobile
Construction
Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times
Control Panel
Mechanical Controls - Mechanical controls
Humi-Temp Controls - Controls are up-front, easy to read and set, and include a full range F/C thermostat for easy operation. Thermometer continuously reads cabinet temperature - even without power source!
Door Count
2 Doors
Door Hinge
Stainless Steel Hinges - Stainless Steel Hinges
Door Latch
Padlocking Transport Latch - Cabinet mounted latch keeps door secure during transport, increased security with padlocking capabilities
Paddle Door Latch - Recessed paddle style door latch
Doors
Full Stainless Steel Door - Flush mounted, stainless steel insulated doors
Gasket Sealed - Gasket sealed door; tight double seal makes for a perfect secure closure and easy to clean
Electrical
Hidden Elements - Elements and blower are protected from spillage. Bottom of the cabinet is open for easy cleaning reducing maintenance and cleaning costs
Extra
Correctional Warranty - One year parts, six months labor limited warranty
Security Packages - HDM security packages can be added to select cabinets to help increase the security and durability of your unit
Handles
Tubular Push Handles - Heavy duty stainless steel push pull handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands
Hinging
Hinges on Right and Left Side - Hinges on the right and left side
Slides and Shelves

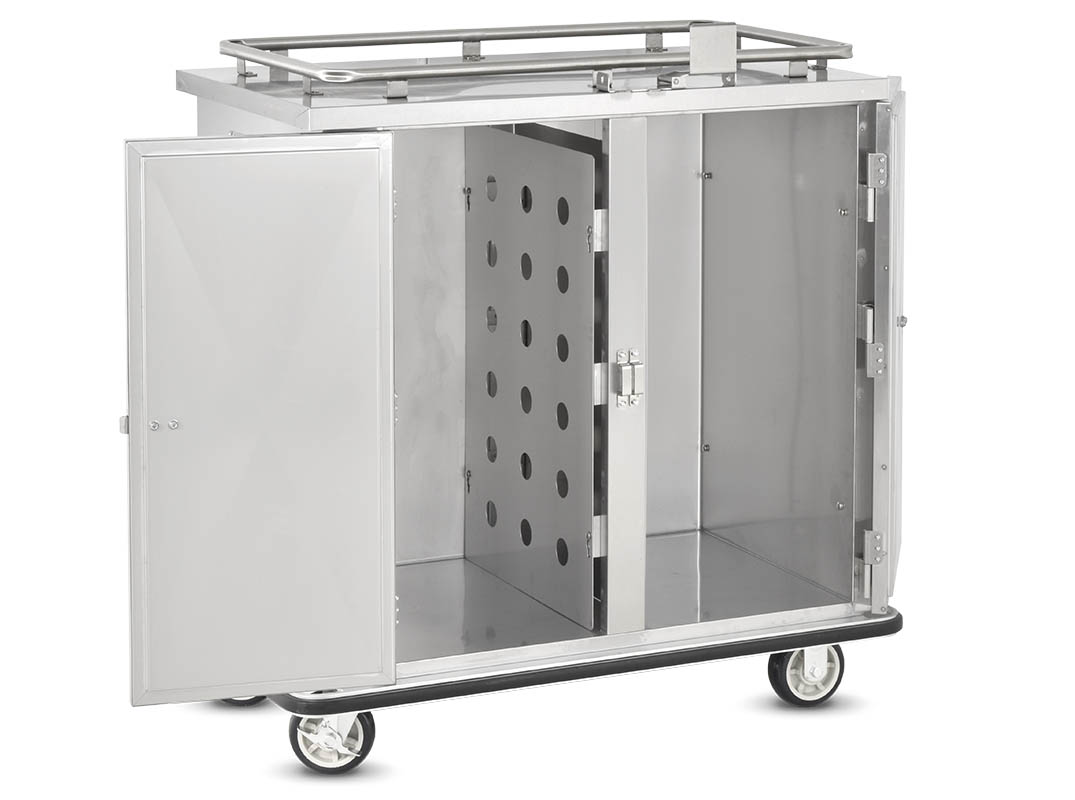

Fixed Slides - One piece rack assembly, die stamped stainless steel for extra strength, and removable for easy cleaning

OPTIONS & ACCESSORIES

Caster
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Larger & Upgraded Casters - Larger Casters
Door Latch
Key Locking Door Latch - Heavy duty door latch with key locking capabilities
Electrical
220-240 Volt - 220-240 Volt
Upgraded Element - Upgraded Element
Hinging
Alternate Door Swing Configurations - Alternate door swing configurations are available for multi door cabinets

LONG FORM SPEC

Specified unit shall be FWE Model No. PTS-4040, Prisoner Tray Transport & Serve Cabinets.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 18 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners. Welded tubular base frame shall be 1" square, heavy gauge stainless steel tubing, with 10 gauge stainless steel reinforcing stress plates at corners.

INSULATION. "Ultra-Guard" UG-26 high density fiberglass insulation throughout; top, back, bottom, sides, door(s).

PUSH BARS. Two (2) Heavy-duty, 1" diameter tubular stainless steel push handles. Mountings welded in place and reinforced with stainless steel channel to prevent removal.

SUPER-DUTY BUMPER. Solid, 1.5" high, wraparound aluminum channel, bolted to frame, with snap-in, non-marking replaceable vinyl cushion. Full perimeter bumper extends beyond doors, handles, etc., for added protection. Shall be continuous, with corner cut-outs to facilitate cleaning. Super-Duty Bumper shall be made of thicker 0.25" aluminum and be wider at 4.875".

DOORS AND LATCHES. Flush mounted, stainless steel, insulated doors. When opened, doors lie flush against side of unit or another door to keep work aisles unobstructed. Each door shall have three (3) heavy-duty, 12 gauge stainless steel hinges. Each door shall be equipped with a positive closing, flush-in-door, stainless steel paddle latch. The hinge and latch mountings are reinforced with stainless steel backing plates. Each unit shall be provided with padlock compatible (padlock not included) transport/security latch.

CASTERS. 6" heavy-duty, extra wide polyurethane tire casters with Zerk grease (lubrication) fittings. Single and double door models in a configuration of two (2) rigid, and two (4) swivel with brake. Three door models in a configuration of two (2) rigid and four (4) swivel with brake. Casters shall have a reinforced yoke welded to 10 gauge caster mounting plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

TRAY SLIDES. Fully welded, one piece rack with hold down device shall be heavy gauge stainless steel, channels fixed-in-place at 3" spacings to accommodate two (2) 15.5" x 11.5" or two (2) 10" x 14" trays per pair of tray slides. Unless specified otherwise, assembly shall be factory adjusted to accommodate 15.5" x 11.5" trays.

HEATING SYSTEM/CONTROLS. Heat system shall be built-in to prevent tampering, loss, or damage. System shall include an Incoloy nickel-chromium alloy heating element, and Hi-Temp, self-lubricated, impedance protected, fan-cooled blower motors. Controls shall be end mounted, fully recessed and shall include a full range thermostat adjustable to actual temperature. Thermostat shall include temperature scale marked in ten increments (F/C) from 90° to 190°F (30° to 90°C).An operational range thermometer, 20 amp ON/OFF switch, power supply light and thermostat cycling light are also included.

ABUSE RESISTANT FEATURES. Cabinet shall have 12 gauge stainless steel thermostat knob retention strap, and 1/4" thick Lexan cover over the thermometer. Both shall be attached with tamper-proof fasteners to prevent unauthorized removal. Cabinet shall have tamper-resistant fasteners in all critical areas, and extra welds throughout for added durability. Heavy-duty 1" diameter tubular stainless steel push handles shall be welded in place and reinforced with stainless steel channel to prevent removal. Each unit shall be provided with padlock compatible (padlock not included) transport/security latch.

ELECTRICAL CHARACTERISTICS. 3 wire grounded tri-directional power cord and plug, rear mounted for safety. See electrical data chart above for amperage and receptacle configuration. See electrical chart for models that require a dedicated circuit.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

LITERATURE

VIDEOS

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
