PRISONER TRAY TRANSPORT & SERVE CABINETS
Heated Holding & Serving for 14"x10" Prisoner Trays
TOPMOUNT "PTST-1410" SERIES

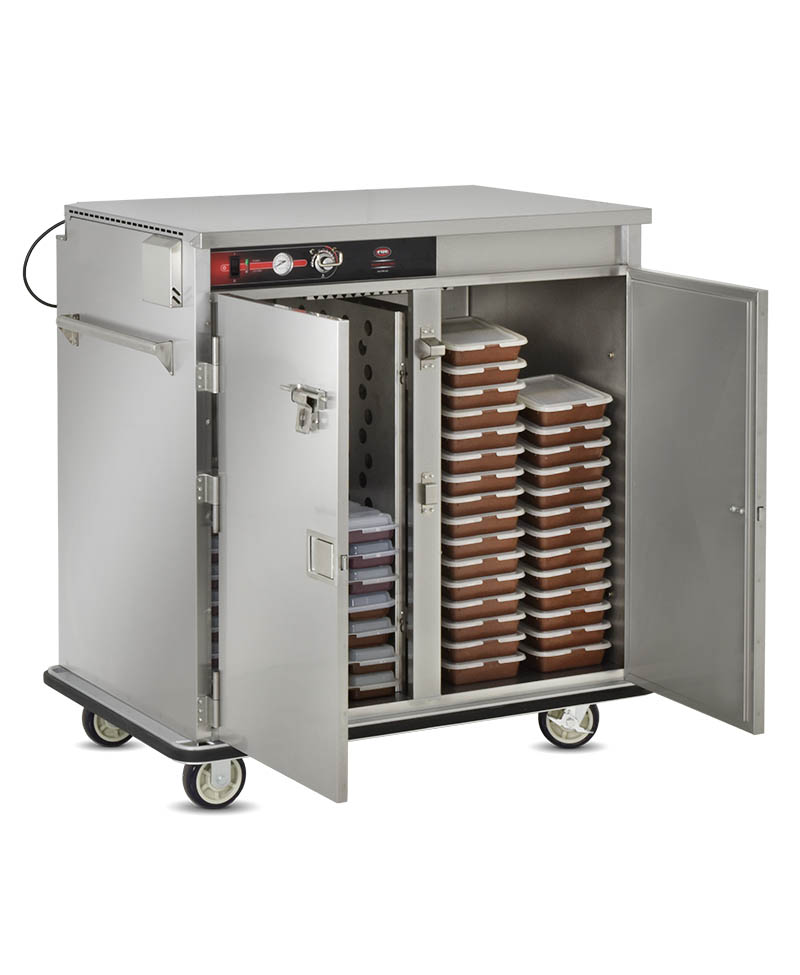

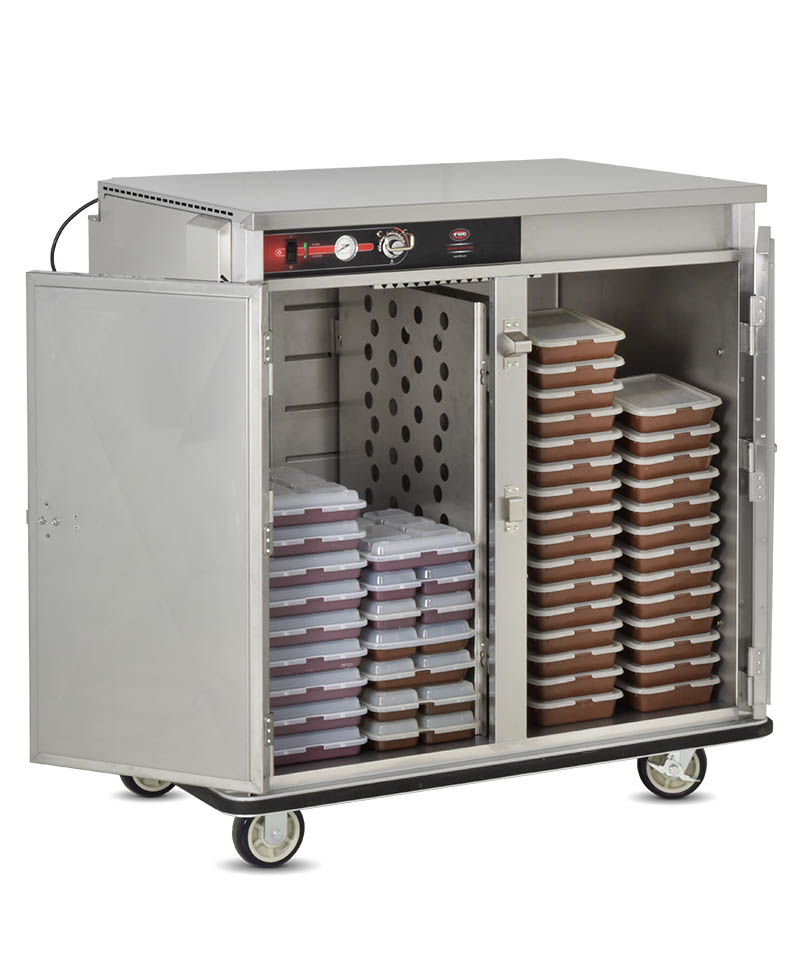

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.
C-UL-US mark indicates a product meets the UL and CSA testing standards for both the United States and Canada.
If you think of NSF International classification as protection for your customers, then the mark of Underwriters Laboratories (UL) indicates safety for those who work in your commercial kitchen. The Illinois-based testing agency assures that the equipment that gets its stamp operates safely. There is also a sanitation classification that offers similar assurances about food safety as the NSF mark. Products are indicated as "Classified UL-EPH."
EZ roll casters are shock absorbing and roll easier under heavy loads.
Available in 5", 6" and 8" diameters.
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Specified unit shall be FWE Model No. PTST-1410-120, Heated Transport and Serve Cabinet.
CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 18 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners. Welded tubular base frame shall be 1" square, heavy gauge stainless steel tubing, with 10 gauge stainless steel reinforcing stress plates at corners.
INSULATION. Insulated throughout; top, back, bottom, sides, doors using high density ceramic and fiberglass insulation.
HANDLES. Heavy-duty, recessed, 1" diameter tubular stainless steel push handles. Reinforced and welded with stainless steel channel to prevent removal. PTST-1410-72 is standard with a rear mounted push/pull handle.
SUPER-DUTY BUMPER. Solid, 1.5" high, wraparound aluminum channel, bolted to frame, with snap-in, non-marking replaceable vinyl cushion. Full perimeter bumper extends beyond doors, handles, etc., for added protection. Shall be continuous, with corner cut-outs to facilitate cleaning. Super-Duty Bumper shall be made of thicker 0.25" aluminum and be wider at 4.875".
DOORS AND LATCHES. Each stainless steel, insulated door shall have three (3) heavy-duty, 12 gauge stainless steel hinges. Each door shall be equipped with a positive closing, flush-in-door, stainless steel paddle latch. The hinge and latch mountings are reinforced with stainless steel backing plates. Each door shall be provided with padlock compatible transport/security latch (padlock not included).
CASTERS. 6" maintenance free, polyurethane casters in a configuration of two (2) rigid, and four (4) swivel with brake. Casters shall have a reinforced yoke welded to 10 gauge caster mounting plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.
HEATING SYSTEM/CONTROLS. Top mounted, forced air blower system shall include one (1) Hi-Temp, self-lubricated, impedance protected, fan-cooled blower motor to distribute heat equally throughout cabinet interior. Heating element shall be located at top of cabinet to eliminate hot spots and to prevent overheating of lower trays and pans. Back wall heat distribution tunnel shall be vented for balanced air circulation. Controls shall be up-front, recessed and shall include a full range thermostat adjustable to actual temperature. Thermostat shall include temperature scale marked in ten degree increments (F/C) from 90° to 190°F (30° to 90°C). An operational range thermometer, power supply light, thermostat cycling light, and 20 amp ON/OFF switch are also included.
CAPACITY. Does not include rack or shelf.
ABUSE RESISTANT FEATURES. Cabinet shall have thermostat knob retention strap, and 1/4" thick Lexan cover over the thermometer. Both shall be attached with tamper-proof fasteners to prevent unauthorized removal. Cabinet shall have tamper-resistant fasteners in all critical areas, and extra welds throughout for added durability. Heavy-duty 1" diameter tubular stainless steel push handles shall be welded in place and reinforced with stainless steel channel to prevent removal. Each door shall be
provided with padlock compatible transport/security latch (padlock not included).
ELECTRICAL CHARACTERISTICS. 3 wire grounded tri-directional power cord and plug, rear mounted for safety. See electrical data chart above for amperage and receptacle configuration. See electrical chart for models that require a dedicated circuit.
INSTALLATION. Unit should not be installed in an area where adverse environmental
conditions are present.
FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
All rights reserved. All specifications subject to change without notice.
Errors subject to correction. © 2023 FWE / Food Warming Equipment Company, Inc.
Shop online at FWEparts.com for replacement parts directly from FWE.
See terms of sale & limited two year warranty.
