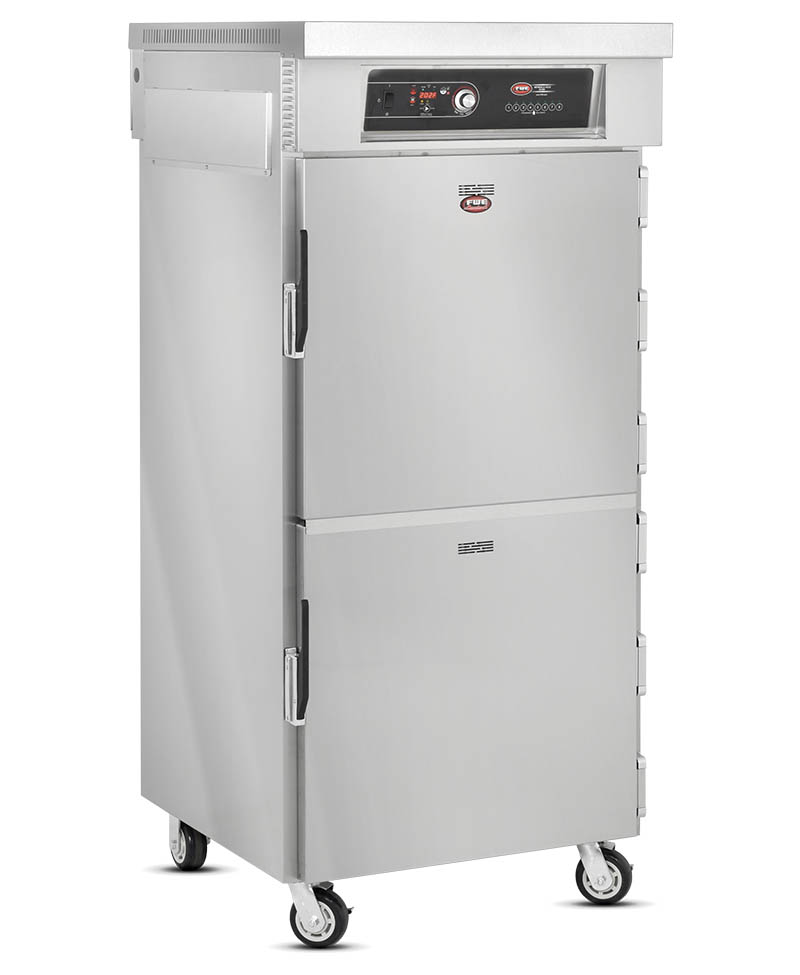

RH-B-32

RETHERMALIZATION CABINETS
For Baskets
"RH-B" SERIES

RH-B-32 Spec Sheet

Rethermalization oven for high volume heating and finishing of pre-cooked foods, without overcooking or dehydration

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

MODEL SPECIFICATIONS

Model Height:
Model Width:
Model Depth:
Shipping Weight:
Volts:
Watts:
Amps:
3 Phase:
Adjustable Slides:
Standard # of Slides:
Standard # of Shelves:
Standard Spacing:

DESCRIPTION

RH Series Rethermalization Cabinets by FWE
Unlock the Potential of Precision Cooking and Reheating with FWE's RH Series Rethermalization Cabinets!

When it comes to preserving the exceptional taste, texture, and quality of your pre-cooked foods, look no further than FWE's RH Series Rethermalization Cabinets. Designed for high-volume food service operations, these cabinets are the ultimate solution for quickly and safely reheating or finishing your culinary creations, without compromising on flavor, color, texture, or nutrients.

1. Elevate Food Quality and Flavor Preservation: With FWE's Rethermalization Cabinets, you can reheat previously prepared dishes to perfection. Say goodbye to overcooking and dehydration-your meals will taste as delicious as if they were just prepared.

2. Versatile Cooking Options: Our RH models aren't limited to reheating refrigerated or slacked meals. They provide precise temperature control, allowing you to bake, cook, or reheat a wide range of food products with ease and consistency.

3. Innovative Tray Slide Design: Heavy food items are no match for our cabinets. The unique tray slide design provides excellent support for your dishes, and the slides are adjustable and removable, making interior cleaning a breeze.

4. Natural Product Browning: Thanks to our door venting system, excess moisture is released during cooking, ensuring that your dishes achieve the perfect level of natural browning for that appetizing appearance.

5. Effortless Operation: FWE's Rethermalization Cabinets are designed with user convenience in mind. The easy-to-use controls allow you to preset cooking and holding temperatures, eliminating the need for constant monitoring. Plus, you can program and store up to 8 preset menu selections for added efficiency. For precise temperature monitoring, a product probe is available.

6. High Output Efficiency (HO): Our HO models feature higher wattage, enabling faster reheating of dense and heavy-weight food products, ensuring you meet the demands of your busiest kitchen hours.

7. Durability Meets Hygiene: Crafted from top-quality stainless steel, these cabinets are not only durable but also easy to clean, ensuring your kitchen maintains the highest standards of hygiene.

8. Space and Cost Savings: Say goodbye to costly hood space requirements and the expenses associated with operating exhaust or fire extinguisher systems. FWE's Rethermalization Cabinets surpass EPA 202 and ANSI NFPA96 standards, with adherence to local codes as a top priority.

At FWE, we understand the importance of maintaining food quality and operational efficiency in your kitchen. Our RH Series Rethermalization Cabinets are engineered to not only meet but exceed your expectations, ensuring that your customers experience the best your culinary team has to offer.

Invest in FWE's RH Series Rethermalization Cabinets today and elevate your kitchen's capabilities. Unlock the potential of precision cooking and reheating, and savor the results with every plate served.

Discover the difference--Choose FWE for exceptional culinary performance!

Getting Started with the RH Series

The RH-B-32 Retherm Oven is provided with (16) sets of fixed slides spaced at 3.5". Each set of slides holds (2) 13.5" x 26" x2.5" speed baskets. The RH-B-32 can accommodate up to (320) 6.5" x 5" trays, 10 per basket.

FEATURES

Agency Approvals
UL EPH - UL EPH recognizes products certified to meet environmental and public health standards. The UL EPH logo shows the word "Classified" above the UL mark, which indicates that the product complies with ANSI/NSF standards, in addition to other applicable codes.
UL - The UL mark, which now serves customers in more than 100 countries, has become the authority on product safety. Its engineers test for things like soundness of design, safety of electrical components, and structural integrity of products for which UL listing is sought.
If you think of NSF International classification as protection for your customers, then the mark of Underwriters Laboratories (UL) indicates safety for those who work in your commercial kitchen. The Illinois-based testing agency assures that the equipment that gets its stamp operates safely. There is also a sanitation classification that offers similar assurances about food safety as the NSF mark. Products are indicated as "Classified UL-EPH."
CUL - C-UL mark indicates a product meets the CSA testing standards for Canada.
C-UL-US mark indicates a product meets the UL and CSA testing standards for both the United States and Canada.
Bumpers
No Bumper - No bumper
Caster
5" Casters - 5" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
Mobile
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.

Available in 5", 6" and 8" diameters.
Construction
Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times
Control Panel
Retherm Controls - Easy to use controls allow the operator to preset the time and temperature of the cooking cycle, as well as the holding temperature, eliminating the need for constant monitoring
Electronic Controls - Electronic controls featuring easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light.
Door Count
2 Doors
Door Hinge
Edgemount Hinges - Heavy-duty edge mount die cast hinges
Door Latch
Magnetic Door Latch - Heavy duty full grip magnetic door latch
Doors
Vented Doors - Adjustable door vents; allows desired holding conditions from moist to crisp foods, achieving optimal results
Gasketless
Dutch Doors - Dutch doors help maintain cabinet temperature during peak serving times
Extra
Warranty - Two year limited warranty
Handles
No Handles
Heat System
Retherm Heat System - Full cabinet air circulation for high volume heating and finishing prepared foods. No venting hood space required for most local codes
Hinging
Hinges on Right Side - Right hand door hinging
Slides and Shelves
Fixed Slides for Baskets - Fixed slides accommodate 13.5" x 26" x 2.5" wire baskets, (2) two baskets per slide. Unique pan slide racks' front edges are relieved for easy loading, one piece die stamped stainless steel for extra strength, and removable for easy cleaning

OPTIONS & ACCESSORIES

Caster
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Larger & Upgraded Casters - Larger Casters
Extra
Dry Erase Board - Door mounted dry erase board for menu changes or cabinet identification
Menu Card Holder - Door mounted frame to display menu card
Security Packages - HDM security packages can be added to select cabinets to help increase the security and durability of your unit
Hinging
Hinges on Left Side - Left hand door hinging, available on single door models only
Field Reversible Hinging - Field reversible door- flexible installation options for kitchen layout

SHORT FORM SPEC

Specified unit shall be FWE Model No. RH-B-32, Rethermalization Cabinets.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; On Model RH-B-12: 18 gauge polished exterior, 18 gauge stainless steel interior; On Models RH-B-24, RH-B-32, RH-B-24-HO & RH-B-32-HO: 20 gauge polished exterior, 18 & 22 gauge stainless steel dual-layer interior; All models come with easy-to-clean interior coved corners. Welded tubular base frame shall be 1" square, heavy gauge stainless steel tubing, with 10 gauge stainless steel reinforcing plates at corners.

INSULATION. Insulated throughout; top, back, bottom, sides, doors using high density ceramic and fiberglass insulation.

DOORS AND LATCHES. Flush mounted, double pan, stainless steel, vented, insulated door(s). Heavy-duty edge mount full grip magnetic door latch with heavy-duty hinges. Three (3) die-cast edgemount hinges per door. RH-B-24, RH-B-24-HO, RH-B-32 and RH-B-32-HO models are standard with dutch doors.

CASTERS. Maintenance free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

BASKET SLIDES. Stainless steel racks shall be one piece die stamped channel-type basket slides at 3.5" spacings to accommodate wire baskets. Racks are removable without tools for cleaning. Racks shall lift off heavy-duty stainless steel supports.

HEATING SYSTEM. Built-in heat system includes multiple Incoloy sheathed heating elements that provide fast heat up and accurate temperature set points. In heat cycle, elements provide full power to assure safe reheat times. When heat time expires, unit to automatically switch to hold mode maintaining food quality and safe holding temperatures. Unit contains internal cooling fans and thermally protected blower motors, safety switches and control panel is temperature rise protected. Unique precision venting baffle duct system for even, efficient heat throughout the entire cabinet, in either heat or holding periods. Venting may be required. Local codes prevail.

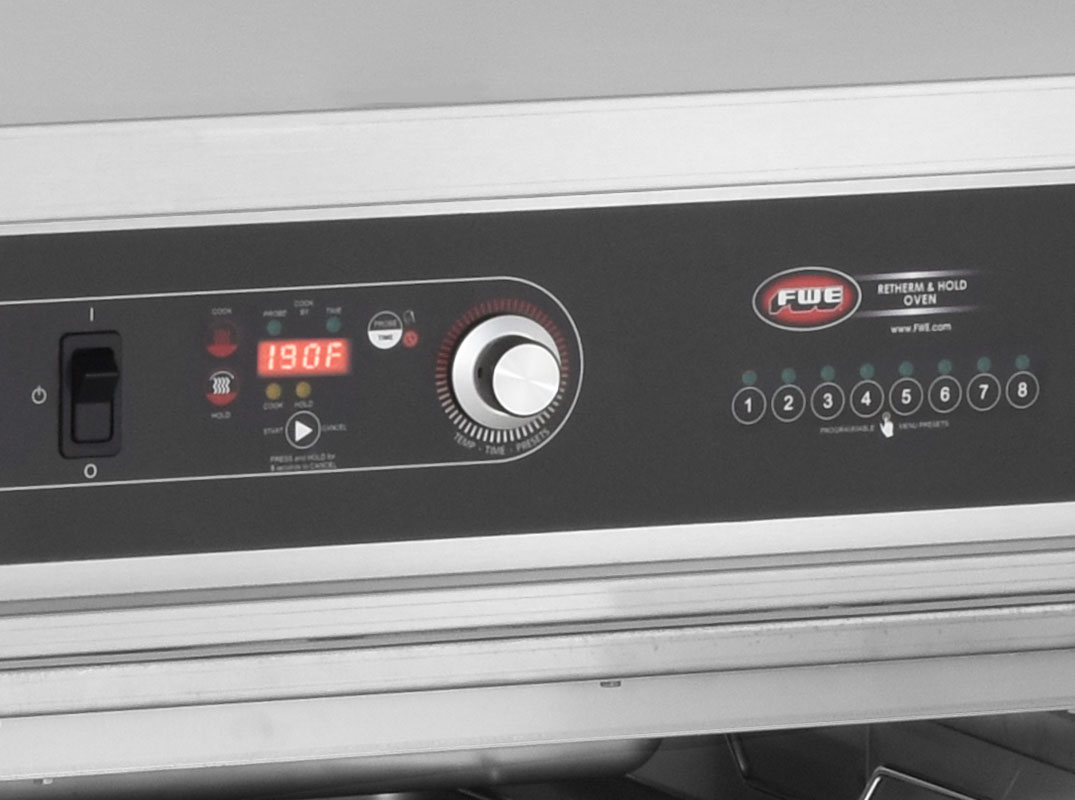

CONTROL PANEL. Easy to operate, automatic controls include intuitive, easy to use / easy to read, kitchen friendly controls that allow for "set-and-forget" consistent results. Cook by time or by internal product temperature with probe (optional). When cook cycle is complete, controller automatically switches from cook cycle to hold cycle. Unit has preset function to store and quickly retrieve up to 8 recipes. Adjustable COOK control up to 350°F (177°C) and adjustable HOLDING control up to 200°F (93°C). Shall include ON/OFF switch. Actual cabinet temperature reading is LED displayed during each cycle and probe temp display. Consult factory if lower temperature is required for local codes.

ELECTRICAL CHARACTERISTICS. See chart above for amperage. See electrical chart for models that require a dedicated circuit.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present. Refer to operations manual for further details.

Provide with the following accessories:
