TST-22SL

HEATED HOLDING CABINETS
For 18" x 26" Trays and Various Size Containers on Shelves
Top Mount "TST-SL" Series

TST-22SL Spec Sheet

Meeting High Capacity with a Space-Saving Twist: The TST-SL Series Delivers Versatile Holding in a Slim 23" Profile.

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

MODEL SPECIFICATIONS

Model Height:
Model Width:
Model Depth:
Shipping Weight:
Volts:
Watts:
Amps:
3 Phase:
Adjustable Slides:
Standard # of Slides:
Standard # of Shelves:
Standard Spacing:

DESCRIPTION

TST-SL Series - Top Mount Side Load Heated Holding Cabinets:
Experience unrivaled versatility and performance with the TST-SL Series Top Mount Side Load Heated Holding Cabinets by FWE. These cabinets are designed to adapt to your ever-changing kitchen needs, accommodating a wide variety of containers on adjustable shelves and tray slides.

1. Adjustable Shelving and Tray Slides: The ultra-flexible TST-SL Series can accommodate a wide range of containers. Tray slides are adjustable to change with your operation, each set capable of holding one shelf or one 18x26 tray. Each shelf can accommodate four GN1/3 pans, making this cabinet an adaptable addition to your kitchen.

2. Even Heating Distribution: FWE's Top Mount TST-SL Series ensures your dishes are consistently warm with its gentle circulation of hot air throughout the interior. Hot and cold spots are eliminated, preserving the quality of your culinary creations.

3. Fast Recovery and Self-Closing Hinges: Peak service times are no match for the TST-SL Series. These cabinets feature fast recovery, returning to the set temperature quickly. Self-closing hinges help retain heat, ensuring your dishes remain warm even during frequent door openings.

4. Easy Maintenance and Cleaning: Our top-mounted elements are protected from spills, leaving the bottom of the cabinet open for easy cleaning. This design reduces maintenance and cleaning costs, ensuring your cabinet is always in top condition.

5. User-Friendly Electronic Control: The TST-SL Series is equipped with a simple-to-use electronic control panel that's user-friendly, easy to read, and easy to set. You can set temperatures in the range of 90°F to 190°F (32°C to 88°C), and the cabinet comes with a low-temperature alarm for added convenience.

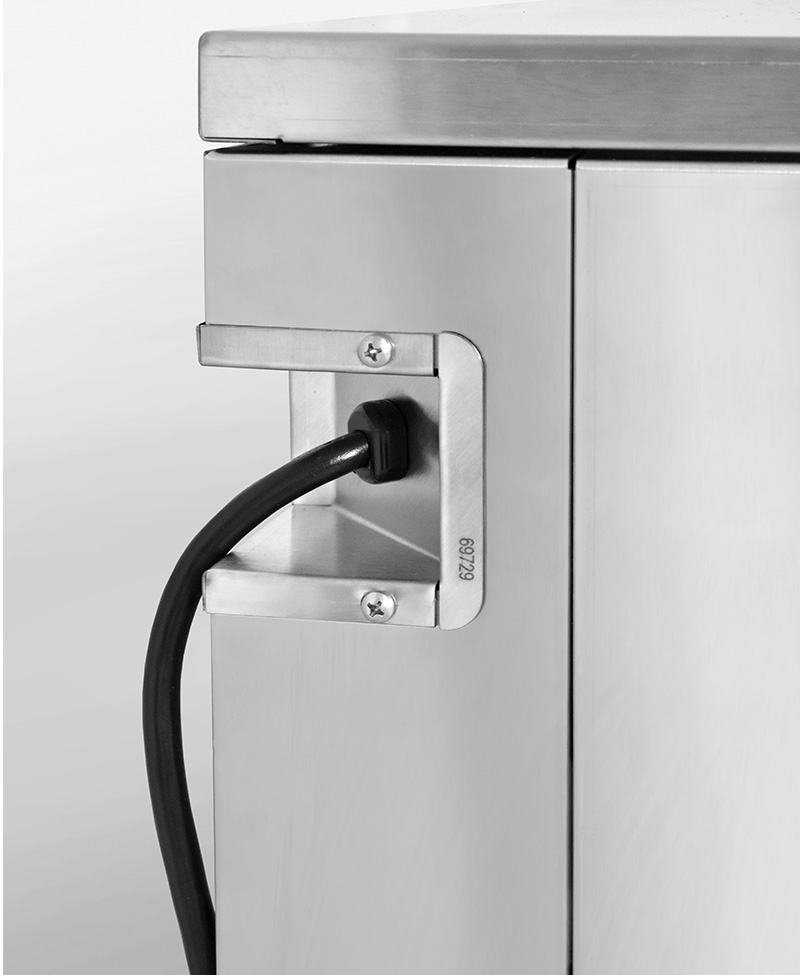

6. Tri-Directional AC Cord Pocket: Place the unit anywhere with ease. All units come with a tri-directional AC cord pocket, allowing for flexible plug placement, ensuring it fits seamlessly into your kitchen layout.

7. Magnetic Workflow Door Handle: The magnetic workflow door handle not only provides a cleaner look but also eliminates the need for latch hardware. This design saves time and money on replacement parts and maintenance fees, with no moving parts to bind or wear out.

Discover the flexibility and efficiency of the TST-SL Series Top Mount Side Load Heated Holding Cabinets by FWE. Whether you're catering to changing menu requirements or optimizing your kitchen's layout, these cabinets adapt to your needs while preserving the quality of your dishes.

TST-22SL - Top Mount Side Load Heated Holding Cabinet (Up to 22 Slides):
When you require both exceptional capacity and flexibility, the TST-22SL Top Mount Side Load Heated Holding Cabinet is the ultimate choice. With a remarkable capacity for up to twenty-two tray slides, this cabinet ensures you have the space you need to meet the demands of even the busiest kitchen. Adapt to changing menu requirements and maintain consistent quality with ease.

FEATURES

Agency Approvals
UL EPH - UL EPH recognizes products certified to meet environmental and public health standards. The UL EPH logo shows the word "Classified" above the UL mark, which indicates that the product complies with ANSI/NSF standards, in addition to other applicable codes.
UL - The UL mark, which now serves customers in more than 100 countries, has become the authority on product safety. Its engineers test for things like soundness of design, safety of electrical components, and structural integrity of products for which UL listing is sought.
If you think of NSF International classification as protection for your customers, then the mark of Underwriters Laboratories (UL) indicates safety for those who work in your commercial kitchen. The Illinois-based testing agency assures that the equipment that gets its stamp operates safely. There is also a sanitation classification that offers similar assurances about food safety as the NSF mark. Products are indicated as "Classified UL-EPH."
CE - The CE mark is mandatory for products sold in the European Economic Area. It indicates the product conforms with certain manufacturing and design safety requirements. CE is similar to UL except it's more of a declaration by the manufacturer that the product meets the relevant rules, rather than being the mark of independent testing.
UKCA - The UKCA mark is mandatory for products sold in the European Economic Area. It indicates the product conforms with certain manufacturing and design safety requirements. UKCA certified equipment has undergone testing to ensure safety, health, and environmental standards.
Bumpers
No Bumper - No bumper
Caster
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.

Available in 5", 6" and 8" diameters.
5" Casters - 5" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Construction
Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times
Control Panel

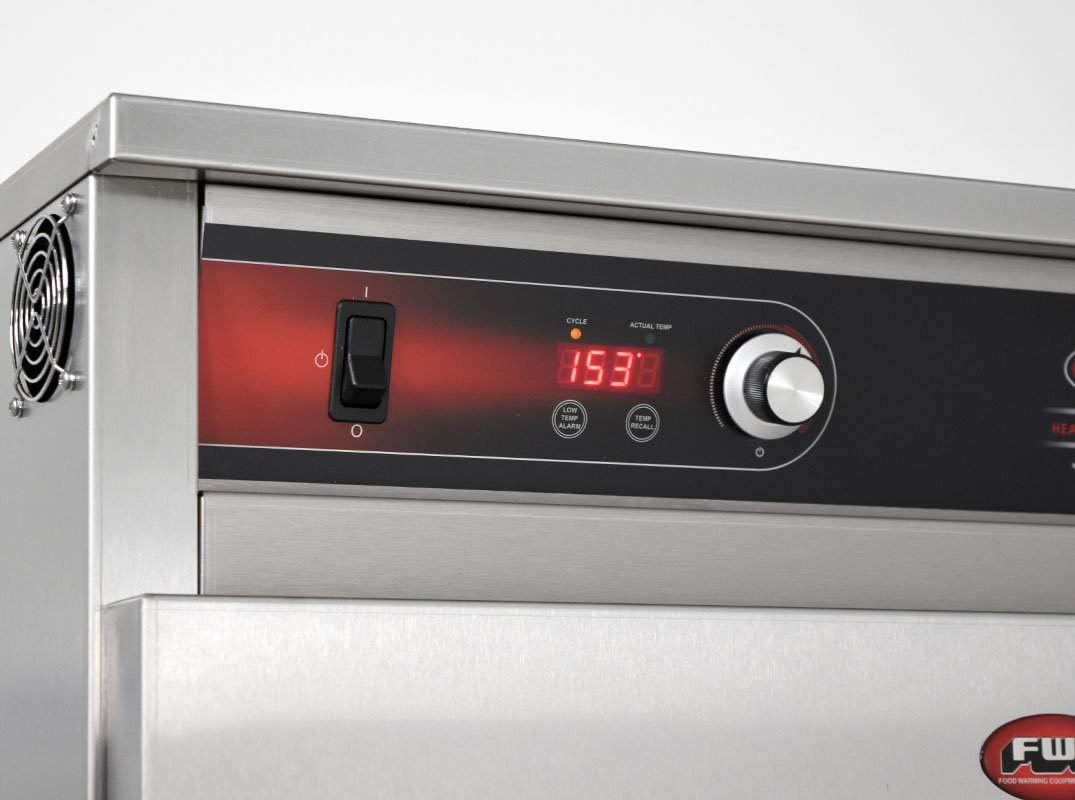

Electronic Controls - Electronic controls featuring easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light.
Top Mount Mechanical Controls - Controls are up-front, easy to read and set, and include a full-range Fahrenheit/Celsius thermostat for easy operation
Door Count
2 Doors
Door Hinge
Edgemount Hinges - Heavy-duty edge mount die cast hinges
Door Latch
Magnetic Work Flow Door Handle - Magnetic work flow door handles ergonomically accommodates kitchen staff and servers of varying heights
Doors
Full Stainless Steel Door - Flush mounted, stainless steel insulated doors
Dutch Doors - Dutch doors help maintain cabinet temperature during peak serving times
Gasket Sealed - Gasket sealed door; tight double seal makes for a perfect secure closure and easy to clean
Electrical
Hidden Elements - Elements and blower are protected from spillage. Bottom of the cabinet is open for easy cleaning reducing maintenance and cleaning costs
Extra
Warranty - Two year limited warranty
Handles
Recessed Hand Grips - Flush in wall hand grips recessed and mounted on the left and right side of the unit
Heat System
Top Mount Heat System - Large air circulation top heat source provides open bottom base
Hinging
Hinges on Right Side - Right hand door hinging
Field Reversible Hinging - Field reversible door- flexible installation options for kitchen layout
Slides and Shelves

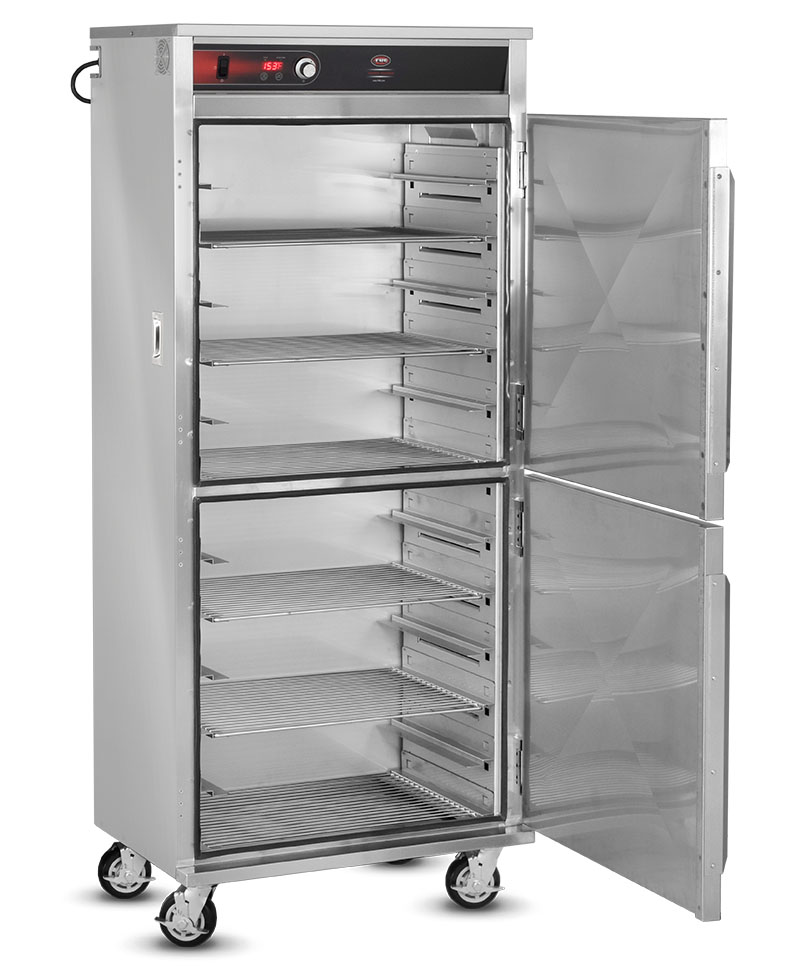

Adjustable Slides for 18x26 Trays - Unique tray slide design holds trays or pans by the bottom for greater support for heavy food items - tray slides are adjustable and removable for thorough interior cleaning

OPTIONS & ACCESSORIES

Control Panel
Mechanical Controls - Mechanical controls
Door Latch
Key Locking Door Latch - Heavy duty door latch with key locking capabilities
Padlocking Transport Latch - Cabinet mounted latch keeps door secure during transport, increased security with padlocking capabilities
Paddle Door Latch - Recessed paddle style door latch
Doors
Pass Through Doors - Pass-thru doors create a convenient connection from preparation side to serving areas. With access from both sides of the cabinet staff is free to focus on customers, taking more orders and serving carry-outs during peak meal times
See-Thru Lexan Doors - See-thru lexan door provides high visability for hot and fresh items
Electrical
220-240 Volt - 220-240 Volt
Extra
Menu Card Holder - Door mounted frame to display menu card
Dry Erase Board - Door mounted dry erase board for menu changes or cabinet identification
Slides and Shelves
Extra Tray Slides - Extra tray slides

SHORT FORM SPEC

Specified unit shall be FWE Model No. TST-22SL, Heated Holding Cabinets.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners. Welded tubular base frame shall be 1" square, heavy gauge stainless steel tubing, with 10 gauge stainless steel reinforcing plates at corners.

INSULATION. Insulated throughout; top, back, bottom, sides, doors using high density ceramic and fiberglass insulation.

HANDLES. Form grip flush-in-wall hand grips recess mounted on each side of unit.

DOORS AND LATCHES. Flush mounted, stainless steel insulated doors shall be selfclosing and field reversible. High temperature gasket sealed; gasket shall be cabinet mounted. Magnetic work flow door handle shall be full length, vertical, and positive closing. TST-7SL is standard with horizontal work flow handle. Each door shall have two (2) heavyduty edgemount die cast hinges. TST-22SL shall be standard with dutch doors. Dutch door: two (2) half size doors.

CASTERS. TST-22SL shall have 5" Polyurethane tire non-marking casters. TST-7SL shall have 2" TPR tire non-marking casters. Casters shall be in a configuration of four (4) swivel with brake. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

TRAY SLIDES. Stainless steel tray slides are fully adjustable / removable and designed to give secure bottom tray support. Removable stainless steel uprights shall be punched on 2.5" (63.5mm) spacing for easy tray/ pan adjustment, and shall easily lift off of heavy-duty, stainless steel brackets without the use of tools. Each pair of tray slides shall accommodate: one (1) 18" x 26" tray or one (1) 18" x 26" wire shelf.

HEATING SYSTEM/CONTROLS. Top mounted, forced air blower system shall include Hi-Temp, self-lubricated, impedance protected, fan-cooled blower motor to distribute heat equally throughout cabinet interior with distribution tunnels shall be vented for balanced air circulation. Electronic controls shall include an easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light. Adjustable temperature range from 90°F to 190°F (32°C to 88°C).

ELECTRICAL CHARACTERISTICS. 3 wire grounded tri-directional power cord and plug, rear mounted for safety. See electrical data chart above for amperage and receptacle configuration. See electrical chart for models that require a dedicated circuit.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provide with the following accessories:

LITERATURE

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
