MOBILE REFRIGERATED CABINETS
For Various Size Trays, Pans, and Gastro-Norm
REFRIGERATED "URS" SERIES
Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.
You may also see a designation that a product meets NSF/ANSI, which adds rules from the American National Standards Institute to the testing. ANSI works closely with NSF to develop its food safety standards and complete testing to those.
If you think of NSF International classification as protection for your customers, then the mark of Underwriters Laboratories (UL) indicates safety for those who work in your commercial kitchen. The Illinois-based testing agency assures that the equipment that gets its stamp operates safely. There is also a sanitation classification that offers similar assurances about food safety as the NSF mark. Products are indicated as "Classified UL-EPH."
C-UL-US mark indicates a product meets the UL and CSA testing standards for both the United States and Canada.
EZ roll casters are shock absorbing and roll easier under heavy loads.
Available in 5", 6" and 8" diameters.
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.

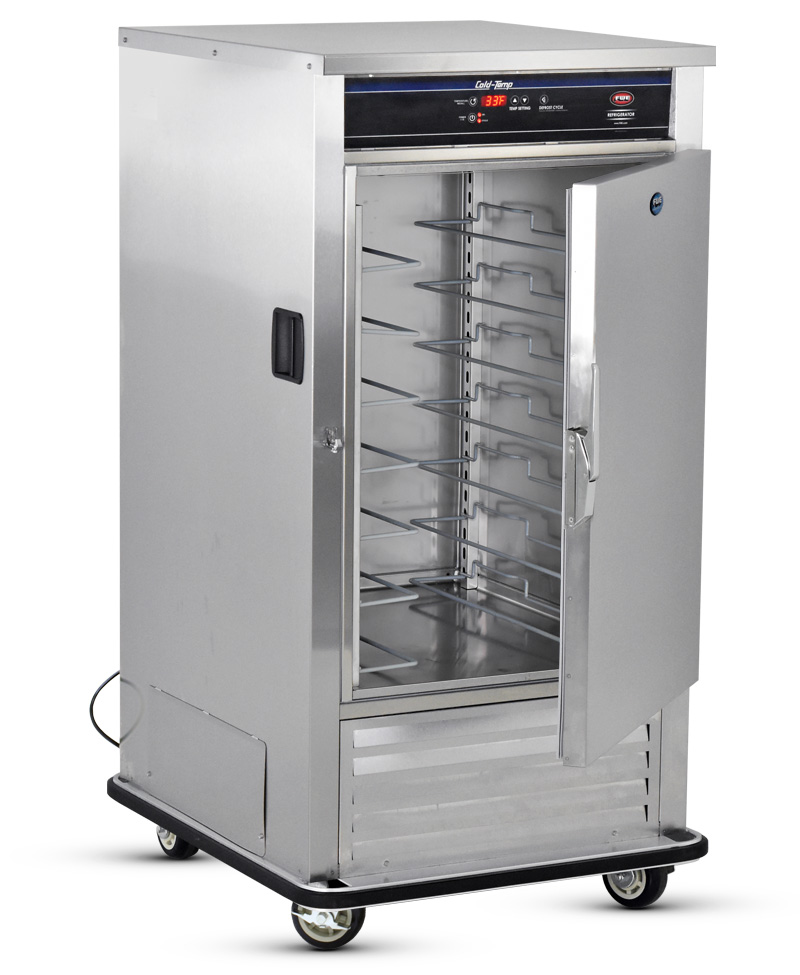

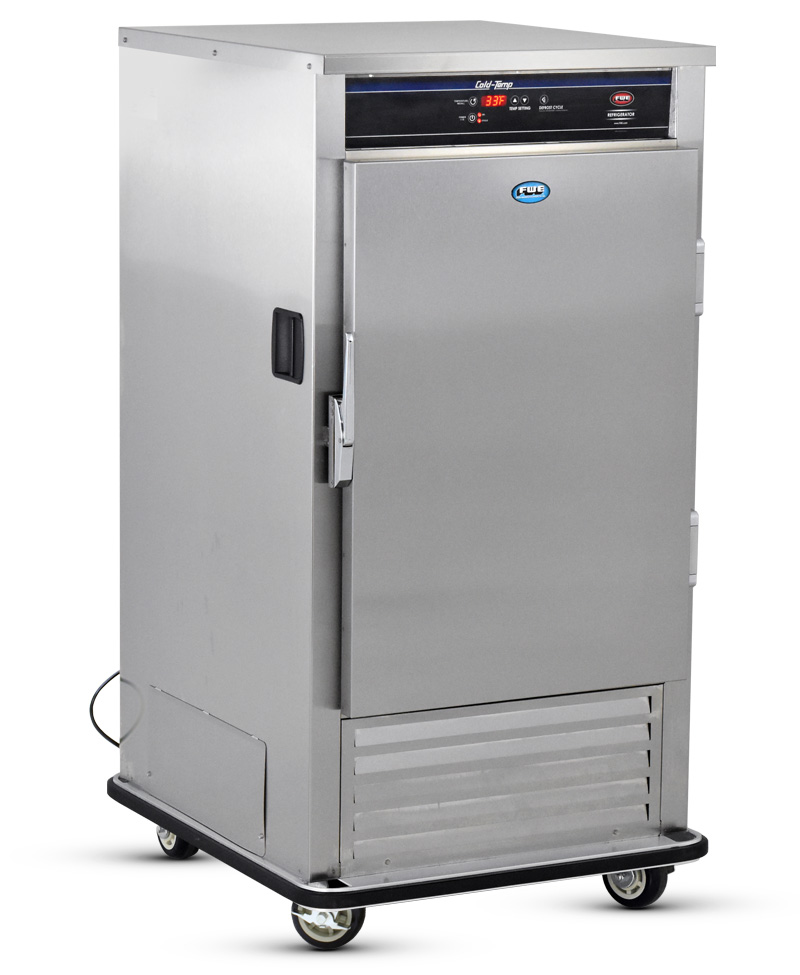

Specified unit shall be FWE Model No. URS-7, Mobile Refrigerated Cabinets.
CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners. Welded tubular base frame shall be 1" square, heavy gauge stainless steel tubing, with 10 gauge stainless steel reinforcing stress plates at corners.
INSULATION. High efficiency insulation throughout cabinet and door.

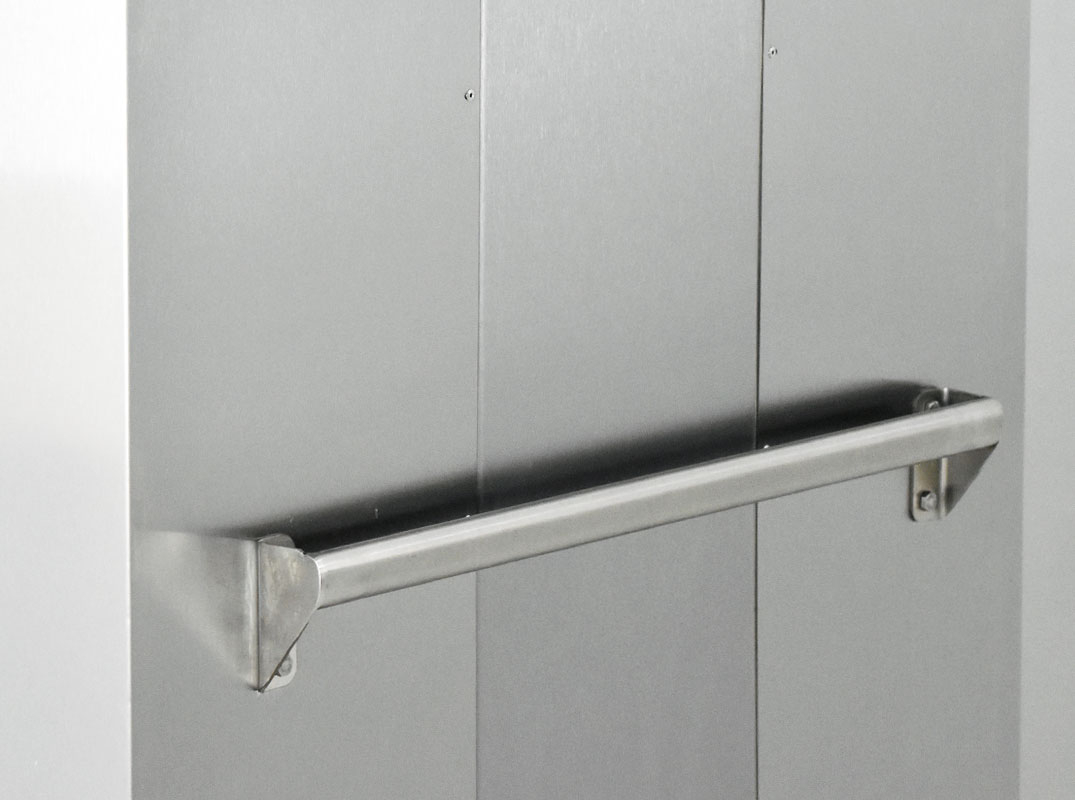

HANDLES. On single door models, full size, form-fitting recessed antimicrobial hand grips shall be mounted on each side of cabinet. Rear mounted tubular push pull handle. On two door models there shall be heavy-duty push bar handles, solid formed 1" x .375" thick; mounted at each end of unit. Mountings reinforced with stainless steel channel.
BUMPER. Solid continuous wraparound aluminum channel, bolted to frame, with snapin, non-marking replaceable vinyl cushion. Full perimeter bumper extends beyond doors, handles, etc., for added protection. Shall be continuous with corner cut-outs to facilitate cleaning.

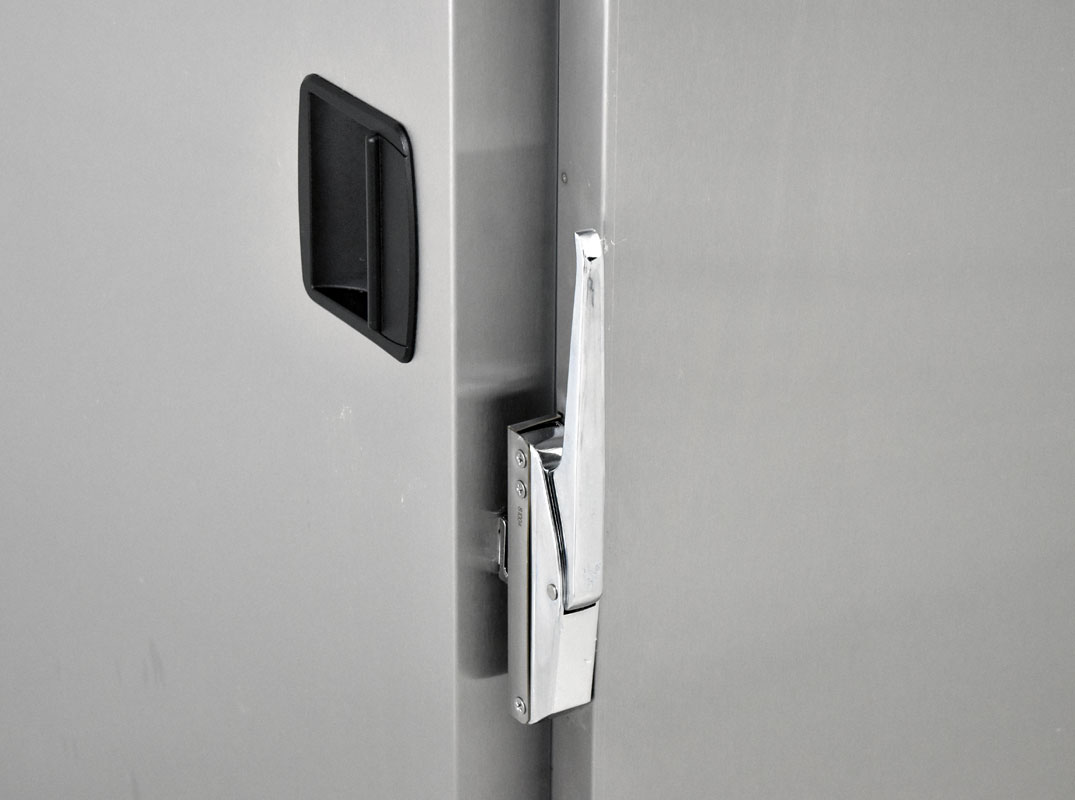

DOORS AND LATCHES. Flush mounted, stainless steel insulated doors shall be gasket sealed. Each door shall have two (2) heavy-duty edgemount die cast hinges. Door latch shall be edgemounted, full grip and positive closing. The hinge and latch mountings are reinforced with stainless steel backing plates.
CASTERS. On single door models there shall be maintenance free polyurethane casters in a configuration of two (2) rigid and two (2) swivel with brake. On two door models there shall be a configuration of two (2) rigid and four (4) swivel with break. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

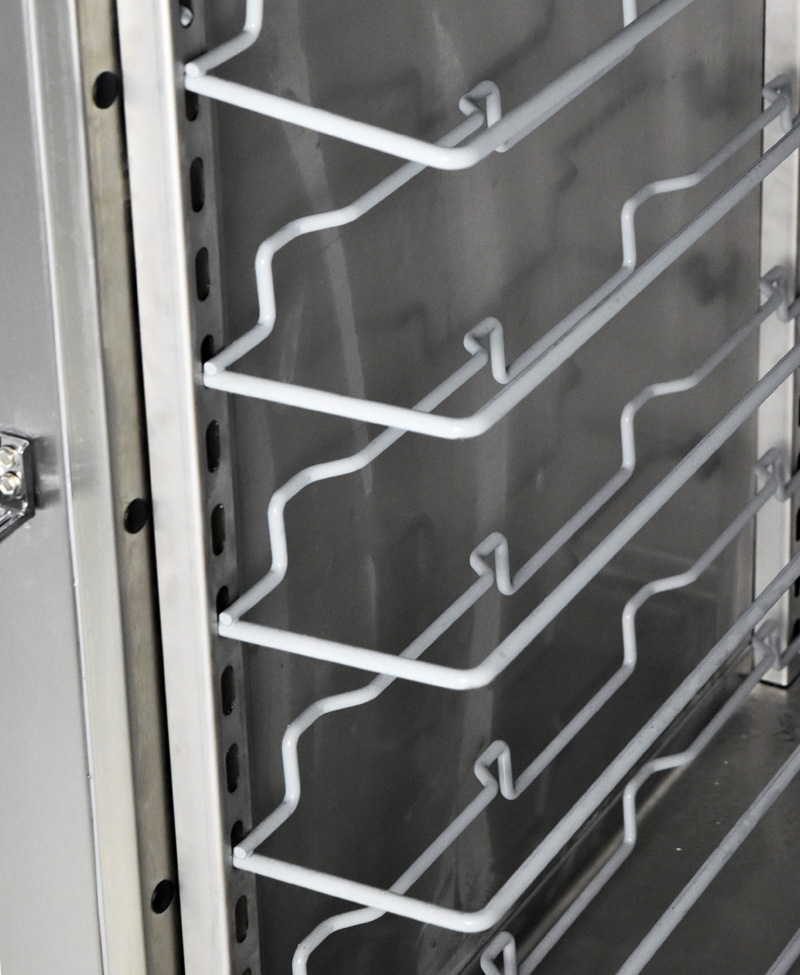

TRAY SLIDES. Welded rod-style tray slide design provides maximum air flow. Slides shall be fully adjustable/removable, and designed to give secure bottom tray support. Tray slides are polymer coated, tested and approved to meet the NSF International Corrosion Resistance requirements under NSF Std 51/ASTM b117 Sections 6.2 and 6.2.1. Removable stainless steel uprights shall be punched on 1.5" (38 mm) spacings, on center, for easy tray adjustments, and shall easily lift off of heavy-duty stainless steel brackets, without the use of tools.

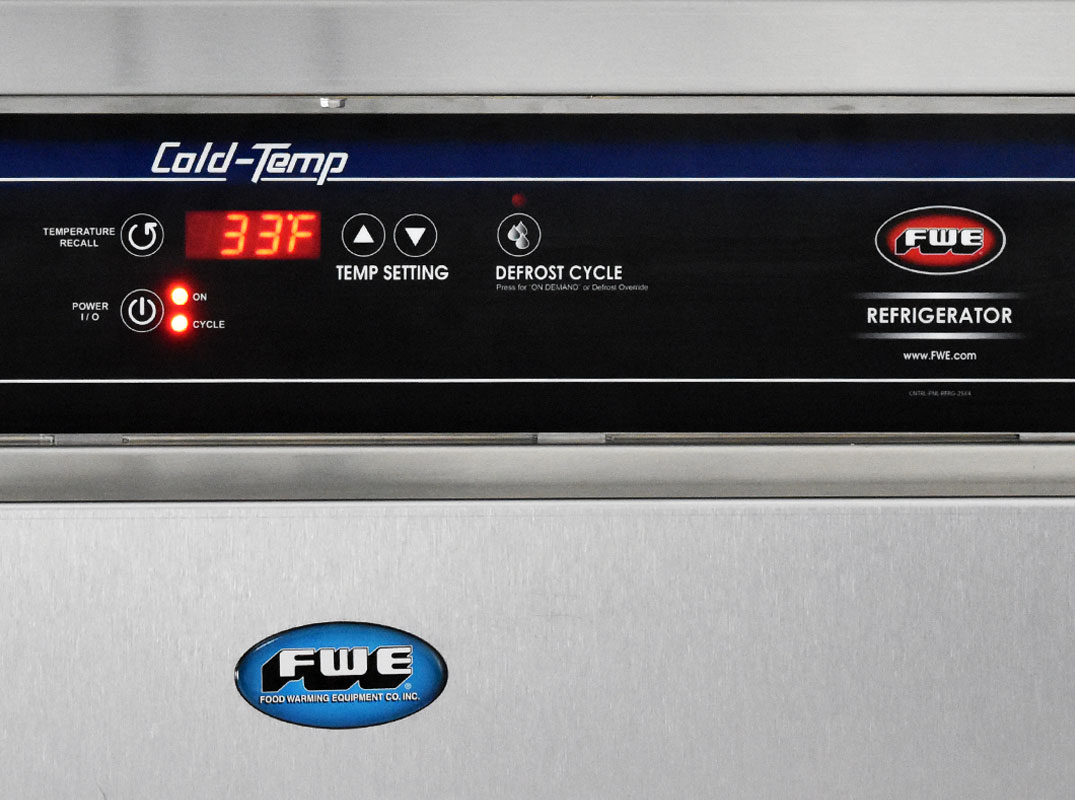

COLD-TEMP SYSTEM/CONTROLS. Single door units shall have a 1/4 HP Hi-torque condensing unit. Double door units shall have a 1/2 HP Hi-torque condensing unit. The air-cooled closed system has a three pound receiver charged with environmentally safe ANSI/ASHRAE Standard 34-1992 Safety Group Classification (A1) 450A refrigerant. A thermal expansion valve (for pressure control) also a filter dryer. Controls shall include an easy to read digital display for cabinet temperature (with recall capability of temperature set point and actual cabinet temperature). Easy to read master ON/OFF button with power indicator light, cooling cycle indicator light, on-demand defrost with a defrost cycle indicator light. Adjustable temperature range from 33°F to 38°F (.5°C to 3.3°C) factory preset temperature is 38°F (3.3°C).
ELECTRICAL CHARACTERISTICS. 3 wire grounded 8-10 foot extension power cord and plug, rear mounted for safety. See electrical data chart above for amperage and receptacle configuration.
INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.
Provide with the following accessories:
FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
All rights reserved. All specifications subject to change without notice.
Errors subject to correction. © 2022 Food Warming Equipment Company, Inc.
