BBC-5

Name: BBC-5 - Mobile Bars
Brand: FWE
SKU: BBC-5

Mobile Bars
For Beverage Service Usiing Post-Mix / Bag-in-Box
"BBC" Series

SPEC SHEET REVIT / CAD FILES OPERATION MANUAL PART MANUAL

BBC-5 Spec Sheet

Increase beverage sales with a portable bar designed for post-mix / bag-in-box service - built to serve as the toughest bar in town

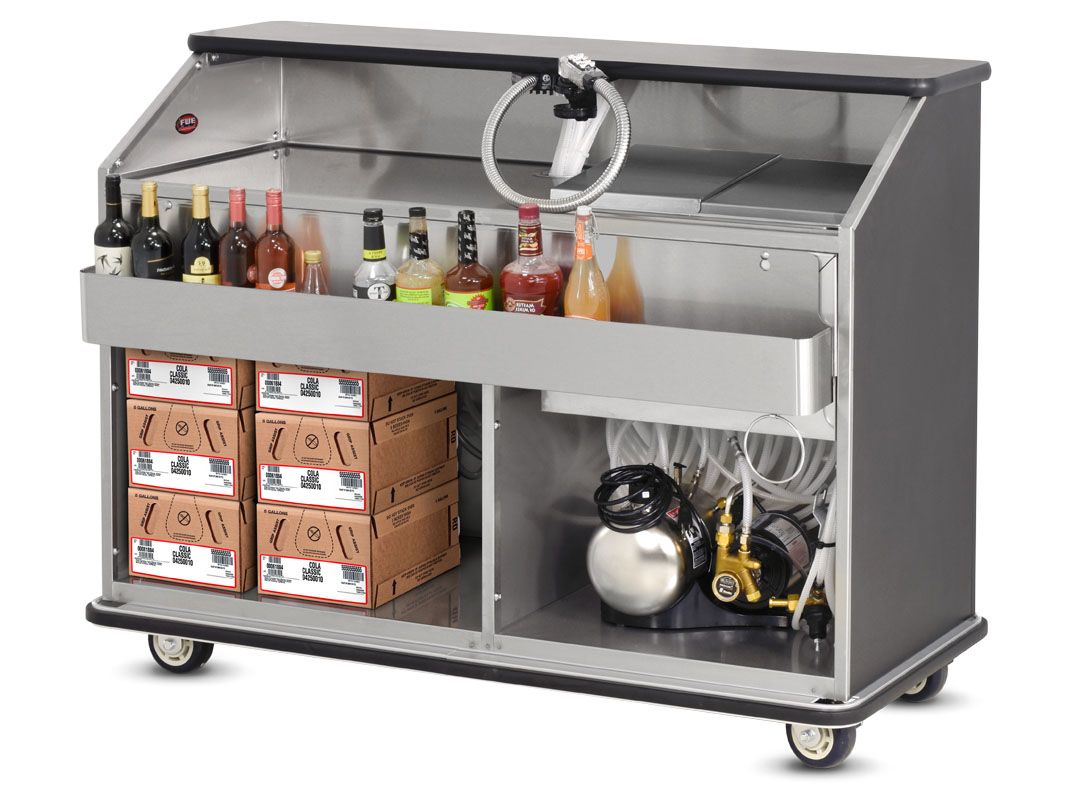

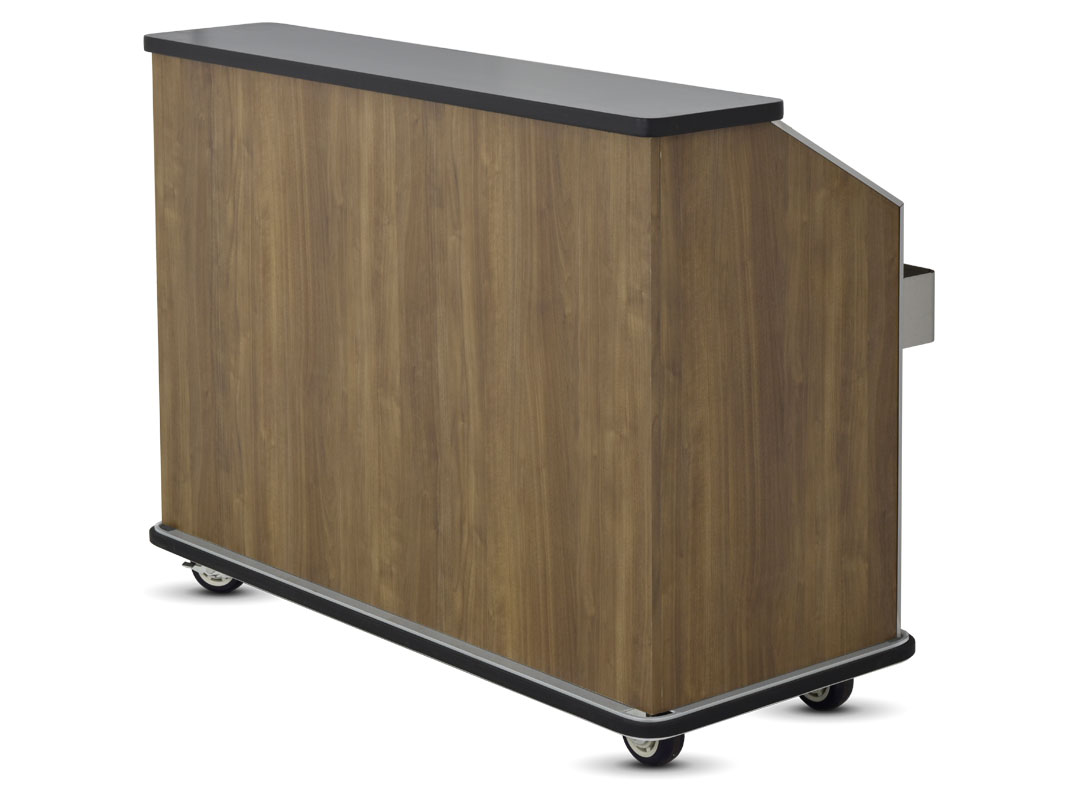

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

GET A QUOTE

MODEL SPECIFICATIONS

Model Height:	45.75 in \| 1162.05 mm
Model Width:	59.50 in \| 1511.3 mm
Model Depth:	29.25 in \| 742.95 mm
Shipping Weight:	425.00 lbs \| 192.74 kg
Volts:	0.00
Watts:	0.00
Amps:	0.00
3 Phase:	No
Adjustable Slides:	No
Standard # of Slides:	0
Standard # of Shelves:	0
Standard Spacing:	0

DESCRIPTION

FWE BBC Series Mobile Bars

The FWE BBC Series Mobile Bars are designed to provide portable post-mix and bag-in-box beverage service while helping operators maximize beverage sales and streamline service. Engineered for catering, hospitality, banquet, and event applications, this solution combines an integrated cold plate beverage dispensing system with rugged mobile construction to improve beverage quality, operational efficiency, and overall performance.

Product Overview

Built for demanding foodservice environments, the BBC Series Mobile Bars help operators deliver chilled beverages wherever service is needed. Whether used for banquet events, hotel and resort beverage service, or mobile catering operations, this solution delivers reliable performance while maintaining the quality, consistency, and efficiency today's operations require.

Key Features & Benefits

Bag-in-Box & Post-Mix Compatibility - Designed to accommodate beverage dispensing systems that chill and mix drink concentrates as beverages are dispensed.
50 lb. Insulated Ice Bin with Cold Plate - Keeps up to six beverage flavor circuits cold for consistent drink quality during service.
Heavy-Duty Mobile Construction - Stainless steel tubular welded base frame absorbs vibration and shock for dependable transport.
Multiple Finish Options - Available in Weather-All stainless steel, Professional laminate, Executive maple wood, and Architectural mahogany wood styles to complement any venue.
Easy-to-Clean Stainless Steel Interior - Sanitary work surfaces and stainless steel-lined interior simplify cleaning and maintenance.
Integrated Bar Accessories - Includes a removable stainless steel bottle speed rail, towel ring, and stainless steel condiment holder for improved bartender efficiency.
Matching Beverage Service Equipment - Coordinates with FWE back bars and ice carts to create a complete mobile beverage service solution.

Construction & Durability

Constructed with heliarc welded stainless steel and a heavy-duty tubular welded base frame, the BBC Series is built to withstand the rigors of daily commercial use. Features such as reinforced stainless steel caster plates, coved stainless steel work surfaces, and a stainless steel-lined storage compartment provide long-lasting durability, easy cleaning, and dependable performance.

Performance Specifications

Compatible with post-mix and bag-in-box beverage dispensing systems
50 lb. insulated stainless steel ice bin with drain and sliding cover (two ice bins on 8-foot models)
Six-circuit sealed-in cold plate for chilled beverage dispensing
Available in 5 ft., 6 ft., and 8 ft. models
Maintenance-free polyurethane casters with locking swivel configuration for easy mobility
Available in stainless steel, laminate, maple wood, and mahogany wood finishes
Two-year limited warranty

Ideal Applications

Hotels and resorts
Banquet and event venues
Catering operations
Convention centers and hospitality beverage service

Why FWE?

For decades, FWE has been trusted by foodservice operators for equipment that delivers exceptional durability, performance, and reliability. The BBC Series Mobile Bars continue that tradition by providing a portable beverage service solution designed to increase efficiency, improve beverage presentation, and deliver dependable performance at every event.

BBC-5 - Bag-in-Box Mobile Beverage Bar (5 feet):

Elevate your beverage service with the BBC-5, a versatile mobile bar tailored for medium-scale venues. At 5 feet in length, it efficiently manages space while offering substantial functionality, including a 50lb insulated ice bin with a built-in cold plate to ensure beverages are always chilled to perfection. Ideal for dynamic environments where quality and efficiency are paramount, the BBC-5 blends sleek design with practical features for standout service.

FEATURES

Agency Approvals
NSF - NSF International (formerly known as the National Sanitation Foundation) is an independent, non-profit organization that certifies food service equipment and ensures it is designed and constructed in a way that promotes food safety. FWE products that meet these standards bear the NSF mark.
You may also see a designation that a product meets NSF/ANSI, which adds rules from the American National Standards Institute to the testing. ANSI works closely with NSF to develop its food safety standards and complete testing to those.
Bars
BBC - Increase beverage sales with a portable bar designed for bag-in-box service - built to serve as the toughest bar in town.
Insulated Ice Bin with Drain for Post-Mix Systems - Sealed in cold plate keeps 6 flavor circuits of beverages chilled for service with 50lb ice bin capacity and stainless steel sliding cover
Bar Top Standard Black - Black laminate top with bull-nose rounded corners
No Hand Sink - No Standard Built-In Hand Sink
Exterior Laminate - Durable laminate finish. Several laminate choices to choose from. Standard selections are Fusion Maple, Fonthill Pear, New Age Oak, Golden Oak, Wild Cherry, Biltmore Cheery, Versailles Anigre, Black. Laminate samples are available upon request. Custom laminates and tops are also available to enhance or match existing colors.
Condiment Holder - Stainless steel condiment holder keeps drink garnishes readily available
Towel Ring - Towel ring shall be mounted to working side.
Removable Bottle Speed Rail - 4.25" deep, heavy gauge stainless steel full length bottle speed rail; removable without tools.
No Doors
Bumpers
No Bumper - No bumper
Caster
5" Casters - 5" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.

Available in 5", 6" and 8" diameters.
Mobile
Construction
Laminate & Stainless Steel - Front and side panels shall be high-pressure, dual-side counter-balanced laminate .75" thick finish. Laminate selections are available. Full length, heavy gauge stainless steel angles reinforce front corners of body on inside, with high impact edging on outside corners. Black laminate top with bull-nose rounded corners.
Extra
Warranty - Two year limited warranty
Handles
No Handles
Heat System
Non Heated - Non Heated

OPTIONS & ACCESSORIES

Bars
Bar Top Stainless Steel - Stainless steel work top with bull-nose rounded corners.
Double-Hung Speed Rail
Custom Laminate - Durable laminate finish. Several laminate choices to choose from. Standard selections are Fusion Maple, Fonthill Pear, New Age Oak, Golden Oak, Wild Cherry, Biltmore Cheery, Versailles Anigre, Black. Laminate samples are available upon request. Custom laminates and tops are also available to enhance or match existing colors.
Built-In Electric Hand Sink - FWE's built in hand sinks are perfect for hosting an event in any location, making it possible to offer practical hand washing wherever it is needed. Water heater with adjustable thermostat quickly warms water for dispensing when needed.
Vertical Stainless Steel Corner Guards - Vertical stainless steel corner guards help protect laminate from chips in high impact areas.
Bag-in-Box Dispensing Equipment - BAG-IN-BOX SYSTEM handles the soft drink just like the POST-MIX system, but the syrup is provided in 12'' square boxes instead of 5 gallon cylinder shaped tanks. The same equipment lines, gun, and carbonator are required as in other systems, plus an additional pump per flavor. Less storage space is required and each box is discarded after use. Dispensing equipment is provided by FWE only when ordered as an optional accessory.
Water Heater with Adjustable Thermostat - Electric water heater with adjustable thermostat provides a temperature range of 65°-145°F (19°-62°C) and heats up to 2.7 gallons of water. Glass insulated tank for thermal efficiency and fast recovery.
Locking Doors for Storage Area - Lockable doors prevents unauthorized access to storage areas for safety and security.
Locking Bottle Speed Rail - Lockable 5" deep removable speed rail keeps bottles readily available for quick service.
Stainless Steel Bar Gutters - Bar gutters conveniently store accidental spillage for easy cleaning.
Protective Storage Cover - Our custom protective storage covers are meticulously crafted to seamlessly fit our bars, ensuring a snug and tailored appearance. Fabricated from durable 20 mil clear vinyl, these covers offer exceptional clarity and protection, safeguarding the integrity of your bars while allowing their aesthetic appeal to shine through. Designed with precision and quality in mind, our covers provide a reliable solution for preserving and enhancing the presentation of your bar assets.
Post-Mix Dispensing Equipment - POST-MIX SYSTEM mixes the water, carbonation, and syrup at the point of dispensing. The water from 5 gallon tanks passes through the carbonator, creating soda water. This soda water is then mixed with the concentrate syrup from 5 gallon syrup tanks. Dispensing equipment is provided by FWE only when ordered as an optional accessory.
Bar Top Custom - Custom laminates tops are available to enhance or match existing colors.
5 Gallon Fresh Water Tank - 5 gallon fresh water tank
7.5 Gallon Waste Water Tank - 7.5 gallon waste water tank
Bumpers
Bottom Corner Bumpers
Full Bumper - Heavy duty full perimeter bumper extends beyond doors and handles for added protection. The bumper is mounted to the base frame for added durability - the bumper is not used as the base frame. In this way, the bumper absorbs all the shock in transport, protecting the integrity of the construction.
Caster
Larger & Upgraded Casters - Larger Casters

LONG FORM SPEC

Specified unit shall be FWE Model No. BBC-5, Mobile Bars.

CONSTRUCTION. Heliarc welded, single unit construction shall consist of welded stainless steel base frame of heavy gauge 1" square stainless steel tubing with extra 10 gauge stainless steel caster corner plate reinforcements. Full length, heavy gauge stainless steel angles reinforce front corners of body on inside with high impact edging on outside corners. Work surface shall be constructed of 20 gauge stainless steel. Interior of body shall be lined with 22 gauge stainless steel, bonded to cabinet walls and bottom storage area. Seams shall overlap for greater durability and moisture resistance. Work and splash areas shall be polished stainless steel with easy-to-clean coved corners. Front edge shall have raised marine nosing to contain spills. Black laminate top with bull-nose rounded corners.

FINISH MATERIALS & TOP.
BBC Series: Front and side panels shall be high-pressure, dual-side counter-balanced laminate .75" thick finish. Laminate selections are available. Full length, heavy gauge stainless steel angles reinforce front corners of body on inside, with high impact edging on outside corners. Black laminate top with bull-nose rounded corners.

CASTERS. Maintenance free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular base frame.

STORAGE AREA. On all models, the bottom storage area shall be stainless steel lined.

BAR ACCESSORIES. Standard equipment shall include 4.25" deep, heavy gauge stainless steel full length bottle speed rail; removable without tools. Towel ring shall be mounted to working side. Stainless steel condiment holder provided.

INSULATED ICE BIN WITH DRAIN. Ice bin with drain shall be one-piece stainless steel with coved corners: 19.75" x 12.75" x 10.5" deep. Ice bin shall have enclosed foam insulation with drain and line fittings with shut-off drain valve. 6 circuit sealed-in cold plate shall be compatible for use with Bag-in-Box systems. 8 foot models shall have two (2) ice bins with drains and circuits. Ice bin shall have a capacity of 50lbs of ice, and be provided with a stainless steel sliding cover.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provided with the following accessories:
