CB-8

Mobile Bars
For Conventional Beverage Service Using Cans and Bottles
"CB" Series

CB-8 Spec Sheet

Increase beverage sales with a portable bar designed for cans and bottles - built to serve as the toughest bar in town

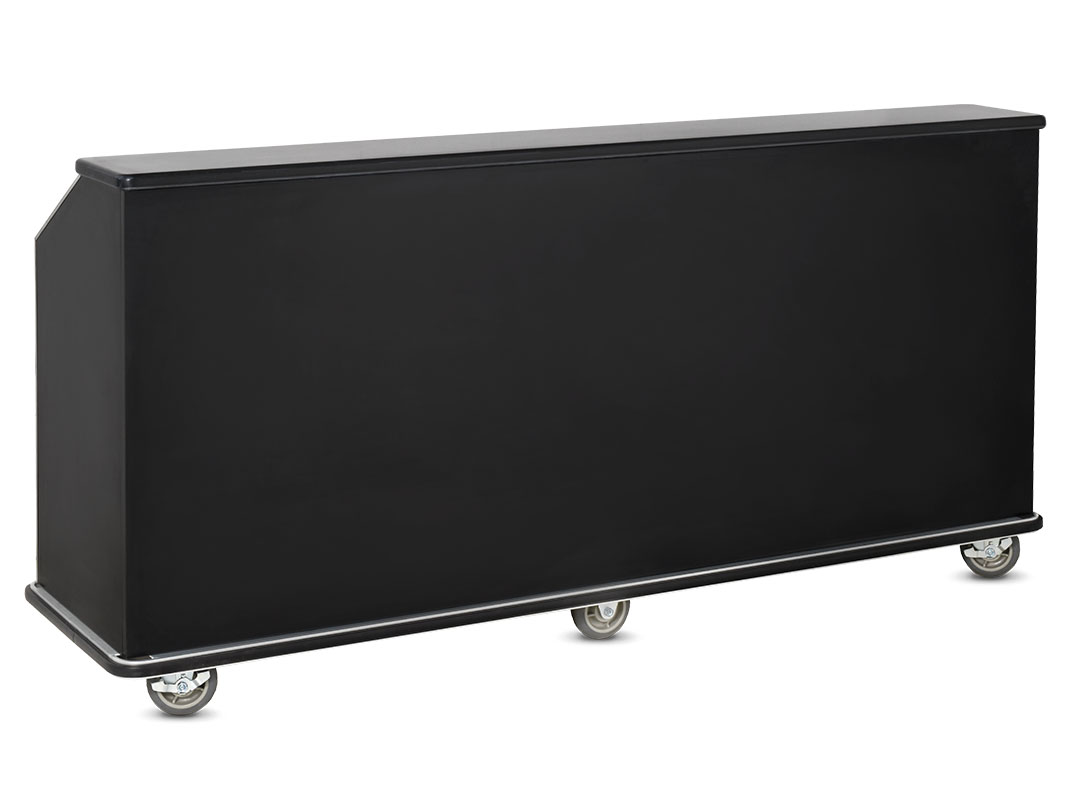

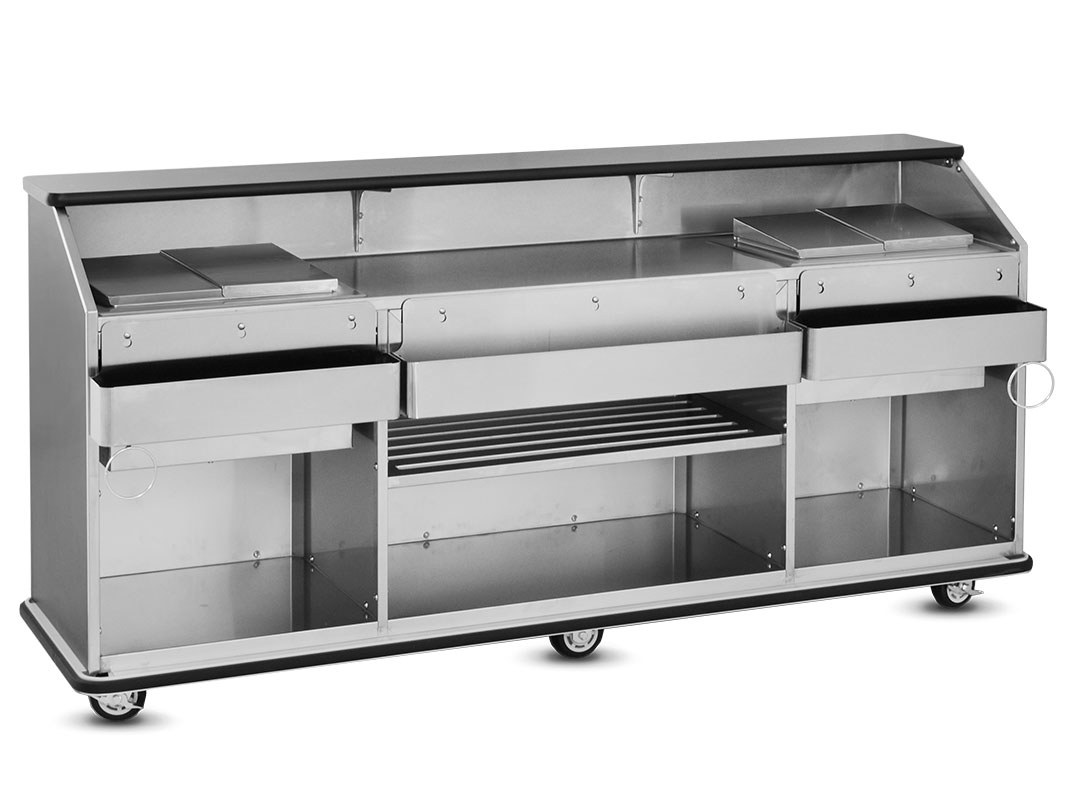

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

DESCRIPTION

CB-8, portable bar. Designed for can and bottle service. Conventional ice sink with drain. 60lb ice bin capacity with sliding stainless steel cover. Standard features include a full length bottle speed rail, towel ring and condiment holder. Matching back bar and ice carts are available.

FEATURES

Agency Approvals
NSF - NSF International (formerly known as the National Sanitation Foundation) is an independent, non-profit organization that certifies food service equipment and ensures it is designed and constructed in a way that promotes food safety. FWE products that meet these standards bear the NSF mark.
You may also see a designation that a product meets NSF/ANSI, which adds rules from the American National Standards Institute to the testing. ANSI works closely with NSF to develop its food safety standards and complete testing to those.
Bumpers
No Bumper - No bumper
Caster
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.

Available in 5", 6" and 8" diameters.
5" Casters - 5" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
6 Caster Configuration - 6 caster configuration increases the cabinets maneuverability, ideal for larger cabinets
Mobile
Construction
Laminate & Stainless Steel - Front and side panels laminate, several selections are available. Made for mobile applications, constructed with a welded base frame and designed to absorb vibration and shock during transport.
Door Count
No Doors
Door Hinge
No Doors
Door Latch
No Doors
Handles
No Handles
Heat System
Non Heated - Non Heated
Hinging
No Doors

OPTIONS & ACCESSORIES

Bars
Built in Electric Hand Sink - FWE's built in hand sinks are perfect for hosting an event in any location, making it possible to offer practical hand washing wherever it is needed. Water heater with adjustable thermostat quickly warms water for dispensing when needed.
Bumpers
Full Bumper - Heavy duty full perimeter bumper extends beyond doors and handles for added protection. The bumper is mounted to the base frame for added durability - the bumper is not used as the base frame. In this way, the bumper absorbs all the shock in transport, protecting the integrity of the construction.
Caster
Larger & Upgraded Casters - Larger Casters

SHORT FORM SPEC

Specified unit shall be FWE Model No. CB-8, Professional Series Laminate Mobile Bar.

CONSTRUCTION. Heliarc welded, single unit construction shall consist of welded stainless steel base frame of heavy gauge 1" square stainless steel tubing with extra 10 gauge stainless steel caster corner plate reinforcements. Full length, heavy gauge stainless steel angles reinforce front corners of body on inside with high impact edging on outside corners. Work surface shall be constructed of 20 gauge stainless steel. Interior of body shall be lined with 22 gauge stainless steel, bonded to cabinet walls and bottom storage area. Seams shall overlap for greater durability and moisture resistance. Work and splash areas shall be polished stainless steel with easy-to-clean coved corners. Front edge shall have raised marine nosing to contain spills.

FINISH MATERIALS & TOP. CB Series: Front and side panels shall be high-pressure, dual-side counter-balanced laminate .75" thick finish. Laminate selections are available. Full length, heavy gauge stainless steel angles reinforce front corners of body on inside, with high impact edging on outside corners. Black laminate top with bull-nose rounded corners.

CASTERS. Maintenance free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake. Eight (8) foot models are equipped with six (6) casters: two (2) rigid casters and four (4) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular base frame.

STORAGE AREA. On all models, the bottom storage area shall be stainless steel lined. Provided with one shelf.

BAR ACCESSORIES. Standard equipment shall include 4.25" deep, heavy gauge stainless steel full length bottle speed rail; removable without tools. Towel ring shall be mounted to working side. Stainless steel condiment holder provided.

INSULATED ICE BIN WITH DRAIN. Ice bin with drain shall be one-piece stainless steel with coved corners: 19.75" x 12.75" x 10.5" deep. Ice bin shall have enclosed foam insulation with drain with shut-off drain valve. 8 foot models shall have two (2) ice bins with drains. Ice bin shall have a capacity of 60lbs of ice, and be provided with a stainless steel sliding cover.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provide with the following accessories:

LITERATURE

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991. All rights reserved. All specifications subject to change without notice. Errors subject to correction. © 2020 Food Warming Equipment Company, Inc.
