ES-CB-5

Mobile Bars
For Conventional Beverage Service Using Cans and Bottles
"CB" Series

ES-CB-5 Spec Sheet

Increase beverage sales with a portable bar designed for cans and bottles - built to serve as the toughest bar in town

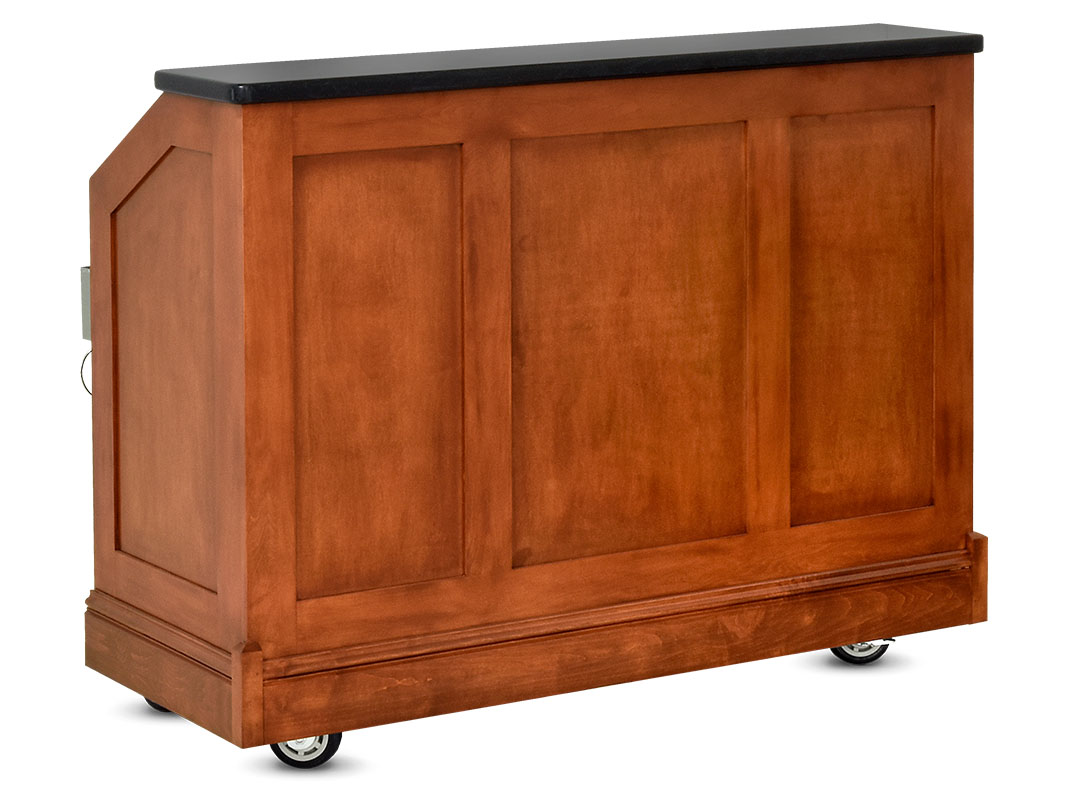

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

MODEL SPECIFICATIONS

Model Height:
Model Width:
Model Depth:
Shipping Weight:
Volts:
Watts:
Amps:
3 Phase:
Adjustable Slides:
Standard # of Slides:
Standard # of Shelves:
Standard Spacing:

DESCRIPTION

ES-CB-5, portable bar. Designed for can and bottle service. Conventional ice sink with drain. 60lb ice bin capacity with sliding stainless steel cover. Standard features include a full length bottle speed rail, towel ring and condiment holder. Matching back bar and ice carts are available.

FEATURES

Bars
No Doors
Exterior Maple Wood - Made from solid birch wood featuring classical architectural elements from old world craftsmanship. Built from real wood and finished in catalyzed lacquer to deter scraching and gouging.
Towel Ring - Towel ring shall be mounted to working side.
No Hand Sink - No Standard Built-In Hand Sink
CB - Increase beverage sales with a portable bar designed for cans and bottle - built to serve as the toughest bar in town.
Insulated Ice Bin with Drain - Insulated ice sink with stainless steel sliding cover and sink drain. Sink has enclosed foam insulation and a 60lb ice capacity.
Condiment Holder - Stainless steel condiment holder keeps drink garnishes readily available
Removable Bottle Speed Rail - 4.25" deep, heavy gauge stainless steel full length bottle speed rail; removable without tools.
Bumpers
No Bumper - No bumper
Caster
5" Casters - 5" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.

Available in 5", 6" and 8" diameters.
Mobile
Construction
Solid Maple Wood & Stainless Steel - Classic raised solid maple wood panels. All wood surfaces finished with polymer coating to deter scratching and gouging. Constructed with reinforced joints for additional strength and durability. Black solid surface top.
Extra
Warranty - Two year limited warranty
Handles
No Handles
Heat System
Non Heated - Non Heated

OPTIONS & ACCESSORIES

Bars
Protective Storage Cover - Our custom protective storage covers are meticulously crafted to seamlessly fit our bars, ensuring a snug and tailored appearance. Fabricated from durable 20 mil clear vinyl, these covers offer exceptional clarity and protection, safeguarding the integrity of your bars while allowing their aesthetic appeal to shine through. Designed with precision and quality in mind, our covers provide a reliable solution for preserving and enhancing the presentation of your bar assets.
Locking Bottle Speed Rail - Lockable 5" deep removable speed rail keeps bottles readily available for quick service.
Locking Doors for Storage Area - Lockable doors prevents unauthorized access to storage areas for safety and security.
Custom Stain - Custom stains are available on FWE solid wood bars to enhance or match existing decor and furnishings.
Stainless Steel Bar Gutters - Bar gutters conveniently store accidental spillage for easy cleaning.
Water Heater with Adjustable Thermostat - Electric water heater with adjustable thermostat provides a temperature range of 65°-145°F (19°-62°C) and heats up to 2.7 gallons of water. Glass insulated tank for thermal efficiency and fast recovery.
5 Gallon Fresh Water Tank - 5 gallon fresh water tank
Double-Hung Speed Rail
Bar Top Custom - Custom laminates tops are available to enhance or match existing colors.
7.5 Gallon Waste Water Tank - 7.5 gallon waste water tank

SHORT FORM SPEC

Specified unit shall be FWE Model No. ES-CB-5, Mobile Bars.

CONSTRUCTION. Heliarc welded, single unit construction shall consist of welded stainless steel base frame of heavy gauge 1" square stainless steel tubing with extra 10 gauge stainless steel caster corner plate reinforcements. Full length, heavy gauge stainless steel angles reinforce front corners of body on inside with high impact edging on outside corners. Work surface shall be constructed of 20 gauge stainless steel. Interior of body shall be lined with 22 gauge stainless steel, bonded to cabinet walls and bottom storage area. Seams shall overlap for greater durability and moisture resistance. Work and splash areas shall be polished stainless steel with easy-to-clean coved corners. Front edge shall have raised marine nosing to contain spills.

FINISH MATERIALS & TOP.
ES-CB Series: Classic raised solid maple wood panels. All wood surfaces finished with polymer coating to deter scratching and gouging. Constructed with reinforced joints for additional strength and durability. Black solid surface top.

CASTERS. Maintenance free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular base frame.

STORAGE AREA. On all models, the bottom storage area shall be stainless steel lined. Provided with one shelf.

BAR ACCESSORIES. Standard equipment shall include 4.25" deep, heavy gauge stainless steel full length bottle speed rail; removable without tools. Towel ring shall be mounted to working side. Stainless steel condiment holder provided.

INSULATED ICE BIN WITH DRAIN. Ice bin with drain shall be one-piece stainless steel with coved corners: 19.75" x 12.75" x 10.5" deep. Ice bin shall have enclosed foam insulation with drain with shut-off drain valve. Ice bin shall have a capacity of 60lbs of ice, and be provided with a stainless steel sliding cover.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provided with the following accessories:
