TS-1633-28

HUMIDIFIED PIZZA HOLDING CABINETS
Holds Various Pizza Pans & Boxes, 18"x 26" Trays & 18"x 26" Shelves
Humi-Temp "TS-1633" Series

TS-1633-28 Spec Sheet

TS-1633-28 SPEC SHEET

Hold pizza fresh and ready to serve, longer than ever before

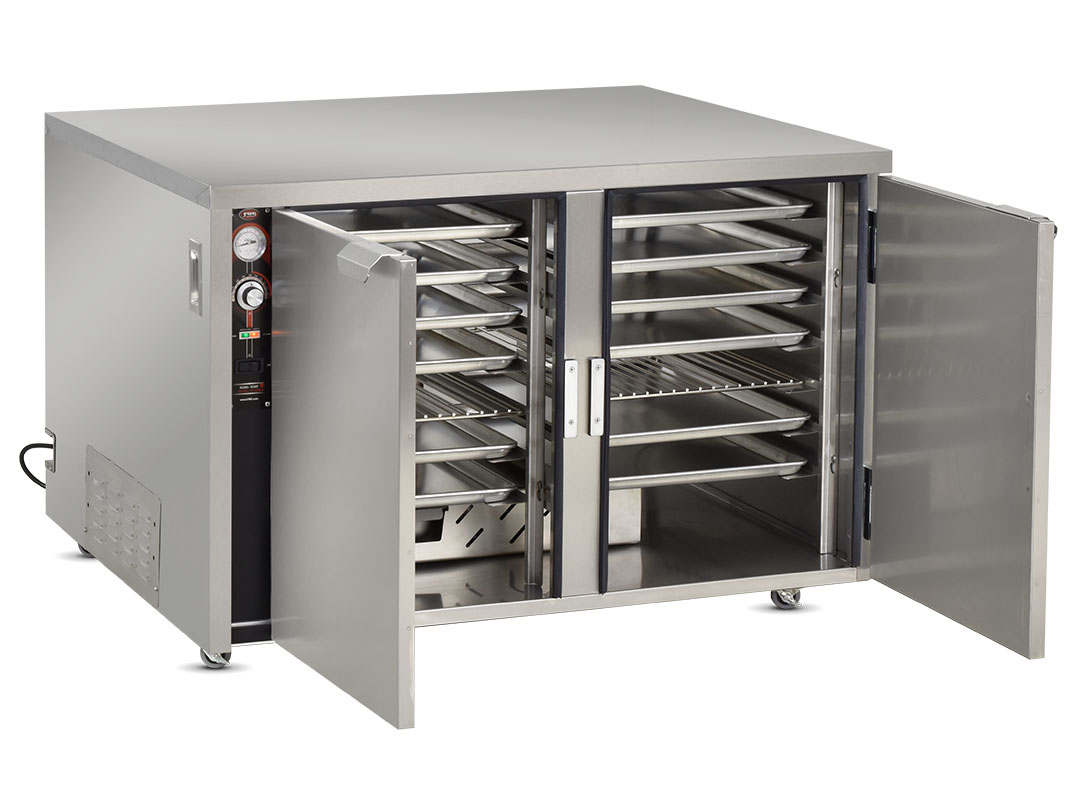

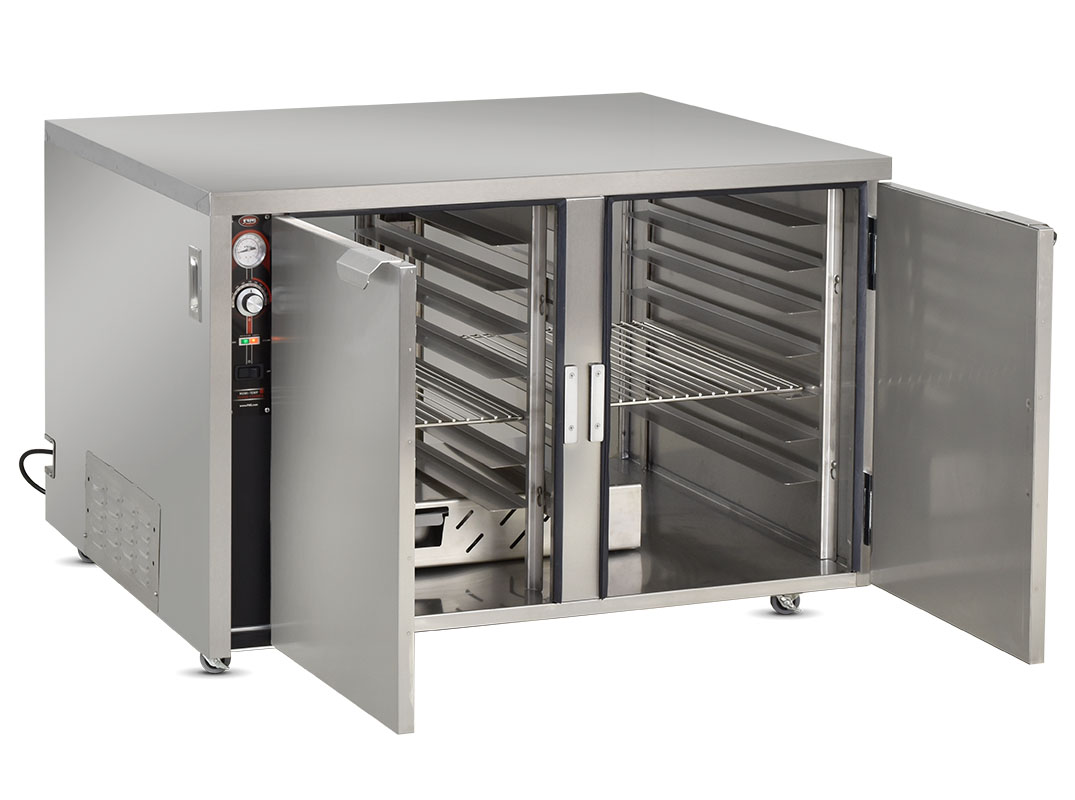

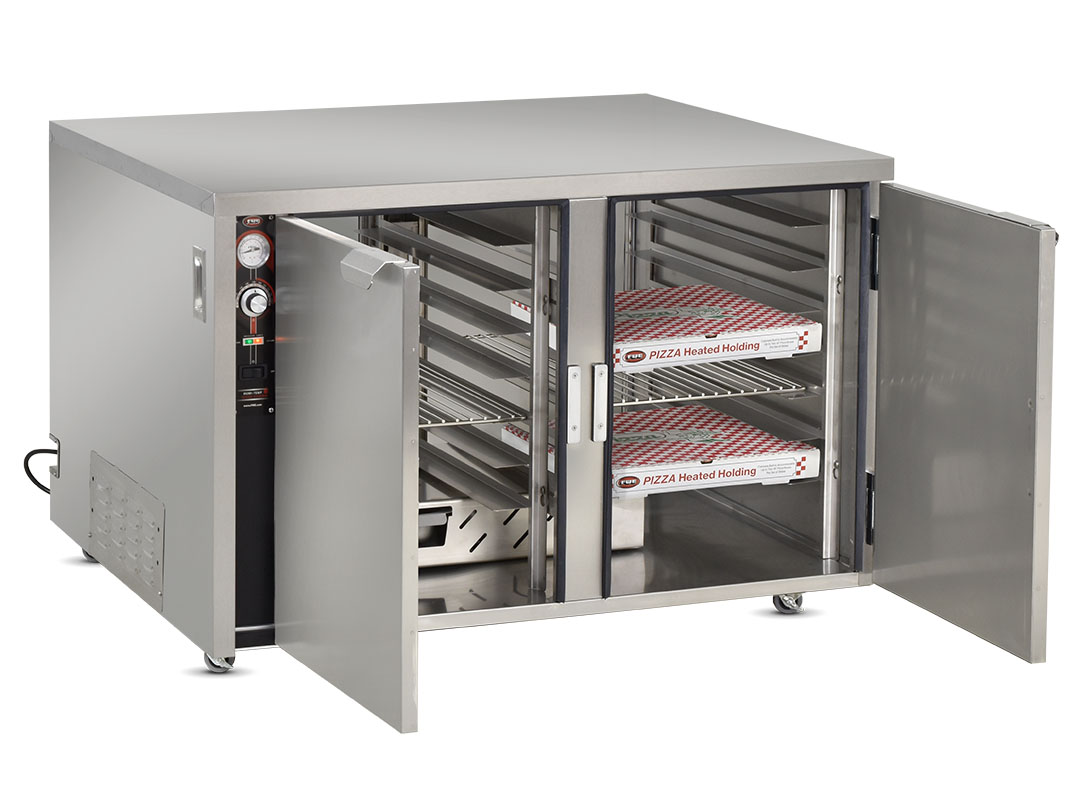

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

GET A QUOTE

MODEL SPECIFICATIONS

Model Height:
Model Width:
Model Depth:
Shipping Weight:
Volts:
Watts:
Amps:
3 Phase:
Adjustable Slides:
Standard # of Slides:
Standard # of Shelves:
Standard Spacing:

DESCRIPTION

FWE TS-1633 Series Humi-Temp Pizza Holding Cabinets

The FWE TS-1633 Series Humi-Temp Pizza Holding Cabinets are designed to keep pizzas, takeout orders, and prepared foods hot, fresh, and ready to serve for extended periods. Engineered for pizzerias, quick-service restaurants, convenience stores, delivery operations, and foodservice establishments, these cabinets utilize patented humidified heating technology to preserve food quality while maximizing holding capacity.

Product Overview

Built with FWE's patented Humi-Temp system, the TS-1633 Series gently circulates heated, moist air throughout the cabinet to eliminate hot and cold spots while maintaining product freshness. Designed specifically for pizza holding applications, the cabinet accommodates large pizza boxes, pizza pans, trays, and wire shelves, offering flexibility for a variety of menu items and service models.

Key Features & Benefits

Patented Humi-Temp Technology - Gently circulates heated, humidified air to maintain food quality and eliminate temperature inconsistencies.
Pizza-Specific Holding Design - Holds 16" to 18.5" pizza boxes or pans double deep for maximum capacity and efficiency.
Flexible Storage Configurations - Accommodates pizza boxes, pizza pans, 18" x 26" trays, and wire shelves.
Optional Adjustable Tray Slides - Supports box and pan sizes from 8" to 17" while providing greater flexibility for varying menu items.
Magnetic Workflow Door Handle - Magnetic operation eliminates traditional latch hardware, reducing maintenance and wear.
User-Friendly Controls - Up-front recessed controls feature a full-range thermostat and continuously readable thermometer.
Humidity or Dry Operation - Can be operated with a dry humidity pan when holding fried or coated products requiring crisp texture retention.
Optional Pass-Through Design - Provides accessibility from both preparation and serving sides to improve workflow during peak periods.
Quick Ship Availability - Popular TS-1633-36 model is available through FWE's Quick Ship program.
Tool-Free Rack Removal - Stainless steel rack assemblies remove easily for cleaning and sanitation.

Construction & Durability

Constructed with heliarc welded stainless steel, reinforced tubular base framing, Ultra-Guard fiberglass insulation, magnetic workflow door handles, and commercial-grade caster systems, the TS-1633 Series is built for demanding commercial foodservice environments. Removable stainless steel rack assemblies simplify cleaning while maintaining long-term durability.

Performance Specifications

Temperature range: 90°F to 190°F (32°C to 88°C)
Patented Humi-Temp humidified heating system
Removable humidifier pan and chamber
Fan-assisted heated air circulation
Fixed rack spacing at 3" intervals
Accommodates two 16"-18.5" pizza boxes or pans per rack level
Supports 18" x 26" trays and wire shelves
Optional adjustable tray slides for 8"-17" boxes and pans
Available in capacities from 14 to 36 large pizza boxes
Single-door, double-door, and three-door configurations available
120V and 220-240V electrical configurations available
Two-year limited warranty

Ideal Applications

Pizzerias
Quick-service restaurants
Pizza delivery operations
Convenience stores
Takeout and carryout programs
Sports and entertainment venues
Institutional foodservice operations

Why FWE?

For decades, FWE has delivered reliable food holding solutions trusted by foodservice operators worldwide. The TS-1633 Series combines patented humidified heating technology, high-capacity pizza storage, flexible rack configurations, and durable stainless steel construction to help operators maintain food quality, improve service speed, and maximize customer satisfaction.

TS-1633-28 is a heated pizza holding cabinet. Standard with 14 pair of fixed slides at 3" spacings, and (2) removable shelves. Adjustable tray slides with traditional upright assembly is available option. Additional shelves are available.

FEATURES

Agency Approvals
CE - The CE mark is mandatory for products sold in the European Economic Area. It indicates the product conforms with certain manufacturing and design safety requirements. CE is similar to UL except it's more of a declaration by the manufacturer that the product meets the relevant rules, rather than being the mark of independent testing.
NSF - NSF International (formerly known as the National Sanitation Foundation) is an independent, non-profit organization that certifies food service equipment and ensures it is designed and constructed in a way that promotes food safety. FWE products that meet these standards bear the NSF mark.
You may also see a designation that a product meets NSF/ANSI, which adds rules from the American National Standards Institute to the testing. ANSI works closely with NSF to develop its food safety standards and complete testing to those.
CUL - C-UL mark indicates a product meets the CSA testing standards for Canada.
C-UL-US mark indicates a product meets the UL and CSA testing standards for both the United States and Canada.
UL - The UL mark, which now serves customers in more than 100 countries, has become the authority on product safety. Its engineers test for things like soundness of design, safety of electrical components, and structural integrity of products for which UL listing is sought.
If you think of NSF International classification as protection for your customers, then the mark of Underwriters Laboratories (UL) indicates safety for those who work in your commercial kitchen. The Illinois-based testing agency assures that the equipment that gets its stamp operates safely. There is also a sanitation classification that offers similar assurances about food safety as the NSF mark. Products are indicated as "Classified UL-EPH."
Bumpers
No Bumper - No bumper
Caster
2" Casters - 2" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Mobile
Construction
Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times
Control Panel

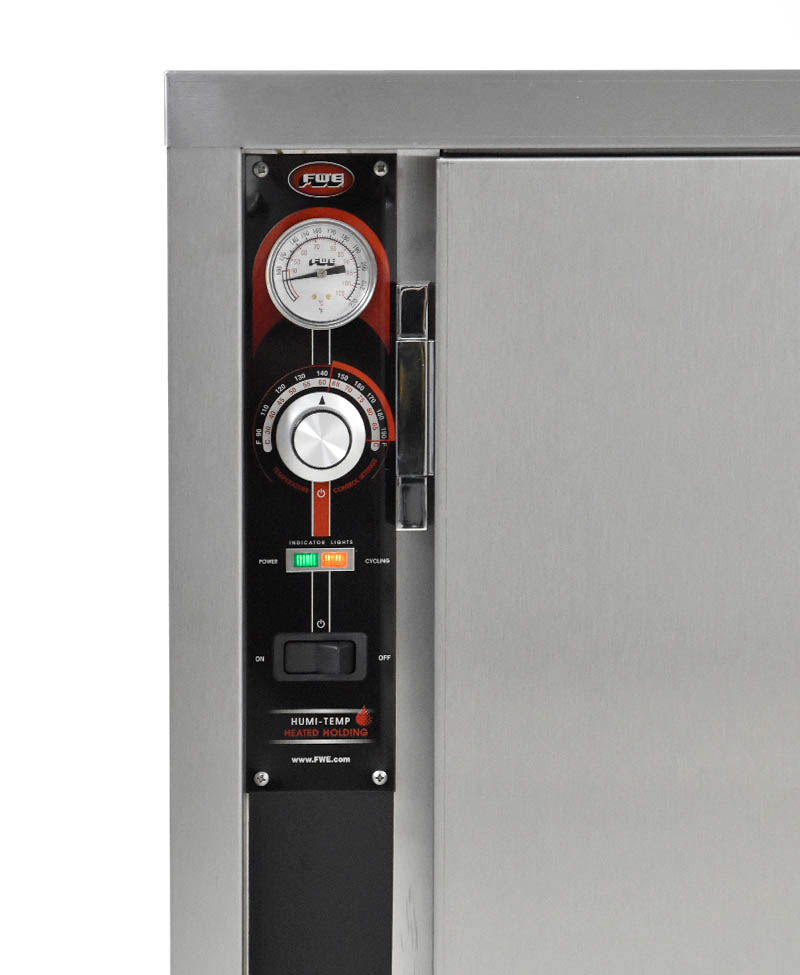

Humi-Temp Controls - Controls are up-front, easy to read and set, and include a full range F/C thermostat for easy operation. Thermometer continuously reads cabinet temperature - even without power source!
Mechanical Controls - Mechanical controls
Door Count
2 Doors
Door Hinge
Edgemount Hinges - Heavy-duty edge mount die cast hinges
Door Latch
Magnetic Work Flow Door Handle - Magnetic work flow door handles ergonomically accommodates kitchen staff and servers of varying heights
Doors
Gasket Sealed - Gasket sealed door; tight double seal makes for a perfect secure closure and easy to clean
Side by Side Doors - Flush mounted, stainless steel insulated french style doors help maintain cabinet temperature during peak serving times
Electrical
Tri-Directional Cord - Recessed tri-direction cord pocket - allows for compact fit
Extra
Low Profile - Low profile design, conveniently fits under 36" counter and can easily be stored when not in use
Passive Humidity Pan - Passive humidity pan; provided to add optional humidity to cabinet environment and to prevent drying out food, improving food quality
Warranty - Two year limited warranty
Handles
Recessed Hand Grips - Flush in wall hand grips recessed and mounted on the left and right side of the unit
Heat System
Humi-Temp Heat System - Heat source with passive humidity circulates heat evenly throughout cabinet.
Hinging
Hinges on Right and Left Side - Hinges on the right and left side
Slides and Shelves

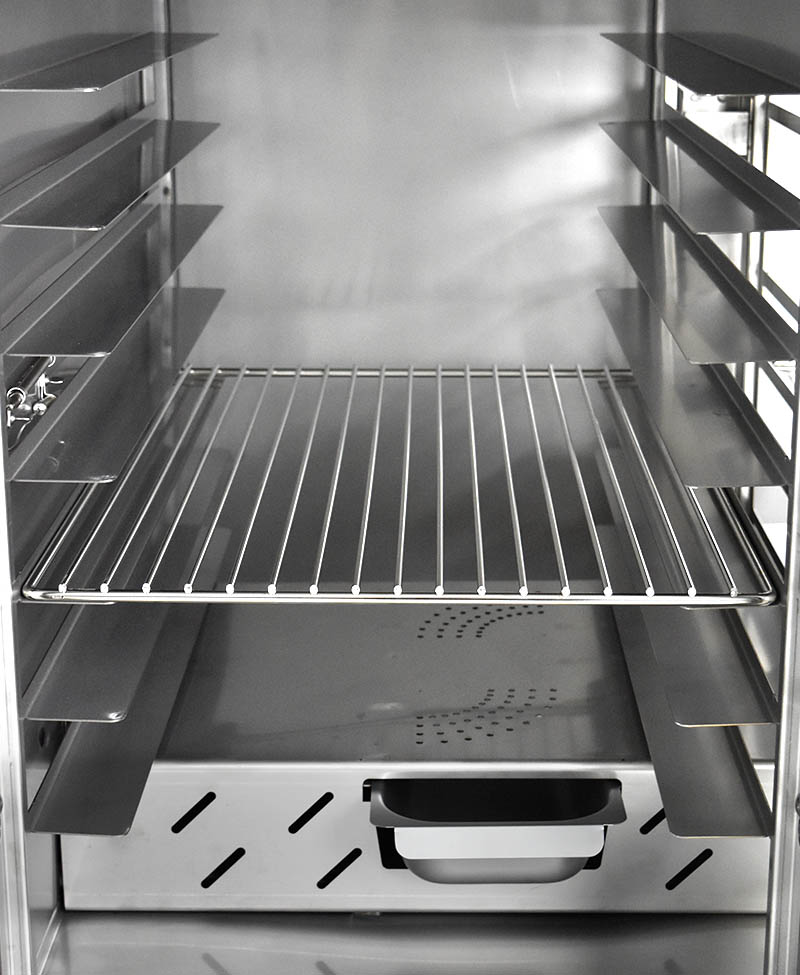

Fixed Slides for Pizza Boxes, 18x26 Trays, Shelves - Unique and versatile fixed slide design holds up to two 18" pizza boxes per set of slides.
Standard shelves are adjustable to accommodate a wide variety of pans, trays, plates and take out boxes

OPTIONS & ACCESSORIES

Bumpers
Full Bumper - Heavy duty full perimeter bumper extends beyond doors and handles for added protection. The bumper is mounted to the base frame for added durability - the bumper is not used as the base frame. In this way, the bumper absorbs all the shock in transport, protecting the integrity of the construction.
Caster
Adjustable Legs - FWE offers a wide variety of adjustable legs for when casters are not an option. 4" and 6" adjustable legs are available on almost all of FWE's equipment.
All adjustable legs are provided with sealed precision bearing with a black anti-rust coating.
Larger & Upgraded Casters - Larger Casters
Control Panel
Electronic Controls - Electronic controls featuring easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light.
Door Latch
Edgemount Latch - Edgemont door latch, full grip and positive closing
Key Locking Door Latch - Heavy duty door latch with key locking capabilities
Paddle Door Latch - Recessed paddle style door latch
Padlocking Transport Latch - Cabinet mounted latch keeps door secure during transport, increased security with padlocking capabilities
Doors
Pass Through Doors - Pass-thru doors create a convenient connection from preparation side to serving areas. With access from both sides of the cabinet staff is free to focus on customers, taking more orders and serving carry-outs during peak meal times
See-Thru Lexan Doors - See-thru lexan door provides high visability for hot and fresh items
Electrical
220-240 Volt - 220-240 Volt
Upgraded Element - Upgraded Element
Extra
Dry Erase Board - Door mounted dry erase board for menu changes or cabinet identification
Menu Card Holder - Door mounted frame to display menu card
Security Packages - HDM security packages can be added to select cabinets to help increase the security and durability of your unit
X-Factor Frame (consult factory) - X-Factor Frame
Graphic Wrap - Use your cabinet as a bill board! Catch the eye of your customer with your custom logo, message, or menu item images with a graphic wrap.
Cord Winder Brackets - Cabinet mounted brackets allow for cord to be wrapped and out of the way when not in use
Handles
Push Pull Handles - Push/pull handles allow for easy maneuvering. Handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands
Tubular Push Handles - Heavy duty stainless steel push pull handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands
Hinging
Alternate Door Swing Configurations - Alternate door swing configurations are available for multi door cabinets
Slides and Shelves
Adjustable Slides for Pizza Boxes

LONG FORM SPEC

Specified unit shall be FWE Model No. TS-1633-28, Humidified Pizza Holding Cabinets.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners. Welded tubular base frame shall be 1" square, heavy gauge stainless steel tubing, with 10 gauge stainless steel reinforcing plates at corners.

INSULATION. "Ultra-Guard" UG-26 high density fiberglass insulation throughout; top, back, bottom, sides, and door(s).

HANDLES. Form grip flush-in-wall hand grips recess mounted on each side of unit.

DOORS AND LATCHES. Flush mounted stainless steel insulated doors. High temperature gasket sealed; gasket shall be cabinet mounted. Each door shall have two (2) heavy-duty edgemount die cast hinges and a magnetic work flow door handle. Work flow handles shall be horizontal on TS-1633-14 and TS-1633-28 models and vertical on TS-1633-30 and TS-1633-36. The hinge mountings are reinforced with stainless steel backing plates.

CASTERS. Maintenance free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake. TS-1633-14 and TS-1633-28 models have a caster configuration of four (4) swivel with brake. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

TRAY RACK ASSEMBLY. Unitized tray rack assembly shall be heavy gauge stainless steel, channels fixed in place at 3" spacings. Assemblies are designed to accommodate two (2) 16" - 18" Pans or Pizza Boxes, one (1) 18" x 26" Tray, or one (1) 18" x 26" Wire Shelf per pair of tray rack rails. Removable rack assembly shall easily lift off heavy-duty stainless steel supports without the use of tools.

HUMI-TEMP SYSTEM/CONTROLS. Patented built-in "Humi-Temp" system shall include an Incoloy nickel-chromium alloy heating element and Hi-Temp, self-lubricated, impedance protected fan-cooled blower motor. Cabinet shall have humidifying chamber and drawer style baffled humidifier pan. Both shall be stainless steel and removable. Controls shall be up-front, recessed and shall include a full range thermostat adjustable to actual temperature. Thermostat shall include temperature scale marked in ten degree increments (F/C) from 90° to 190°F (32° to 88°C). An operational range thermometer, power supply light, thermostat cycling light, and 20 amp ON/OFF switch are also included.

ELECTRICAL CHARACTERISTICS. 3 wire grounded tri-directional power cord and plug, rear mounted for safety. See electrical data chart above for amperage and receptacle configuration. See electrical chart for models that require a dedicated circuit.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provide with the following accessories:

VIDEOS

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
