A-180-2-XL

Heated Banquet Cabinet up to 180 12" Plates

HEATED BANQUET TRANSPORT & SERVE CABINETS
Pre-Plated Meals for Up to 12.375" Plates
RADIANT "A-XL" SERIES

SPEC SHEET REVIT / CAD FILES OPERATION MANUAL PART MANUAL

HOW TO BUY

GET A QUOTE

LIVE CHAT

A-180-2-XL Spec Sheet

A-180-2-XL SPEC SHEET

Radiant heat economy banquet cabinets are built to handle your most challenging events, on site or off premises, and keep your meals hot and fresh in up to (180) 12.375 plates

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

GET A QUOTE

MODEL SPECIFICATIONS

Model Height:
Model Width:
Model Depth:
Shipping Weight:
Volts:
Watts:
Amps:
3 Phase:
Adjustable Slides:
Standard # of Slides:
Standard # of Shelves:
Standard Spacing:

DESCRIPTION

FWE Radiant "A-XL" & "A-2-XL" Series Heated Banquet Transport & Serve Cabinets

The FWE Radiant "A-XL" & "A-2-XL" Series Heated Banquet Transport & Serve Cabinets are designed to transport, hold, and serve pre-plated meals while helping operators preserve food quality and serving temperatures. Engineered for banquet operations, hotels, resorts, catering companies, and institutional foodservice, this solution combines FWE's radiant heat technology with heavy-duty stainless steel construction to improve food quality, operational efficiency, and overall performance.

Product Overview

Built for demanding foodservice environments, the Radiant "A-XL" & "A-2-XL" Series helps operators keep large quantities of oversized plated meals hot and fresh throughout transport and service. Whether used for banquet events, off-premise catering, or high-volume meal distribution, this solution delivers reliable performance while maintaining the quality, consistency, and efficiency today's operations require.

Key Features & Benefits

Radiant Heat System - Provides soft, uniform heat that surrounds food to maintain appearance, flavor, and extended holding times.
Eye-Level Recessed Controls - Easy-to-read controls with a full-range Fahrenheit/Celsius thermostat and continuous temperature display simplify operation and improve durability.
Heavy-Duty "No Sag" Shelves - Removable shelves with reinforced stainless steel supports provide dependable strength while allowing quick, thorough cleaning.
Tubular Welded Base Frame - Heavy-duty stainless steel frame absorbs vibration and shock during transport for maximum structural integrity.
Tri-Directional Power Cord Pocket - Recessed cord storage allows flexible plug placement and a compact footprint during storage and transport.
Push/Pull Handles - Heavy-duty handles provide smooth maneuverability, even when cabinets are fully loaded.
Large Plate Capacity - Accommodates pre-plated meals on plates up to 12.375 inches in diameter, with capacities of up to 180 meals depending on the model.

Construction & Durability

Constructed with heliarc welded stainless steel featuring a polished 20-gauge exterior and a 22-gauge stainless steel interior with coved corners, the Radiant "A-XL" & "A-2-XL" Series is built to withstand the rigors of daily commercial use. Features such as a welded tubular stainless steel base frame, full-perimeter wraparound bumper, and reinforced insulated doors with heavy-duty hinges and latches provide long-lasting durability, easy cleaning, and dependable performance.

Performance Specifications

Temperature range: 90°F-190°F (32°C-88°C)
Holds pre-plated meals on plates up to 12.375 inches in diameter
Available capacities up to 180 covered plates
Ultra-Guard UG-26 high-density fiberglass insulation throughout the cabinet
Incoloy nickel-chromium alloy radiant heating element
120V, single-phase electrical operation (model dependent) with tri-directional grounded power cord
Two-year limited warranty

Ideal Applications

Hotels and resorts
Banquet and convention facilities
Off-premise catering operations
Healthcare, institutional, and high-volume foodservice operations

Why FWE?

For decades, FWE has been trusted by foodservice operators for equipment that delivers exceptional durability, performance, and reliability. The Radiant "A-XL" & "A-2-XL" Series Heated Banquet Transport & Serve Cabinets continue that tradition by providing a solution designed to help operators improve food quality, streamline banquet service, and consistently deliver hot, high-quality meals from kitchen to customer.

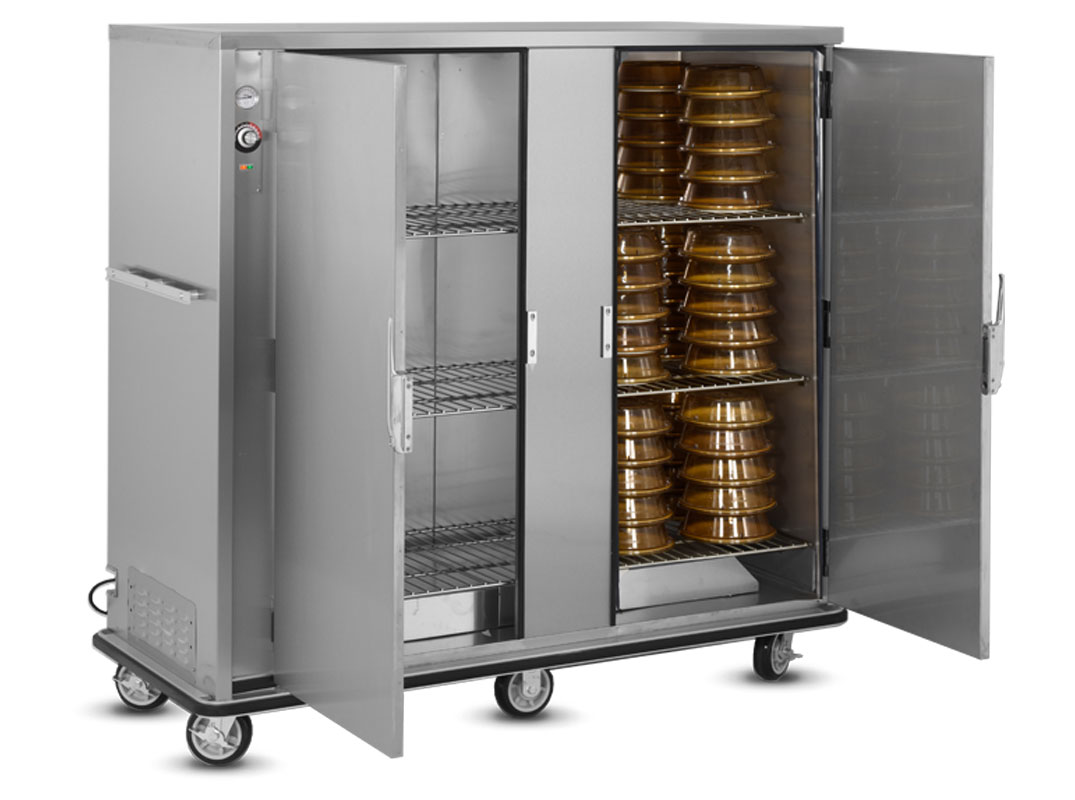

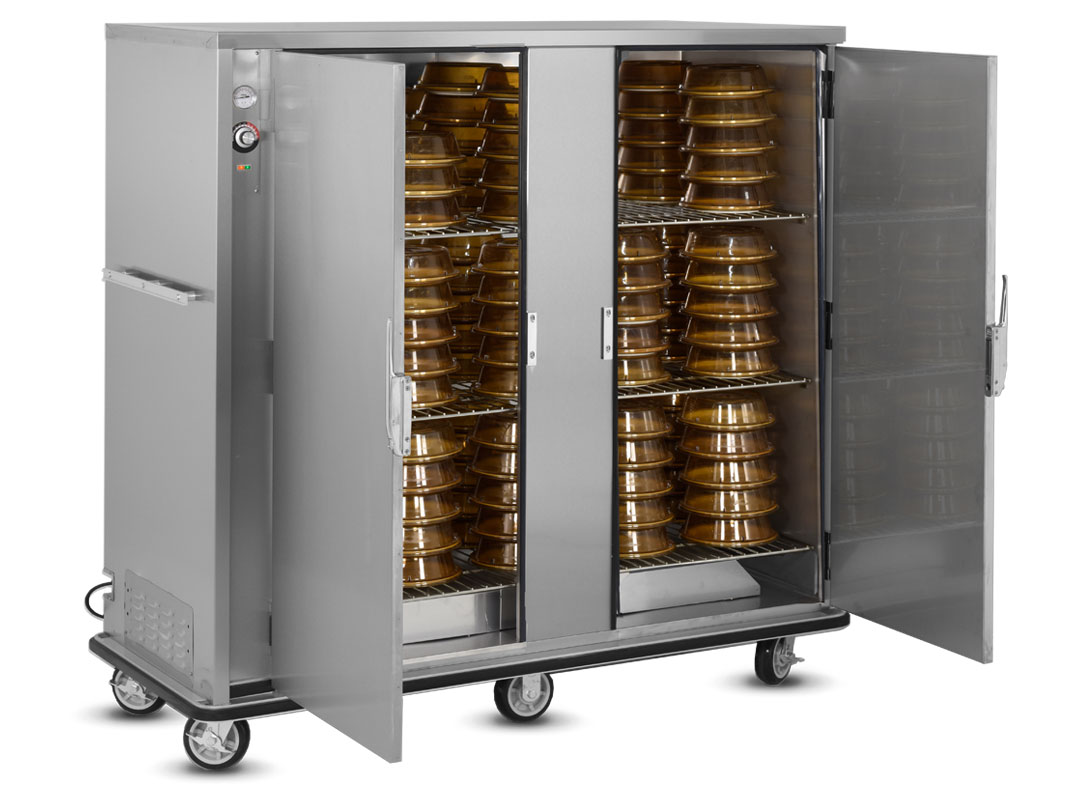

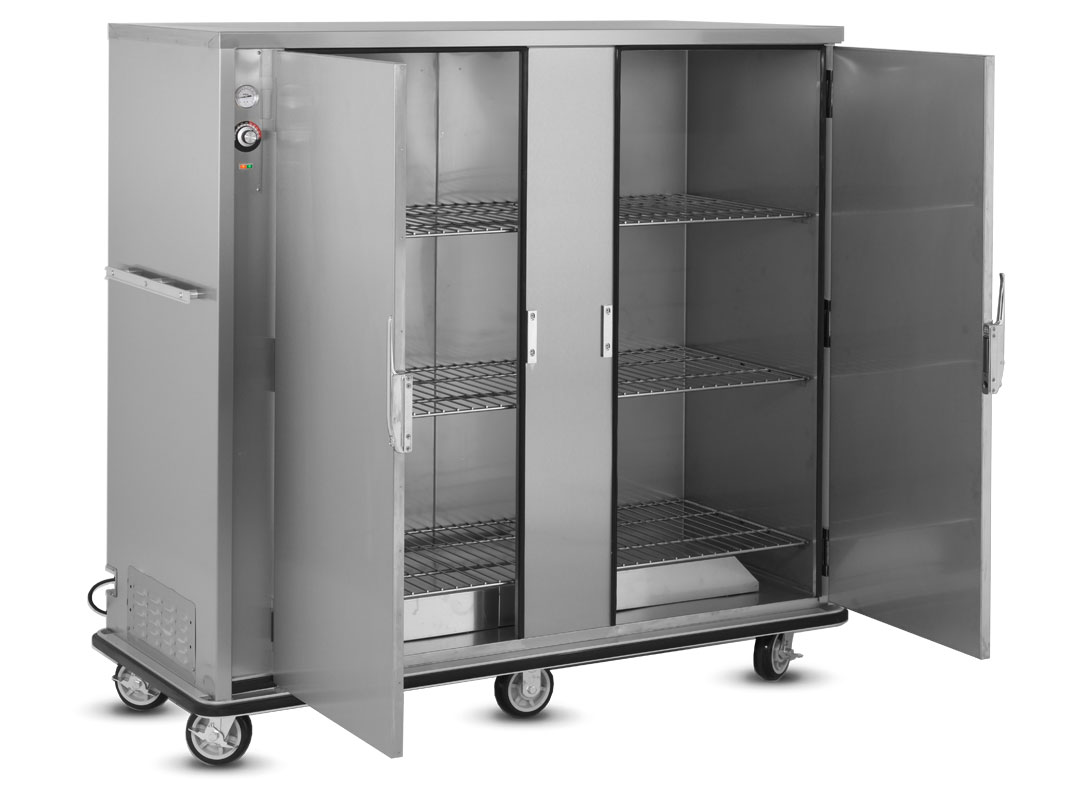

A-180-2-XL - Radiant Heated Banquet Transport & Serve Cabinet (180 Plate Capacity, XL Model, Dual Compartment)
The A-180-2-XL is a high-capacity heated banquet cabinet, capable of holding 180 pre-plated meals on larger 12.375" plates. Utilizing FWE's radiant heat system, it maintains consistent temperatures to keep food hot and ready for service. Its heavy-duty construction, dual compartments, and transport-friendly design make it an essential solution for large-scale catering and banquet operations.

FEATURES

Agency Approvals
CUL - C-UL mark indicates a product meets the CSA testing standards for Canada.
C-UL-US mark indicates a product meets the UL and CSA testing standards for both the United States and Canada.
NSF - NSF International (formerly known as the National Sanitation Foundation) is an independent, non-profit organization that certifies food service equipment and ensures it is designed and constructed in a way that promotes food safety. FWE products that meet these standards bear the NSF mark.
You may also see a designation that a product meets NSF/ANSI, which adds rules from the American National Standards Institute to the testing. ANSI works closely with NSF to develop its food safety standards and complete testing to those.
UL - The UL mark, which now serves customers in more than 100 countries, has become the authority on product safety. Its engineers test for things like soundness of design, safety of electrical components, and structural integrity of products for which UL listing is sought.
If you think of NSF International classification as protection for your customers, then the mark of Underwriters Laboratories (UL) indicates safety for those who work in your commercial kitchen. The Illinois-based testing agency assures that the equipment that gets its stamp operates safely. There is also a sanitation classification that offers similar assurances about food safety as the NSF mark. Products are indicated as "Classified UL-EPH."
UL EPH - UL EPH recognizes products certified to meet environmental and public health standards. The UL EPH logo shows the word "Classified" above the UL mark, which indicates that the product complies with ANSI/NSF standards, in addition to other applicable codes.
CE - The CE mark is mandatory for products sold in the European Economic Area. It indicates the product conforms with certain manufacturing and design safety requirements. CE is similar to UL except it's more of a declaration by the manufacturer that the product meets the relevant rules, rather than being the mark of independent testing.
Bumpers
Full Bumper - Heavy duty full perimeter bumper extends beyond doors and handles for added protection. The bumper is mounted to the base frame for added durability - the bumper is not used as the base frame. In this way, the bumper absorbs all the shock in transport, protecting the integrity of the construction.
Caster
Mobile
6 Caster Configuration - 6 caster configuration increases the cabinets maneuverability, ideal for larger cabinets
6" Casters - 6" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.

Available in 5", 6" and 8" diameters.
Construction
Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times
Control Panel
Mechanical Controls - Mechanical controls
Door Count
2 Doors
Door Hinge
Edgemount Hinges - Heavy-duty edge mount die cast hinges
Door Latch
Magnetic Door Latch - Heavy duty full grip magnetic door latch
Doors
Side by Side Doors - Flush mounted, stainless steel insulated french style doors help maintain cabinet temperature during peak serving times
Gasket Sealed - Gasket sealed door; tight double seal makes for a perfect secure closure and easy to clean
Electrical
Tri-Directional Cord - Recessed tri-direction cord pocket - allows for compact fit
Extra
Warranty - Two year limited warranty
Handles
Push Pull Handles - Push/pull handles allow for easy maneuvering. Handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands
Heat System
Radiant Heat System - FWE's natural convection heat system allows a soft heat to radiate throughout the compartment. Heat rises naturally and circulates from bottom to top without blowers. Radiant heat is best suited for short term heated holding.
Hinging
Hinges on Right and Left Side - Hinges on the right and left side
Slides and Shelves
Fixed Shelves - Shelves are positioned into railings welded to body . Heavy-duty "no sag" shelves are removable to facilitate thorough cleaning

OPTIONS & ACCESSORIES

Caster
Center Floor Lock - Undercarriage lock-down keeps mobile equipment securely in place by gently lifting the unit high enough so the casters do not touch the ground.
Must be used with 6" casters.
Larger & Upgraded Casters - Larger Casters
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Control Panel
Electronic Controls - Electronic controls featuring easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light.
Door Latch
Key Locking Door Latch - Heavy duty door latch with key locking capabilities
Paddle Door Latch - Recessed paddle style door latch
Padlocking Transport Latch - Cabinet mounted latch keeps door secure during transport, increased security with padlocking capabilities
Doors
Dutch Doors - Dutch doors help maintain cabinet temperature during peak serving times
Electrical
220-240 Volt - 220-240 Volt
Upgraded Element - Upgraded Element
Extra
Cord Winder Brackets - Cabinet mounted brackets allow for cord to be wrapped and out of the way when not in use
Dry Erase Board - Door mounted dry erase board for menu changes or cabinet identification
Menu Card Holder - Door mounted frame to display menu card
Plate Carriers - Carriers for covered and uncovered plates for easy loading and delivery
Cold Plate Cartridge - Keep cold foods cold during transport with FWE's heavy duty cold plate cartridge
Handles
Ergo-drop down handles - Ergo-drop down handle
Hinging
Alternate Door Swing Configurations - Alternate door swing configurations are available for multi door cabinets
Slides and Shelves
Extra Fixed Shelves - Additional shelves can be installed at the factory to meet your needs

LONG FORM SPEC

Specified unit shall be FWE Model No. A-180-2-XL, Heated Banquet Transport & Serve Cabinet.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners. Welded tubular base frame shall be 1" square, heavy gauge stainless steel tubing, with 10 gauge stainless steel reinforcing stress plates at corners.

INSULATION. "Ultra-Guard" UG-26 high density fiberglass insulation throughout; top, back, bottom, sides, and door(s).

HANDLES. Heavy-duty, solid formed 1" x .375" thick; mounted at each end of unit. Mounting reinforced with stainless steel channel.

BUMPER. Solid continuous wraparound aluminum channel, bolted to frame, with snapin, non-marking vinyl cushion. Full perimeter bumper extends beyond doors, handles, etc., for added protection. Shall be continuous, with corner cut-outs to facilitate cleaning.

DOORS AND LATCHES. Flush mounted, stainless steel insulated doors. High temperature gasket sealed; gasket shall be cabinet mounted. Each door shall have two (2) heavy-duty edgemount die cast hinges. Single-door models shall have edgemounted and full grip door latches. Two-door models shall have edgemounted, magnetic and full grip door latches. The hinge and latch mountings are reinforced with stainless steel backing plates.

CASTERS. Maintenance free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake. A-120-2-XL and A-180-2-XL models shall be standard with a caster configuration of two (2) rigid and four (4) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

SHELVES. Triple plated, welded rod-type shelves shall be removable. Shelves shall be supported by high strength, "no sag" 14 gauge die-formed stainless steel brackets.

HEATING SYSTEM / CONTROLS. Radiant heat system shall include an Incoloy nickel-chromium alloy heating element. Controls shall be up-front, recessed and shall include a full range thermostat adjustable to actual temperature. Thermostat shall include temperature scale marked in ten degree increments (F/C) from 90° to 190°F (32° to 88°C). An operational range thermometer, power supply light and thermostat cycling light are also included.

ELECTRICAL CHARACTERISTICS. 3 wire grounded tri-directional power cord and plug, rear mounted for safety. See electrical data chart above for amperage and receptacle configuration. See electrical chart for models that require a dedicated circuit.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provided with the following accessories:
