BT-200-XL

Heated Banquet Cabniet up to (200) 12.375" Plates

HEATED BANQUET TRANSPORT & SERVE CABINETS
Pre-Plated Meals for Up To 12.375" Plates
TOP MOUNT "BT" & "BT-XL" SERIES

BT-200-XL SPEC SHEET

GET A QUOTE

HOW TO BUY

LIVE CHAT

BT-200-XL Spec Sheet

Top Mount banquet cabinets are built to handle your most challenging events, on site or off premises, and keep your meals hot and fresh in up to (200) 12.375 plates

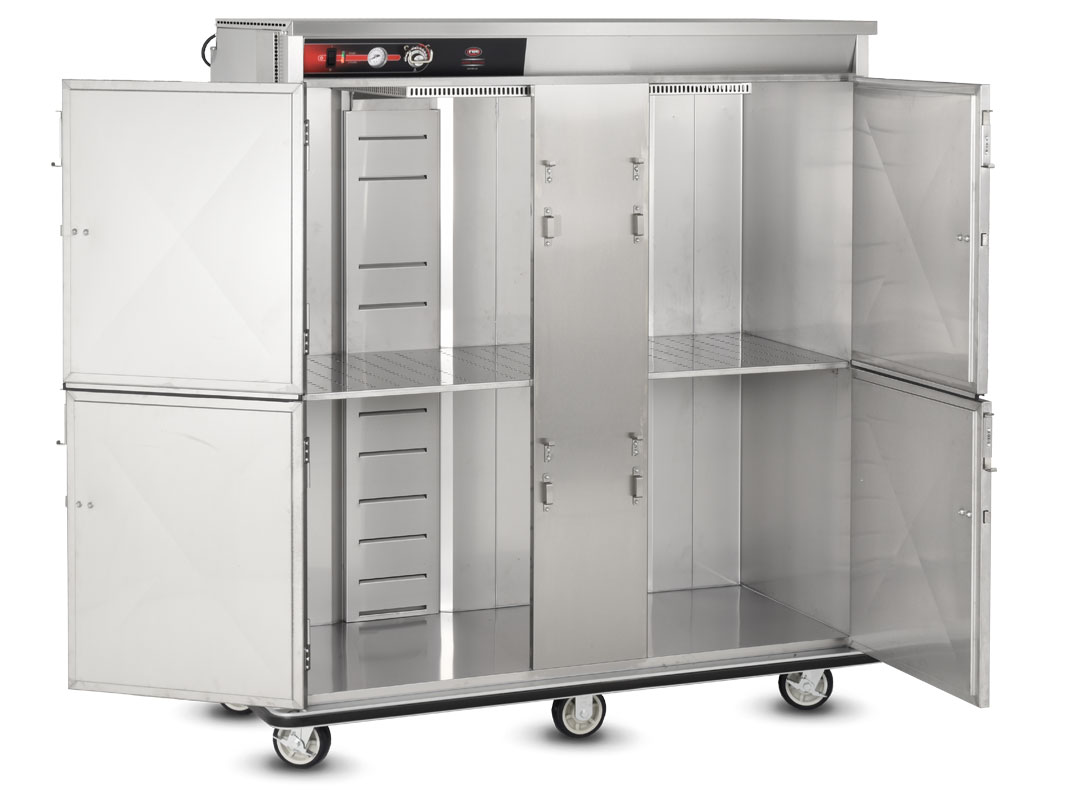

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

DESCRIPTION

"BT" Series Description
FWE's BT Series Top mount Heat Banquet Cabinets are built to handle your most challenging events. Whether it's on-site or off, these units are sure to keep your cooked meals hot, fresh, and ready to serve.

Our banquet cabinets are constructed for high-performance restaurants and resort banquet operations. These units are built on a stainless steel, tubular base frame that is specially engineered to absorb vibration and shock during transport. They are also fully insulated on all four sides to ensure that heat loss is mitigated as much as possible.

Top Mount heating system eliminates hot and cold spots by gently circulating hot air throughout the interior of the cabinet. Elements and blower are protected from any spillage and leaves the bottom of the cabinet open for easy cleaning reducing maintenance and cleaning costs

Our easy to read, simple to set controls are eye-level and recessed-protected to maximize durability. These controls include a full range (90°F - 190°F/30°C - 85°C) thermostat enabling users to set exact temperatures instead of a dial with arbitrary levels from 1-10 like many other manufacturers.

A-series banquet cabinets have reinforced, heavy-duty "no sag" shelves. These facilitate holding multiple layers of plated foods stacked on top of each other per shelf, without worry. These shelves are easily removable to make cleaning of these units quick and simple.

Easily move and place these units anywhere! Push/pull handles come standard to allow for easy maneuvering of this unit to wherever it is needed. All units also come with a tri-directional AC cord pocket, allowing for flexible plug placement without worry.

BT-200-XL Key Features

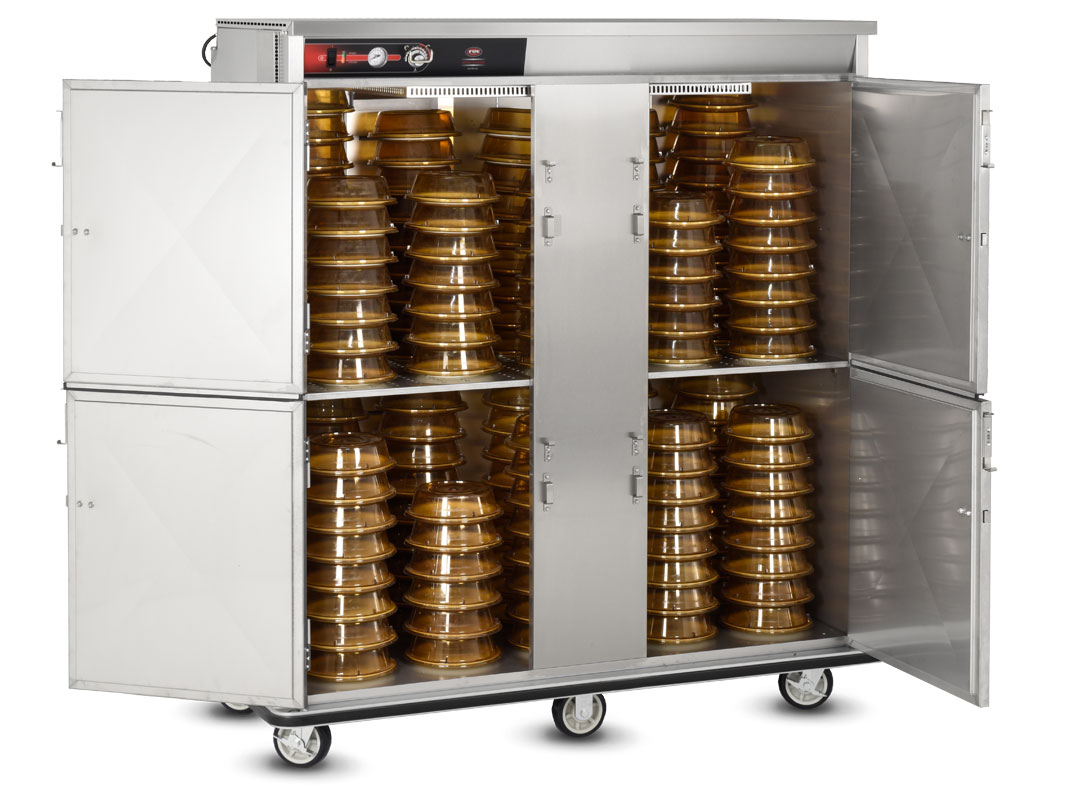

-Equipped with 4 shelves for stacking from 160-200 standard 12.375" covered plates, depending on overall plate and cover height

-Built on a stainless steel, tubular base frame, and designed to absorb shocks and vibration during transport, these units were manufactured for a high-pace, on-the-move work environment.

-User-friendly electronic controls allow users to easily read and set temperature from 90°-190°F (32°C-88°C).

-Built-in low temperature alarm comes standard to prevent creation of food waste.

-Heavy Duty "no sag" shelves are easily removable to facilitate thorough cleaning of the interior of the unit.

-Dutch doors to prevent unnecessary heat loss when loading and unloading the cabinet.

-FWE's Top Mount Heat System eliminates hot and cold spots by gently circulating hot air throughout the interior of the cabinet.

FEATURES

Agency Approvals
UL - The UL mark, which now serves customers in more than 100 countries, has become the authority on product safety. Its engineers test for things like soundness of design, safety of electrical components, and structural integrity of products for which UL listing is sought.
If you think of NSF International classification as protection for your customers, then the mark of Underwriters Laboratories (UL) indicates safety for those who work in your commercial kitchen. The Illinois-based testing agency assures that the equipment that gets its stamp operates safely. There is also a sanitation classification that offers similar assurances about food safety as the NSF mark. Products are indicated as "Classified UL-EPH."
CUL - C-UL mark indicates a product meets the CSA testing standards for Canada.
C-UL-US mark indicates a product meets the UL and CSA testing standards for both the United States and Canada.
UL EPH - UL EPH recognizes products certified to meet environmental and public health standards. The UL EPH logo shows the word "Classified" above the UL mark, which indicates that the product complies with ANSI/NSF standards, in addition to other applicable codes.
CE - The CE mark is mandatory for products sold in the European Economic Area. It indicates the product conforms with certain manufacturing and design safety requirements. CE is similar to UL except it's more of a declaration by the manufacturer that the product meets the relevant rules, rather than being the mark of independent testing.
UKCA - The UKCA mark is mandatory for products sold in the European Economic Area. It indicates the product conforms with certain manufacturing and design safety requirements. UKCA certified equipment has undergone testing to ensure safety, health, and environmental standards.
Bumpers
Full Bumper - Heavy duty full perimeter bumper extends beyond doors and handles for added protection. The bumper is mounted to the base frame for added durability - the bumper is not used as the base frame. In this way, the bumper absorbs all the shock in transport, protecting the integrity of the construction.
Caster
Mobile
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.

Available in 5", 6" and 8" diameters.
6" Casters - 6" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
6 Caster Configuration - 6 caster configuration increases the cabinets maneuverability, ideal for larger cabinets
Construction
Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times
Control Panel
Top Mount Electronic Controls - Simple to use electronic control, user friendly, easy to read and easy to set. Provided with low temperature alarm. Set range 90F - 190F (32C - 88C)
Electronic Controls - Electronic controls featuring easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light.
Door Count
4 Doors
Door Hinge
Edgemount Hinges - Heavy-duty edge mount die cast hinges
Door Latch
Magnetic Door Latch - Heavy duty full grip magnetic door latch
Doors
Gasket Sealed - Gasket sealed door; tight double seal makes for a perfect secure closure and easy to clean
Dutch Doors - Dutch doors help maintain cabinet temperature during peak serving times
Side by Side Doors - Flush mounted, stainless steel insulated french style doors help maintain cabinet temperature during peak serving times
Electrical
Hidden Elements - Elements and blower are protected from spillage. Bottom of the cabinet is open for easy cleaning reducing maintenance and cleaning costs
Tri-Directional Cord - Recessed tri-direction cord pocket - allows for compact fit
Extra
Warranty - Two year limited warranty
Handles
Recessed Antimicrobial Hand Grips - Recessed antimicrobial hand grips detain illness causing pathogens
Push Pull Handles - Push/pull handles allow for easy maneuvering. Handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands
Heat System
Top Mount Heat System - Large air circulation top heat source provides open bottom base
Hinging
Hinges on Right and Left Side - Hinges on the right and left side
Slides and Shelves
Fixed Shelves - Shelves are positioned into railings welded to body . Heavy-duty "no sag" shelves are removable to facilitate thorough cleaning

OPTIONS & ACCESSORIES

Caster
Larger & Upgraded Casters - Larger Casters
Center Floor Lock - Undercarriage lock-down keeps mobile equipment securely in place by gently lifting the unit high enough so the casters do not touch the ground.
Must be used with 6" casters.
Control Panel
Mechanical Controls - Mechanical controls
Top Mount Mechanical Controls - Controls are up-front, easy to read and set, and include a full-range Fahrenheit/Celsius thermostat for easy operation
Door Latch
Paddle Door Latch - Recessed paddle style door latch
Padlocking Transport Latch - Cabinet mounted latch keeps door secure during transport, increased security with padlocking capabilities
Key Locking Door Latch - Heavy duty door latch with key locking capabilities
Electrical
220-240 Volt - 220-240 Volt
Upgraded Element - Upgraded Element
Extra
Cord Winder Brackets - Cabinet mounted brackets allow for cord to be wrapped and out of the way when not in use
Plate Carriers - Carriers for covered and uncovered plates for easy loading and delivery
Menu Card Holder - Door mounted frame to display menu card
Dry Erase Board - Door mounted dry erase board for menu changes or cabinet identification
Hinging
Alternate Door Swing Configurations - Alternate door swing configurations are available for multi door cabinets
Slides and Shelves
Extra Fixed Shelves - Additional shelves can be installed at the factory to meet your needs

SHORT FORM SPEC

Specified unit shall be FWE Model No. BT-200-XL, Heated Banquet Transport & Serve Cabinets.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners. Welded tubular base frame shall be 1" square, heavy gauge stainless steel tubing, with 10 gauge stainless steel reinforcing stress plates at corners.

INSULATION. Insulated throughout; top, back, bottom, sides, doors using high density ceramic and fiberglass insulation.

HANDLES. Heavy-duty, solid formed 1" x .375" thick; mounted at each end of unit. Mountings reinforced with stainless steel channel.

BUMPER. Solid continuous wrap around aluminum channel, bolted to frame, with snapin, non-marking vinyl cushion. Full perimeter bumper extends beyond doors, handles, etc., for added protection. Shall be continuous, with corner cut-outs to facilitate cleaning.

DOORS AND LATCHES. Flush mounted, field reversible, stainless steel insulated door. High temperature gasket sealed; gasket shall be cabinet mounted. Full-size doors shall have two (2) heavy-duty edgemount die cast hinges. Magnetic door latch shall be edgemounted, full grip, and positive closing. The hinge and latch mountings are reinforced with stainless steel backing plates. BT-200 and BT-200-XL are standard with dutch doors.

CASTERS. Maintenance free polyurethane tire casters in a configuration of two (2) rigid and four (4) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

SHELVES. Triple plated, welded rod-type shelves shall be removable. Shelves shall be supported by high strength, "no sag" 14 gauge die-formed stainless steel brackets.

HEATING SYSTEM / CONTROLS. Top mounted, forced air blower system shall include one (1) Hi-Temp, self-lubricated, impedance protected, fan-cooled blower motor to distribute heat equally throughout cabinet interior. BT-200 and BT-200-XL includes two (2) blower motors. Heating element shall be located in top heat chamber separated from food cabinet. Wall heat distribution tunnels shall be vented for balanced air circulation. Electronic controls shall include an easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light. Adjustable temperature range from 90°F to 190°F (32°C to 88°C).

ELECTRICAL CHARACTERISTICS. 3 wire grounded tri-directional power cord and plug, rear mounted for safety. See electrical data chart above for amperage and receptacle configuration. See electrical chart for models that require a dedicated circuit.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provided with the following accessories:
