HS-24

Mobile Hand Sinks
Contactless Self Contained Portable Hand Sink with Water Heater
"HS" Series

HS-24 Spec Sheet

Contactless portable hand sink with water heater is self-contained to allow safe hand washing and sanitizing in remote locations

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

DESCRIPTION

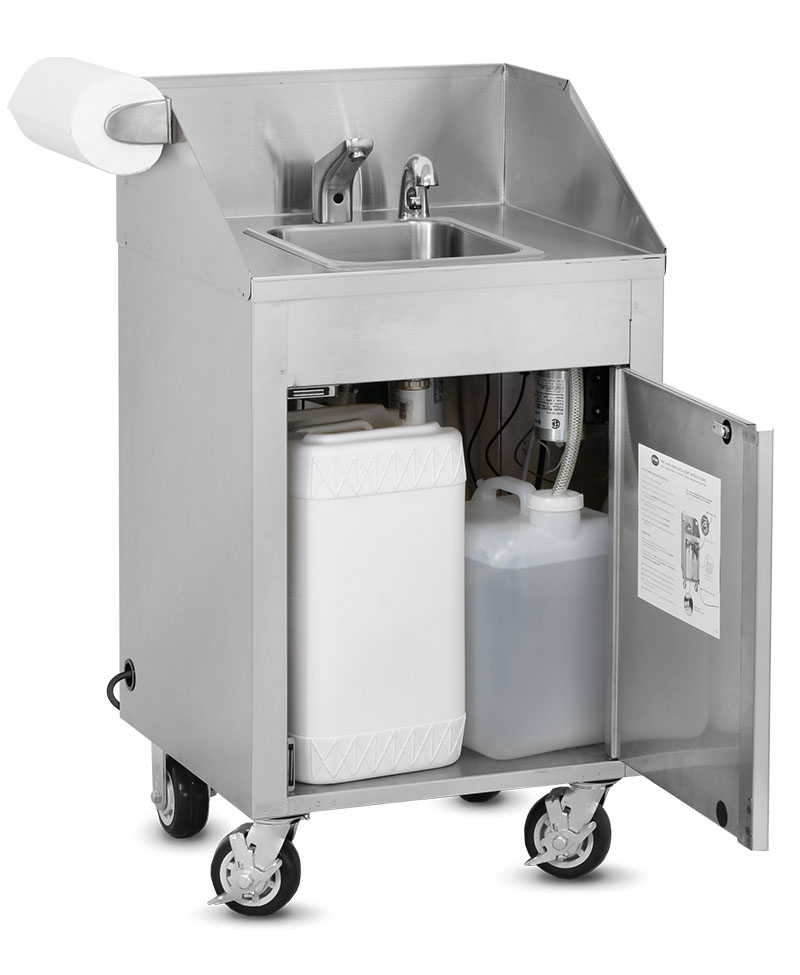

Portable hand sinks are perfect for hosting an event in any environment. FWE's portable hand sink is designed for hot and cold water applications. Its stainless steel cabinet body and locking door house a 5 gallon fresh water tank for consistent draw, a 7 gallon soiled water tank to hold runoff and drainage.

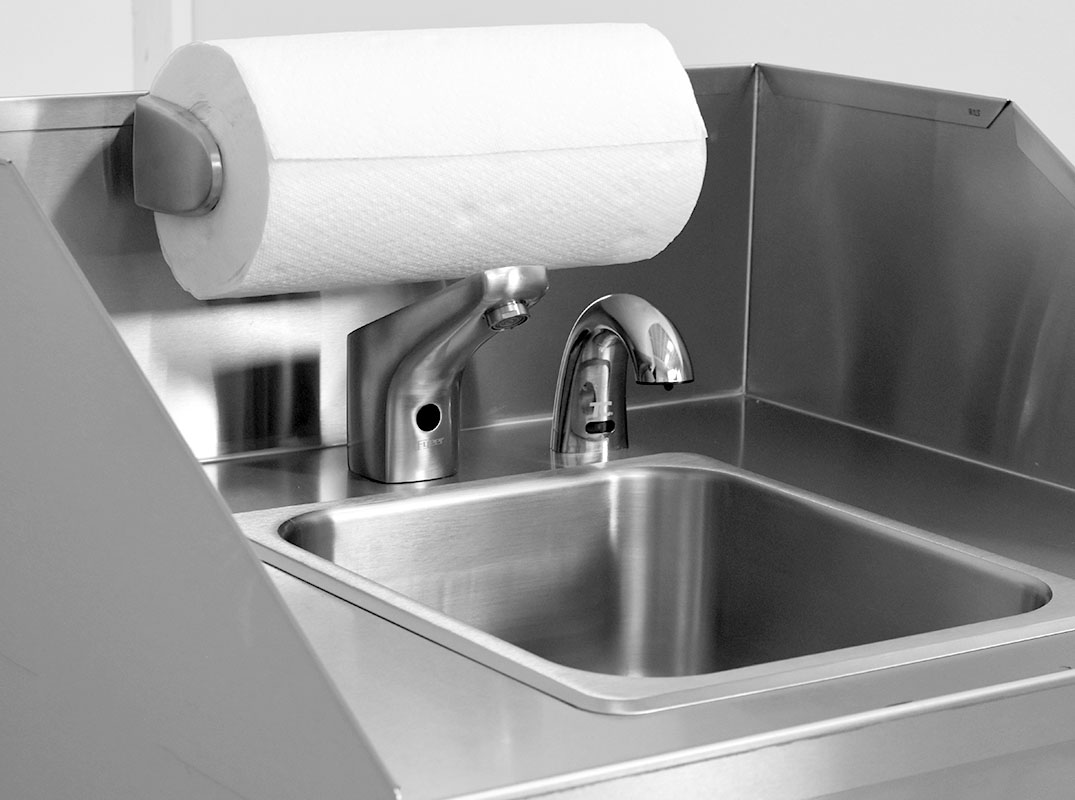

The box marine top edge helps prevent spills and drips while on the move, and the deck mount 8" nozzle and quarter turn handles make it easy to turn water on and off. The 5" casters make it easy to maneuver this sink, and the included water heater quickly warms water for dispensing when needed. And thanks to its 10' cord and cord wrap, it's easy to set this sink up anywhere you need it.

Made in America and UL Listed, NSF or UL Sanitation Listed

FEATURES

OPTIONS & ACCESSORIES

Bumpers
Full Bumper - Heavy duty full perimeter bumper extends beyond doors and handles for added protection. The bumper is mounted to the base frame for added durability - the bumper is not used as the base frame. In this way, the bumper absorbs all the shock in transport, protecting the integrity of the construction.
Top Corner Bumpers - Top corner bumpers are a good option for those customers not needing the protection of a full bumper, but still require protection for walls and surrounding equipment.
Bottom Corner Bumpers
Caster
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Larger & Upgraded Casters - Larger Casters
Electrical
220-240 Volt - 220-240 Volt
Extra
Graphic Wrap - Use your cabinet as a bill board! Catch the eye of your customer with your custom logo, message, or menu item images with a graphic wrap.
Hinging
Hinges on Left Side - Left hand door hinging, available on single door models only

SHORT FORM SPEC

Specified unit shall be FWE Model No. HS-24, Mobile Hand Sinks.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners.

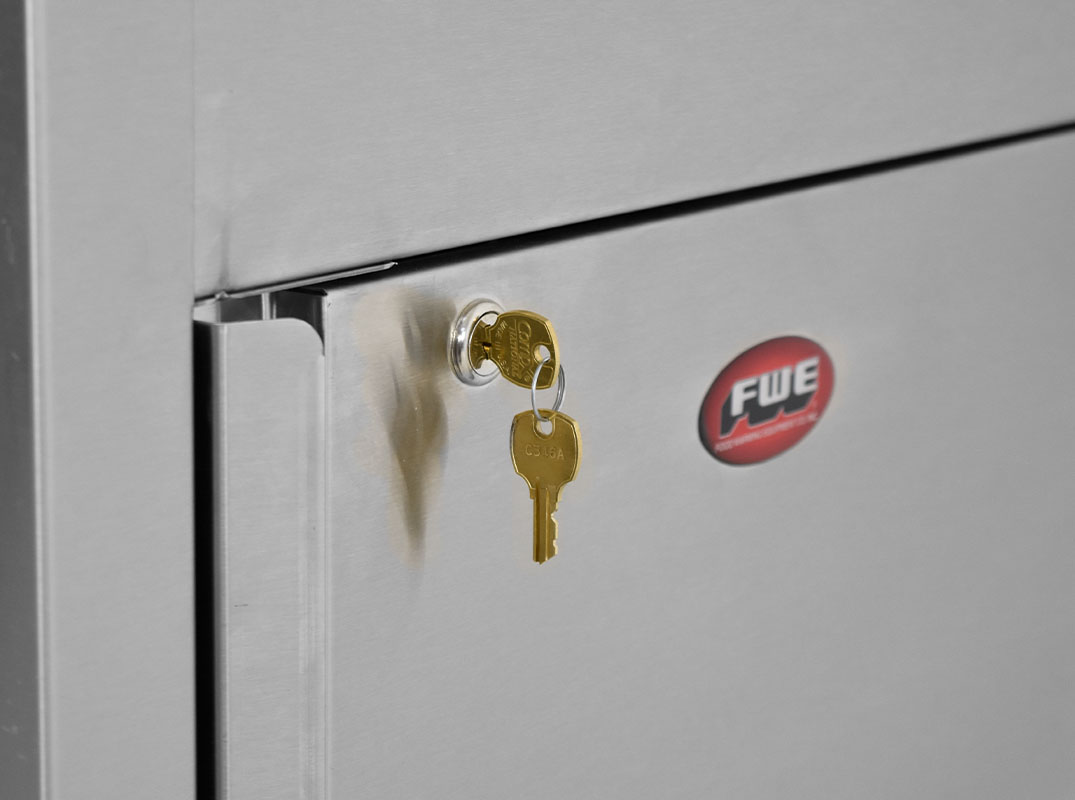

DOORS AND LATCHES. Flush mounted, stainless steel door. Full length magnetic recessed workflow handle with locking cam latch. Heavy duty pin style hinges.

CASTERS. Maintenance-free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake.

WATER CAPACITY. The unit shall include one (1) five gallon fresh water tank and one (1) seven and a half gallon waste water tank. Electric water heater with adjustable thermostat provides a temperature range of 65°-145°F (19°-62°C) and heats up to 2.7 gallons of water. Glass insulated tank for thermal efficiency and fast recovery.

FAUCET CHARACTERISTICS. Faucet shall be motion activated and powered by four (4) AA Batteries. Faucet shall have a concealed thermostat control. Faucet water pressure shall be two (2) gallons per minute.

SOAP DISPENSER CHARACTERISTICS. Soap dispenser shall be motion activated and shall be powered by four (4) D batteries. Recommended soap refill: Rubbermaid FG4015411 800ml.

ELECTRICAL CHARACTERISTICS. 3 wire grounded 10 foot extension power cord and plug. HS-24 cord and plug are fed through right side cord exit. Alternative left side cord exit provided. HS-24-ES cord and plug are fed through the front of the unit only. See electrical data chart above for amperage and receptacle configuration.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provide with the following accessories:

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
