HS-24-ES

Mobile Hand Sinks
Contactless Self Contained Portable Hand Sink with Water Heater
"HS" Series

HS-24-ES Spec Sheet

Contactless portable hand sink with water heater is self-contained to allow safe hand washing and sanitizing in remote locations

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

MODEL SPECIFICATIONS

Model Height:
Model Width:
Model Depth:
Shipping Weight:
Volts:
Watts:
Amps:
3 Phase:
Adjustable Slides:
Standard # of Slides:
Standard # of Shelves:
Standard Spacing:

DESCRIPTION

HS Series - Mobile Hand Sink Stations
FWE's HS Series provides a convenient, fully self-contained handwashing solution for mobile foodservice and remote operations. Designed for locations where plumbing access is limited or unavailable, each unit is built to deliver dependable sanitation wherever it's needed.

Key Features:

Fully Self-Contained Water System: Integrated 5-gallon fresh water tank and 7.5-gallon waste water tank ensure multiple handwashes without the need for external plumbing connections.
On-Demand Hot Water: Built-in electric water heater delivers warm water when connected to a power source, maintaining hygiene standards in remote or temporary setups.
Durable Stainless Steel Construction: All-stainless exterior and sink basin provide strength, corrosion resistance, and easy cleaning for heavy-duty environments.
Compact and Mobile: Space-saving design with 5" maintenance-free casters makes the unit easy to move and position in tight spaces or temporary service areas.
Convenient Operation: Integrated soap dispenser and paper towel holder allow for streamlined handwashing access wherever the unit is deployed.

FWE's HS Series Mobile Hand Sink Stations are ideal for catering, concessions, remote service points, or any application where a reliable handwashing solution is required. Designed for safety, durability, and portability-without the need for fixed plumbing.

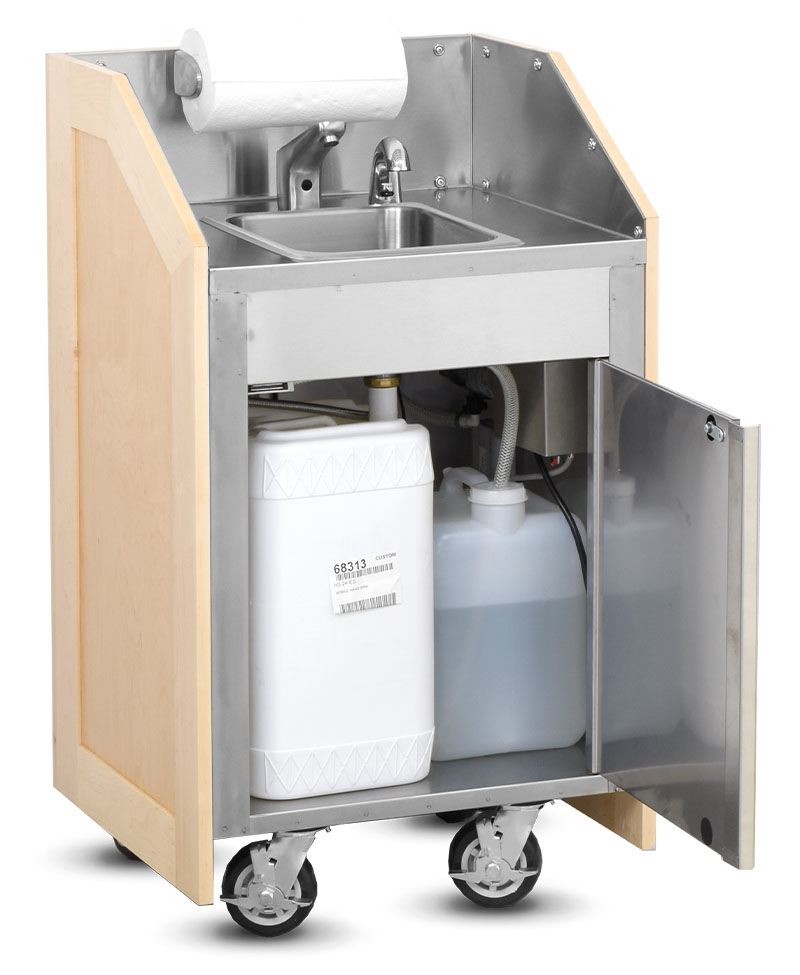

HS-24-ES - Executive Series Portable Hand Sink (Wood Finish)
The HS-24-ES brings the same dependable handwashing functionality as the standard HS-24 but with an elevated aesthetic. Part of FWE's Executive Series, this model features a wood finish exterior, offering a refined look ideal for front-of-house or high-end event settings. Users can select from a variety of available wood stains to match their environment. The unit includes a 5-gallon fresh water tank and a 7.5-gallon waste water tank, providing ample capacity for extended use without frequent refilling.

FEATURES

Agency Approvals
NSF - NSF International (formerly known as the National Sanitation Foundation) is an independent, non-profit organization that certifies food service equipment and ensures it is designed and constructed in a way that promotes food safety. FWE products that meet these standards bear the NSF mark.
You may also see a designation that a product meets NSF/ANSI, which adds rules from the American National Standards Institute to the testing. ANSI works closely with NSF to develop its food safety standards and complete testing to those.
Bars
Built-In Electric Hand Sink - FWE's built in hand sinks are perfect for hosting an event in any location, making it possible to offer practical hand washing wherever it is needed. Water heater with adjustable thermostat quickly warms water for dispensing when needed.
Soap Dispenser - Soap dispenser
Water Heater with Adjustable Thermostat - Electric water heater with adjustable thermostat provides a temperature range of 65°-145°F (19°-62°C) and heats up to 2.7 gallons of water. Glass insulated tank for thermal efficiency and fast recovery.
5 Gallon Fresh Water Tank - 5 gallon fresh water tank
Paper Towel Dispenser - Paper towel dispenser
7.5 Gallon Waste Water Tank - 7.5 gallon waste water tank
Bumpers
No Bumper - No bumper
Caster
Mobile
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.

Available in 5", 6" and 8" diameters.
5" Casters - 5" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
Construction
Solid Maple Wood & Stainless Steel - Classic raised solid maple wood panels. All wood surfaces finished with polymer coating to deter scratching and gouging. Constructed with reinforced joints for additional strength and durability. Black solid surface top.
Door Count
1 Door
Door Hinge
Pin Style Hinges - Heavy duty pin style hinges

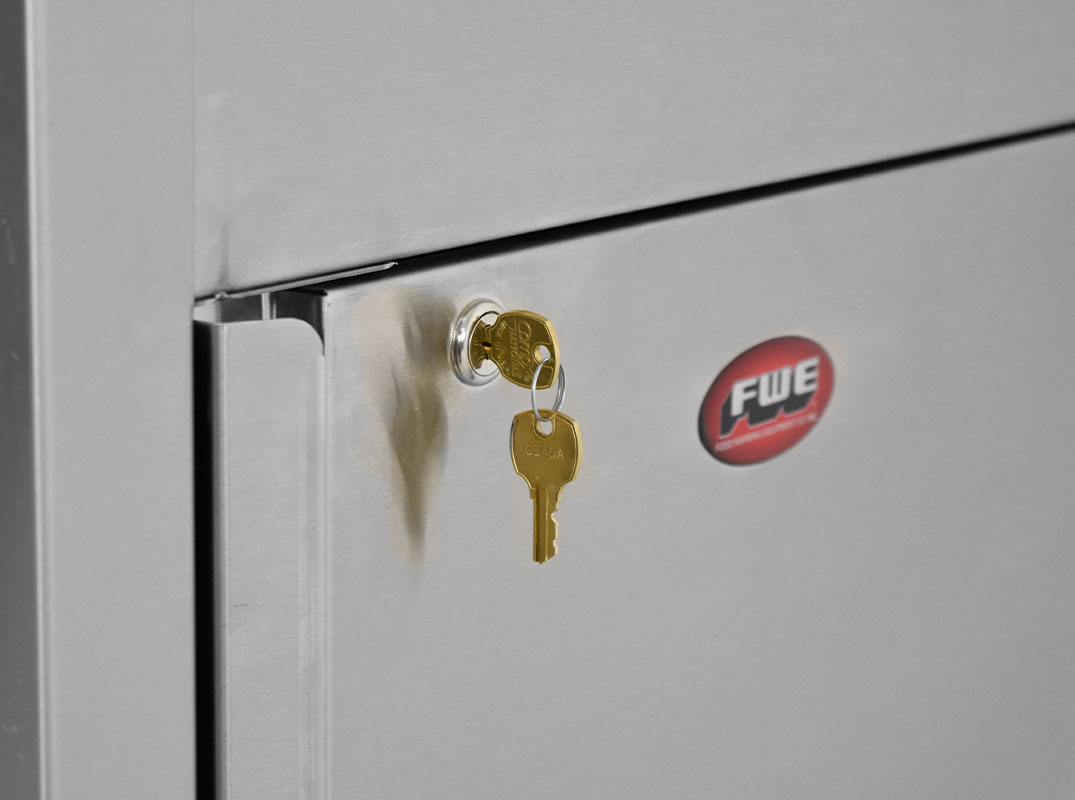

Door Latch
Locking Cam Latch
Magnetic Recessed Pull Handle
Doors
Gasketless
Full Stainless Steel Door - Flush mounted, stainless steel insulated doors
Extra
Warranty - Two year limited warranty
Handles
No Handles
Hinging
Hinges on Right Side - Right hand door hinging

OPTIONS & ACCESSORIES

Caster
All Swivel Casters - All swivel casters allow for greater maneuverability. Great for tight turns or severe corners (such as on and off trucks or narrow hallways).
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Electrical
220-240 Volt - 220-240 Volt
Hinging
Hinges on Left Side - Left hand door hinging, available on single door models only

SHORT FORM SPEC

Specified unit shall be FWE Model No. HS-24-ES, Mobile Hand Sinks.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners. Front edge shall have raised marine nosing to contain water. Backsplash shall be 8.5" high.

DOORS AND LATCHES. Flush mounted, stainless steel door. Full length magnetic recessed workflow handle with locking cam latch. Heavy duty pin style hinges.

CASTERS. Maintenance-free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake.

WATER CAPACITY. The unit shall include one (1) five gallon fresh water tank and one (1) seven and a half gallon waste water tank. Electric water heater with adjustable thermostat provides a temperature range of 65°-145°F (19°-62°C) and heats up to 2.7 gallons of water. Glass insulated tank for thermal efficiency and fast recovery.

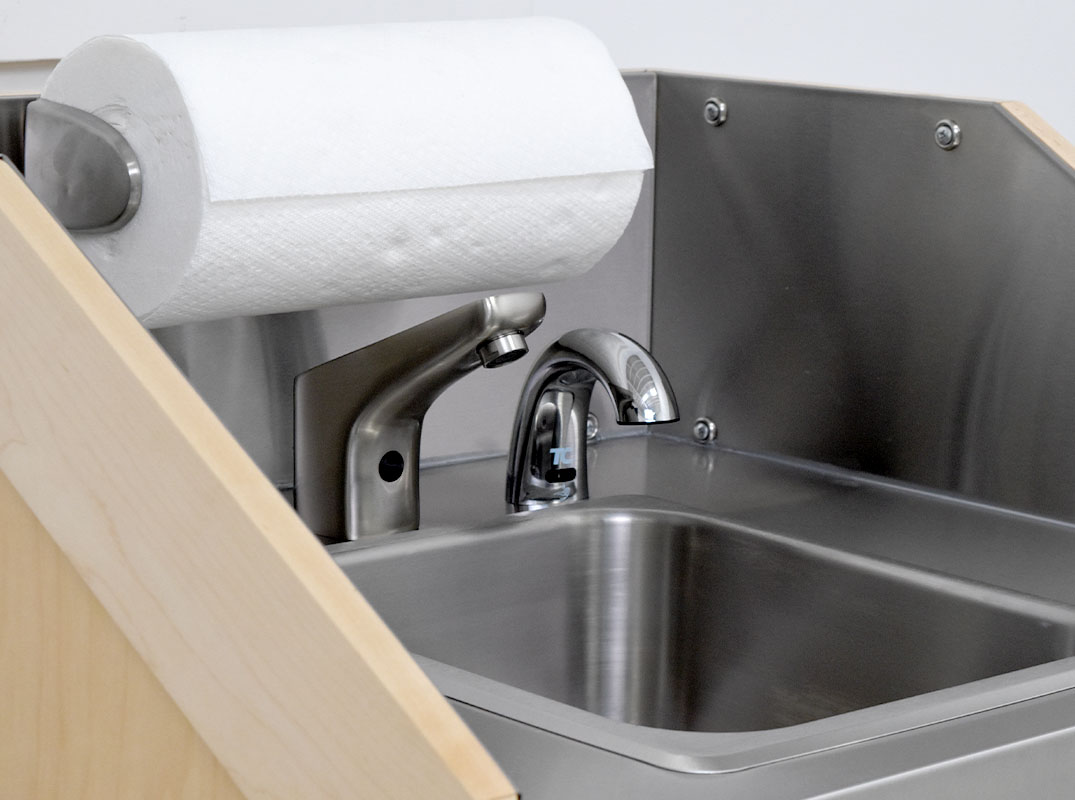

FAUCET CHARACTERISTICS. Faucet shall be motion activated and powered by four (4) AA Batteries. Faucet shall have a concealed thermostat control. Faucet water pressure shall be two (2) gallons per minute.

SOAP DISPENSER CHARACTERISTICS. Soap dispenser shall be motion activated and shall be powered by four (4) D batteries. Recommended soap refill: Rubbermaid FG4015411 800ml.

ELECTRICAL CHARACTERISTICS. 3 wire grounded 10 foot extension power cord and plug. HS-24 cord and plug are fed through right side cord exit. Alternative left side cord exit provided. HS-24-ES cord and plug are fed through the front of the unit only. See electrical data chart above for amperage and receptacle configuration.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provide with the following accessories:

FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
