HUMIDIFIED HEATED HOLDING TRANSPORT CABINETS
Universal - Various Size Trays, Pans, and Gastro-Norm
Humi-Temp "UHS" Series
Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

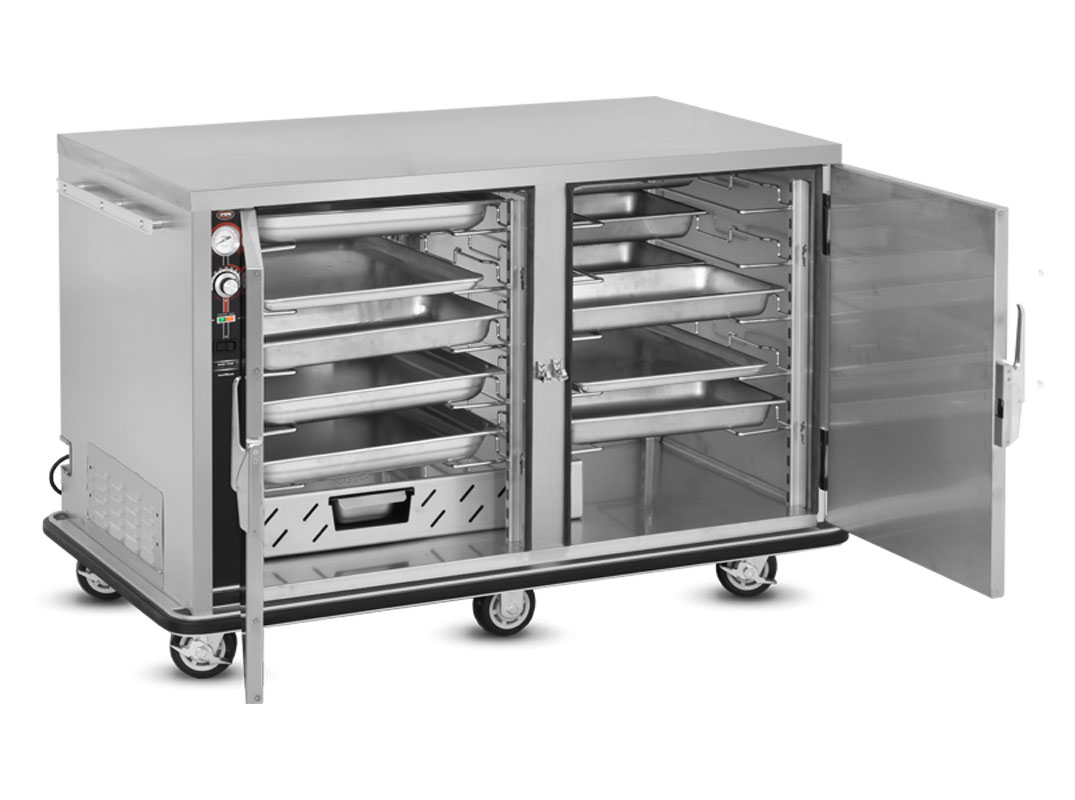

Unique design holds 12 x 20 pans, 18 x 26 sheet trays or GN containers on fully adjustable tray slides. Slides are removable for thorough interior cleaning
Humidity can be added to condition circulated heat, keeping food fresh and hot for hours
FWE's patented Humi-Temp heat and humidity system eliminates hot and cold spots by gently circulating hot, moist air throughout the interior of the cabinet
Controls are up-front, easy to read and set, and include a full-range °F/°C thermostat for easy operation. Thermometer continuously reads cabinet temperature - even without power source!
Made for transport applications - FWE cabinets are fully constructed of stainless steel, with a tubular welded base frame, and designed to absorb vibration and shock during transport

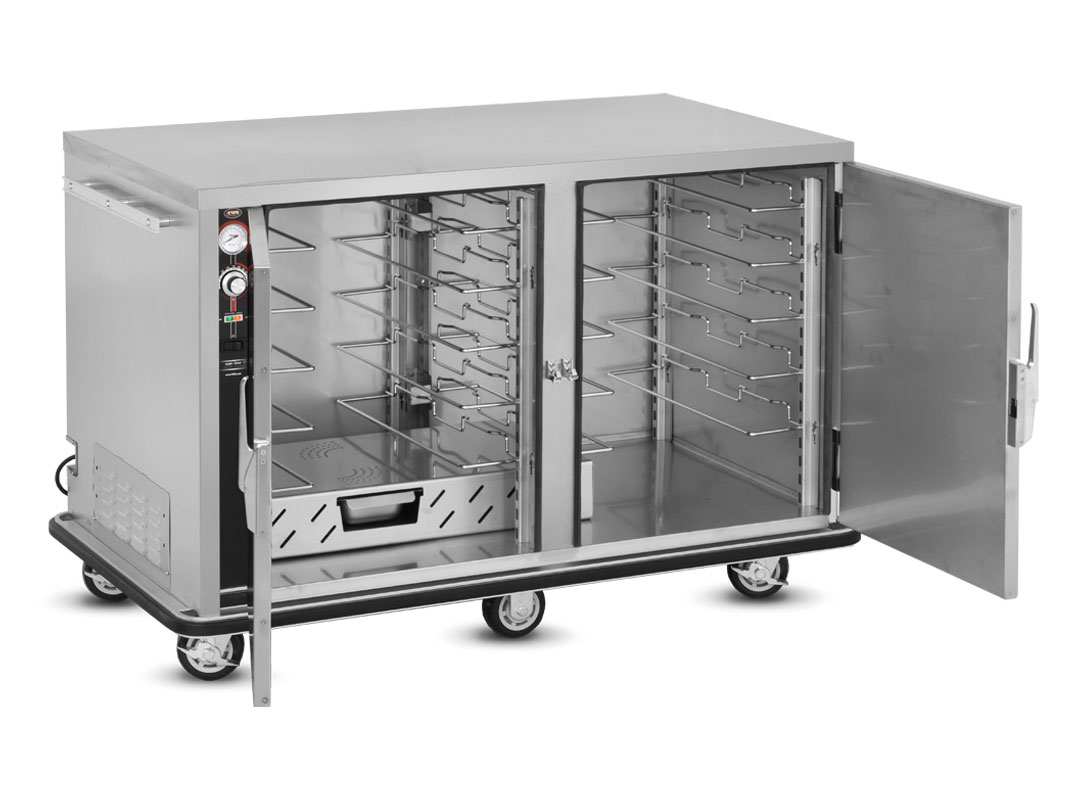

UHS-5-10, Heated Holding, Transport & Serving
10 pair of slides are provided at standard 4.5" spacing. If required additional slides and shelves are available.
C-UL-US mark indicates a product meets the UL and CSA testing standards for both the United States and Canada.
You may also see a designation that a product meets NSF/ANSI, which adds rules from the American National Standards Institute to the testing. ANSI works closely with NSF to develop its food safety standards and complete testing to those.
If you think of NSF International classification as protection for your customers, then the mark of Underwriters Laboratories (UL) indicates safety for those who work in your commercial kitchen. The Illinois-based testing agency assures that the equipment that gets its stamp operates safely. There is also a sanitation classification that offers similar assurances about food safety as the NSF mark. Products are indicated as "Classified UL-EPH."
EZ roll casters are shock absorbing and roll easier under heavy loads.
Available in 5", 6" and 8" diameters.
A drawback to the all swivel configuration is that it is harder to control the direction of the equipment when rolled in a straight line.
Specified unit shall be FWE Model No. UHS-5-10, Humidified Heated Holding Transport Cabinets.
CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners. Welded tubular base frame shall be 1" square, heavy gauge stainless steel tubing, with 10 gauge stainless steel reinforcing stress plates at corners.
INSULATION. "Ultra-Guard" UG-26 high density fiberglass insulation throughout; top, back, bottom, sides, and door(s).
HANDLES. Heavy-duty push bar handles, solid formed 1"x .375" thick; mounted at each end of unit. Mountings reinforced with stainless steel channel. UHS-4 is provided with form grip flush-in-wall hand grips recess mounted on each side of unit.
BUMPER. Solid 1.5" wide continuous wraparound aluminum channel, bolted to frame, with snap-in, non-marking vinyl cushion. Full perimeter bumper extends beyond doors, handles, etc., for added protection. Shall be continuous, with corner cut-outs to facilitate cleaning. UHS-4 is standard without a bumper
DOORS AND LATCHES. Flush mounted, stainless steel insulated doors. High temperature gasket sealed; gasket shall be cabinet mounted. Each door shall have two (2) heavy-duty edgemount die cast hinges. Door latch shall be edgemounted, full grip, and positive closing. The hinge and latch mountings are reinforced with stainless steel backing plates. UHS-5-5P, UHS-12P, UHS-20, UHS-20P are provided with magnetic edgemount door latches.
CASTERS. Maintenance free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake. Two door models shall have a caster configuration of two (2) rigid and four (4) swivel with brake. UHS-4 shall have a caster configuration of four (4) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.
TRAY SLIDES. Welded rod-style tray slides are nickel plated for greater durability and sanitation. Fully adjustable / removable and designed to give secure bottom tray support. Removable stainless steel uprights shall be punched on 1.5" spacings, on center, for easy tray adjustment, and shall easily lift off heavy duty stainless steel brackets without the use of tools for cleaning.
HEATING SYSTEM / CONTROLS Patented built-in "Humi-Temp" system shall include an Incoloy nickel-chromium alloy heating element and Hi-Temp, self-lubricated, impedance protected fan-cooled blower motor. Cabinet shall have humidifying chamber and drawer Style baffled humidifier pan. Both shall be stainless steel and removable. Controls shall be up-front, recessed and shall include a full range thermostat adjustable to actual temperature. Thermostat shall include temperature scale marked in ten degree increments (F/C) from 90° to 190°F (32° to 88°C). An operational range thermometer, power supply light, thermostat cycling light, and 20 amp ON/OFF switch are also included.
ELECTRICAL CHARACTERISTICS. 3 wire grounded tri-directional power cord and plug, rear mounted for safety. See electrical data chart above for amperage and receptacle configuration.
INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.
Provide with the following accessories:
FWE products may be covered under one or more of the following U.S. patents: 288,299;238,300;3,952,609;4,192,991.
All rights reserved. All specifications subject to change without notice.
Errors subject to correction. © 2022 Food Warming Equipment Company, Inc.
