P-180-XL

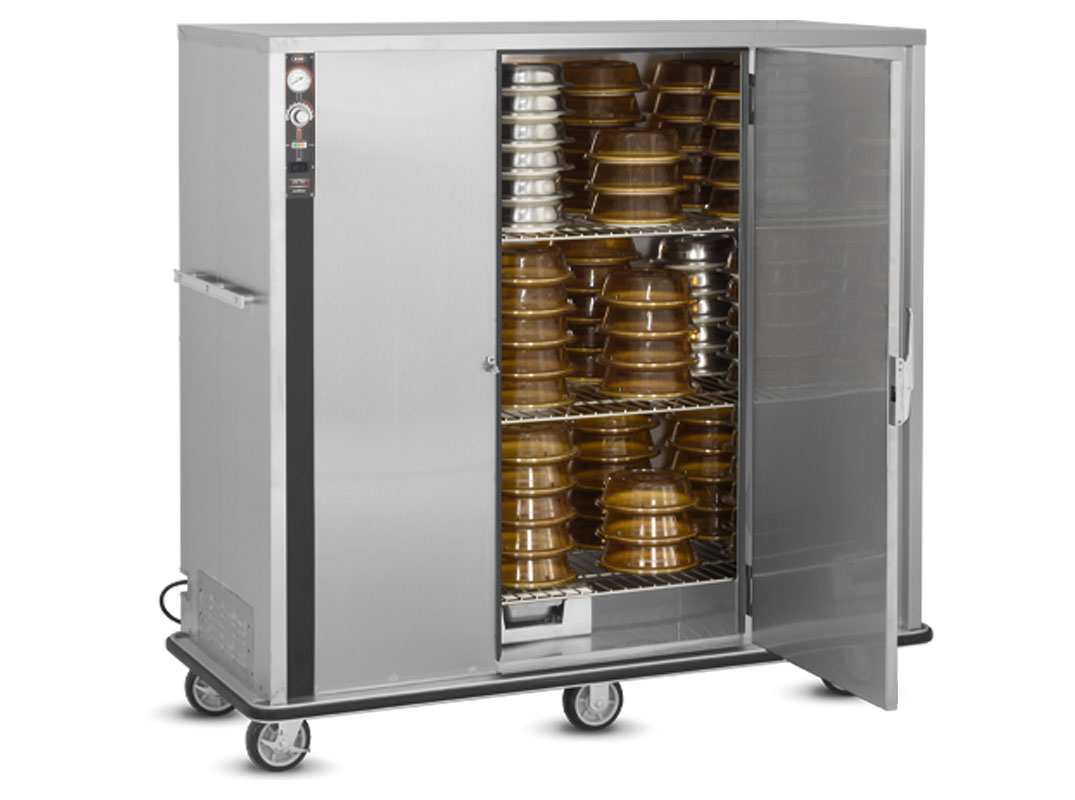

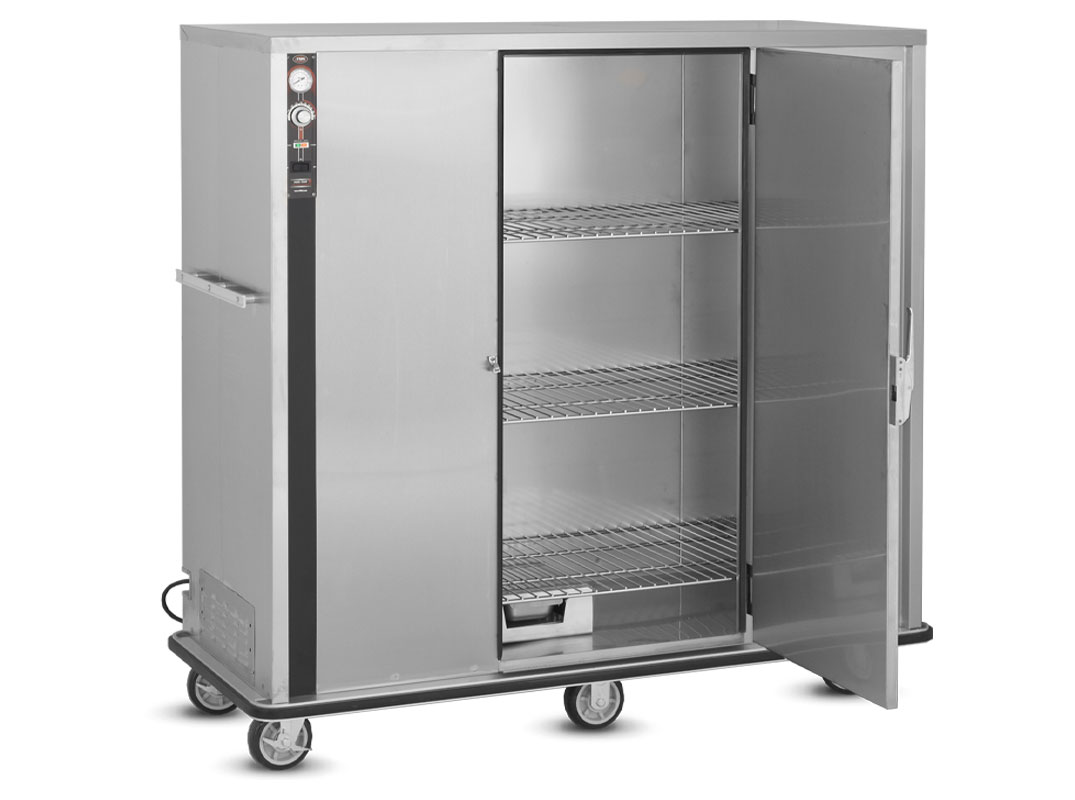

Heated Banquet Cabinet up to 180 12" Plates

HEATED BANQUET TRANSPORT & SERVE CABINETS
Pre-Plated Meals for Up to 12.375" Plates
HUMI-TEMP "P-XL" SERIES

SPEC SHEET REVIT / CAD FILES OPERATION MANUAL PART MANUAL

HOW TO BUY

GET A QUOTE

LIVE CHAT

P-180-XL Spec Sheet

P-180-XL SPEC SHEET

Humidified banquet cabinets are built to handle your most challenging events, on site or off premises, and keep your meals hot and fresh in up to (200) 12.375 plates

Model may differ from the image(s) shown.
Model may be shown with Optional Accessories.
Please Consult Factory.

GET A QUOTE

MODEL SPECIFICATIONS

Model Height:
Model Width:
Model Depth:
Shipping Weight:
Volts:
Watts:
Amps:
3 Phase:
Adjustable Slides:
Standard # of Slides:
Standard # of Shelves:
Standard Spacing:

DESCRIPTION

FWE P-XL Series Humi-Temp Heated Banquet Transport & Serve Cabinets

The FWE P-XL Series Humi-Temp Heated Banquet Cabinets are designed to transport, hold, and serve pre-plated meals on larger dinner plates while maintaining ideal temperature and moisture. Engineered for hotels, resorts, banquet facilities, healthcare operations, and large-scale catering events, this solution combines patented humidified heat technology with rugged transport construction to keep meals hot, fresh, and presentation-ready for extended periods.

Product Overview

Built for demanding banquet operations, the P-XL Series utilizes FWE's patented Humi-Temp system to gently circulate heated, moist air throughout the cabinet, eliminating hot and cold spots while preserving food quality. Unlike standard P Series cabinets designed for 11" plates, P-XL models accommodate plates up to 12.375" in diameter and can hold as many as 200 plated meals depending on model configuration.

Key Features & Benefits

Large Plate Capacity - Designed specifically for covered plates up to 12.375" diameter, ideal for upscale banquet and hospitality operations.
Patented Humi-Temp Technology - Gently circulates heated, humidified air to eliminate temperature variations and maintain food freshness.
High-Capacity Meal Holding - Accommodates up to 200 covered plated meals depending on cabinet size.
Humidity Conditioning System - Integrated humidifier pan allows operators to add moisture to circulated heat, extending holding times and preserving meal quality.
Eye-Level Control Panel - Recessed controls are easy to read, simple to adjust, and protected from transport damage
Heavy-Duty "No Sag" Shelves - Removable shelves are built to support demanding banquet loads while simplifying cleaning.
Transport-Ready Construction - Reinforced tubular frame absorbs vibration and shock during movement between preparation and service locations.
Easy Maneuverability - Heavy-duty push/pull handles and commercial-grade casters allow smooth transport through banquet facilities.

Construction & Durability

Constructed with heliarc welded stainless steel, reinforced tubular framing, Ultra-Guard fiberglass insulation, and a full-perimeter protective bumper, the P-XL Series is engineered for long-term durability. Heavy-duty latches, hinges, removable shelves, and polyurethane casters ensure reliable performance in demanding hospitality environments.

Performance Specifications

Temperature range: 90°F to 190°F (32°C to 88°C)
Patented Humi-Temp heat and humidity system
Supports covered plates up to 12.375" diameter
Capacities from 48 to 200 plated meals depending on model
Removable humidifier chamber and humidity pan
Heavy-duty removable stainless steel shelves
120V and 220-240V electrical configurations available
Full perimeter protective bumper system
Heavy-duty polyurethane casters with brake options
Two-year limited warranty

Ideal Applications

Hotels and luxury resorts
Banquet halls and event venues
Catering and convention services
Healthcare foodservice operations
University and institutional dining
Large-scale plated meal service programs

Why FWE?

For decades, FWE has been trusted by foodservice professionals for equipment that delivers exceptional durability, reliability, and performance. The P-XL Series continues that tradition by providing advanced humidified banquet holding technology specifically designed for larger plated meals, helping operators preserve food quality, improve service execution, and consistently deliver exceptional dining experiences. [1]

P-180-XL - Heated Banquet Transport & Serve Cabinet (180 Plate Capacity, XL Model)
The P-180-XL delivers exceptional capacity for large banquet operations, holding up to 180 meals while ensuring even heat retention. Its stainless steel frame absorbs shocks during transport, providing reliability for high-end catering and event service.

FEATURES

Agency Approvals
CUL - C-UL mark indicates a product meets the CSA testing standards for Canada.
C-UL-US mark indicates a product meets the UL and CSA testing standards for both the United States and Canada.
NSF - NSF International (formerly known as the National Sanitation Foundation) is an independent, non-profit organization that certifies food service equipment and ensures it is designed and constructed in a way that promotes food safety. FWE products that meet these standards bear the NSF mark.
You may also see a designation that a product meets NSF/ANSI, which adds rules from the American National Standards Institute to the testing. ANSI works closely with NSF to develop its food safety standards and complete testing to those.
UL - The UL mark, which now serves customers in more than 100 countries, has become the authority on product safety. Its engineers test for things like soundness of design, safety of electrical components, and structural integrity of products for which UL listing is sought.
If you think of NSF International classification as protection for your customers, then the mark of Underwriters Laboratories (UL) indicates safety for those who work in your commercial kitchen. The Illinois-based testing agency assures that the equipment that gets its stamp operates safely. There is also a sanitation classification that offers similar assurances about food safety as the NSF mark. Products are indicated as "Classified UL-EPH."
Bumpers
Full Bumper - Heavy duty full perimeter bumper extends beyond doors and handles for added protection. The bumper is mounted to the base frame for added durability - the bumper is not used as the base frame. In this way, the bumper absorbs all the shock in transport, protecting the integrity of the construction.
Caster
6 Caster Configuration - 6 caster configuration increases the cabinets maneuverability, ideal for larger cabinets
6" Casters - 6" Heavy-duty casters - polyurethane casters are long lasting and used for easy maneuverability, even when fully loaded
Mobile
EZ Roll Heavy Duty Poly Caster - The EZ Roll Casters are standard on FWE cabinets and provide moderate floor protection with a high weight capacity.
EZ roll casters are shock absorbing and roll easier under heavy loads.

Available in 5", 6" and 8" diameters.
Construction
Stainless Steel / Insulated - Constructed of stainless steel, with welded base frame for added strength and durability - fully insulated cabinet and door provide energy efficient heating and longer holding times
Control Panel
Humi-Temp Controls - Controls are up-front, easy to read and set, and include a full range F/C thermostat for easy operation. Thermometer continuously reads cabinet temperature - even without power source!
Mechanical Controls - Mechanical controls
Door Count
1 Door
Door Hinge
Edgemount Hinges - Heavy-duty edge mount die cast hinges
Door Latch
Edgemount Latch - Edgemont door latch, full grip and positive closing
Doors
Full Stainless Steel Door - Flush mounted, stainless steel insulated doors
Gasket Sealed - Gasket sealed door; tight double seal makes for a perfect secure closure and easy to clean
Extra
Passive Humidity Pan - Passive humidity pan; provided to add optional humidity to cabinet environment and to prevent drying out food, improving food quality
Warranty - Two year limited warranty
Handles
Push Pull Handles - Push/pull handles allow for easy maneuvering. Handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands
Heat System
Humi-Temp Heat System - Heat source with passive humidity circulates heat evenly throughout cabinet.
Hinging
Hinges on Right Side - Right hand door hinging
Slides and Shelves
Fixed Shelves - Shelves are positioned into railings welded to body . Heavy-duty "no sag" shelves are removable to facilitate thorough cleaning

OPTIONS & ACCESSORIES

Caster
Larger & Upgraded Casters - Larger Casters
Control Panel
Electronic Controls - Electronic controls featuring easy to read digital display of cabinet temperature (with recall capacity of temperature set point and actual cabinet temperature), equipped with a programmable low temperature alarm, master ON/OFF switch with power indicator light.
Door Latch
Magnetic Door Latch - Heavy duty full grip magnetic door latch
Paddle Door Latch - Recessed paddle style door latch
Padlocking Transport Latch - Cabinet mounted latch keeps door secure during transport, increased security with padlocking capabilities
Key Locking Door Latch - Heavy duty door latch with key locking capabilities
Doors
Dutch Doors - Dutch doors help maintain cabinet temperature during peak serving times
Electrical
220-240 Volt - 220-240 Volt
Upgraded Element - Upgraded Element
Extra
Cord Winder Brackets - Cabinet mounted brackets allow for cord to be wrapped and out of the way when not in use
Dry Erase Board - Door mounted dry erase board for menu changes or cabinet identification
Menu Card Holder - Door mounted frame to display menu card
Plate Carriers - Carriers for covered and uncovered plates for easy loading and delivery
Handles
Tubular Push Handles - Heavy duty stainless steel push pull handles are secured to the unit with reinforced backing plate. Ergonomically designed to be easy on the hands
Ergo-drop down handles - Ergo-drop down handle
Hinging
Hinges on Left Side - Left hand door hinging, available on single door models only
Slides and Shelves
Extra Fixed Shelves - Additional shelves can be installed at the factory to meet your needs

LONG FORM SPEC

Specified unit shall be FWE Model P-180-XL, Heated Banquet Transport & Serve Cabinets.

CONSTRUCTION. Heliarc welded, single unit construction of stainless steel; 20 gauge polished exterior, 22 gauge stainless steel interior with easy-to-clean coved corners. Welded tubular base frame shall be 1 square, heavy gauge stainless steel tubing, with 10 gauge stainless steel reinforcing stress plates at corners.

INSULATION. "Ultra-Guard" UG-26 high density fiberglass insulation throughout; top, back, bottom, sides, and doo(s).

PUSH BARS HANDLES. Heavy-duty, solid formed 1 x .375 thick; mounted at each end of unit. Mounting reinforced with stainless steel channel.

BUMPER. Solid 1.5 wide continuous wraparound aluminum channel, bolted to frame, with snap-in, non-marking vinyl cushion. Full perimeter bumper extends beyond doors, handles, etc., for added protection. Shall be continuous, with corner cut-outs to facilitate cleaning.

DOORS AND LATCHES. Flush mounted, stainless steel insulated doors. High temperature gasket sealed; gasket shall be cabinet mounted. Each door shall have two (2) heavy-duty edgemount die cast hinges. Doors shall have edgemounted and full grip door latches. The hinge and latch mountings are reinforced with stainless steel backing plates.

CASTERS. Maintenance free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake. P-144-XL, P-180-XL and P-200-XL models shall be standard with a caster configuration of two (2) rigid and four (4) swivel with brake. Casters shall have a reinforced yoke mounted to 10 gauge caster plate. The caster mounting plate shall be secured to a 10 gauge stainless steel reinforcing stress plate via welded in place stainless steel studs. The reinforcing stress plates shall be welded to the heavy gauge tubular frame of the unit.

SHELVES. Triple plated, welded rod-type shelves shall be removable. Shelves shall be supported by high strength, "no sag" 14 gauge die-formed stainless steel brackets.

HEATING SYSTEM / CONTROLS. Patented built-in "Humi-Temp" system shall include an incoloy nickel-chromium alloy heating element and Hi-Temp, self-lubricated, impedance protected fan-cooled blower motor. Cabinet shall have humidifying chamber and drawer style baffled humidifier pan. Both shall be stainless steel and removable. Controls shall be up-front, recessed and shall include a full range thermostat adjustable to actual temperature. Thermostat shall include temperature scale marked in ten degree increments (F/C) from 90° to 190°F (32° to 88°C). An operational range thermometer, power supply light, thermostat cycling light, and 20 amp ON/OFF switch are also included.

ELECTRICAL CHARACTERISTICS. 3 wire grounded tri-directional power cord and plug, rear mounted for safety. See electrical data chart above for amperage and receptacle configuration. See electrical chart for models that require a dedicated circuit.

INSTALLATION. Unit should not be installed in an area where adverse environmental conditions are present.

Provided with the following options:
